REAR WINDOW DEFOGGER AND DOOR MIRROR HEATER

CIRCUIT DIAGRAMS

90-294

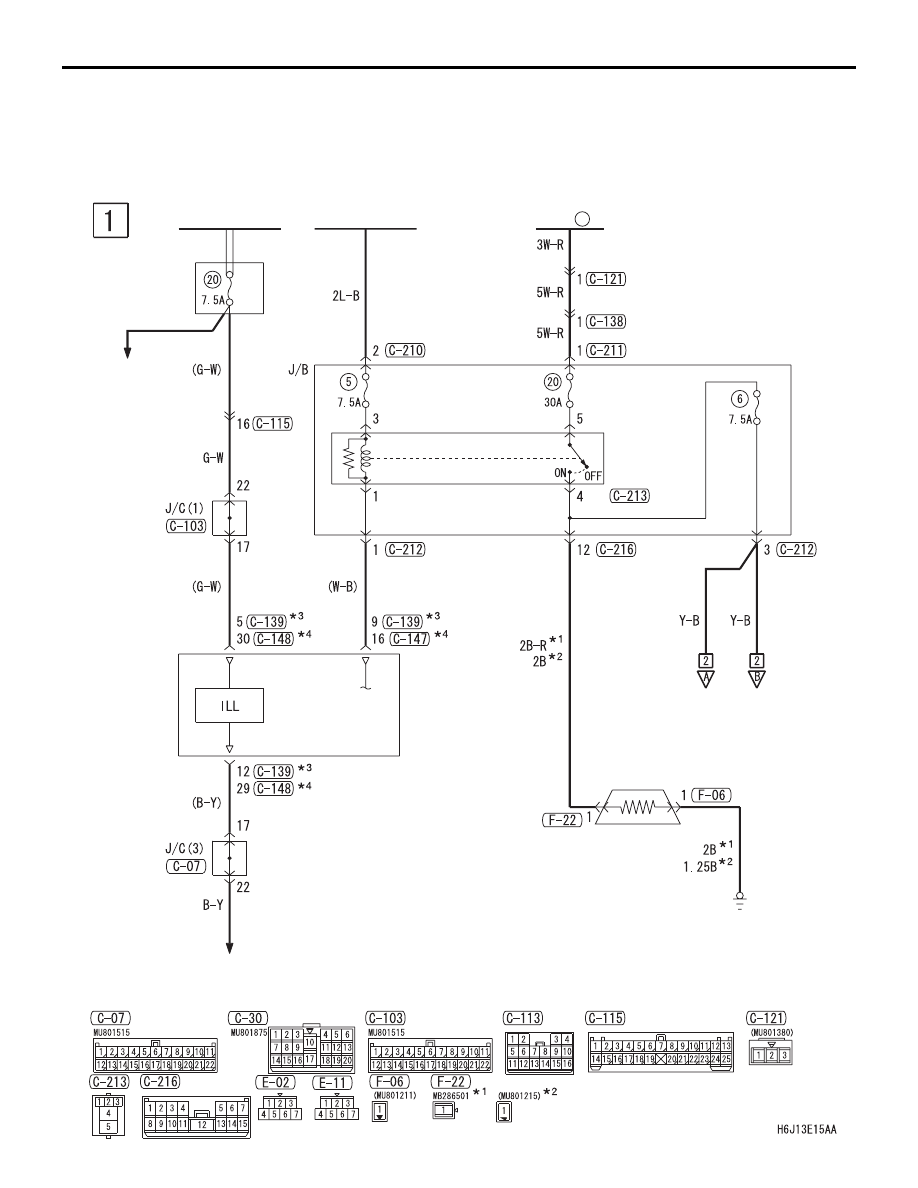

REAR WINDOW DEFOGGER AND DOOR MIRROR HEATER <RHD>

M1901013501125

IGNITION
SWITCH (IG2)

RELAY
BOX

RHEOSTAT

FRONT-ECU

TAIL LAMP
RELAY

(                   )

REAR
WINDOW
DEFOGGER
RELAY

REAR
WINDOW
DEFOGGER

A/C-ECU
OR
HEATER
CONTROL
UNIT

FUSIBLE
LINK

1

TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER

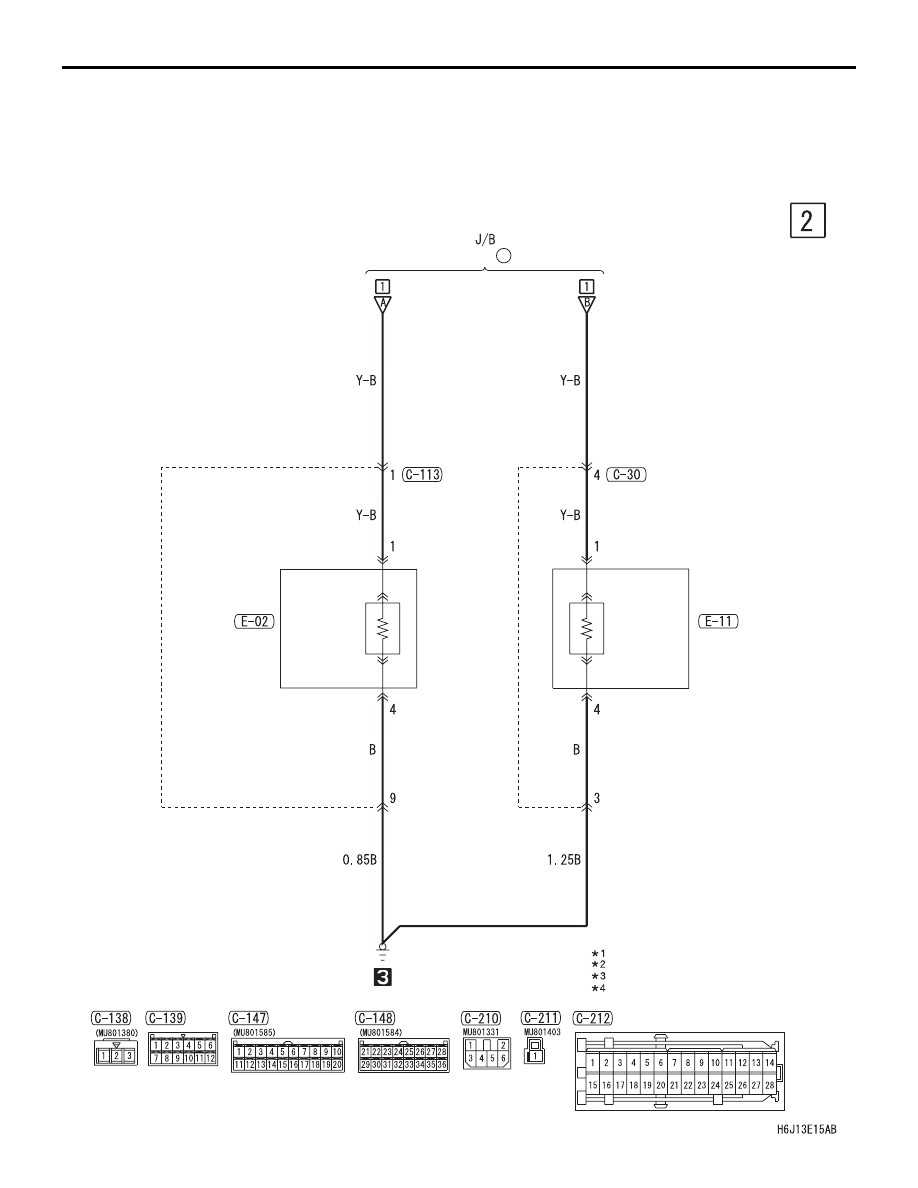

REAR WINDOW DEFOGGER AND DOOR MIRROR HEATER

CIRCUIT DIAGRAMS

90-295

(FUSE     )

6

MIRROR
HEATER

MIRROR
HEATER

REMOTE
CONTROLLED
MIRROR (RH)

REMOTE
CONTROLLED
MIRROR (LH)

NOTE

: SEDAN
: WAGON
: HEATER AND MANUAL AIR CONDITIONER
: AUTOMATIC AIR CONDITIONER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

REMOTE CONTROLLED MIRROR

CIRCUIT DIAGRAMS

90-296

REMOTE CONTROLLED MIRROR

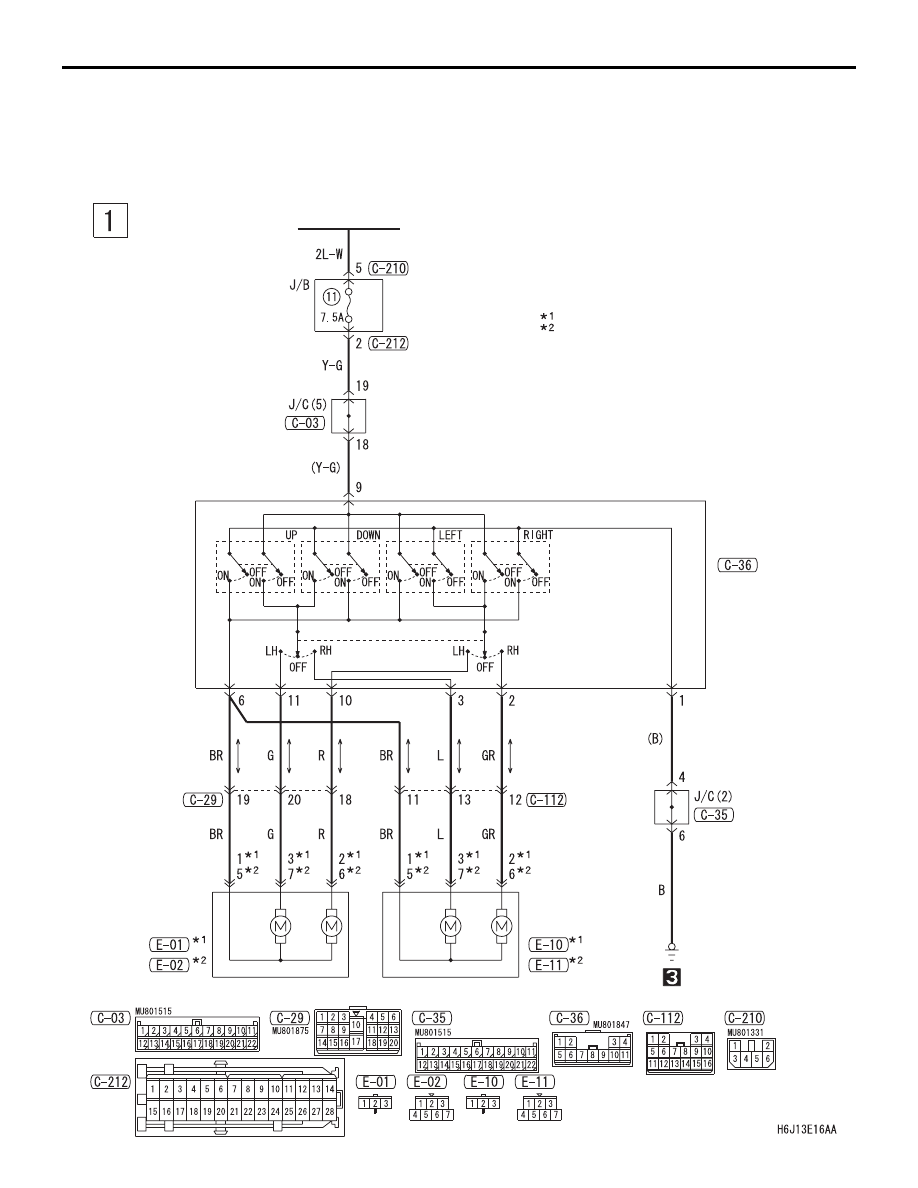

REMOTE CONTROLLED MIRROR <LHD>

M1901018800128

IGNITION
SWITCH (ACC)

REMOTE
CONTROLLED
MIRROR
SWITCH

NOTE

:  VEHICLES WITHOUT MIRROR HEATER
:  VEHICLES WITH MIRROR HEATER

REMOTE
CONTROLLED
MIRROR (RH)

REMOTE
CONTROLLED
MIRROR (LH)

REMOTE CONTROLLED MIRROR

CIRCUIT DIAGRAMS

90-297

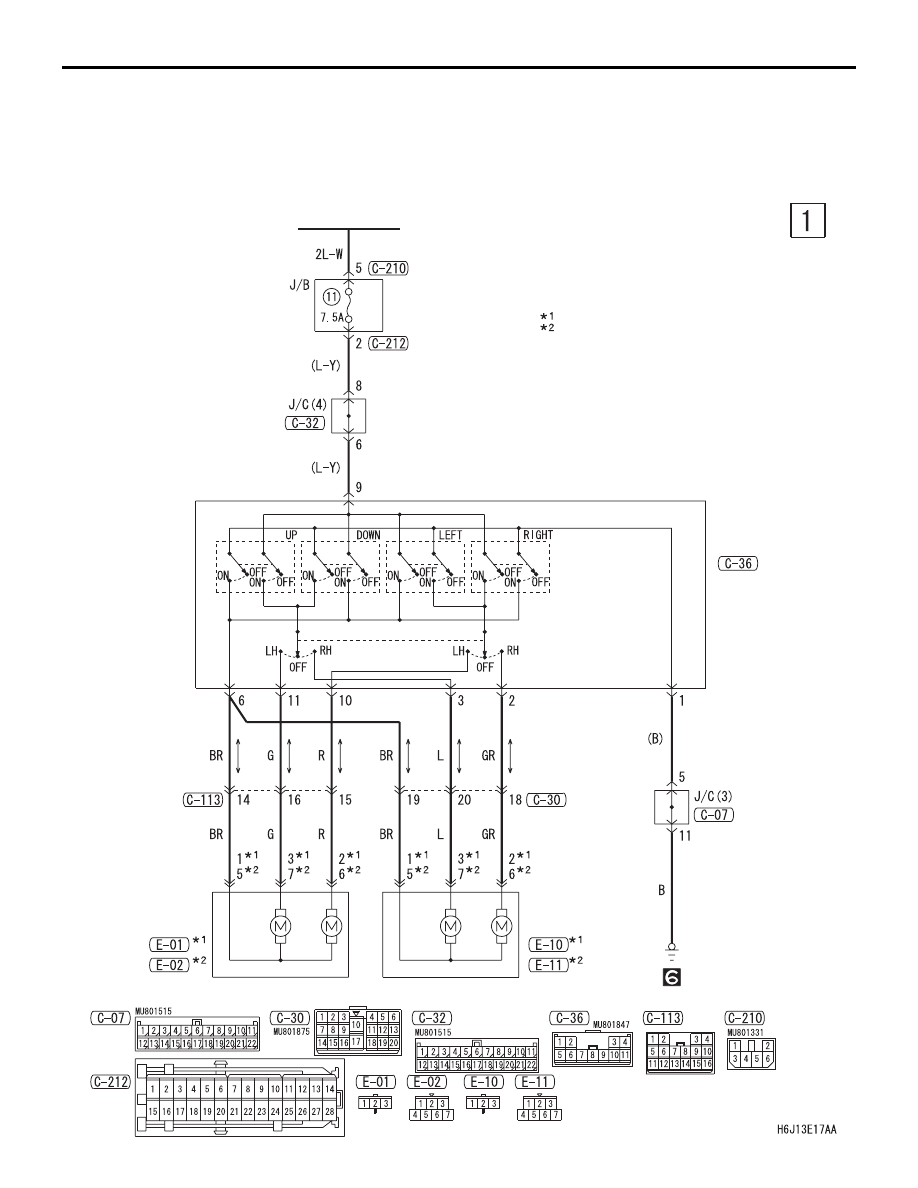

REMOTE CONTROLLED MIRROR <RHD>

M1901018800139

IGNITION
SWITCH (ACC)

REMOTE
CONTROLLED
MIRROR
SWITCH

NOTE

:  VEHICLES WITHOUT MIRROR HEATER
:  VEHICLES WITH MIRROR HEATER

REMOTE
CONTROLLED
MIRROR (RH)

REMOTE
CONTROLLED
MIRROR (LH)
