Mitsubishi Lancer. Manual - part 148

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-238

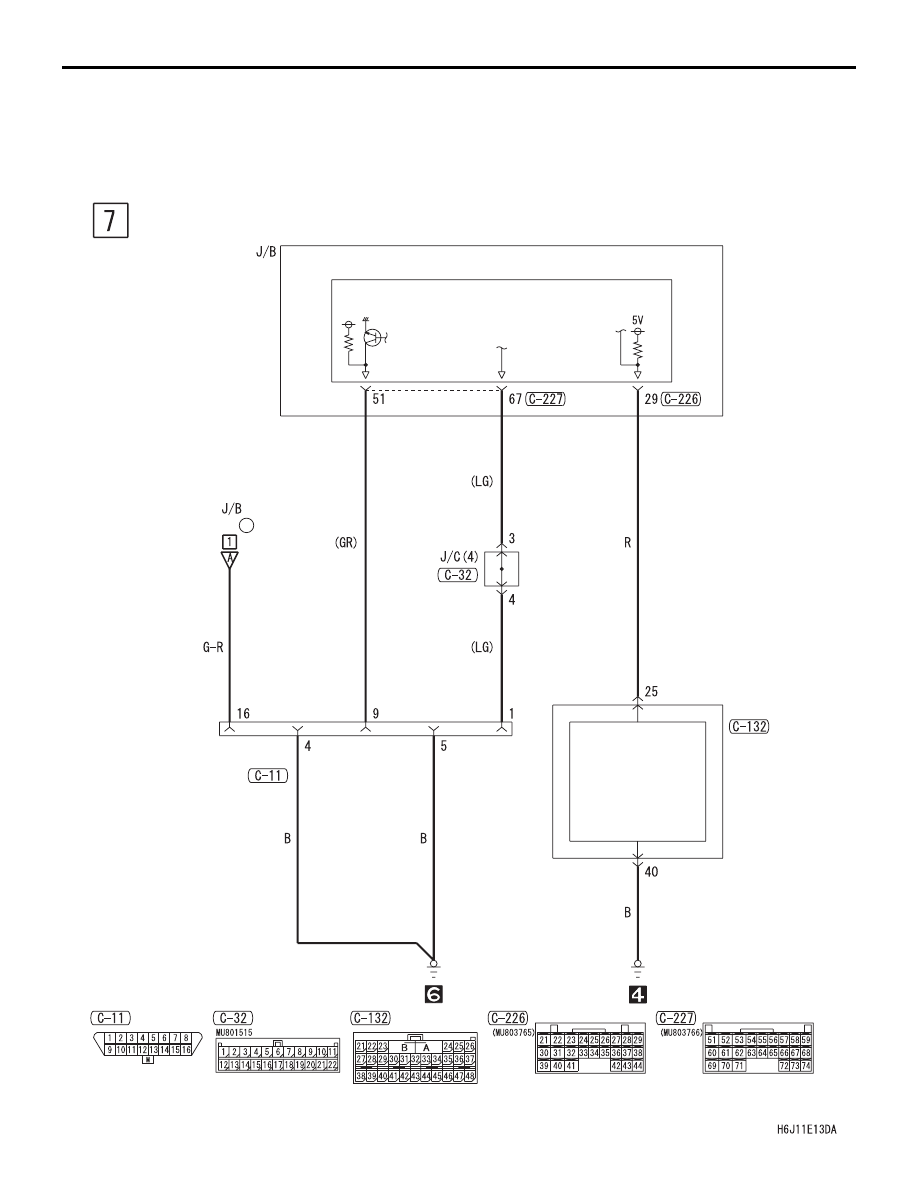

CENTRAL DOOR LOCKING SYSTEM <WAGON LHD WITH KEYLESS ENTRY> (CONTINUED)

ETACS-ECU

FRONT
SIDE

(FUSE     )

15

DIAGNOSIS
CONNECTOR

SRS-ECU

CRASH
DETECTION
DOOR
UNLOCK
SIGNAL
PROCESS
CIRCUIT

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-239

NOTES

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-240

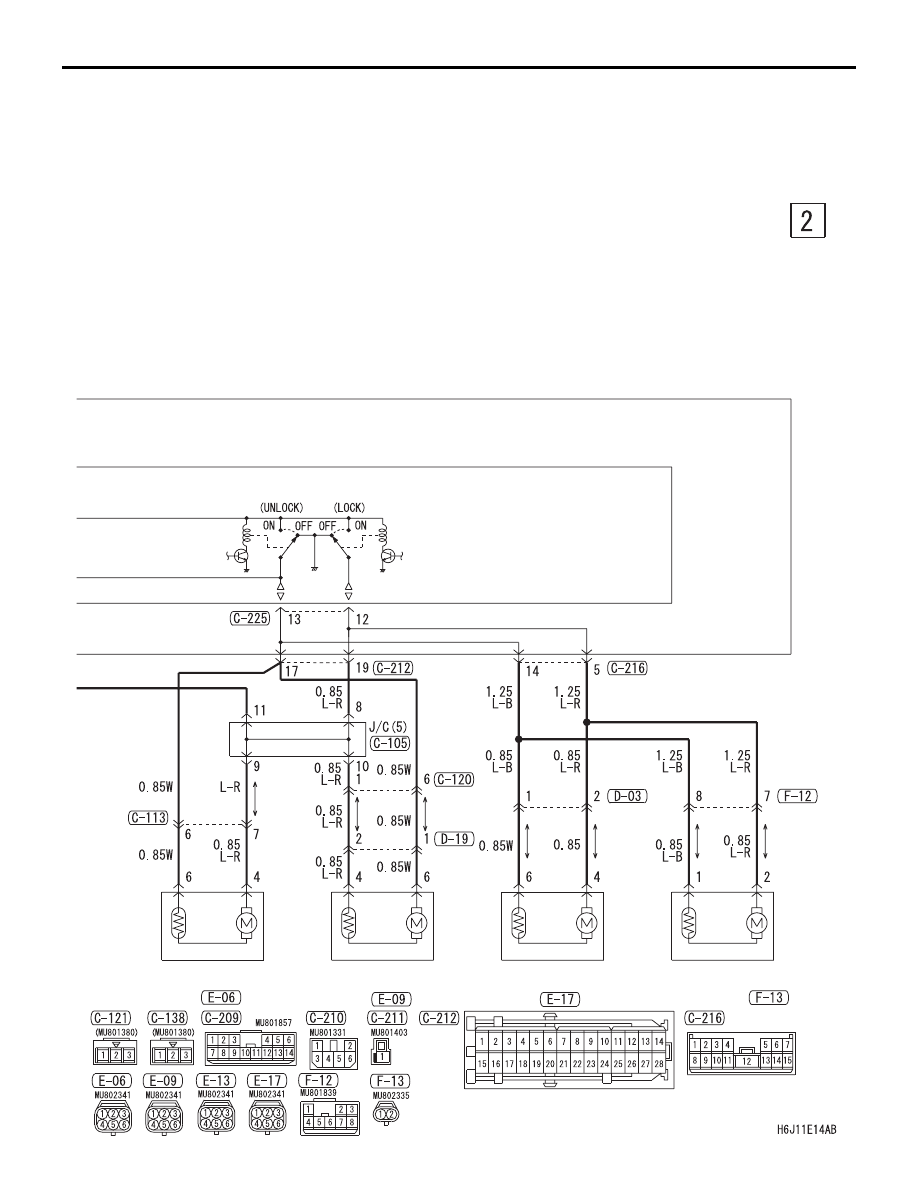

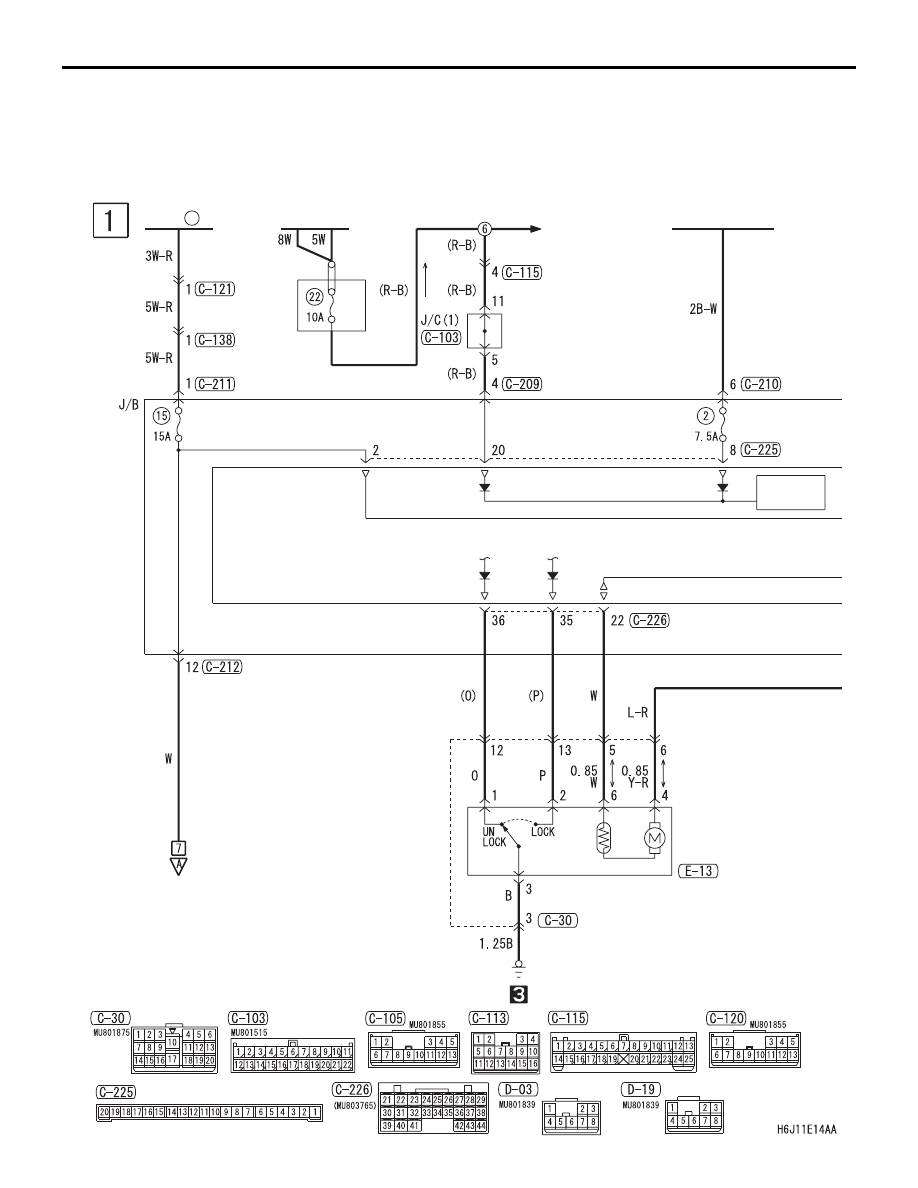

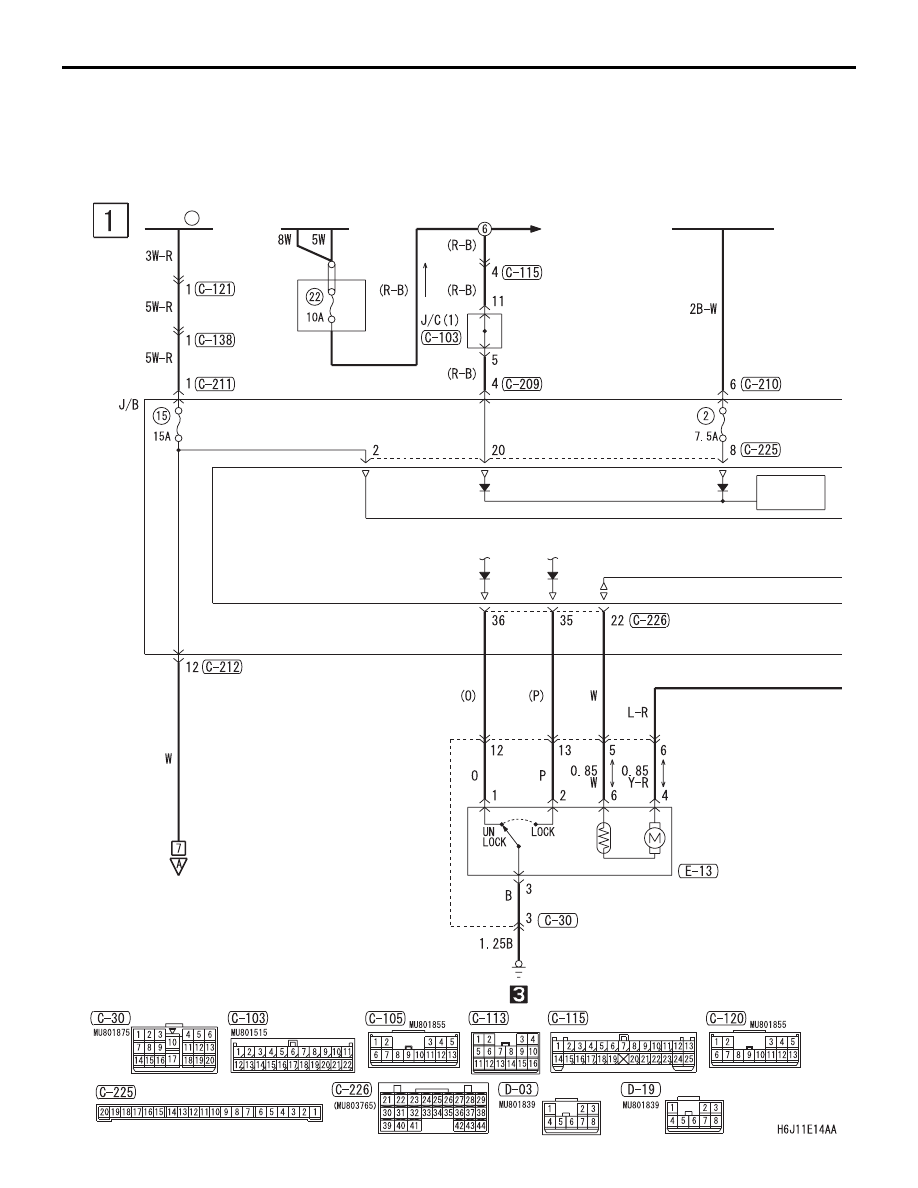

CENTRAL DOOR LOCKING SYSTEM <WAGON RHD WITH KEYLESS ENTRY>

M1901004703365

IGNITION
SWITCH (IG1)

BATTERY

POWER
SOURCE

FUSIBLE
LINK

1

FRONT
DOOR LOCK
ACTUATOR
(RH)

·FRONT
 FOG LAMP
·HEADLAMP
·HEADLAMP
 LEVELLING
 SYSTEM
·REAR FOG LAMP
·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING
 MONITOR BUZZER
·WINDSHIELD
 WIPER AND WASHER

RELAY
BOX

J/B SIDE

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-241

FRONT DOOR
LOCK ACTUATOR
(LH)

REAR DOOR
LOCK ACTUATOR
(LH)

ETACS-ECU

REAR DOOR
LOCK ACTUATOR
(RH)

TAILGATE
LOCK
ACTUATOR
