CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-226

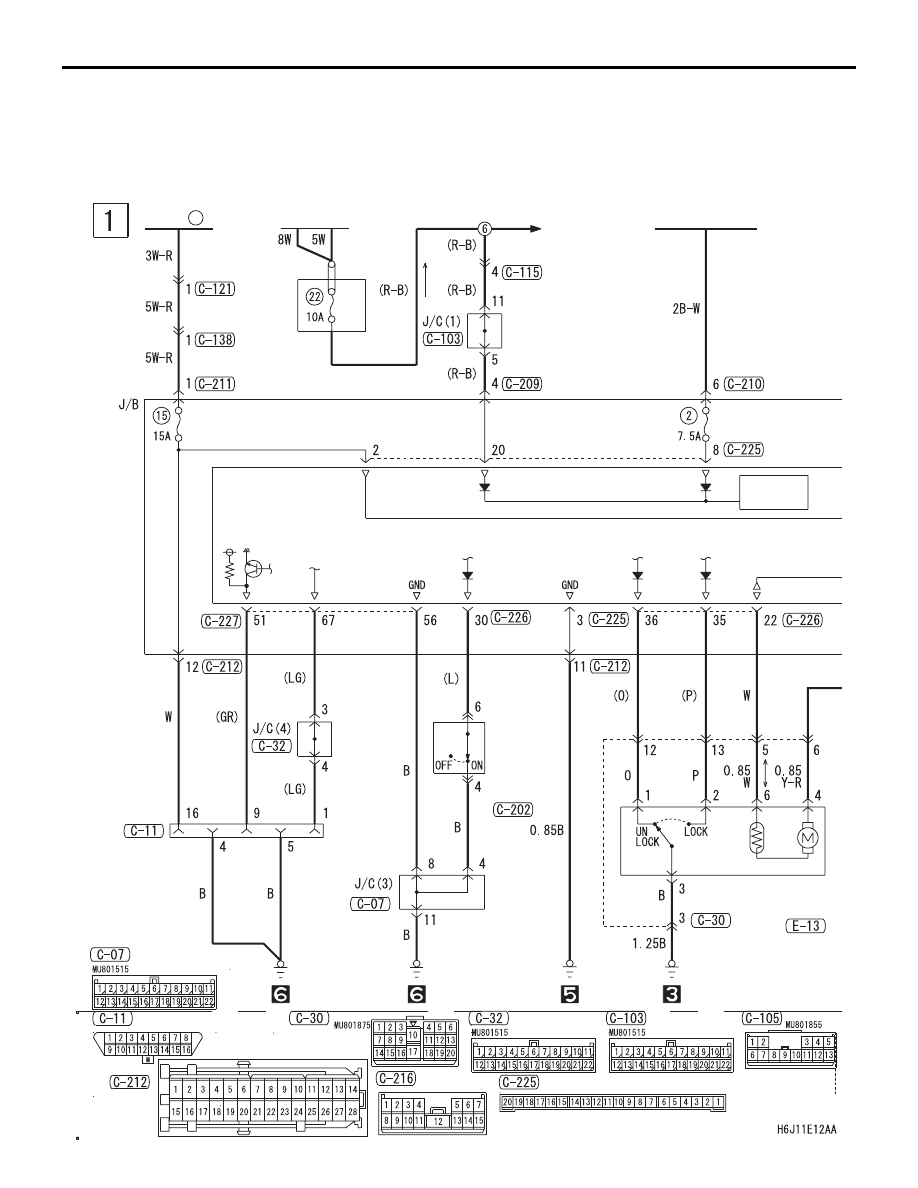

CENTRAL DOOR LOCKING SYSTEM <SEDAN RHD WITH KEYLESS ENTRY>

M1901004703343

IGNITION
SWITCH (IG1)

BATTERY

POWER
SOURCE

FUSIBLE
LINK

1

FRONT
SIDE

FRONT
DOOR LOCK
ACTUATOR
(RH)

DIAGNOSIS
CONNECTOR

·FRONT
 FOG LAMP
·HEADLAMP
·HEADLAMP
 LEVELLING
 SYSTEM
·REAR FOG LAMP
·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING
 MONITOR BUZZER
·WINDSHIELD
 WIPER AND WASHER

J/B SIDE

KEY
REMINDER
SWITCH
(WHEN
 REMOVING
 KEY: ON)

RELAY
BOX

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-227

FRONT
DOOR LOCK
ACTUATOR
(LH)

REAR DOOR
LOCK
ACTUATOR
(LH)

ETACS-ECU

REAR DOOR
LOCK
ACTUATOR
(RH)

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-228

CENTRAL DOOR LOCKING SYSTEM <SEDAN RHD WITH KEYLESS ENTRY> (CONTINUED)

BATTERY

RELAY
BOX

SIDE TURN
SIGNAL LAMP
(LH)

ETACS-
ECU

FRONT
TURN
SIGNAL
LAMP (LH)

REAR
COMBINATION
LAMP (RH)

REAR
COMBINATION
LAMP (LH)

J/B SIDE

TURN-SIGNAL
LAMP RELAY: RH

TURN-SIGNAL
LAMP RELAY: LH

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-229

SRS-ECU

CRASH
DETECTION DOOR
UNLOCK SIGNAL
PROCESS CIRCUIT

TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP

KEYLESS ENTRY
RECEIVER

KEYLESS ENTRY
TRANSMITTER

FRONT TURN
SIGNAL LAMP
(RH)

SIDE TURN
SIGNAL LAMP
(RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple
