CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-218

CENTRAL DOOR LOCKING SYSTEM <RHD WITHOUT KEYLESS ENTRY> (CONTINUED)

ETACS-ECU

(FUSE     )

15

DIAGNOSIS
CONNECTOR

SRS-ECU

CRASH DETECTION
DOOR UNLOCK
SIGNAL PROCESS
CIRCUIT

FRONT
SIDE

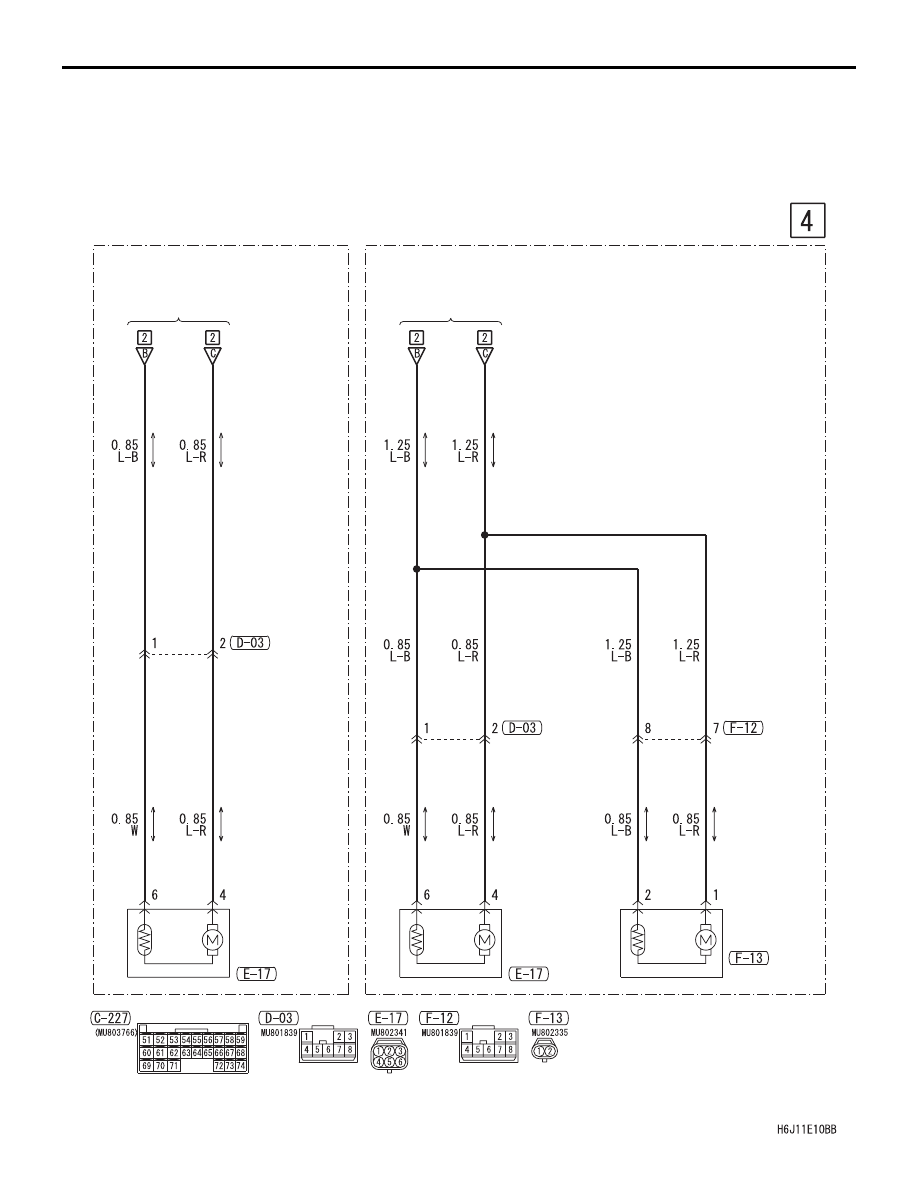

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-219

<SEDAN>

<WAGON>

ETACS-ECU

ETACS-ECU

REAR DOOR
LOCK
ACTUATOR
(RH)

REAR DOOR
LOCK
ACTUATOR
(RH)

TAILGATE
LOCK
ACTUATOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-220

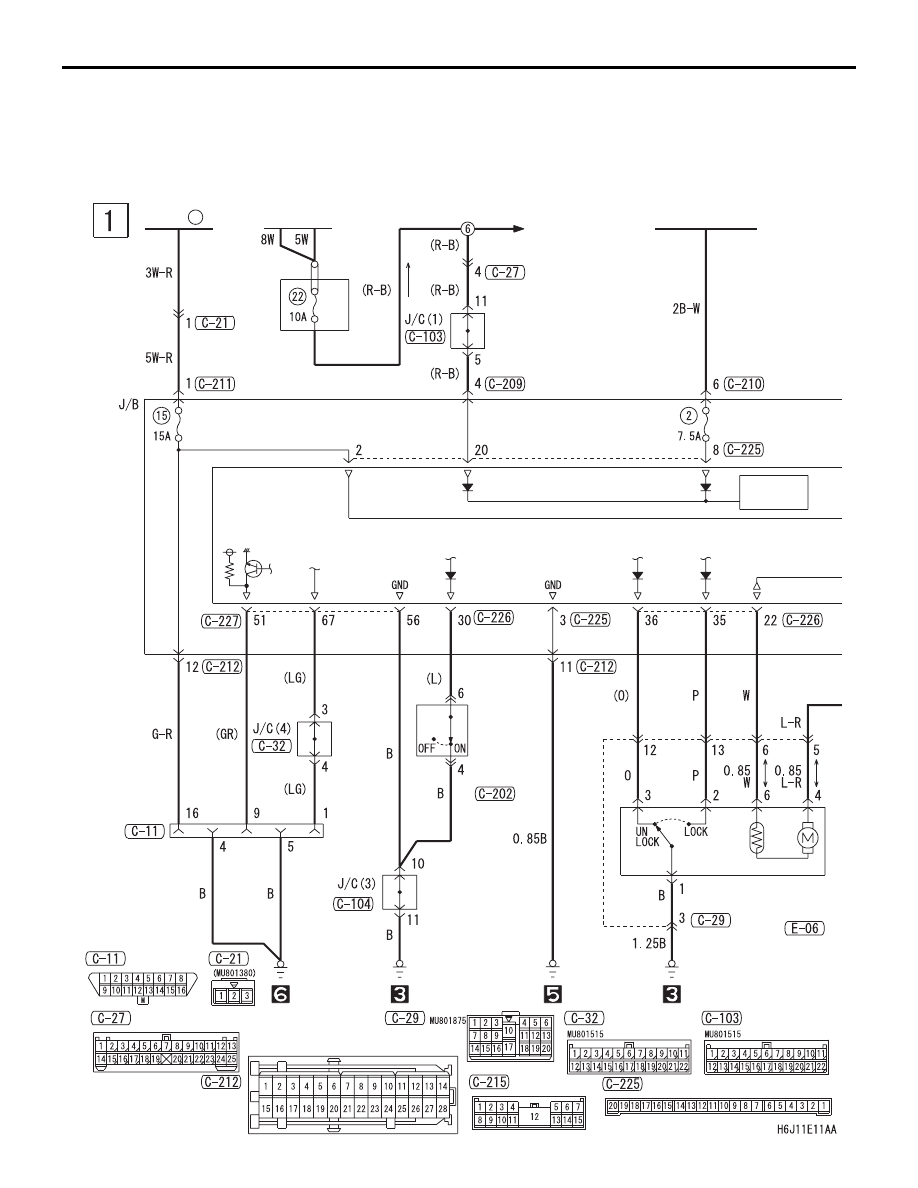

CENTRAL DOOR LOCKING SYSTEM <SEDAN LHD WITH KEYLESS ENTRY>

M1901004703332

IGNITION
SWITCH (IG1)

BATTERY

POWER
SOURCE

FUSIBLE
LINK

1

FRONT
SIDE

FRONT
DOOR LOCK
ACTUATOR
(LH)

DIAGNOSIS
CONNECTOR

J/B SIDE

KEY
REMINDER
SWITCH
(WHEN
 REMOVING
 KEY: ON)

RELAY
BOX

·FRONT
 FOG LAMP
·HEADLAMP
·HEADLAMP
 LEVELLING
 SYSTEM

·REAR FOG LAMP
·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING
 MONITOR BUZZER
·WINDSHIELD
 WIPER AND WASHER

·HEADLAMP
 WASHER

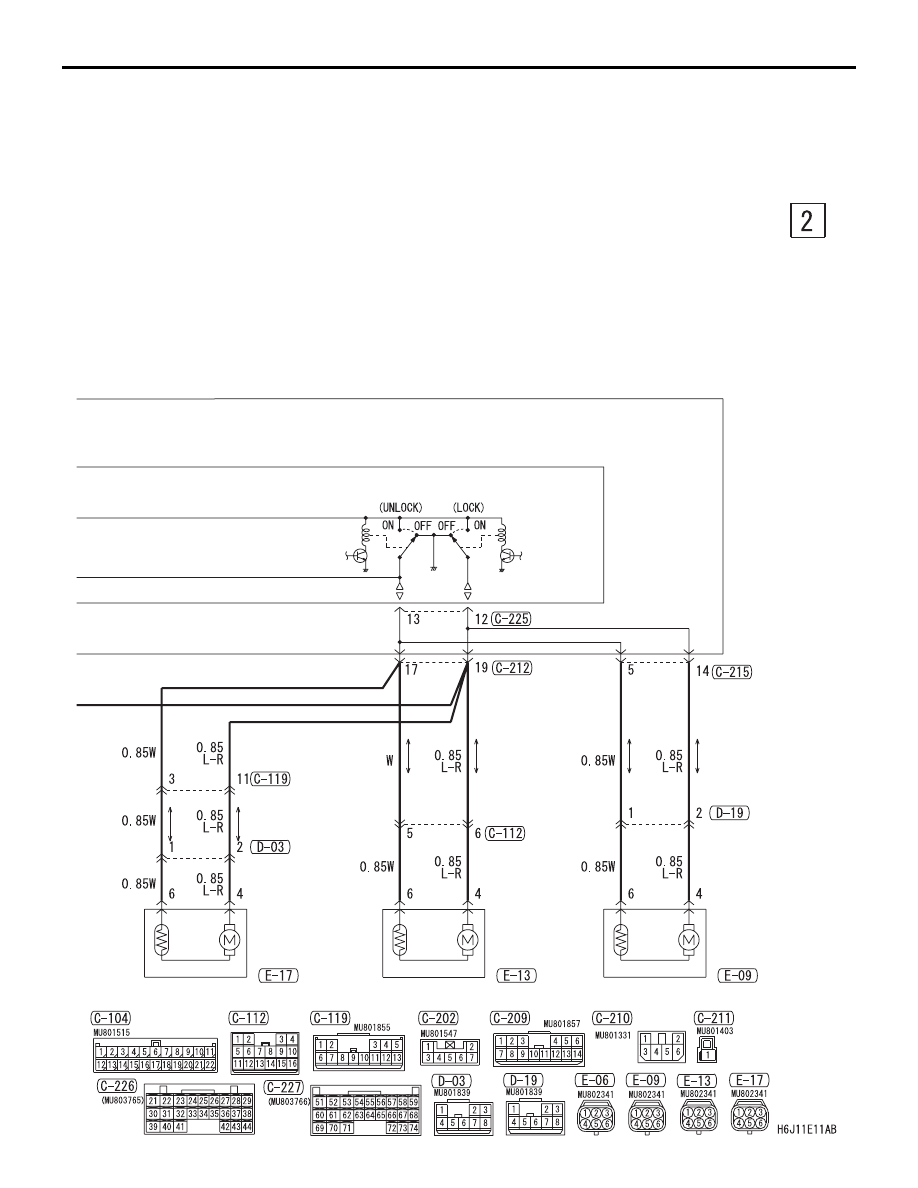

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-221

FRONT
DOOR LOCK
ACTUATOR
(RH)

REAR
DOOR LOCK
ACTUATOR
(LH)

ETACS-ECU

REAR
DOOR LOCK
ACTUATOR
(RH)
