Mitsubishi Lancer. Manual - part 87





TRUNK (LUGGAGE COMPARTMENT)

CONFIGURATION DIAGRAMS

80-50

TRUNK (LUGGAGE COMPARTMENT)

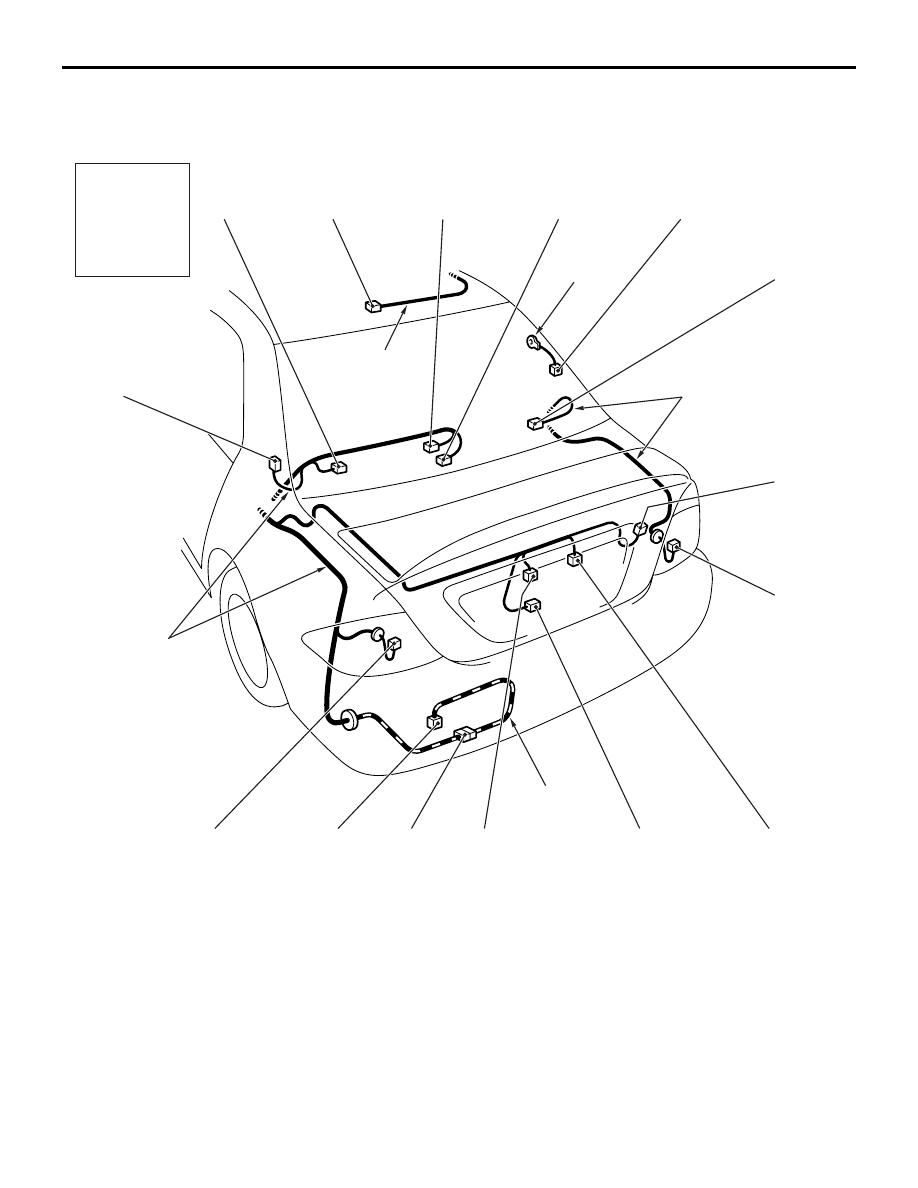

TRUNK (LUGGAGE COMPARTMENT) <SEDAN (LHD)>

M1801001500601

AC301171

AD

F-01

F-04

F-05

F-06

F-08

F-10

F-11

F-18

F-16

F-19

Floor wiring
harness (LH)

F-22

Defogger
earth

Floor wiring
harness (RH)

F-03

F-15

F-21

Rear bumper
wiring harness

Antenna
feeder cable

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

F-20

Connector
symbol

F

F-01

(2)

Rear speaker (LH)

F-03

(1)

Roof antenna

F-04

(2)

Luggage compartment lamp

F-05

(2-B)

High mount stop lamp <Rear shelf>

F-06

(1-B)

Rear window defogger (

−)

F-08

(2)

Rear speaker (RH)

F-10

(2)

High mount stop lamp <Rear spoiler>

F-11

(6-B)

Rear combination lamp (RH)

F-15

(2-GR) Licence plate lamp (RH)

F-16

(1-B)

Trunk lid latch switch

F-18

(2-GR) Licence plate lamp (LH)

F-19

(2-GR) Floor wiring harness (LH) and rear

bumper wiring harness combination

F-20

(2)

Rear fog lamp

F-21

(6-B)

Rear combination lamp (LH)

F-22

(1)

Rear window defogger (+)

TRUNK (LUGGAGE COMPARTMENT)

CONFIGURATION DIAGRAMS

80-51

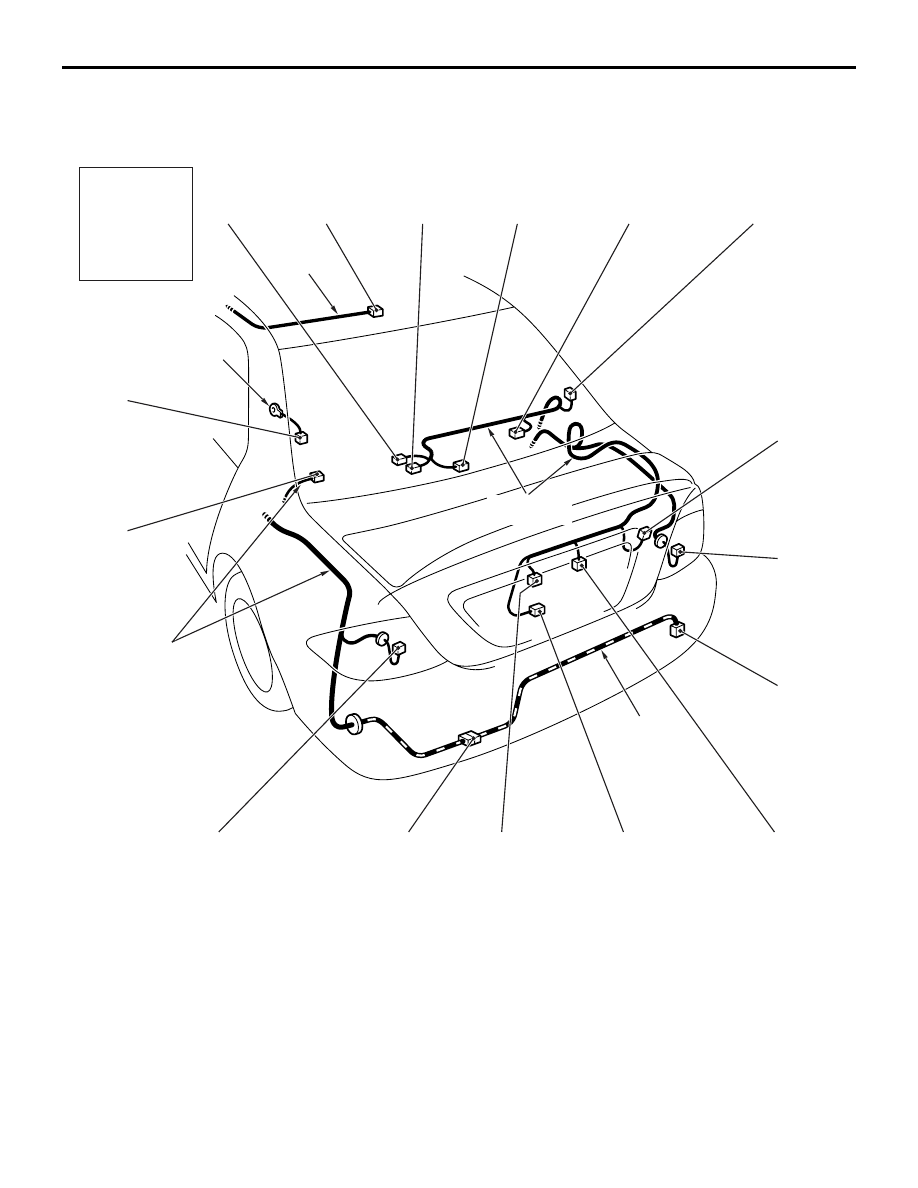

TRUNK (LUGGAGE COMPARTMENT) <SEDAN (RHD)>

M1801001500612

AC301172

AD

F-04

F-05

F-07

F-08

F-22

F-10

F-11

F-14

F-18

F-16

F-19

Floor wiring
harness (LH)

F-01

F-06

Defogger
earth

Floor wiring
harness (RH)

F-03

F-15

F-21

Rear bumper
wiring harness

Antenna
feeder cable

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

Connector
symbol

F

F-01

(2)

Rear speaker (LH)

F-03

(1)

Roof antenna

F-04

(2)

Luggage compartment lamp

F-05

(2-B)

High mount stop lamp <Rear shelf>

F-06

(1-B)

Rear window defogger (

−)

F-07

(4)

No connection

F-08

(2)

Rear speaker (RH)

F-10

(2)

High mount stop lamp <Rear spoiler>

F-11

(6-B)

Rear combination lamp (RH)

F-14

(2)

Rear fog lamp

F-15

(2-GR) Licence plate lamp (RH)

F-16

(1-B)

Trunk lid latch switch

F-18

(2-GR) Licence plate lamp (LH)

F-19

(2-GR) Floor wiring harness (LH) and rear

bumper wiring harness combination

F-21

(6-B)

Rear combination lamp (LH)

F-22

(1)

Rear window defogger (+)

TAILGATE

CONFIGURATION DIAGRAMS

80-52

TAILGATE

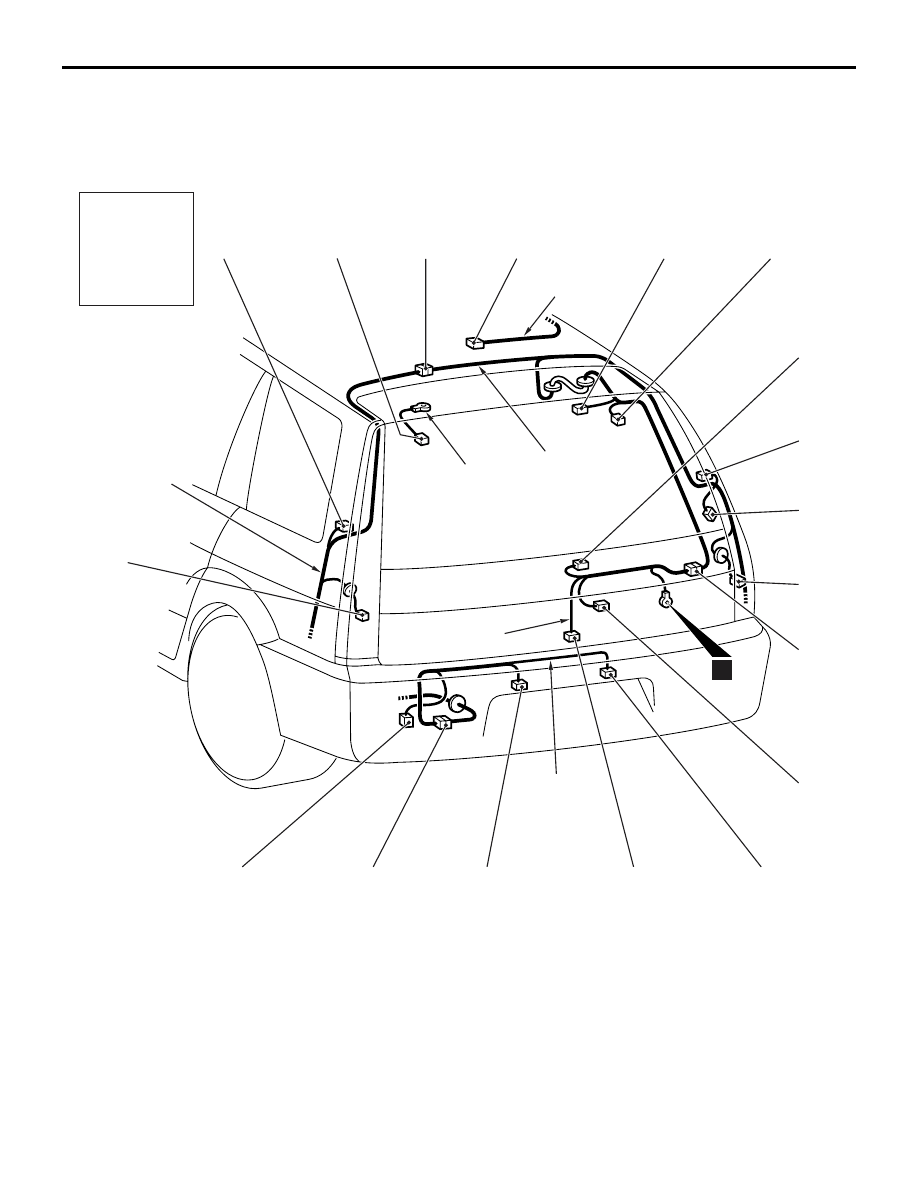

TAILGATE <WAGON (LHD)>

M1801001900654

AC301173

AD

F-01

F-02

F-03

F-10

F-22

F-09

F-11

F-17

F-19

Floor wiring
harness (LH)

F-21

Defogger
earth

Floor wiring
harness (RH)

F-06

F-15

Rear bumper
wiring harness

Antenna
feeder cable

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

F-20

F-07

F-08

F-12

F-18

F-13

8

Tailgate wiring
harness

Connector
symbol

F

F-01

(2)

Rear speaker (LH)

F-02

(6)

Floor wiring harness (LH) and Floor
wiring harness (RH) combination

F-03

(1)

Roof antenna

F-06

(1)

Rear window defogger (

−)

F-07

(4)

Rear wiper motor

F-08

(2)

Rear speaker (RH)

F-09

(2)

Accessory socket

F-10

(2)

High mount stop lamp <Rear spoiler>

F-11

(6-B)

Rear combination lamp (RH)

F-12

(8)

Floor wiring harness (RH) and tailgate
wiring harness combination

F-13

(2-B)

Tailgate lock actuator

F-15

(2-GR) Licence plate lamp (RH)

F-17

(1)

Tailgate switch

F-18

(2-GR) Licence plate lamp (LH)

F-19

(4-GR) Floor wiring harness (LH) and rear

bumper wiring harness combination

F-20

(2)

Rear fog lamp

F-21

(6-B)

Rear combination lamp (LH)

F-22

(1)

Rear window defogger (+)

TAILGATE

CONFIGURATION DIAGRAMS

80-53

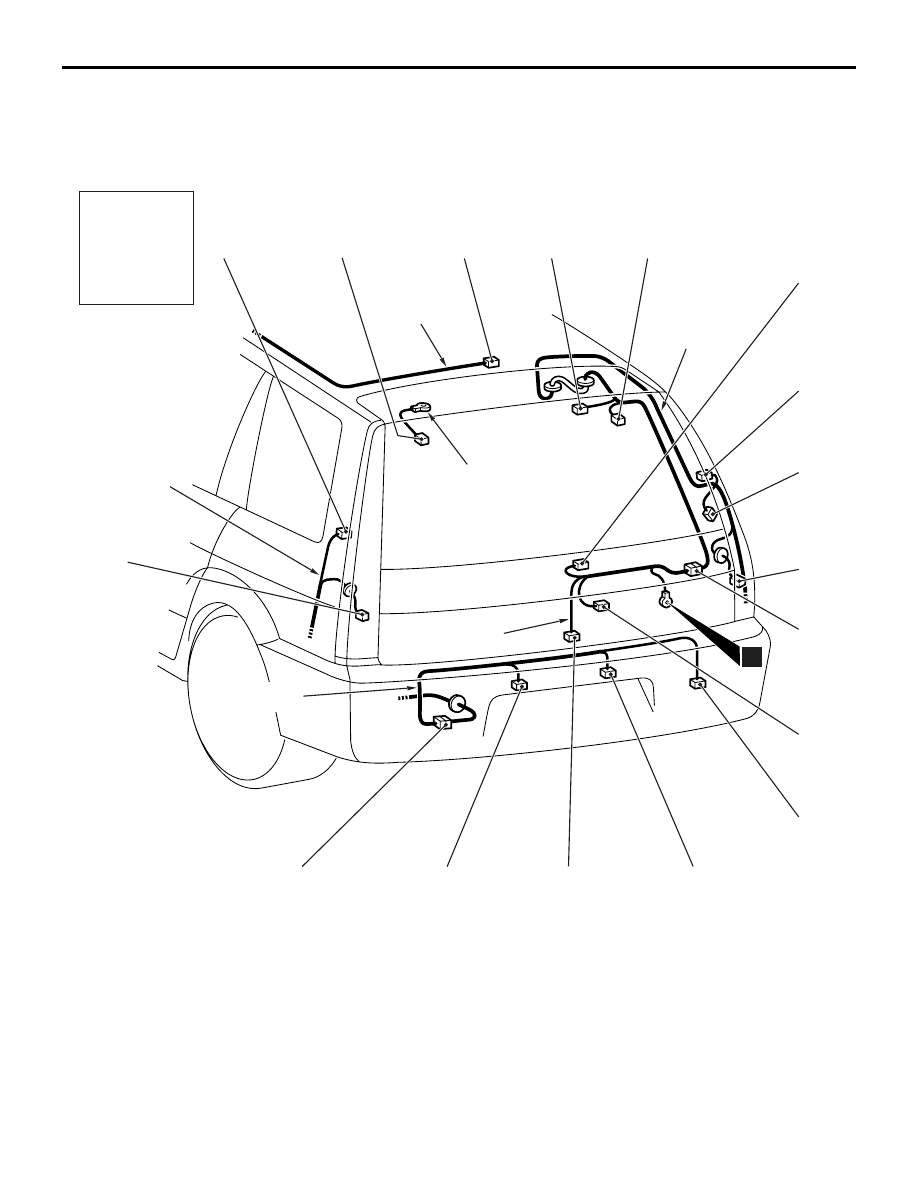

TAILGATE <WAGON (RHD)>

M1801001900665

AC301174

AD

F-01

F-03

F-10

F-22

F-09

F-11

F-17

F-19

Floor wiring
harness (LH)

F-21

Defogger
earth

Floor wiring
harness (RH)

F-06

F-15

Antenna
feeder cable

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

F-07

F-08

F-12

F-18

F-13

8

Tailgate wiring
harness

F-14

Rear bumper
wiring harness

Connector
symbol

F

F-01

(2)

Rear speaker (LH)

F-03

(1)

Roof antenna

F-06

(1)

Rear window defogger (

−)

F-07

(4)

Rear wiper motor

F-08

(2)

Rear speaker (RH)

F-09

(2)

Accessory socket

F-10

(2)

High mount stop lamp <Rear spoiler>

F-11

(6-B)

Rear combination lamp (RH)

F-12

(8)

Floor wiring harness (RH) and tailgate
wiring harness combination

F-13

(2-B)

Tailgate lock actuator

F-14

(2)

Rear fog lamp

F-15

(2-GR) Licence plate lamp (RH)

F-17

(1)

Tailgate switch

F-18

(2-GR) Licence plate lamp (LH)

F-19

(4-GR) Floor wiring harness (LH) and rear

bumper wiring harness combination

F-21

(6-B)

Rear combination lamp (LH)

F-22

(1)

Rear window defogger (+)
