DOOR

CONFIGURATION DIAGRAMS

80-46

DOOR

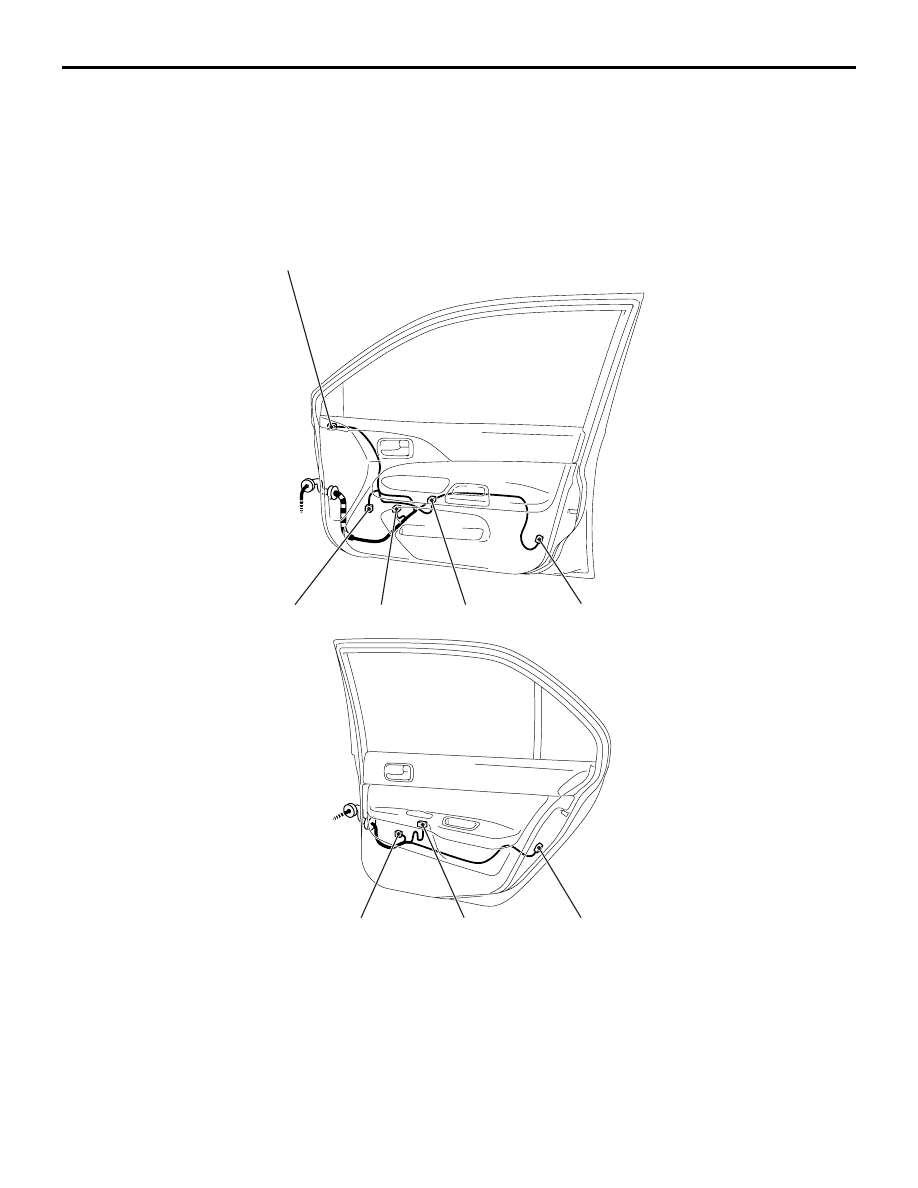

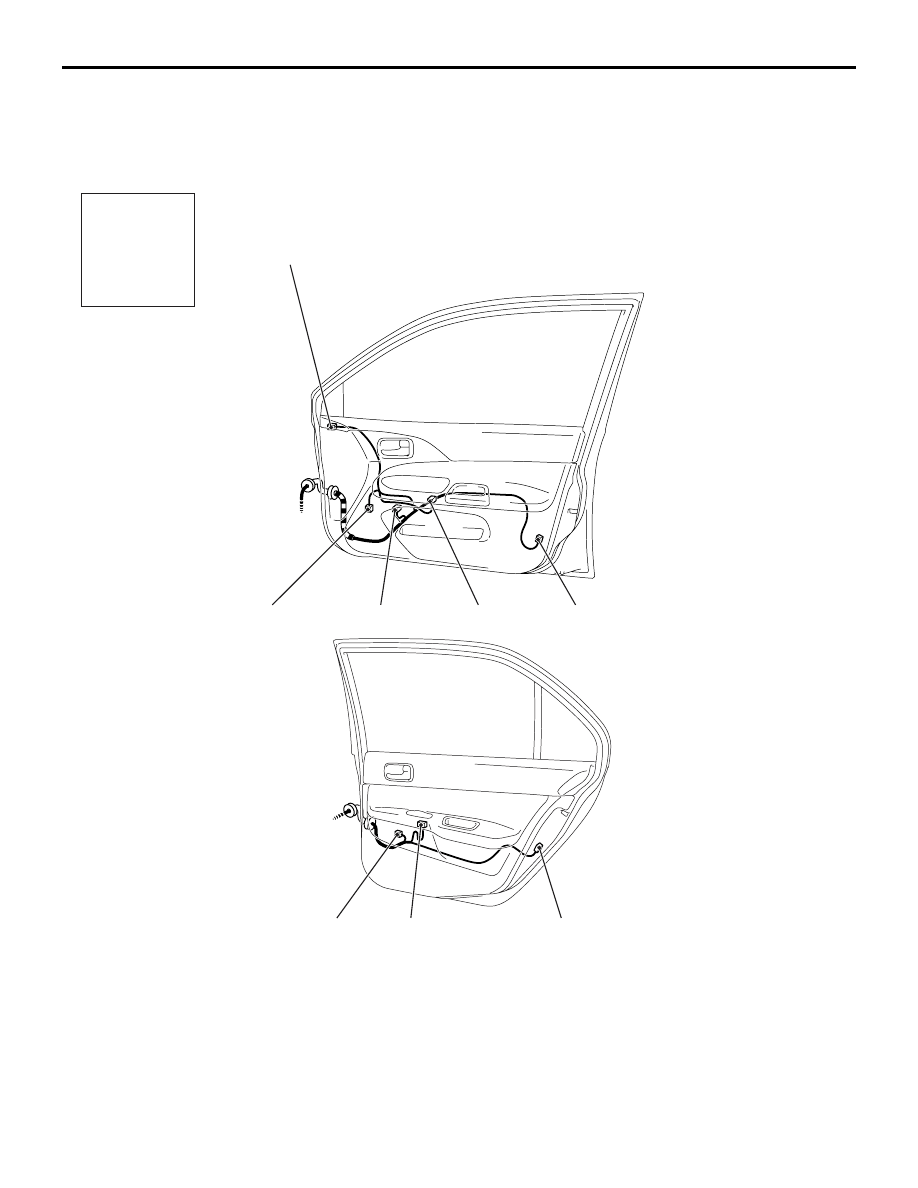

DOOR <LHD>

M1801001401458

AC301826

Connector
symbol

E

Driver's side

E-01
E-02

E-03

E-04

E-05

E-06

E-07

E-08

E-09

Front

Rear

AB

E-01

(3)

Remote controlled mirror (LH) <Vehicles
without door mirror heater>

E-02

(7)

Remote controlled mirror (LH) <Vehicles
with door mirror heater>

E-03

(2)

Front door speaker (LH)

E-04

(6-GR) Front power window motor (LH)

E-05

(14)

Power window main switch

E-06

(6-B)

Front door lock actuator (LH)

E-07

(6-GR) Rear power window motor (LH)

E-08

(8)

Rear power window sub switch (LH)

E-09

(6-B)

Rear door lock actuator (LH)

E-10

(3)

Remote controlled mirror (RH) <Vehicles
without door mirror heater>

AC502063

Passenger's side

E-10
E-11

E-14

E-15

E-16

E-17

E-18

E-19

Front

Rear

AB

E-13

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

E-11

(7)

Remote controlled mirror (RH) <Vehicles
with door mirror heater>

E-13

(6-B)

Front door lock actuator (RH)

E-14

(8)

Front power window sub switch (RH)

E-15

(6-GR) Front power window motor (RH)

E-16

(2)

Front door speaker (RH)

E-17

(6-B)

Rear door lock actuator (RH)

E-18

(8)

Rear power window sub switch (RH)

E-19

(6-GR) Rear power window motor (RH)

DOOR

CONFIGURATION DIAGRAMS

80-47

DOOR

CONFIGURATION DIAGRAMS

80-48

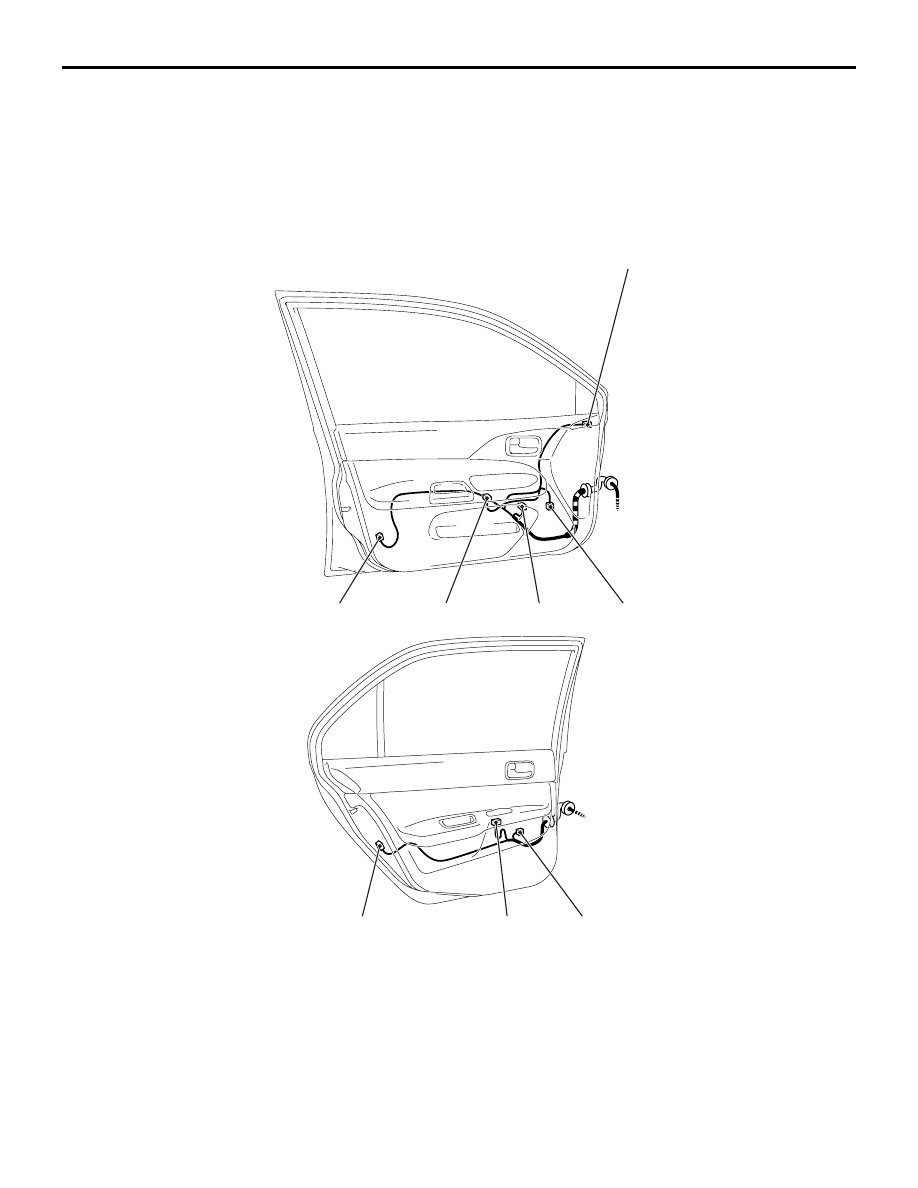

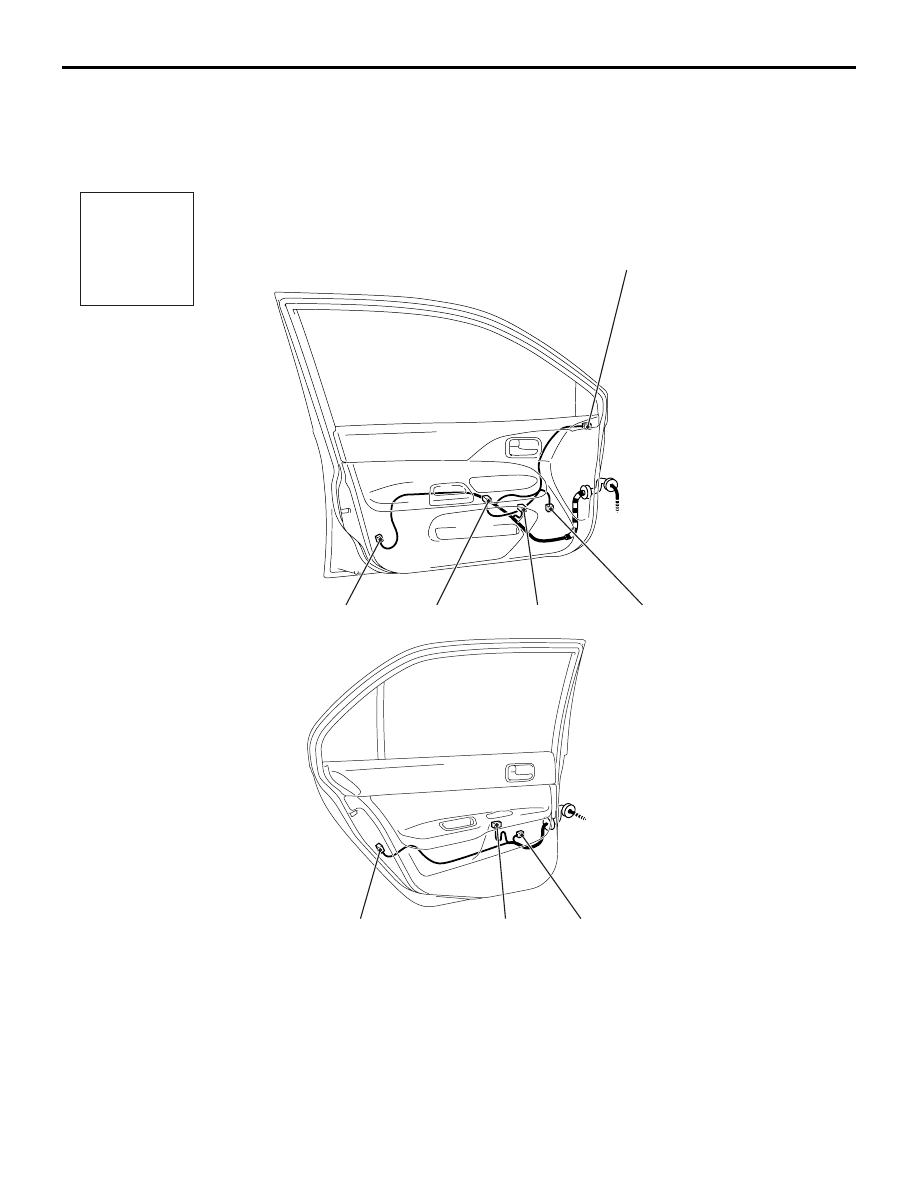

DOOR <RHD>

M1801001401469

AC301883

Connector
symbol

E

Driver's side

E-10
E-11

E-13

E-05

E-15

E-16

E-17

E-18

E-19

Front

Rear

AB

E-01

(3)

Remote controlled mirror (LH) <Vehicles
without door mirror heater>

E-02

(7)

Remote controlled mirror (LH) <Vehicles
with door mirror heater>

E-03

(2)

Front door speaker (LH)

E-04

(6-GR) Front power window motor (LH)

E-05

(14)

Power window main switch

E-06

(6-B)

Front door lock actuator (LH)

E-07

(6-GR) Rear power window motor (LH)

E-08

(8)

Rear power window sub switch (LH)

E-09

(6-B)

Rear door lock actuator (LH)

E-10

(3)

Remote controlled mirror (RH) <Vehicles
without door mirror heater>

AC502064

Passenger's side

E-01
E-02

E-03

E-04

E-20

E-06

E-07

E-08

E-09

Front

Rear

AB

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

E-11

(7)

Remote controlled mirror (RH) <Vehicles
with door mirror heater>

E-13

(6-B)

Front door lock actuator (RH)

E-15

(6-GR) Front power window motor (RH)

E-16

(2)

Front door speaker (RH)

E-17

(6-B)

Rear door lock actuator (RH)

E-18

(8)

Rear power window sub switch (RH)

E-19

(6-GR) Rear power window motor (RH)

E-20

(8)

Front power window sub switch (LH)
