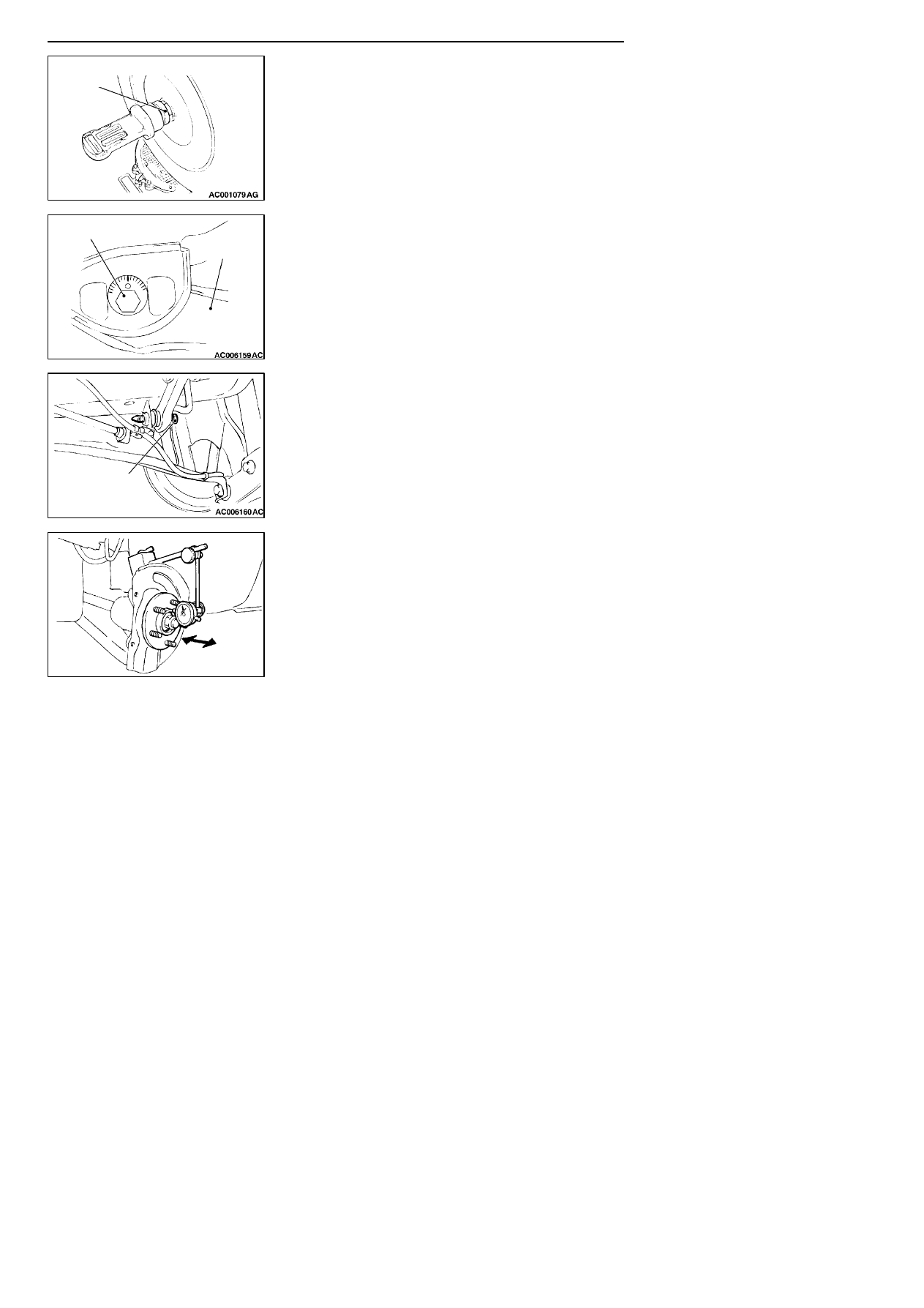

PRE-DELIVERY INSPECTION --
Operations outside the Vehicle
2-28
TOE-OUT ANGLE ON TURNS
To check the steering linkage, especially after the vehicle
has been involved in an accident or if an accident is
presumed, it is advisable to check the toe-out angle on turns
in addition to the wheel alignment.
Conduct this test on the left turn as well as on the right turn.
Standard value:
Item
Specifications
Toe-out angle on turns
(inner wheel when outer wheel at 20
_)
21
_42’ ± 1_30’
CAMBER, CASTER AND KINGPIN INCLINATION
Standard value:
Item
Specifications
Item
Comfort
Sport
Camber
0
_05’ ± 30’*
--
0
_05’ ± 30’*
Caster
2
_45’ ± 30’*
2
_55’ ± 30’*
Kingpin inclination
12
_30’ ± 1_30’
12
_40’ ± 1_30’
NOTE
(1) *: difference between right and left wheels must be less
than 30’.
(2) Camber and caster are preset at the factory and cannot
be adjusted.

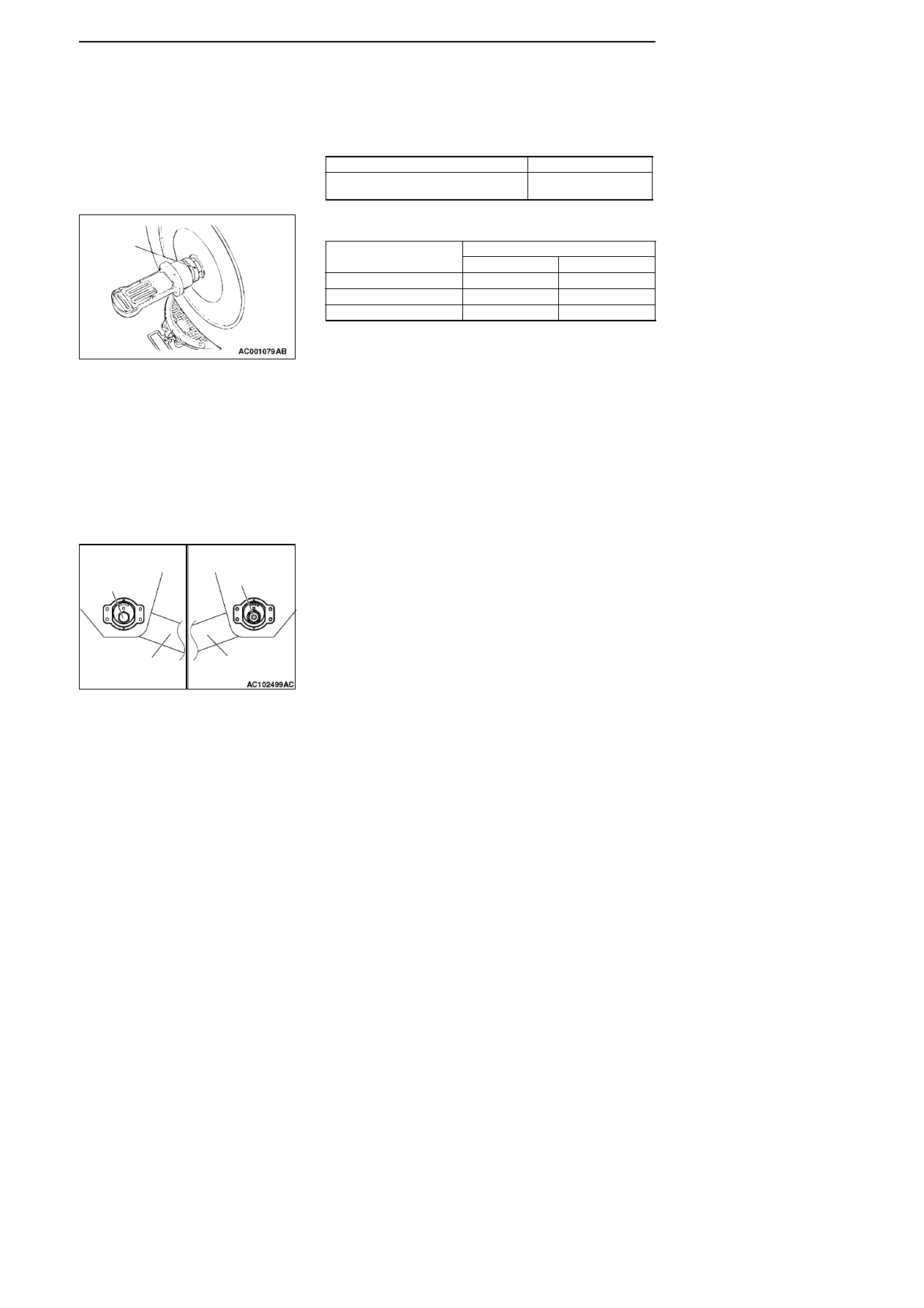

(3) For vehicles with aluminium wheels, attach the
camber/caster/kingpin gauge to the driveshaft by using
special tool wheel alignment gauge attachment
(MB991004).
Tighten the special tool to the same torque 245
±
29 N·m
as the driveshaft nut.
Caution
To prevent the wheel bearing from damage, never
subject the wheel bearings to the vehicle load when the
driveshaft nuts are loosened.
REAR TOE-IN
Standard value:
At the centre of tyre tread: 3
± 2 mm
Toe angle (per wheel): 0
_08’ ± 05’
(1) Be sure to adjust the camber before making toe
adjustment.
(2) Carry out adjustment by turning the toe adjusting bolt
(control link mounting bolt which is located on the inner
side of the body).
Left wheel: Turning clockwise (+) toe-in
Right wheel: Turning clockwise (--) toe-in
NOTE
The scale has gradations of approximately 2.6 mm
(single side toe angle equivalent to 16’).
Caution
To prevent bushings from breakage, the control link
mounting nut should be temporarily tightened, and
then fully tightened to 120
± 10 N·m with the vehicle
on the ground in the unladen condition.
MB991004
Toe adjusting
bolt
120
± 10 N·m
Control link
Control link
