CENTRE PILLAR

WELDED PANEL REPLACEMENT

3-18

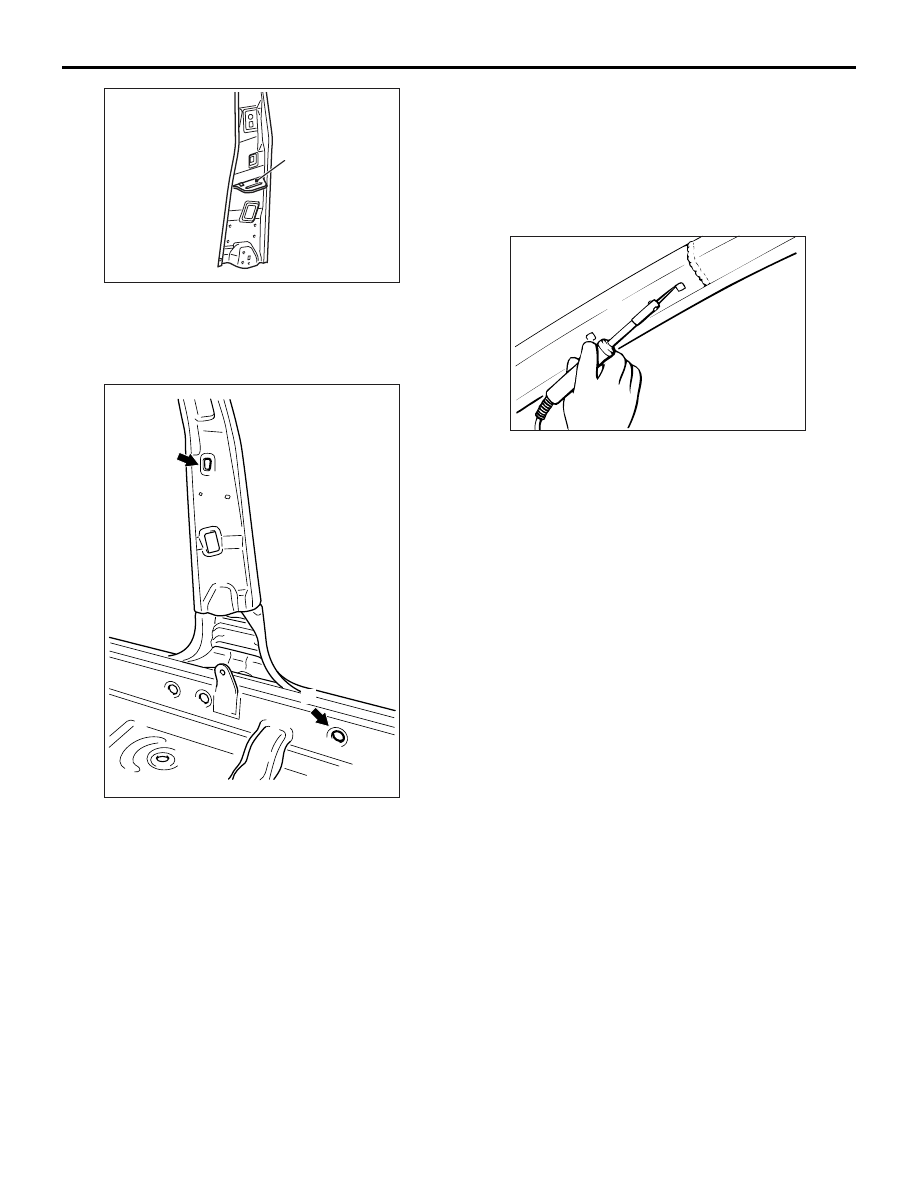

5. When attaching the centre pillar inner, attach the

centre pillar silencer protector to the centre pillar
inner, and seal the holes of the centre pillar
silencer protector with butyl tape.

6. Assemble the side outer panel, then cover the

hole and flange with bolt and aluminium tape and
fill the hole with foam materials A and B as shown
in the figure of the instructions.

• FOAM (Hole A): 3M ATD ULTRAPRO

Panel foam-Yellow

• FOAM (Hole B): 3M ATD Super panel filler

7. Wait 2 hours after filling the foam materials to

remove the bolt and aluminium tape, then melt the
foam materials with a soldering gun so a clip, etc.
can thoroughly be inserted in the hole filled with
foam materials.

AB301068 AB

Centre pillar
silencer protector

AB301069

A

B

AB

AB301070AB

CENTRE PILLAR

WELDED PANEL REPLACEMENT

3-19

NOTES

SIDE SILL

WELDED PANEL REPLACEMENT

3-20

SIDE SILL

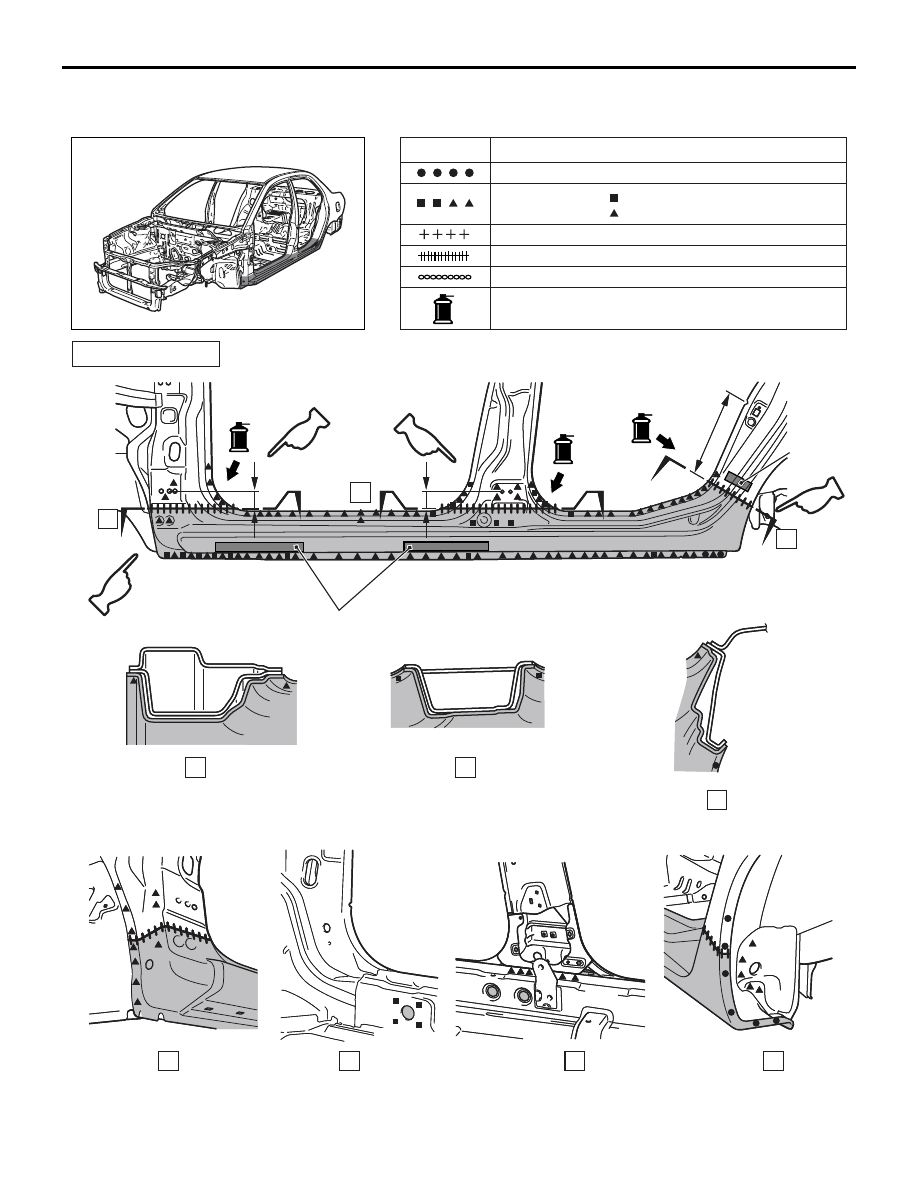

M4030007000191

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

Symbol

Operation description

AB300995AB

AB301072

AB301072

D

E

F

G

AB

REPAIR WELDS

B

C

A

70 mm

70 mm

290 mm

A

B

C

Acoustic
foam

High-rigidity foam

D

G

E

F

(Right side)

SIDE SILL

WELDED PANEL REPLACEMENT

3-21

CAUTION

Do not use heat at areas using foam material as the foam material may burn.

NOTE ON REPAIR WORK
REMOVAL

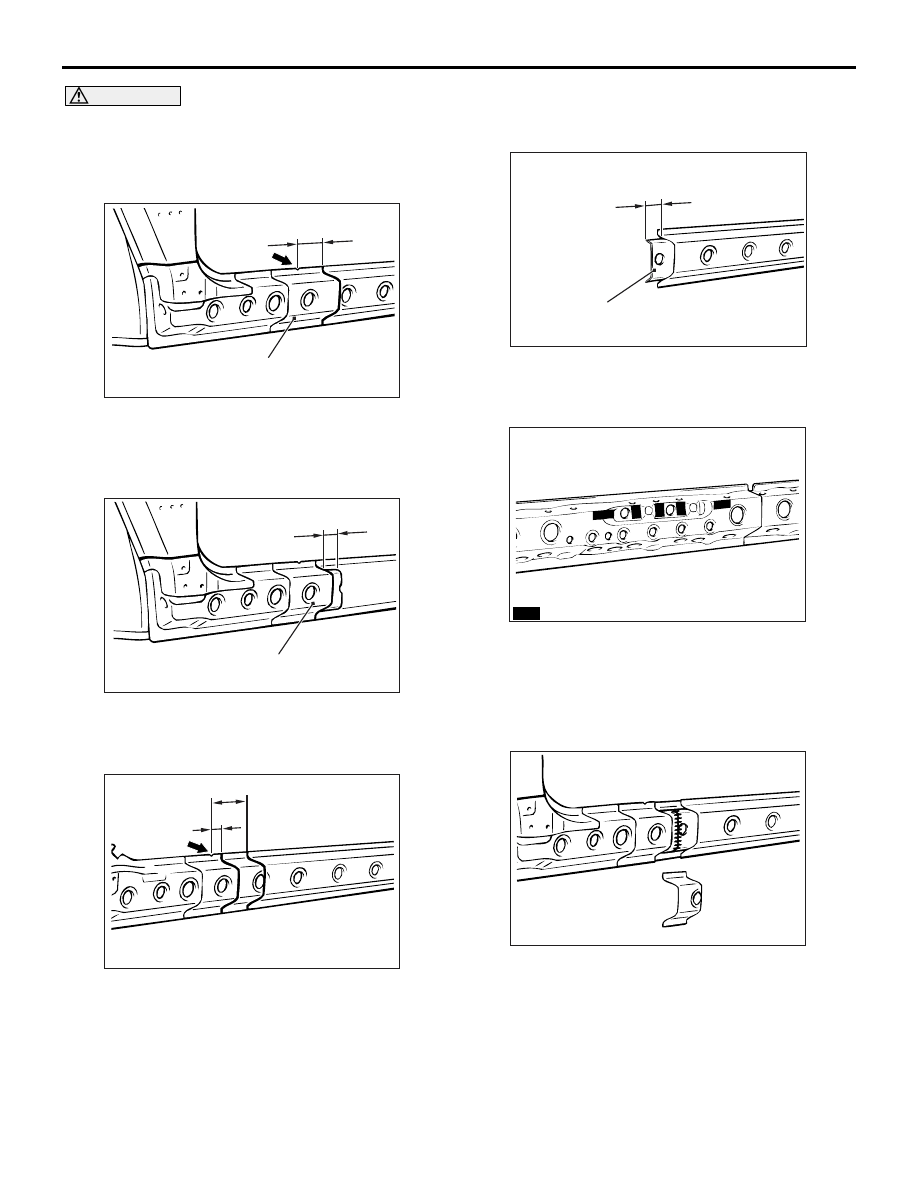

To remove the side sill outer reinforcement, cut it 60
mm behind the notch.

INSTALLATION

1. Cut only the side sill outer reinforcement centre

on the body-side, 50 mm forward of the cut area
and then remove.

2. Cut only the side sill outer reinforcement centre of

the new side sill outer reinforcement parts from
110 mm behind the notch, then cut from another
10 mm behind the notch and remove. Re-use the
parts removed.

3. Cut the side sill reinforcement support 50 mm

forward of the cut area of the side sill outer
reinforcement centre.

4. Adhere in advance adhesives in the areas shown

in the figure of the instructions when assembling
the side sill outer reinforcement.

Adhesive: Epoxyayresin adhesive
Brand: 3M ATD Part No.8115 or equivalent

5. After assembling the new parts to the body, weld

the side sill reinforcement support, then weld the
part cut from the side sill outer reinforcement
centre.

AB200598

60 mm

AE

Notch

Side sill outer reinforcement centre

AB200599 AC

50 mm

Side sill outer reinforcement centre

AB200600

110 mm

AE

10 mm

Notch

AB200601AC

50 mm

Side sill reinforcement support

AB200626

 : Adhesive

AC

AB200602AD
