TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-2

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1554004700577

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− Contents of Trouble-

shooting

DIAGNOSIS FUNCTION

M1554004800916

READING DIAGNOSIS CODES

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− Diagnosis Function .

ERASING DIAGNOSIS CODES

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− Diagnosis Function .

CHECK OF FREEZE FRAME DATA

The freeze frame data can be checked by using the
M.U.T.-III.
When detecting fault and storing the diagnosis code,
the ECU connected to CAN bus line obtains the data
before the determination of the diagnosis code and
the data when the diagnosis code is determined, and
then stores the ECU status of that time. By analysing
each data from M.U.T.-III, the troubleshooting can be
performed more efficiently. The displayed items are
as the table below.

Display item list

Item No.

Item name

Data item

Unit

1

Odometer

Total driving distance after the diagnosis code is
generated

km

2

Ignition cycle

Number of times the ignition switch is turned "ON" or
"LOCK (OFF)" after the past failure transition

Number of
counts is
displayed.

4

Current trouble
accumulative time

Cumulative time for current malfunction of diagnosis
code

min

DIAGNOSIS CODE CHART

M1554004901972

Code No.

Diagnostic item

Reference page Service data

display
contents when
diagnosis code
is set

B10C0 (set by A/C-
ECU)

Interior temperature sensor system (short circuit)

25

°C

B10C1 (set by A/C-
ECU)

Interior temperature sensor system (open circuit)

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-3

NOTE: Note that diagnosis code Nos. B1034 and
B1035 will be set by the ETACS-ECU separately.

B1034 (set by
ETACS-ECU)

Ambient air temperature sensor system (short
circuit)

Refer to GROUP
55A Diagnosis
Code Chart

20

°C

B1035 (set by
ETACS-ECU)

Ambient air temperature sensor system (open
circuit)

B1031

Air thermo sensor system (short circuit)

Air recirculation
position: Interior
temperature
Fresh air
position: Fresh
air + 10

°C

B1032

Air thermo sensor system (open circuit)

B1000

Control panel communication error

−

B1018

Temperature adjusting SW

−

B1003

Mode changeover SW

−

B1021

Blower fan SW

−

B1079

A/C refrigerant leaks

−

B2214

Control panel failure

−

B1415

Coding incomplete

−

U0019

Bus off (CAN-B)

−

U0141

ETACS-ECU CAN time-out

−

U0151

SRS CAN time-out

−

U0155

Meter CAN time-out

−

U0168

WCM CAN time-out

−

U0184

Audio CAN time-out

−

U0197

Hands Free Module Time-out

−

Code No.

Diagnostic item

Reference page Service data

display
contents when
diagnosis code
is set

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-4

DIAGNOSIS CODE PROCEDURES

Code No.B10C0: Interior temperature sensor system (short circuit)



Code No.B10C1: Interior temperature sensor system (open circuit)

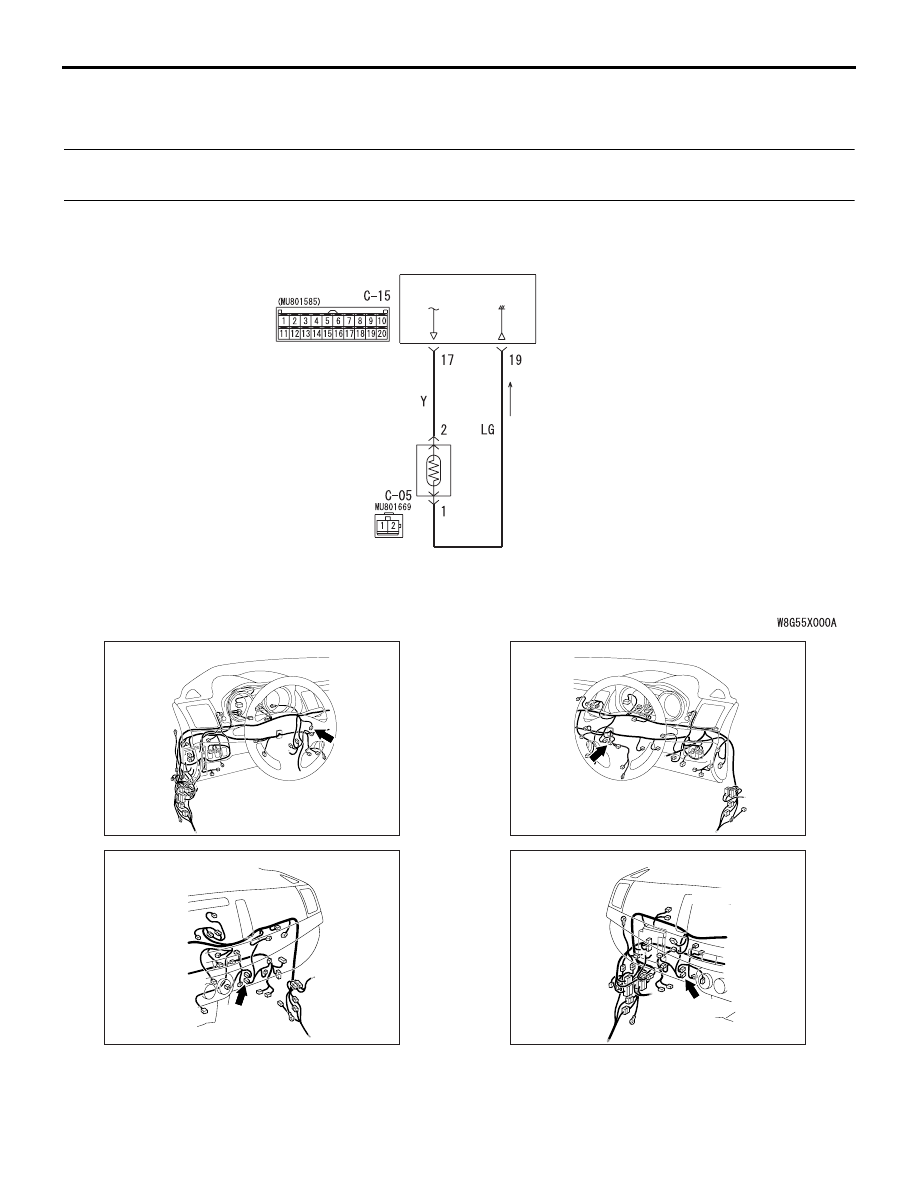

Interior Temperature Sensor Circuit

A/C-ECU

INTERIOR
TEMPERATURE
SENSOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

ACA00730

AC612705

Connector: C-05 <LHD>

IV

AC612706

Connector: C-15 <LHD>

AK

C-15 (B)

AC612711

Connector: C-05 <RHD>

AJ

AC612710

Connector: C-15 <RHD>

EO

C-15 (B)

COMMENTS ON TROUBLE SYMPTOM
This code is set when the interior temperature sensor
circuit is short (Code No.B10C0) or is open (Code
No.B10C1)

TROUBLESHOOTING

AUTOMATIC AIR CONDITIONER

55B-5

PROBABLE CAUSES

• Malfunction of the interior temperature sensor

• Damaged the wiring harness or connectors

• Malfunction of the A/C-ECU

DIAGNOSIS PROCEDURE

STEP 1. Connector check: C-05 interior
temperature sensor connector and C-15 A/C-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

STEP 2. Check the wiring harness between C-15
A/C-ECU connector (terminals 19 and 17) and C-
05 interior temperature sensor connector
(terminals 1 and 2).

• Check the sensor signal line and earth line for

open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the wiring harness.

STEP 3. Check the interior temperature sensor.
Refer to .

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the interior temperature sensor.

STEP 4. Check whether the diagnosis code is
reset.

Q: Is the diagnosis code set?

YES :

Replace the A/C-ECU.

NO :

The trouble can be an intermittent
malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction ).

DATA LIST REFERENCE TABLE

M1554005101043

Item No.

Check item

Inspection status

The display contents
under normal condition

17

Engine speed

−

Displays correct engine
speed.

19

Ambient temperature
sensor

−

Ambient temperature is the
same as M.U.T.-III displayed
temperature

20

Fin thermo sensor

−

Evaporator outlet
temperature is the same as
M.U.T.-III displayed
temperature.

21

Interior temperature
sensor

−

Interior temperature is the
same as M.U.T.-III displayed
temperature

23

Temperature setting

Displays air conditioner set
temperature.

24

Engine coolant TEMP
sensor

−

Engine coolant temperature
is the same as M.U.T.-III
displayed temperature.

26

Vehicle speed

−

Displays vehicle speed.

27

A/C Compressor drive
request

Compressor ON

ON

Compressor OFF

OFF

28

Air conditioning switch

Air conditioner switch ON

ON

Air conditioner switch OFF

OFF

29

Refrigerant leak

−

Normal

34

Idle up request

−

Displays idle-up request
signal.
