AMBIENT TEMPERATURE SENSOR

HEATER, AIR CONDITIONER AND VENTILATION

55A-105

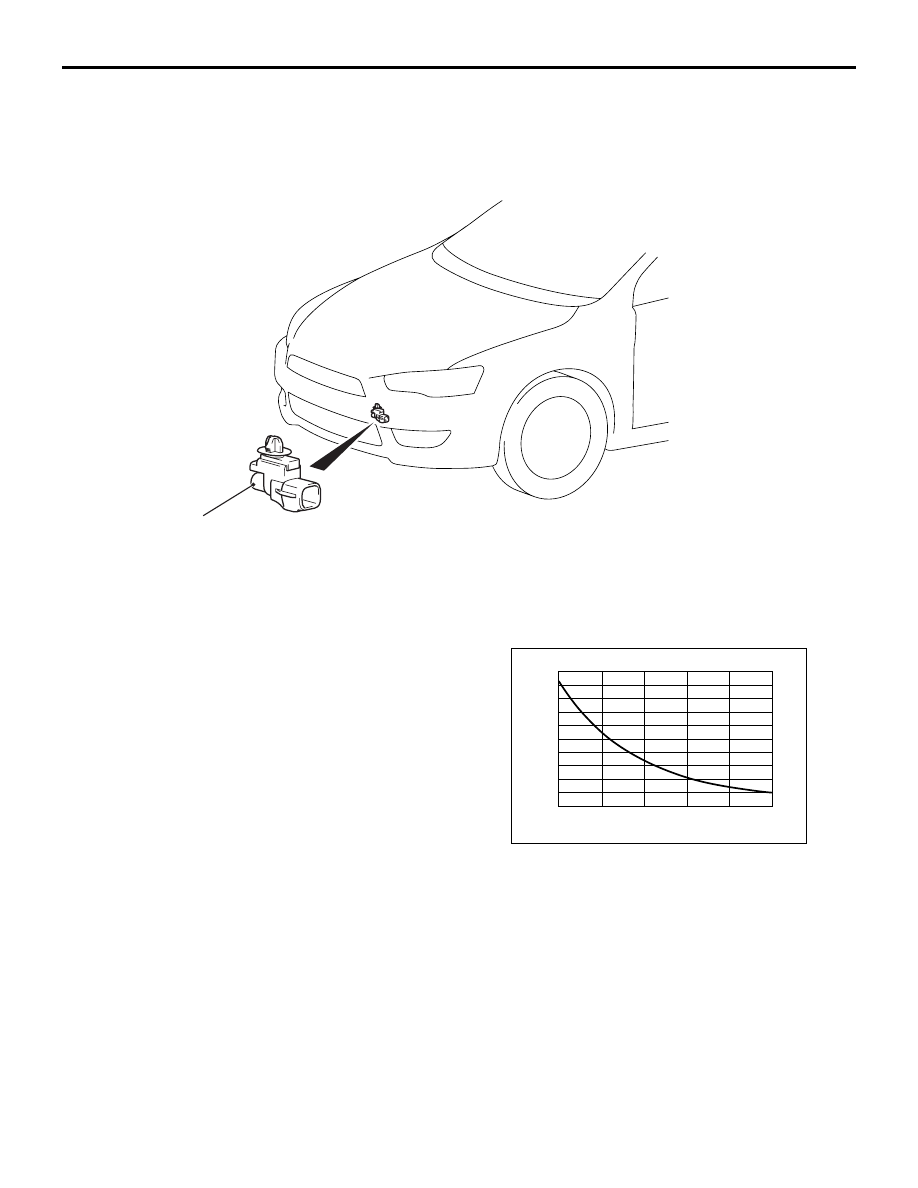

AMBIENT TEMPERATURE SENSOR

REMOVAL AND INSTALLATION

M1554003400603

AC609030

1

AE

Removal steps

•

Air cleaner intake duct (Refer to
GROUP 15, Air Cleaner )

•

Headlamp support panel cover
(Refer to GROUP 51, Front
Bumper and Radiator Grille )

1.

Ambient temperature sensor

INSPECTION

M1552014304123

AMBIENT TEMPERATURE SENSOR
CHECK

AC508067AC

10

7

6
5

9
8

4
3
2
1
0

10

20

30

40

-10

0

RESISTANCE

TEMPERATURE (˚C)

(k )

Check to see that the resistance shown in the graph
is almost satisfied when measuring the resistance
between the terminals under two or more different
temperature conditions.

A/C-ECU

HEATER, AIR CONDITIONER AND VENTILATION

55A-106

A/C-ECU

REMOVAL AND INSTALLATION

M1554016600447

Pre-removal and Post-installation Operation
• Glove Box and Bottom Cover Assembly (passenger's

side) Removal and Installation (Refer to GROUP 52A

−

Instrument Panel ).

• Foot duct Removal and Installation (Refer to ).

AC900349

Heater control unit
<Vehicles without A/C> or
A/C-ECU <Vehicles with A/C>

AB

PTC HEATER <Vehicles with PTC heater>

HEATER, AIR CONDITIONER AND VENTILATION

55A-107

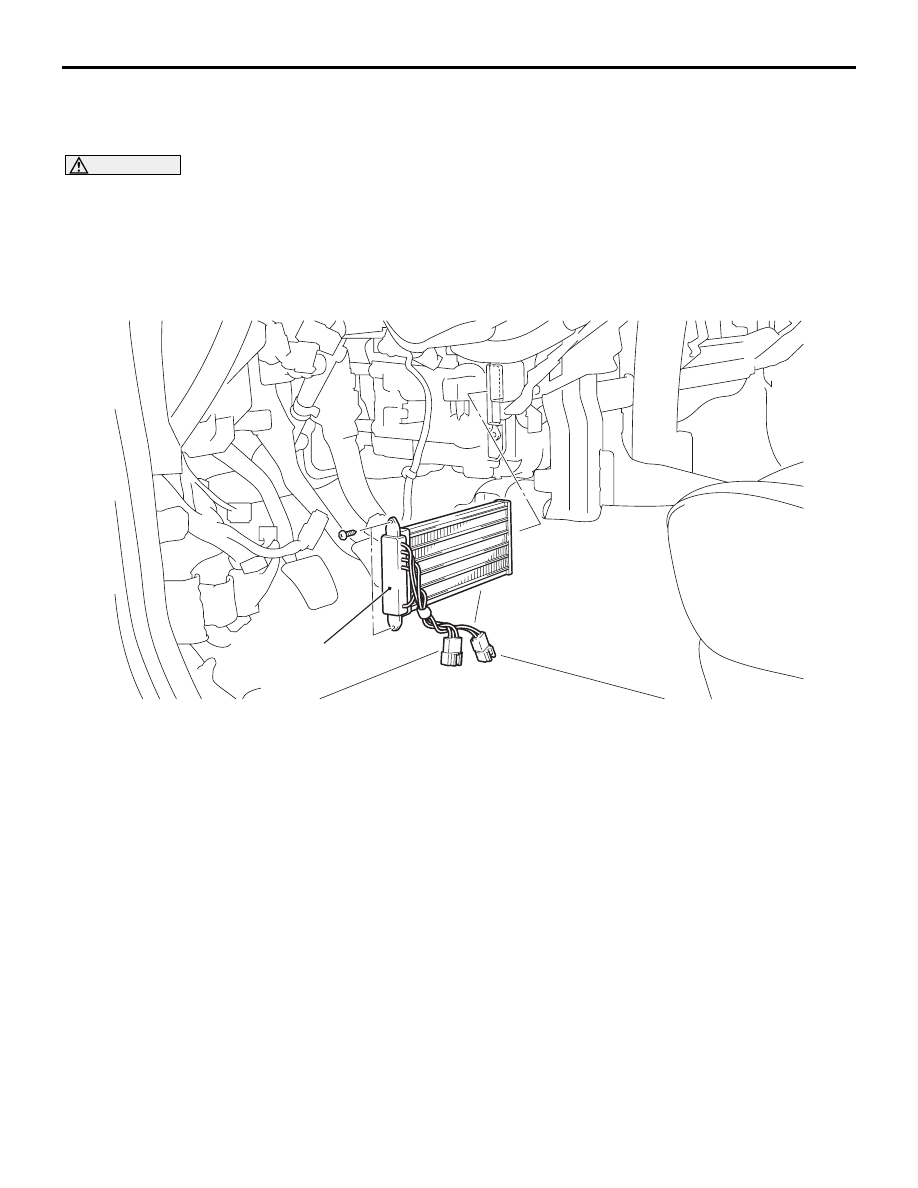

PTC HEATER <Vehicles with PTC heater>

REMOVAL AND INSTALLATION

M1554023000179

WARNING

•

Before removing the front seat assembly, refer to GROUP 52B, Service Precautions  and
Knee air bag module .

•

AC612223AB

1

Removal steps

•

Floor console, Floor console side
cover (Refer to GROUP 52A

−

Floor console assembly ).

•

Bottom cover (passenger side),
Glove box side panel, Glove box
damper, Glove box, Glove box
cover (Refer to GROUP 52A

−

Glove box ).

•

Instrument panel air outlet garnish
lower (RH), Instrument centre
panel, Instrument panel console
box, Instrument panel under cover
(Refer to GROUP 52A

− Instrument

centre panel ).

•

Instrument panel cover lower
<Vehicle with Instrument panel
cover lower>, Instrument panel
lower (Refer to GROUP 52A

−

Instrument centre panel ).

•

Foot duct LH, Foot duct RH (Refer
to ).

•

Knee air bag module (Refer to
GROUP 52B

− Knee air bag

module ).

•

Radio and CD player assembly
(Refer to GROUP 54A

− Radio and

CD player ).

<<

A

>>

1.

PTC heater

Never attempt to disassemble or repair the PTC sensor. If faulty, replace it with new
one(s).

REMOVAL SERVICE POINT

<<A>> PTC HEATER REMOVAL
Remove the PTC heater as described below.

Removal steps (Continued)

AC700312

Foot duct centre

AB

Combination meter

PTC HEATER <Vehicles with PTC heater>

HEATER, AIR CONDITIONER AND VENTILATION

55A-108

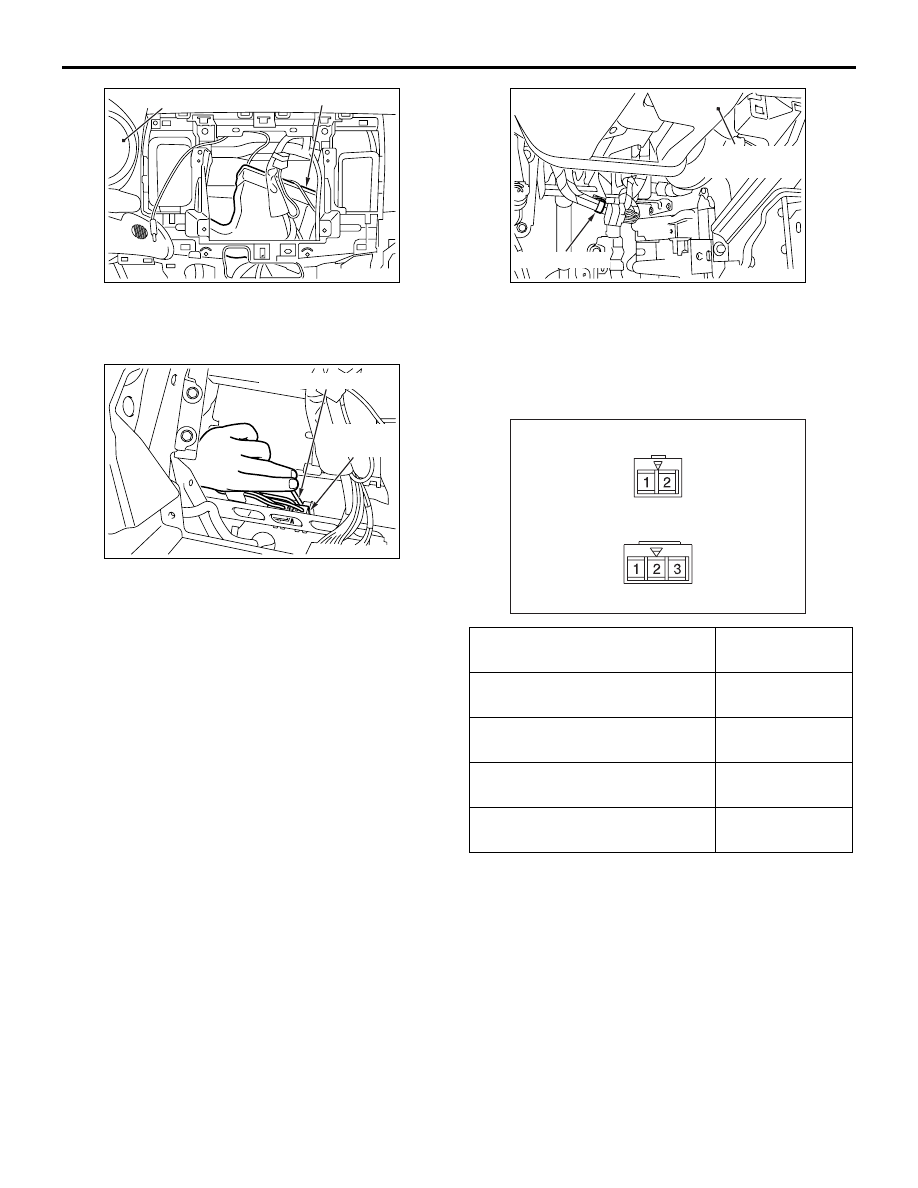

1. Slide the foot duct centre so that a precision

screwdriver can be inserted from the upper side of
the PTC heater connector.

AC700311

PTC heater
connector

Precision screwdriver

AB

2. Insert a precision screwdriver from the upper side

of the PTC heater connector, and disconnect the
connector.

3. Remove the PTC heater screws.

AC700313

AB

Harness clamp

Steering column
lower cover

4. Remove the harness clamp shown in the figure,

and pull out the PTC heater.

INSPECTION

M1552014304316

PTC HEATER CHECK

AC701303

<C-53>

<C-52>

AB

Tester connection

Specified
condition

C-52 terminal No. 1

− C-53

terminal No. 1

Continuity exists

C-52 terminal No. 1

− C-53

terminal No. 2

Continuity exists

C-52 terminal No. 2

− C-53

terminal No. 2

Continuity exists

C-52 terminal No. 3

− C-53

terminal No. 2

Continuity exists
