CAN-C Communication Circuit <Except for RALLIART>

ETACS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

ASC-ECU

A/T-ECU

ABS-ECU

CVT-ECU

STEERING
WHEEL SENSOR
<AFS, ASC>

ENGINE-ECU

ELECTRIC
POWER
STEERING-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White
Y : Yellow     SB : Sky blue     BR : Brown     O : Orange     GR : Grey
R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

CORNER SENSOR/
BACK SENSOR-ECU

DIESEL

:

PETROL

:

1800-PETROL, 2000

:

NOTE

PETROL (EXCEPT SOHC)

:

VEHICLES WITHOUT ASC

:

VEHICLES WITH ASC

:

HEADLAMP
AUTOMATIC
LEVELLING-ECU

AS&G-ECU

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-48

AC801250

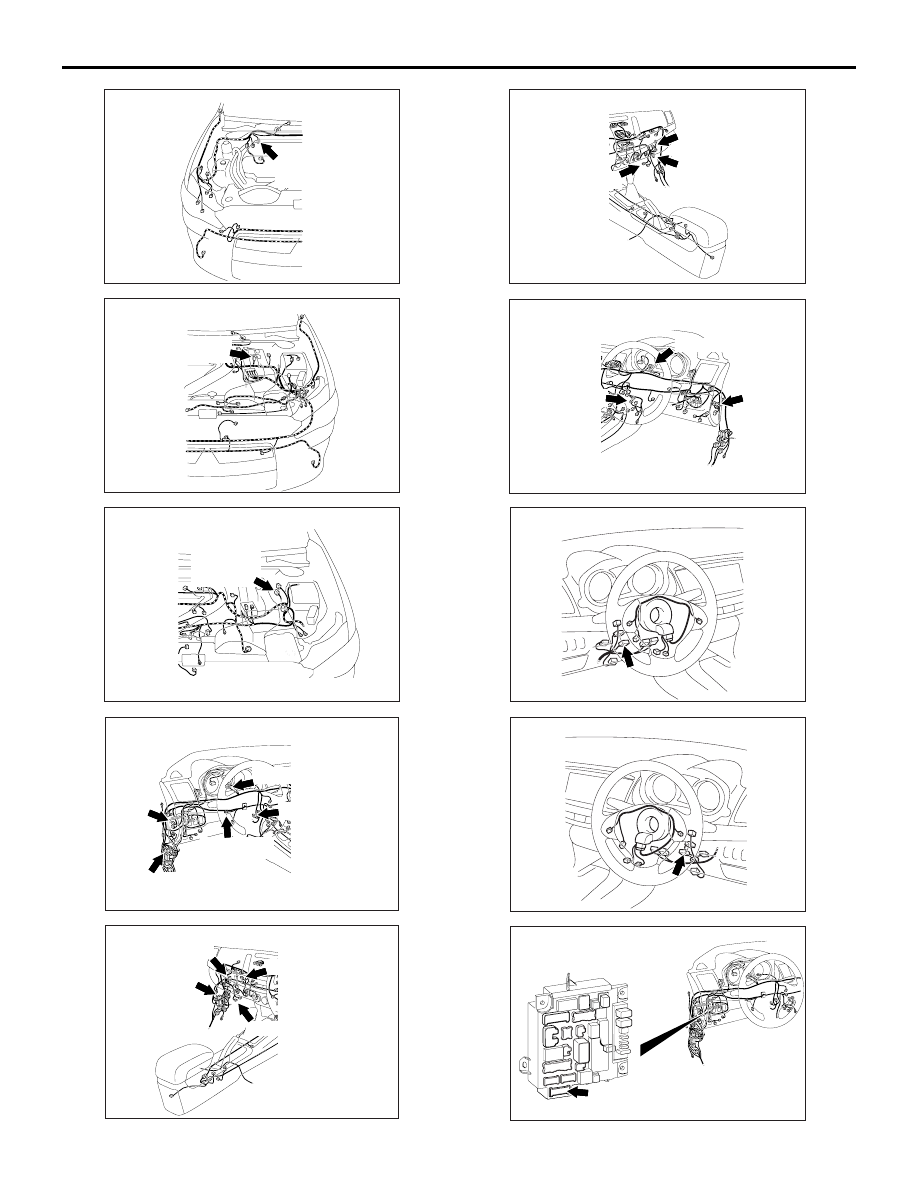

Connectors: A-04, A-58 <LHD>

AB

A-04 (B),
A-58 (B)

AC801253

AG

Connector: A-58 <RHD>

A-58 (B)

AC800715

Connectors: B-09, B-40

BC

B-09 (GR),
B-40 (B)

ACB02645

AE

C-03 (GR)

C-35

Connectors: C-03, C-35, C-40, C-124, C-127
<LHD>

C-40

C-127 (GR)

C-124 (GR)

ACB02648

AD

C-03 (GR)

C-114

C-35

Connectors: C-03, C-35, C-114, C-127 <RHD>

C-127 (GR)

ACB02646

AD

C-64

C-14

C-114

Connectors: C-14, C-64, C-114 <LHD>

ACB02647

AD

C-64

C-124 (GR)

C-04 (GR)

Connectors: C-14, C-64, C-124 <RHD>

AC612708 AW

Connector: C-211 <LHD>

AC612716 AX

Connectors: C-211 <RHD>

ACA00886

BE

Connector: C-301 <LHD>
ETACS-ECU

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-49

ACA00887

BF

Connector: C-301 <RHD>
ETACS-ECU

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-50

FUNCTION
If a short to power supply is present in the CAN-C
lines, this diagnosis result will be set.

TROUBLE JUDGEMENT CONDITIONS
If diagnosis code U1121 is set, the ETACS-ECU
determines that there is a failure.

TROUBLESHOOTING HINTS

• Malfunction of the connector (short to power sup-

ply in connector)

• Malfunction of the wiring harness (short to power

supply in the CAN-C main or sub bus lines)

• Malfunction of the ECU (ETACS-ECU, or ECUs

on CAN-C lines failed)

DIAGNOSIS PROCEDURE

STEP 1. Check the wiring harness between C-301
ETACS-ECU connector and C-03 joint connector
(CAN2) for short to power supply (voltage
measurement).

CAUTION

• A digital multimeter should be used. For

details refer to .

• The test wiring harness should be used. For

details refer to .

(1) Disconnect joint connector (CAN2), and measure

at the wiring harness side.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between C-03 joint

connector (CAN2) terminal No.11 and body earth.

OK: 4.7 V or less

(4) Measure the voltage between C-03 joint

connector (CAN2) terminal No.22 and body
earth.

OK: 4.7 V or less

Q: Is the check result normal?

YES <vehicles with ASC or AFS> :

Go to Step 2.

YES <vehicles without ASC and without AFS with
reversing sensor system> :

Go to Step 3.

YES <vehicles without ASC and without AFS
without reversing sensor system> :

Go to Step 4.

NO  :

Go to Step 12.

STEP 2. Check the wiring harness between C-211
steering wheel sensor connector and C-03 joint
connector (CAN2) for short to power supply
(voltage measurement).

CAUTION

• A digital multimeter should be used. For

details refer to .

• The test wiring harness should be used. For

details refer to .

(1) Disconnect joint connector (CAN2), and measure

at the wiring harness side.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between C-03 joint

connector (CAN2) terminal No.9 and body earth.

OK: 4.7 V or less

(4) Measure the voltage between C-03 joint

connector (CAN2) terminal No.20 and body
earth.

OK: 4.7 V or less

Q: Is the check result normal?

YES <vehicles with reversing sensor system> :

Go

to Step 3.

YES <vehicles without reversing sensor system> :

Go to Step 4.

NO  :

Go to Step 10.

STEP 3. Check the wiring harness between C-40
corner sensor/back sensor-ECU connector and
C-03 joint connector (CAN2) for short to power
supply (voltage measurement).

CAUTION

• A digital multimeter should be used. For

details refer to .

• The test wiring harness should be used. For

details refer to .

(1) Disconnect joint connector (CAN2), and measure

at the wiring harness side.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between C-03 joint

connector (CAN2) terminal No.7 and body earth.

OK: 4.7 V or less

(4) Measure the voltage between C-06 joint

connector (CAN2) terminal No.18 and body

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-51

earth.

OK: 4.7 V or less

Q: Is the check result normal?

YES <vehicles with AFS> :

Go to Step 4.

YES <vehicles without AFS> :

Go to Step 5.

NO  :

Go to Step 11.

STEP 4. Check the wiring harness between C-14
headlamp automatic levelling-ECU connector
and C-124 joint connector (CAN3) for short to
power supply (voltage measurement).

CAUTION

• A digital multimeter should be used. For

details refer to .

• The test wiring harness should be used. For

details refer to .

(1) Disconnect joint connector (CAN3), and measure

at the wiring harness side.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between C-124 joint

connector (CAN3) terminal No.7 <Petrol> or 8
<Diesel> and body earth.

OK: 4.7 V or less

(4) Measure the voltage between C-124 joint

connector (CAN3) terminal No.18 <Petrol> or 19
<Diesel> and body earth.

OK: 4.7 V or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 13.

STEP 5. Check the wiring harness between A-04
ABS-ECU connector <vehicles without ASC> or
A-58 ASC-ECU connector <vehicles with ASC>
and C-124 joint connector (CAN3) for short to
power supply (voltage measurement).

CAUTION

• A digital multimeter should be used. For

details refer to .

• The test wiring harness should be used. For

details refer to .

(1) Disconnect joint connector (CAN3), and measure

at the wiring harness side.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between C-124 joint

connector (CAN3) terminal No.9 and body earth.

OK: 4.7 V or less

(4) Measure the voltage between C-124 joint

connector (CAN3) terminal No.20 and body
earth.

OK: 4.7 V or less

Q: Is the check result normal?

YES <A/T or CVT> :

Go to Step 6.

YES <M/T (vehicles with electric power steering) > :

Go to Step 7.

YES <M/T (vehicles without electric power steering
and with automatic stop & go (AS&G) system)> :

Go to Step 8.

YES <M/T (vehicles without electric power steering
and without automatic stop & go (AS&G) system)>
:

Go to Step 9.

NO  :

Go to Step 14.

STEP 6. Check the wiring harness between C-32
A/T-ECU connector <A/T> or C-35 CVT-ECU
connector <CVT> and C-124 joint connector
(CAN3) for short to power supply (voltage
measurement).

CAUTION

• A digital multimeter should be used. For

details refer to .

• The test wiring harness should be used. For

details refer to .

(1) Disconnect joint connector (CAN3), and measure

at the wiring harness side.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between C-124 joint

connector (CAN3) terminal No.8 and body earth.

OK: 4.7 V or less

(4) Measure the voltage between C-124 joint

connector (CAN3) terminal No.19 and body
earth.

OK: 4.7 V or less

Q: Is the check result normal?

YES <vehicles with electric power steering> :

Go

to Step 7.

YES <vehicles without electric power steering and
with automatic stop & go (AS&G) system> :

Go to

Step 8.

YES <vehicles without electric power steering and
without automatic stop & go (AS&G) system> :

Go

to Step 9.

NO  :

Go to Step 15.
