HANDS FREE ECU

CHASSIS ELECTRICAL

54A-482

5. When the pairing is completed, the display returns

to the pairing list screen.

NOTE: When 7 Bluetooth

®

 devices are already

paired to the hands free ECU, "Maximum device
paired. Please delete a paired device before pairing
a new device." is displayed.

DELETE OPERATION OF BLUETOOTH

®

DEVICE

1. Display the pairing list screen, and select the

"Bluetooth

® device" to be deleted.

2. Select "Delete."

3. When "Yes" is selected, the Bluetooth

® device is

deleted and the display returns to the pairing list
screen.

METHODS FOR PAIRING AND PAIRING DELETION WITH BLUETOOTH

® DEVICE

USING MULTIVISION DISPLAY <VEHICLES FOR RUSSIA>

M1544405500120

As for vehicles with MMCS, "pairing" registration of
the Bluetooth

® device and deletion of paired device

from hands free ECU can be done by touch panel
operation on the multivision display.
NOTE:

.

•

Some Bluetooth

®

 devices (cellular phone and

music player) may not be compatible with the
hands free ECU.

•

A maximum of seven Bluetooth

®

 devices can be

registered.

•

This system cannot be used when a battery of
Bluetooth

®

 devices was exhausted.

DISPLAY THE PAIRING LIST SCREEN.

OPERATION ON THE MOBILE PHONE SCREEN

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Registered Device Name 5

Registered Device Name 1

10:00

Pairing

AC904204

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Registered Device Name 5

Registered Device Name 1

10:00

Pairing

AC904204

Back

10:00

Pairing

Name

Device ID

Connection

Delete

Voice Tag

Hands Free

Bluetooth Audio

Registered Device Name 3

ID-00000003

AC904205

10:00

Pairing

Delete this paired device ?

Yes

No

AC904207

Back

New Device

Registered Device Name 2

Empty

Registered Device Name 4

Empty

Registered Device Name 1

10:00

Pairing

AC904208

AC804201

(A)

AC

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-483

1. When press the (A) in the illustration.

2. Select (B) in the illustration.

NOTE:

When there are no active connections between the
Bluetooth

®

 Audio and the hands free ECU, error

message in the illustration is displayed.

3. Select (C) in the illustration.

4. Select (D) in the illustration.

5. The pairing list screen is displayed.

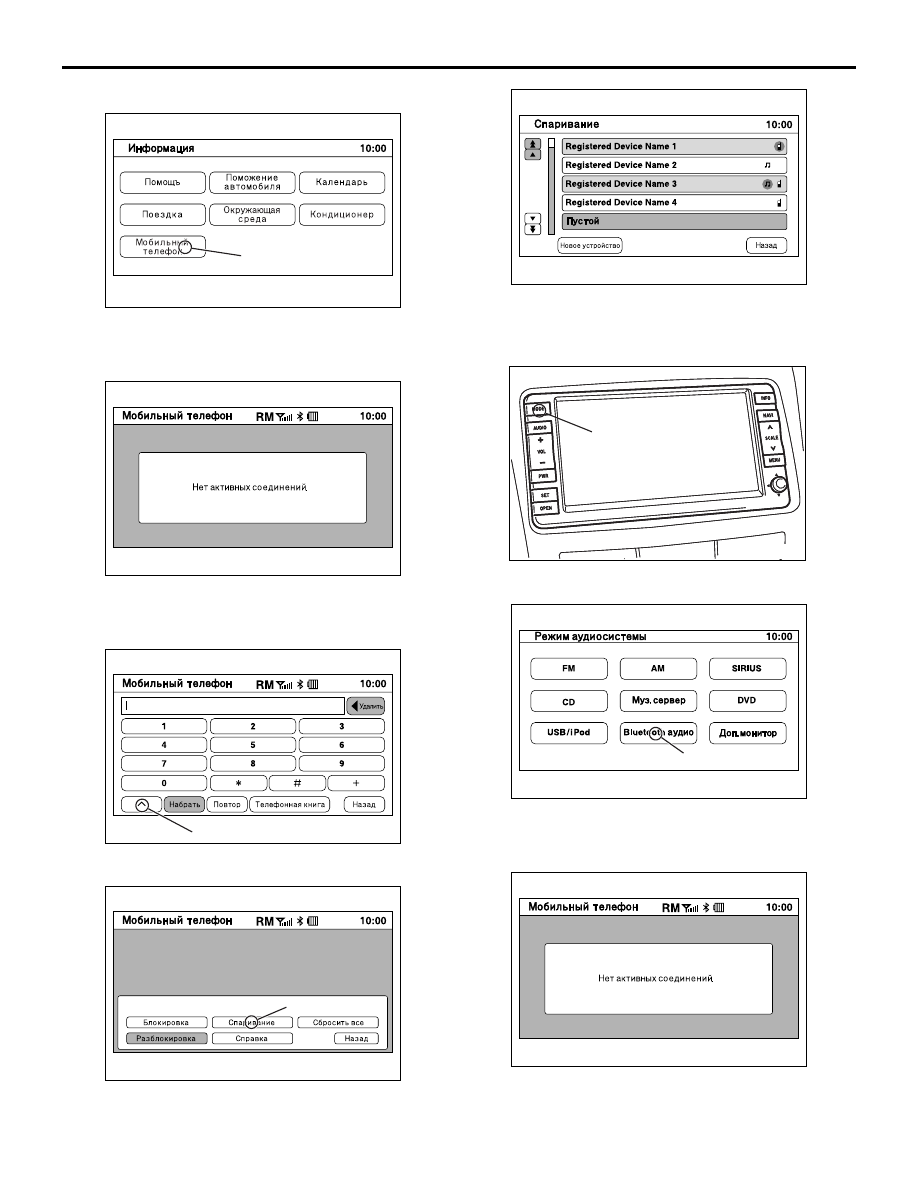

OPERATION ON THE A/V MODE SCREEN

1. Press the (A) in the illustration.

2. Select (B) in the illustration.

NOTE:

When there are no active connections between the
Bluetooth

®

 Audio and the hands free ECU, error

message in the illustration is displayed.

ACA00022

(B)

AB

ACA00023

AB

ACA00024

(C)

AB

ACA00025

(D)

AB

ACA00026

AB

AC904594

(A)

AC904594

AC

ACA00027

(B)

AB

ACA00023

AB

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-484

3. Select (C) in the illustration.

4. Select (D) in the illustration.

5. The pairing list screen is displayed.

PAIRING OPERATION OF BLUETOOTH

®

DEVICE

Shift the selector lever to P (parking) position and

pull the parking brake lever.

1. Display the pairing list screen.

2. Select (A)

NOTE:

When the vehicle is being driven, or when the vehicle
is driven during the pairing operation, error message
in the illustration is displayed for 4 seconds, and the
display returns to the pairing list screen.

3. Enter the 4-digit code on the Pin code screen, and

select (B).

ACA00028

(C)

AB

ACA00029

(D)

AB

ACA00026

AB

ACA00026

AB

ACA00026

(A)

AC

ACA00030

ACA00031

(B)

AB

ACA00032

AB

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-485

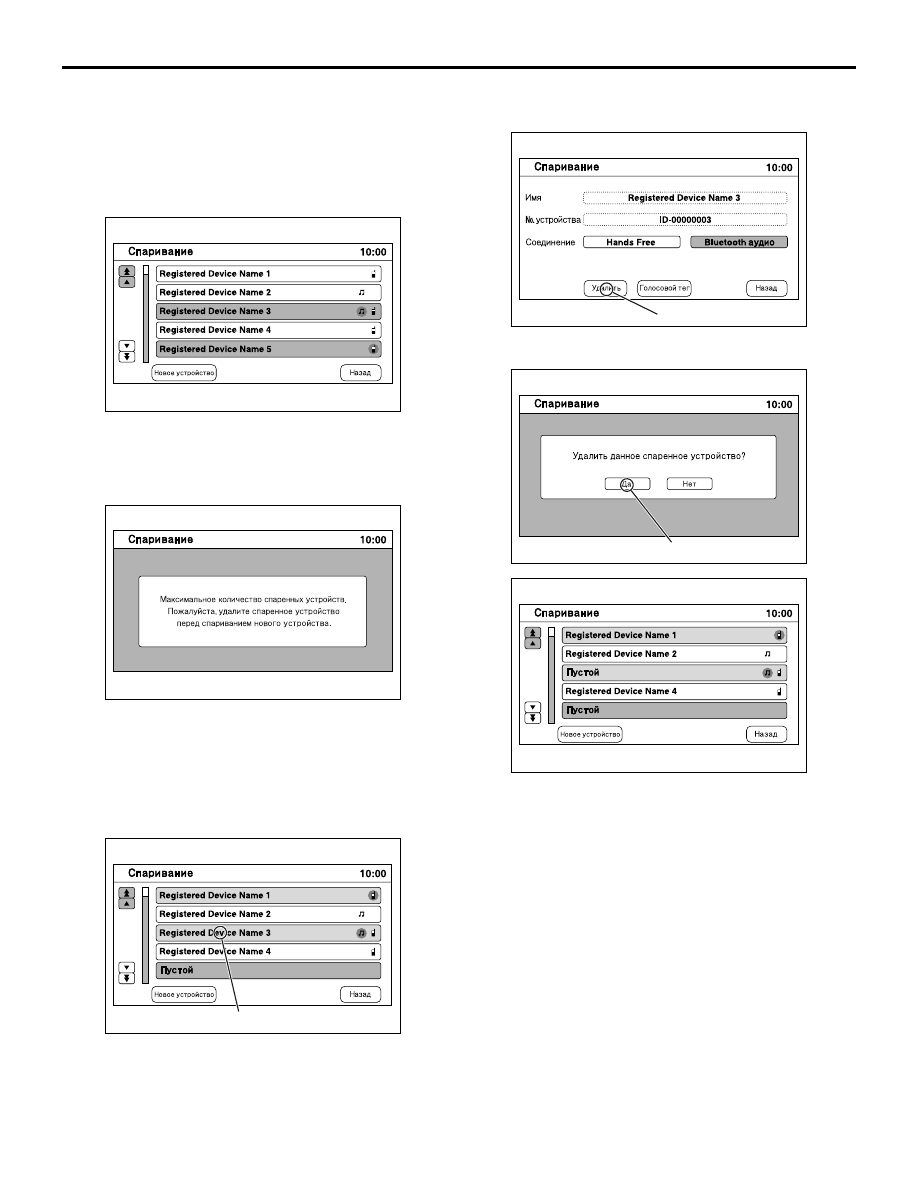

4. The message in the illustration is displayed on the

screen.

5. Refer to the owner’s manual for your device and

enter into the device the pin code.

NOTE: When (B) is selected or the pairing is failed,
the display returns to the pairing list screen.

6. When the pairing is completed, the display returns

to the pairing list screen.

NOTE:

When 7 Bluetooth

®

 devices are already paired to the

hands free ECU, the message in the illustration is
displayed.

DELETE OPERATION OF BLUETOOTH

®

DEVICE

1. Display the pairing list screen, and select the (A)

to be deleted.

2. Select (B).

3. When (C) is selected, the Bluetooth

® device is

deleted and the display returns to the pairing list
screen.

ACA00034

AB

ACA00033

ACA00026

(A)

AD

ACA00035

(B)

AB

ACA00036

(C)

AB
