HANDS FREE ECU

CHASSIS ELECTRICAL

54A-478

Inspection Procedure 8:Voice guide "Unable to obtain vehicle speed. Please try again or contact your
dealer for service" is sent from the speaker. <Vehicles with MMCS>

CAUTION

Before replacing the hands free ECU, ensure that the power supply circuit, the earth circuit and the
communication circuit are normal.
COMMENTS ON TROUBLE SYMPTOM
If the voice guide "Unable to obtain vehicle speed.
Please try again or contact your dealer for service" is
sent from the speaker, the vehicle speed signal of
hands free ECU has a problem. At this time, the
hands free ECU, and the vehicle speed signal of
multivision display may have a problem.

PROBABLE CAUSES

• The hands free ECU may be defective.

• The multivision display may be defective.

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the combination meter.
Check whether the speed meter works normally.
(Refer to .)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Diagnose the combination meter (Refer to
Combination meter

− Troubleshooting ).

STEP 2. Check the multivision operation
check if the own vehicle mark is dislocated while
driving.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Diagnose the MMCS (Refer to .)

STEP 3. M.U.T.-III other system diagnosis code
Check the diagnosis code is set to the CAN box unit.

Q: Is the diagnosis code set?

YES :

Troubleshoot the MMCS (Refer to

Diagnosis Code Chart ).

NO :

Go to Step 4.

STEP 4. Check the diagnosis mode
Check if the hands free ECU can be switched to the
diagnosis mode.(Refer to .)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Perform Inspection Procedure 6:
"DIAGNOSIS MODE cannot be made an
entry. Mobile Phone item is not displayed on
the INFOR screen of MMCS." (Refer to .)

STEP 5. Replace the hands free ECU temporarily,
and check the trouble symptom.

Q: Is the check result normal?

YES :

Replace the hands free ECU.

NO :

Replace the multivision display.

ON-VEHICLE SERVICE

METHODS FOR PAIRING AND PAIRING DELETION WITH BLUETOOTH

® DEVICE

USING STEERING WHEEL VOICE CONTROL SWITCH

M1544405500432

NOTE:

.

•

Some Bluetooth

®

 devices (mobile phone or

music player) may not be compatible with the
hands free ECU.

•

A maximum of seven Bluetooth

®

 devices can be

registered.

•

 This system cannot be used when a battery of
Bluetooth

®

 devices was exhausted.

PAIRING METHOD

Shift the selector lever to P (parking) position <CVT,

A/T> or shift lever to N (neutral) position <M/T>
and pull the parking brake lever.

1. Turn the ignition switch to "ACC" or "ON" position.

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-479

2. Press the "Speech" switch.
3. Say "Setup."
4. Say "Pairing options."
5. The voice guide will say "Select one of the

following: pair, edit, delete, or list?"

6. Say "Pair."
7. The voice guide will say "Please say a 4-digit

pairing code."

8. Say a 4 digit number. The 4 digit number will be

registered as a pairing code for the device.

• When the confirmation function is on, the system

will confirm whether the number said is accepta-
ble. Answer "Yes" to go Step 10. Say "No" to
return to pairing code selection.

NOTE:

.

•

The pairing code entered here is only used for
the Bluetooth

®

 connection certification. It is

any 4-digit number the user would like to
select.

•

Remember the pairing code as it needs to be
keyed into the device later in the pairing proc-
ess.

•

Depending on the connection settings of the
Bluetooth

®

 device, this code may have to be

entered each time you connect the Bluetooth

®



device to the hands free ECU. For the default
connection settings, refer to the instructions
for device.

9. The voice guide will say "Start pairing procedure

on device. See device manual for instructions."
Refer to the owner’s manual for your device and
enter into the device the pairing code that was
registered in Step 9.

10.When this system finds a Bluetooth

® device, the

voice guide will say "Please say the name of the
device after the beep."

11.After you hear the beep, name the device by

saying a name of your preference.
NOTE: When the confirmation function is on, after
repeating the device tag you have said, the voice
guide will ask "Is this correct?" Answer "Yes".



To change the device tag, answer "No" and then
say the device tag again.

12.The voice guide will say "Pairing complete," after

which a beep will be played and the pairing
process will end.

PAIRING DELETION METHOD

1. Turn the ignition switch to "ACC" or "ON" position.
2. Press the Speech switch.
3. Say "Setup."
4. Say "Pairing options"
5. The voice guide will say "Select one of the

following: pair, edit, delete, or list"

6. Say "Delete."
7. After the voice guide says "Please say," the

numbers of the devices and device tags of
corresponding devices will be read out in order,
starting with the device that has been most
recently connected. After it completes reading all
pairs, the voice guide will say "or all."



Say the number of the device that you want to
delete from the system.



If you want to delete all paired devices from the
system, say "All."

8. For confirmation purposes, the voice guide will

say "Deleting (device tag) (number). Is this
correct?" or "Deleting all devices, Is this correct?"

9. Answer "Yes" to delete the devices.



Answer "No" the system will return to Step 4.

10.The voice guide will say "Deleted", and then the

system will end the device deletion process.

• If the device deletion process fails for some rea-

son, the voice guide will say "Delete failed." and
then the system will cancel deleting the device.

AC606271

“Speech" switch

“Pick-up" switch

“Hang-up" switch

AB

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-480

METHODS FOR PAIRING AND PAIRING DELETION WITH BLUETOOTH

® DEVICE

USING MULTIVISION DISPLAY <EXCEPT VEHICLES FOR RUSSIA>

M1544405500108

As for vehicles with MMCS, "pairing" registration of
the Bluetooth

® device and deletion of paired device

from hands free ECU can be done by touch panel
operation on the multivision display.
NOTE:

.

•

Some Bluetooth

®

 devices (cellular phone and

music player) may not be compatible with the
hands free ECU.

•

A maximum of seven Bluetooth

®

 devices can be

registered.

•

This system cannot be used when a battery of
Bluetooth

®

 devices was exhausted.

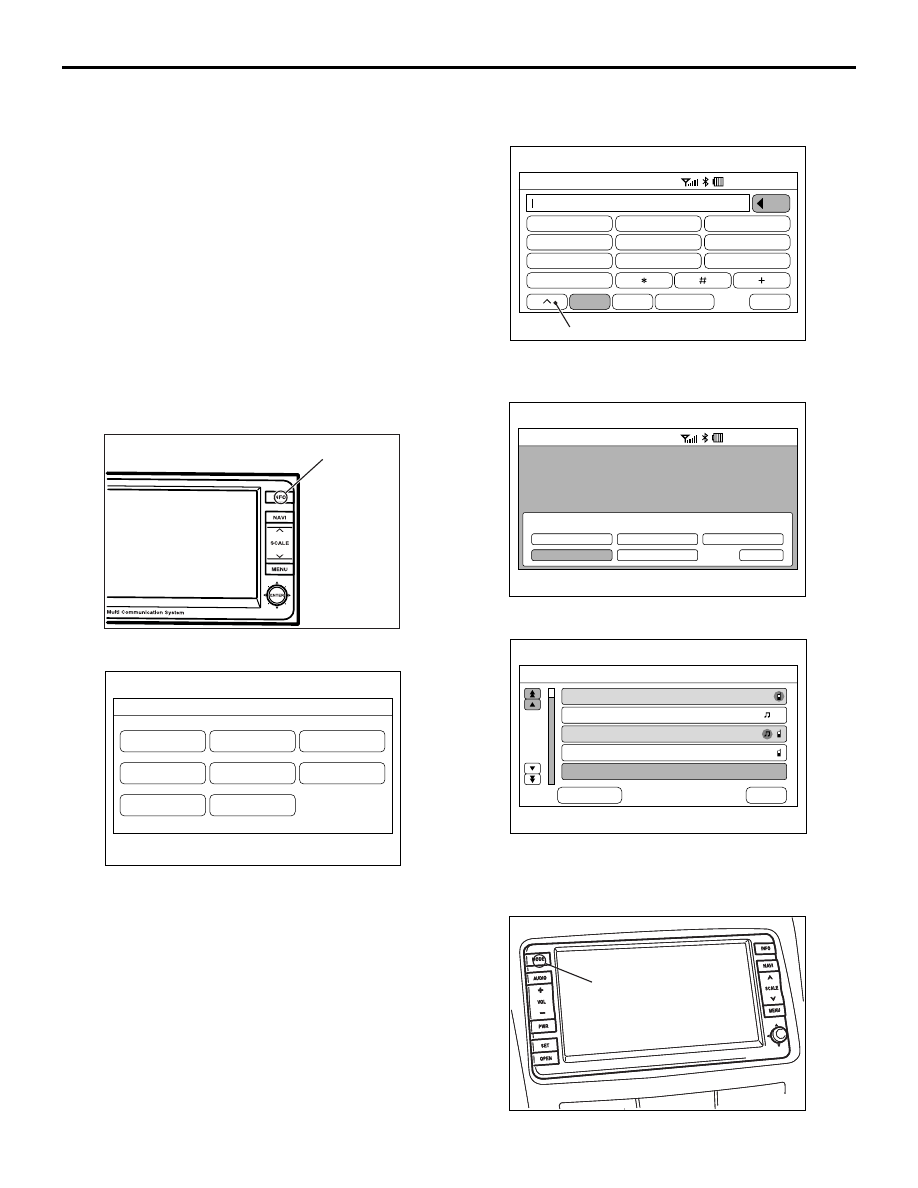

DISPLAY THE PAIRING LIST SCREEN.

OPERATION ON THE MOBILE PHONE SCREEN

1. When press the (1) in the illustration.

2. Display the INFOR screen, and select "Mobile

Phone."
NOTE: When there are no active connections
between the Bluetooth

®

 Audio and the hands free

ECU, "There are no active connections." is dis-
played.

3. Select "X" in the illustration on the Mobile Phone

screen.

4. Select "Pairing."

5. The pairing list screen is displayed.

OPERATION ON THE A/V MODE SCREEN

1. Press the (1) in the illustration.

AC804201

(1)

AB

10:00

INFO

Support Info

Vehicle Position

Calendar

Trip

Environment

Maintenance

Air Conditioner

Mobile Phone

AC904196

Dial

Redial

Phonebook

Back

Clear

3

RM

10:00

Mobile  Phone

2

1

6

5

4

9

8

7

0

AC904197

AD

X

Back

Lock

Pairing

Reset All

Help

10:00

Mobile  Phone

Unlock

RM

AC904198

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Empty

Registered Device Name 1

10:00

Pairing

AC904199

AC904594

(1)

AC904594

AC

HANDS FREE ECU

CHASSIS ELECTRICAL

54A-481

2. Display the A/V mode screen, and select

"Bluetooth Audio."
NOTE: When there are no active connections
between the Bluetooth

®

 Audio and the hands free

ECU, "There are no active connections." is dis-
played.

3. Select "X" in the illustration on the Bluetooth

Audio screen.

4. Select "Pairing."

5. The pairing list screen is displayed.

PAIRING OPERATION OF BLUETOOTH

®

DEVICE

Shift the selector lever to P (parking) position and

pull the parking brake lever.

1. Display the pairing list screen, and select "New

Device."
NOTE: When the vehicle is being driven, or when
the vehicle is driven during the pairing operation,
"This function is disabled while driving." is dis-
played for 4 seconds, and the display returns to
the pairing list screen.

2. Enter the 4-digit code on the Pin code screen, and

select "Enter."

3. "Begin Pairing procedure on device. See device's

manual for instructions." is displayed on the
screen.

4. Refer to the owner’s manual for your device and

enter into the device the pin code.

NOTE: When "Cancel" is selected or the pairing is
failed, the display returns to the pairing list screen.

FM

AM

CD

DVD

Rear Display

Music Server

SIRIUS

USB / i Pod

Bluetooth Audio

10:00

A / V Mode

AC904209

Bluetooth Audio No Connection

REC 10%

10:00

AC904200

AD

X

10:00

Back

Help

Pairing

Bluetooth Audio No Connection

AC904201

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Empty

Registered Device Name 1

10:00

Pairing

AC904199

Back

New Device

Registered Device Name 2

Registered Device Name 3

Registered Device Name 4

Empty

Registered Device Name 1

10:00

Pairing

AC904199

Enter

Back

Clear

3

10:00

Pin Code

2

1

1 2 3 4

6

5

4

9

8

0

7

Please enter the Pin Code  (4 Digits)

AC904203
