Mitsubishi Lancer (4A9 engine). Manual - part 138

LICENCE PLATE LAMP

CHASSIS ELECTRICAL

54A-214

LICENCE PLATE LAMP

REMOVAL AND INSTALLATION

M1541900200432

<LANCER>

<LANCER SPORTBACK>

AC610326AB

2

4

5

6

1.2 ± 0.7 N·m

3

1

Removal Steps

1.

Licence plate lamp assembly

2.

Lens

3.

Gasket

4.

Body

5.

Bulb

6.

Socket

Removal Steps (Continued)

AC802268AB

1

2

3

4

Removal Steps

<<A>>

1.

Licence plate lamp assembly

2.

Lens

3.

Bulb

4.

Socket

Removal Steps (Continued)

LICENCE PLATE LAMP

CHASSIS ELECTRICAL

54A-215

REMOVAL SERVICE POINT

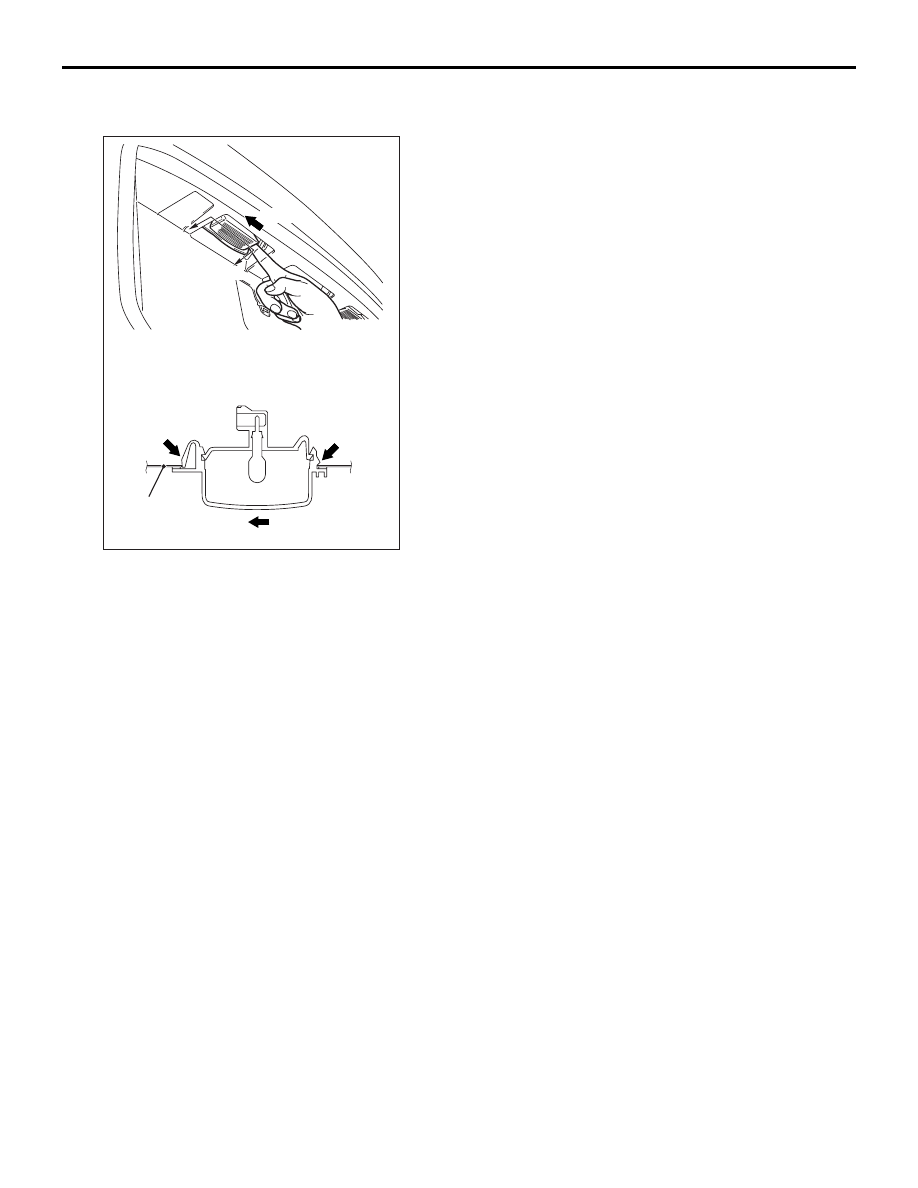

 <<A>> LICENCE PLATE LAMP REMOVAL

Push the licence plate lamp to the left to bend the
hook, and then remove by disengaging the tab from
the tailgate.

AC802269AB

Hook

 Section A – A

Tailgate

A

A

Claw

Push

Push

HAZARD WARNING LAMP SWITCH

CHASSIS ELECTRICAL

54A-216

HAZARD WARNING LAMP SWITCH

SPECIAL TOOLS

M1541500100170

HAZARD WARNING LAMP SWITCH

CHASSIS ELECTRICAL

54A-217

Tool

Number

Name

Use

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III sub-
assembly

a. Vehicle

Communicatio
n Interface
(V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles
without CAN
communication
system)

e. M.U.T.-III

measure
adapter

f. M.U.T.-III

trigger harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send simulated
vehicle speed. If you connect
M.U.T.-III main harness B instead,
the CAN communication does not
function correctly.
Diagnosis code, service data and
actuator test check.

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply circuit
c. For checking power supply circuit
d. For connecting a locally sourced

tester

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

MB991223

a

d

c

b

DO NOT USE
