INTERIOR LAMP

CHASSIS ELECTRICAL

54A-210

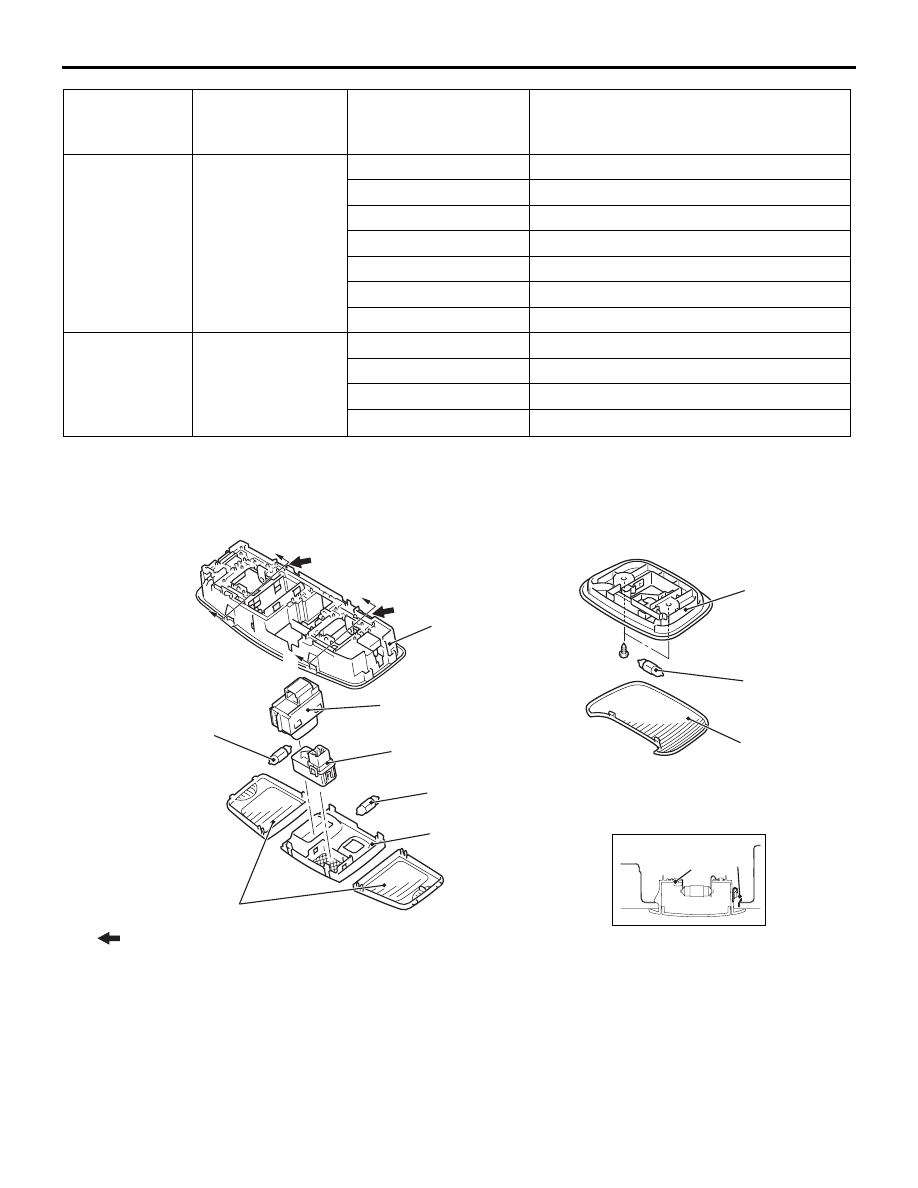

ROOM LAMP REMOVAL AND INSTALLATION

M1541302700196

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Room lamp
delay timer with
door

Adjustment of
interior lamp delay
shutdown time

0 sec

0 second (no delay shutdown time)

7.5 sec

7.5 seconds

15 sec

15 seconds (initial condition)

30 sec

30 seconds

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Interior lamp
auto cut timer

Adjustment of
interior lamp
automatic shutdown
function operation
time

Disable

No function

3 min

3 minutes

30 min

30 minutes (initial condition)

60 min

60 minutes

AC610643AB

9

1

2

3

4

5

6

7

8

Clip

Section A - A

3

A

A

2

Note
         : Clip positions

A

A

Removal Steps

1.

Front room lamp lens

2.

Room lamp bulb

<<

A

>>

3.

Front room lamp

4.

Front room lamp cover

5.

Microphone unit <Vehicles with
hands free ECU>

6.

Sunroof switch <Vehicles with
sunroof>

7.

Rear room lamp lens

8.

Room lamp bulb

9.

Rear room lamp

Removal Steps (Continued)

INTERIOR LAMP

CHASSIS ELECTRICAL

54A-211

REMOVAL SERVICE POINT

<<A>> FRONT ROOM LAMP REMOVAL

While pressing the front room lamp toward the rear
of the vehicle, slide the front side of the front room
lamp downward, and remove the front room lamp.

LUGGAGE COMPARTMENT LAMP REMOVAL AND INSTALLATION

M1541302600166

<LANCER>

AC705372

A

A

AB

Clip

Claw

Section A – A

Front room lamp

Bracket

Front room lamp

Headlining

Forward of vehicle

A

A

AC610327AB

1

2

A

A

Section A - A

1

Removal Steps

1.

Luggage compartment lamp lens

2.

Luggage compartment lamp bulb

INTERIOR LAMP

CHASSIS ELECTRICAL

54A-212

<LANCER SPORTBACK>

AC802120AB

2

4

3

1

5

Removal Steps

1.

Cargo room lamp lens (luggage
compartment lamp lens)

2.

Cargo room lamp bulb (luggage
compartment lamp bulb)

3.

Quarter trim (Refer to GROUP 52A,
Interior Trim).

4.

Cargo room lamp (luggage
compartment lamp)

5.

Cargo room lamp bracket (luggage
compartment lamp bracket)

Removal Steps (Continued)

HIGH-MOUNTED STOP LAMP

CHASSIS ELECTRICAL

54A-213

HIGH-MOUNTED STOP LAMP

REMOVAL AND INSTALLATION

M1541700200502

<LANCER>

<LANCER SPORTBACK>

AC609978AB

2

4.5 ± 1.5 N·m

1

Removal Steps

•

Trunk lid trim

1.

High-mounted stop lamp assembly

2.

Gasket

AC802360AB

2

4

4.5 ± 1.5 N·m

3

1

5

3

Removal Steps

•

Tailgate lower trim (Refer to
GROUP 52A, Tailgate Trim ).

1.

High-mounted stop lamp assembly

2.

Gasket

3.

Gasket

4.

Gasket

5.

Grommet

Removal Steps (Continued)
