COMBINATION METER

CHASSIS ELECTRICAL

54A-82

HOW TO CANCEL THE SERVICE REMINDER
WARNING

CAUTION

• Be careful not to execute the service reminder

warning cancellation by operating the switch
again after erasing the service reminder warn-
ing indicator which is currently output,
because the next warning period will be can-
celled.

• If the next warning period is cancelled by mis-

take, the cancelled warning period can be
restored by setting a schedule different from
the current one once, and then returning it to
the previous schedule.

1. Turn the ignition switch to the "OFF" position.
2. By operating the meter information switch, the

warning period is displayed on the odometer.

3. Press the meter information switch once for 1.2

seconds or longer.

4. The service reminder indicator flashes.
5. While the service reminder indicator flashes,

press the meter information switch once for less
than 1.2 seconds.

6. The service reminder indicator is turned ON, and

"CLEAR" is displayed on the odometer display for
3 seconds.

7. After "CLEAR" is displayed for 3 seconds, the

warning period to the next time is displayed.

HOW TO SET THE SCHEDULE
1. Turn the ignition switch to the "OFF" position.
2. By operating the meter information switch, the

warning period is displayed on the odometer.

3. Press the meter information switch once for 1.2

seconds or longer.

4. The service reminder indicator flashes.
5. While the service reminder indicator flashes,

press the meter information switch for 1.2
seconds or longer and 3 times consecutively.

6. The service reminder indicator is turned ON, and

the current schedule is displayed on the odometer
display.

7. While the current schedule is displayed, press the

meter information switch for less than 1.2 seconds
and 3 times consecutively.

8. The odometer display is shifted to the schedule

selection mode.

9. When the meter information switch is pressed for

less than 1.2 seconds, the schedule is shifted,
and when the switch is pressed for 1.2 seconds or
longer, the displayed schedule is set.
NOTE: For schedule, "JPN", "NAS", "GCC (GCC/
EXP)" and "AUS (MMAL)" can also be selected.
However, the using shall be for "EU" only.

10.The schedule set in Step 9 is displayed for 3

seconds, and the warning period to the next time
is displayed.

SCHEDULE TABLE

NOTE:

.

•

For schedule, "JPN", "NAS", "GCC (GCC/EXP)"
and "AUS (MMAL)" can also be selected. How-
ever, the using shall be for "EU" only.

•

*: The optional schedule can be set. (Only
M.U.T.-III can be set.)

HOW TO INACTIVATE THE SERVICE
REMINDER FUNCTION

By setting to "OFF Display" or "Function OFF" when
the schedule is set, the service reminder function can
be inactivated.

When "OFF Display" is selected

• Even if the service reminder screen is displayed

by operating the meter information switch, "OFF"
is displayed.

Schedule

Warning type

Warning criteria

EU 1 (initial condition) Elapsed time (month)

Every 12 elapsed month

Driving distance (miles)

Every 9,000 miles of driving distance

Driving distance (km)

Every 15,000 km of driving distance

EU 2

Elapsed time (month)

Every 12 elapsed month

Driving distance (miles)

Every 12,500 miles of driving distance

Driving distance (km)

Every 20,000 km of driving distance

OFF Display

Without function. "OFF" is displayed on the odometer/tripmeter.

Function OFF

Without function (Only M.U.T.-III can be set.)

COMBINATION METER

CHASSIS ELECTRICAL

54A-83

When "Function OFF" is selected

• Even when the check warning period is reached,

the service reminder display is not displayed.

• Even with the meter information switch operation,

the service reminder screen is not displayed.

COMBINATION METER

REMOVAL AND INSTALLATION

M1540201700319

CAUTION

If the combination meter needs to be replaced, the current driving distance and elapsed days must be
entered into the meter after the replacement in order to be used for service reminder function. There-
fore, read "Integrated mileage for reminder," "Integrated days for reminder," "Mileage until Extra
reminder," "Months until Extra reminder," and "Current schedule" from the meter before the replace-
ment using the special function of M.U.T.-III, and note them. For the operation method of M.U.T.-III,
refer to On-vehicle service . If "Integrated mileage for reminder" or "Integrated days for reminder"
cannot be read from the meter using M.U.T.-III, use the following method.

• As for the driving distance for check warning, use the driving distance displayed on the multi

information display.

• As for the elapsed days for check warning, calculate the number of elapsed days from the delivery

date to the customer (service reminder function start date) and current date.

Pre-removal and Post-installation Operation
² Glove box side panel (Refer to GROUP 52A, Glove box ).
² Instrument centre panel (Refer to GROUP 52A, Instru-

ment Centre Panel ).

² Instrument panel air outlet garnish lower (LH) <LH drive

vehicles> or (RH) <RH drive vehicles> (Refer to GROUP

52A, Instrument lower Panel ).

AC609711

1

3

2

4

AD

2.5 ± 0.5 N·m

2.5 ± 0.5 N·m

2.5 ± 0.5 N·m

HEADLAMP

CHASSIS ELECTRICAL

54A-84

DISASSEMBLY AND ASSEMBLY

M1540201800167

HEADLAMP

SERVICE SPECIFICATIONS

M1540100200273

PRECAUTIONS ON HOW TO USE THE HEADLAMP ASSEMBLY

Be careful with the following items as resin lenses
are used in the headlamp assembly.

• Don't illuminate the headlamp for three minutes

or more when the headlamp is covered with
scratch protector.

• Don't tape the outer lens.

• Don't scratch the outer lens surface with a sharp

edged special tool.

• Use the specified genuine bulb.

Removal Steps

1.

Combination meter bezel

2.

Instrument meter cluster panel

3.

Combination meter assembly

4.

Meter information switch

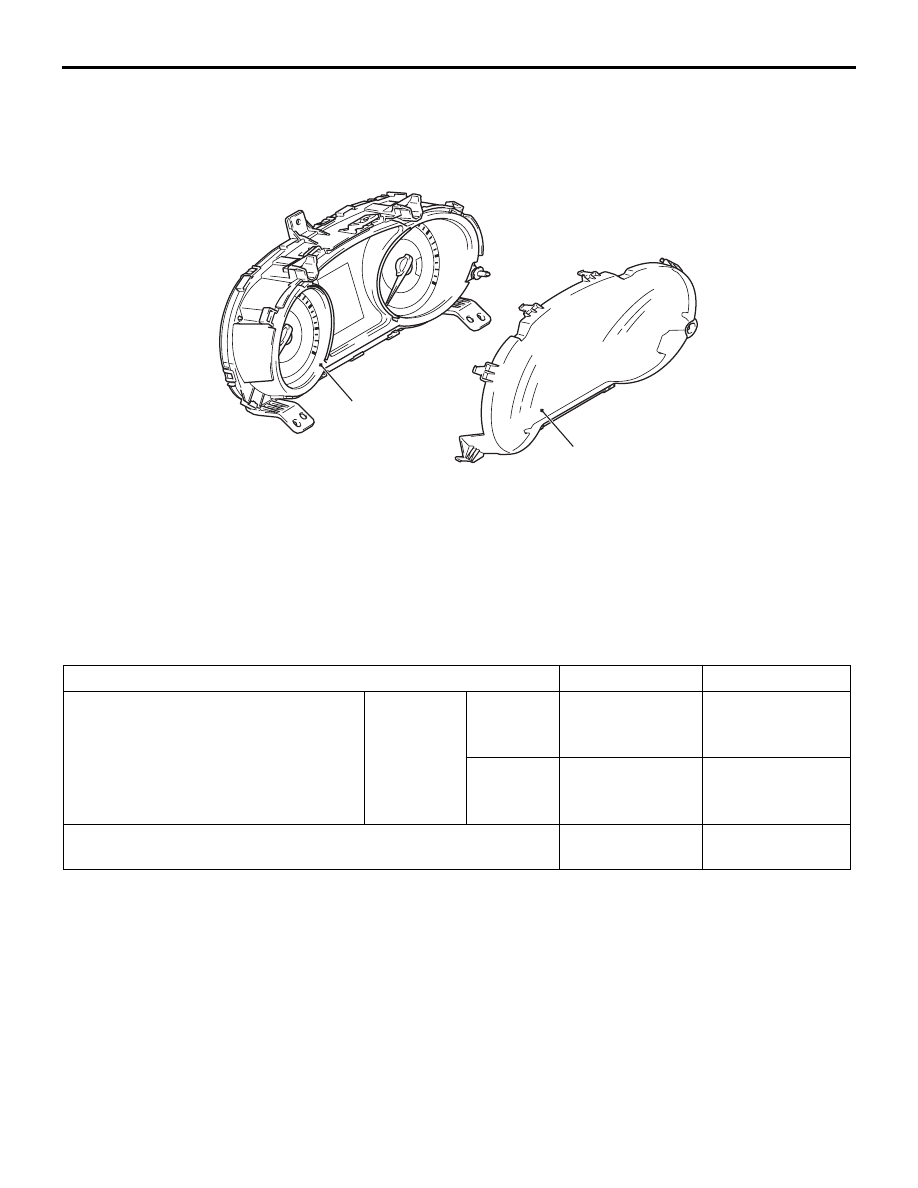

AC506448 AB

1

2

Disassembly steps

1.

Combination meter glass

2.

Combination meter

Item

Standard value

Limit

Headlamp aiming

Low-beam

Vertical
direction

36 mm (0.69

°)

below horizontal
(H)

±15 mm (±0.29°)
from the horizontal
cut-off line

Horizontal
direction

Elbow point
intersects the
vertical line (V)

± 26 mm (± 0.5°)
from the vertical
line (V)

Headlamp luminous intensity measurement cd
(When a screen is set 25 m ahead of the vehicle)

−

30,000 cd or more

HEADLAMP

CHASSIS ELECTRICAL

54A-85

SPECIAL TOOLS

M1540104400194
