Mitsubishi Lancer (4A9 engine). Manual - part 101





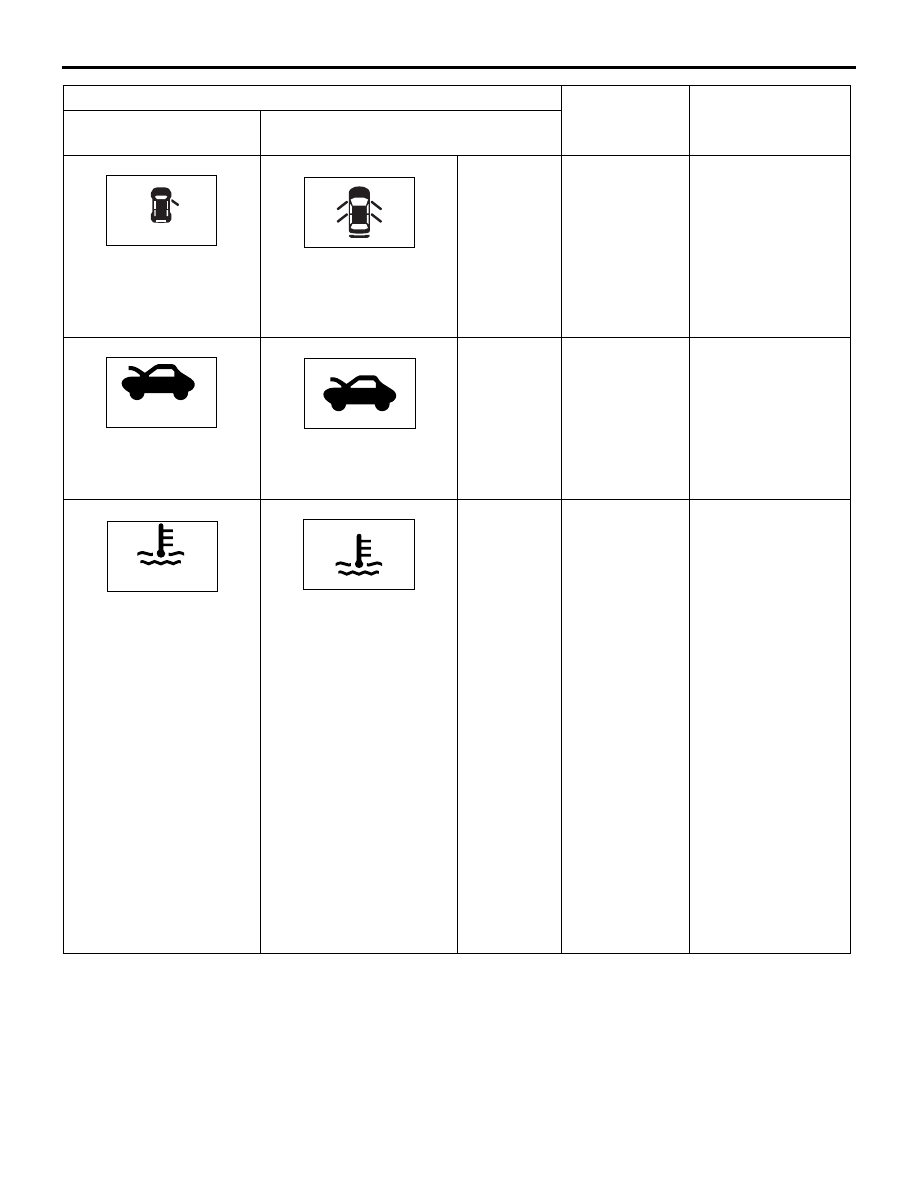

COMBINATION METER

CHASSIS ELECTRICAL

54A-66

Displayed when
the following
operations are
carried out with
the ignition
switch at
positions other
than the LOCK
(PUSH OFF)
position after
the engine is
stopped.

• When the

driver's door
is opened

• When the

doors are
closed and
locked

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed,
perform the
troubleshooting for
the KOS. Refer to
GROUP 42B

−

Diagnosis code
chart .

KEY
BATTERY
LOW

Displayed when
the KOS key
battery is
running low.

KEY NOT
DETECTED

Displayed if
carrying a KOS
key with
different ID
code or the
KOS key is
outside the
operative
range.

KEY STILL
IN VEHICLE

Displayed when
the KOS key
take-out
monitoring
function or KOS
key
confinement
prevention
function is in
operation.

CHECK
DOORS

Displayed when
the door ajar
prevention
function is in
operation.

KEYLESS
OPERATIO

Displayed when
there is a

Display content

Factor

Action procedure

Vehicles without colour
liquid crystal display

Vehicles with colour liquid crystal
display

ACA00967

AC900961

ACA00968

AC809614

ACA00969

AC809615

ACA00970

AC809615

ACA00971

AC809615

COMBINATION METER

CHASSIS ELECTRICAL

54A-67

POWER
STEERING
SERVICE
REQUIRED

Displayed when
there is a
malfunction to
the EPS.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed,
perform the
troubleshooting for
the EPS. Refer to
GROUP 37B

−

Trouble symptom
chart .

BRAKE
SYSTEM
SERVICE
REQUIRED

Displayed when
the brake fluid
amount is
insufficient or a
malfunction
occurs to the
brake device.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed, check
the brake fluid or
brake device. Refer
to GROUP 35A

−

On-vehicle Service .

RELEASE
PARKING
BRAKE

Displayed if
vehicle is driven
with the parking
brake engaged.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed, check
the parking brake.
Refer to GROUP 36
− On-vehicle Service
.

ABS
SERVICE
REQUIRED

Displayed when
a malfunction
occurs to the
anti-skid
braking system
(ABS).

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed,
perform the
troubleshooting for
the ABS or ASC.
Refer to GROUP
35B

− Trouble

Symptom Chart
<ABS> or GROUP
35C

− Trouble

Symptom Chart
<ASC>.

Display content

Factor

Action procedure

Vehicles without colour
liquid crystal display

Vehicles with colour liquid crystal
display

SERVICE
         REQUIRED

AC613203

AC809616

CHECK

AC509829

AC809617

RELEASE
PARKING BRAKE

AC509830

AC809617

SERVICE
         REQUIRED

AC509831

AC809618

COMBINATION METER

CHASSIS ELECTRICAL

54A-68

If any of the
doors or tailgate
is not closed
completely, the
location of the
ajar door is
displayed with
the sounding of
buzzer.

If the door ajar
warning buzzer does
not sound, perform
the troubleshooting
for the door ajar
warning buzzer.
Refer to .

CLOSE
HOOD

Displayed when
the hood is
open.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed, check
the hood latch
switch input signal.
Refer to .

ENGINE
OVERHEATI
NG STOP
SAFELY

Displayed when
overheated.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed,
perform the
troubleshooting for
the engine. Refer to
GROUP 13A

−

Trouble Symptom
Chart  <1600> or
GROUP 13B

−

Trouble Symptom
Chart  <1800-Petrol-
DOHC, 2000> or
GROUP 13C

−

Trouble Symptom
Chart  <1800-
Diesel> or GROUP
13F

− Trouble

Symptom Chart
<1800-Petrol-
SOHC>.

Display content

Factor

Action procedure

Vehicles without colour
liquid crystal display

Vehicles with colour liquid crystal
display

AC505684

AB

AC900086

AC905322

CLOSE HOOD

AC809641

CHECK

AC509834

AC809619

COMBINATION METER

CHASSIS ELECTRICAL

54A-69

TRANSMIS
SION
OVERHEATI
NG SLOW
DOWN

Displayed when
the
transmission oil
temperature
becomes high.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed, check
the CVT or A/T
diagnosis code.
Refer to GROUP
23A

− Diagnosis

Code Chart  <CVT>
or GROUP 23C

−

Diagnosis Code
Chart  <A/T>.

TRANSMIS
SION
SERVICE
REQUIRED

Displayed when
there is a
malfunction to
the CVT or A/T.

FASTEN
SEAT BELT

Displayed when
the ignition
switch is turned
ON without the
driver's seat
belt fastened.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed,
perform the
troubleshooting for
the seat belt
reminder warning
lamp. Refer to .

FUEL
SYSTEM
SERVICE
REQUIRED

Displayed when
there is a
malfunction to
the fuel system.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed, check
the combination
meter diagnosis
code. Refer to .

REFUEL

Displayed when
the remaining
fuel amount is
small.

If the warning screen
is not displayed
normally or if the
screen continues to
be displayed, refuel
immediately.

Display content

Factor

Action procedure

Vehicles without colour
liquid crystal display

Vehicles with colour liquid crystal
display

SLOW DOWN

AC509835

AC809620

SERVICE
         REQUIRED

AC509836

AC809621

FASTEN
          SEAT BELT

AC509837

AC809622

SERVICE
         REQUIRED

AC509838

AC809623

REFUEL

AC509839

AC809623
