TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-157

Inspection Procedure 10: Abnormality in brake operation

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnosis code may be set. Prior
to this diagnosis, diagnose the CAN bus lines
(Refer to GROUP 54C

− CAN Bus Diagnostics

Table ).

• Whenever ECU is replaced, ensure that the

CAN bus lines are normal.

• When the hydraulic unit (integrated with ASC-

ECU) is replaced, always carry out the calibra-
tion of the steering wheel sensor, the G and
yaw rate sensor and brake fluid pressure sen-
sor (Refer to

P.35C-182

,

P.35C-183

 and

P.35C-

184

).

COMMENTS ON TROUBLE SYMPTOM
Although the cause of the trouble cannot be clearly
resolved since it depends on the running status and
road surface condition, the malfunction of the
hydraulic circuit may occur if any diagnosis code is
not detected.

PROBABLE CAUSES

• Hydraulic unit (Integrated with ASC-ECU) mal-

function

• Malfunction of hydraulic circuit

• Malfunction of brake assembly

• Malfunction of brake booster

• Malfunction of master cylinder assembly

DIAGNOSIS PROCEDURE

STEP 1. Diagnosis code check
Use M.U.T.-III to check the diagnosis code for the
ASC system. (Refer to

P.35C-16

.)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Troubleshoot for the relevant diagnosis
code (Refer to

P.35C-16

).

STEP 2. Hydraulic unit (Integrated with ASC-
ECU) check
Check that the brake tube is installed to the hydraulic
unit (integrated with ASC-ECU) correctly (Refer to

P.35C-179

).

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Connect the brake tubes correctly, repair the
external brake lines, or replace the hydraulic
unit (integrated with ASC-ECU) (Refer to

P.35C-185

).

STEP 3. Brake operation check
Perform the following checks.

• Brake pedal check (Refer to GROUP 35A − On-

vehicle Service/Brake Pedal Check and Adjust-
ment .)

• Brake booster check (Refer to GROUP 35A −

On-vehicle Service/Brake Booster Operating
Check .)

• Check valve check (Refer to GROUP 35A − On-

vehicle Service/Check Valve Operation Check .)

Q: Can any fault be found with the brake operation?

YES :

Check the brake-related parts, and repair if

necessary. Then, go to Step 4.

NO :

Go to Step 4.

STEP 4. Hydraulic unit check
Perform the following actuator tests (Refer to

P.35C-

175

).

• Item No.01: FL wheel ABS drive

• Item No.02: FR wheel ABS drive

• Item No.03: RL wheel ABS drive

• Item No.04: RR wheel ABS drive

• Item No.05: FL wheel TCL drive

• Item No.06: FR wheel TCL drive

• Item No.07: RL wheel TCL drive

• Item No.08: RR wheel TCL drive

Q: Is the check result normal?

YES :

This diagnosis is complete.

NO :

Replace the hydraulic unit (integrated with
ASC-ECU) (Refer to

P.35C-185

).

TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-158

Inspection Procedure 11: ASC does not operate or faulty ASC operate.

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnosis code may be set. Prior
to this diagnosis, diagnose the CAN bus lines
(Refer to GROUP 54C

− CAN Bus Diagnostics

Table ).

• Whenever ECU is replaced, ensure that the

CAN bus lines are normal.

• When the hydraulic unit (integrated with ASC-

ECU) is replaced, always carry out the calibra-
tion of the steering wheel sensor, the G and
yaw rate sensor and brake fluid pressure sen-
sor (Refer to

P.35C-182

,

P.35C-183

 and

P.35C-

184

).

COMMENTS ON TROUBLE SYMPTOM
In case of this trouble symptom, the stability control/
TCL system operation may be disabled. Diagnosis
code may be set by the stability control/TCL system
using M.U.T.-III.

PROBABLE CAUSES

• Low battery output

• Wiring harness or connector failure of CAN bus

line

• ASC-ECU malfunction

• Engine coding data problem

DIAGNOSIS PROCEDURE

STEP 1. Diagnosis code check
Use M.U.T.-III to check the diagnosis code for the
ASC system. (Refer to

P.35C-16

.)

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Carry out the diagnosis for the diagnosis
code. (Refer to

P.35C-16

.)

STEP 2. Engine ECU coding data check
Using M.U.T.-III, check if any abnormality is present
to the coding data below which are stored in the
engine-ECU (Refer to GROUP 00

− Precautions

before Service/Coding List ).

A.S.C.

OK: Available

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

STEP 3. Engine ECU coding data check
Perform the variant coding to the Engine ECU.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the engine ECU (Refer to GROUP
13A

− Engine-ECU  <4A9>, GROUP 13B −

Engine-ECU  <4B1>, GROUP 13F

−

Engine-ECU  <4J1> or GROUP 13C

−

Engine-ECU  <4N1>). Then go to Step 5.

STEP 4. Hydraulic unit (integrated with ASC-
ECU) check
Check that the brake tube is correctly mounted to the
hydraulic unit (integrated with ASC-ECU). (Refer to

P.35C-179

.)

Q: Is the check result normal?

YES :

Replace the hydraulic unit (integrated with

ASC-ECU).(Refer to

P.35C-179

.) Then go

to Step 5.

NO :

Connect the brake tubes correctly, and
repair or replace the external brake lines of
the hydraulic unit (integrated with ASC-
ECU).

STEP 5. Operation check

Q: Does stability control/TCL operate normally?

YES :

This diagnosis is complete.

NO :

Check the brake system related
components other than the stability control/
TCL system.

TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-159

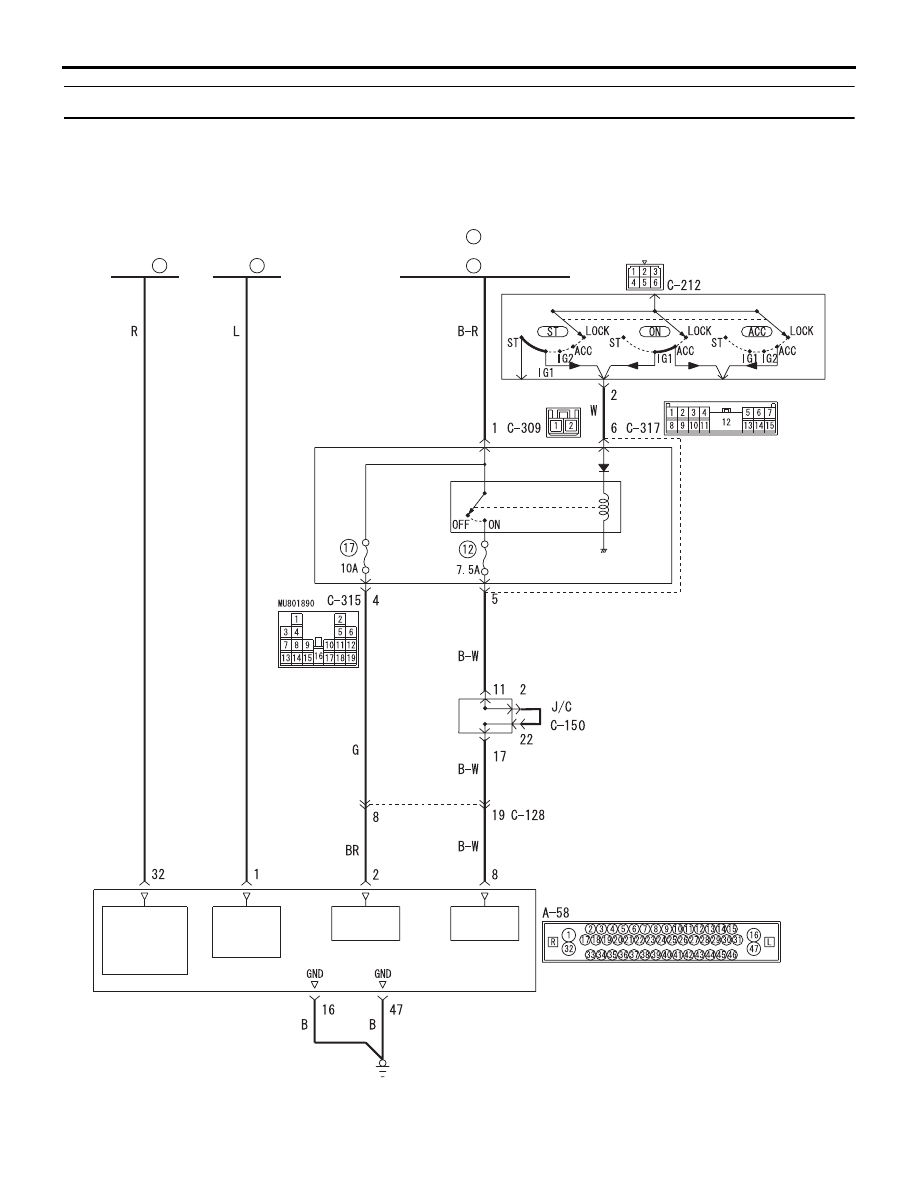

Inspection Procedure 12: ASC-ECU power supply circuit system

Solenoid Valve, Motor and ASC-ECU Power Source Circuit

SOLENOID
VALVE
POWER
SOURCE

MOTOR
POWER
SOURCE

ETACS-
ECU

ASC-ECU

POWER
SOURCE

POWER
SOURCE

IG1
RELAY

IGNITION SWITCH

<PETROL>

FUSIBLE
LINK

34

<DIESEL>

FUSIBLE
LINK

44

Wire colour code
B : Black     LG : Light green     G : Green
L : Blue     W : White     Y : Yellow
SB : Sky blue     BR : Brown     O : Orange
GR : Grey     R : Red     P : Pink
V : Violet     PU : Purple     SI : Silver

FUSIBLE
LINK

26

FUSIBLE
LINK

27

ACB02568

AC612691

AO

Connector: A-58 <LHD>

A-58 (B)

AC701238 AF

Connector: A-58 <RHD>

A-58 (B)

TROUBLESHOOTING

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-160

CAUTION

• When the ASC-ECU power supply voltage

becomes 9.7

± 0.3 V or less, the ABS warning

lamp, ASC warning display, and ASC OFF dis-
play illuminate, and the ABS, stability control,
and TCL controls are prohibited.

• If the battery terminal is not tightened prop-

erly, a dump surge may occur and the power
supply voltage may become abnormally high
for a short time.

• If there is any problem in the CAN bus lines,

an incorrect diagnosis code may be set. Prior
to this diagnosis, diagnose the CAN bus lines
(Refer to GROUP 54C

− CAN Bus Diagnostics

Table ).

• Whenever ECU is replaced, ensure that the

CAN bus lines are normal.

• When the hydraulic unit (integrated with ASC-

ECU) is replaced, always carry out the calibra-
tion of the steering wheel sensor, the G and
yaw rate sensor and brake fluid pressure sen-
sor (Refer to

P.35C-182

,

P.35C-183

 and

P.35C-

184

).

OPERATION

• ASC-ECU contains the power supply circuit (ter-

minal No.32) for the solenoid valve. The solenoid
valve is energised by the valve relay, which is
incorporated in ASC-ECU.

• ASC-ECU contains the power supply circuit (ter-

minal No.2) for ASC-ECU. The power is supplied
from the fusible link No.34 <PETROL> or fusible
link No.44 <DIESEL> through the multi-purpose
fuse No.17.

• ASC-ECU contains the power supply circuit (ter-

minal No. 8) for ASC-ECU. When the ignition
switch (IG1) is turned ON, the voltage is applied
to the relay incorporated in ETACS-ECU to turn
ON the relay, and the power is supplied from the
fusible link No. 34 <PETROL> or fusible link
No.44 <DIESEL> through multi-purpose fuse No.
12.

• ASC-ECU contains the power supply circuit (ter-

minal No.1) for the pump motor. The pump motor
is energised by the motor switch, which is incor-
porated in ASC-ECU.

• When malfunction occurs in ASC-ECU power

supply, the communication with M.U.T.-III
becomes unavailable.

PROBABLE CAUSES

• Damaged wiring harness and connectors

• Fuse and fusible link malfunction

• Improper tightening of battery terminal

• Improper tightening of earth bolt

• Battery failure

• Charging system failed

• ASC-ECU malfunction

DIAGNOSIS PROCEDURE

STEP 1. Battery check
Refer to GROUP 54A

− Battery Test .

Q: Is the battery in good condition?

YES :

Go to Step 3.

NO :

Charge or replace the battery. Then go to
Step 2.

STEP 2. Charging system check
Refer to GROUP 16

− On−vehicle Service/Alternator

Output Line Voltage Drop Test .

Q: Is the charging system in good condition?

YES :

Go to Step 3.

NO :

Repair or replace the charging system
component(s).
