Mitsubishi Lancer (4A9 engine). Manual - part 13





PRECAUTIONS BEFORE SERVICE

GENERAL

00-49

4. Connect special tool M.U.T.-III main harness A

(MB991910) to the V.C.I.

5. Connect M.U.T.-III main harness A to the

diagnosis connector of the vehicle.

6. Turn the V.C.I. power switch to the "ON" position.

NOTE: When the V.C.I. is energised, the V.C.I.
indicator lamp will be illuminated in a green col-
our.

7. Start the M.U.T.-III system on the personal

computer and turn the ignition switch to the "ON"
position.

System Select

Select Model Year and System

System List

Model Year

Vehicle Information

Loading Option Setup

OPC

With Option

Option Name

Immobi & Keyless

KOS & Immobi

VF1

Model Name

Model Year

Model Code

Up to 2005 MY

From to 2006 MY

1

2

3

4

5

6

7

8

9

10

MPI/GDI/Diesel

IMMOBI/KOS/Keyless

AT/CVT/A-MT

ABS/ASC/ASTC

SAS

Multi Select 4WD

SRS Airbag

A/C

ETACS

Meter

AC700171

OK button

AB

8. Select "IMMOBI/KOS/Keyless" button from the

"System Select" screen. Then, select the
applicable option code item and push the OK
button.

• For vehicles with KOS, select "KOS&Immobi."

For vehicles with WCM, select "Immobi&Key-
less."

9. Select "Coding" on the next screen.

System Select

Please select function.

IMMOBI/KOS/Keyless Cording

Chassis No. Writing

AC509821

AB

10.Select "Chassis No. Writing" on "Coding" screen.

Press the OK button to execute.

Chassis No. Writing

Chassis No. currently written in Engine ECU is displayed.

Write the number displayed on the screen in Immobilizer KOS/ECU.

Chassis No. (Engine ECU)

00000000000000000

IMMOBI/KOS/Keyless Cording Chassis No. Writing

AC509822

AC

OK button

*****************

11.Push the OK button after the Chassis No. written

in the engine-ECU is displayed.

12.Push the OK button after "Chassis No. Writing will

start. Are you sure?" is displayed.

13.Push the OK button after "Completed." is

displayed.

IMMOBI/KOS/Keyless Cording Chassis No. Writing

Result of chassis No. Writing

Chassis No. Writing

00000000000000000

AC509823

*****************

AB

14.Result of Chassis No. writing is displayed.
15.Resister the other ID code. (Refer to GROUP

42B, Troubleshooting

− ID Code Registration

Judgment Table  <Vehicles with KOS> or GROUP
42C, Troubleshooting

− ID Code Registration

Judgment Table  <Vehicles with WCM>.)

CODING LIST

M1001015001770

CAUTION

With the ETACS functions being customised, if
any of the ETACS-ECU variant coding and option
coding items are changed, the customised con-
tents are reset. In such case, the functions need
to be recustomised.
Before troubleshooting, check that the coding data
written into the engine-ECU and ETACS-ECU are
normal. If they are not the same as the initial set-
tings, various functions and systems do not work nor-
mally.

VARIANT CODING

The coding data can be checked by operating
M.U.T.-III.

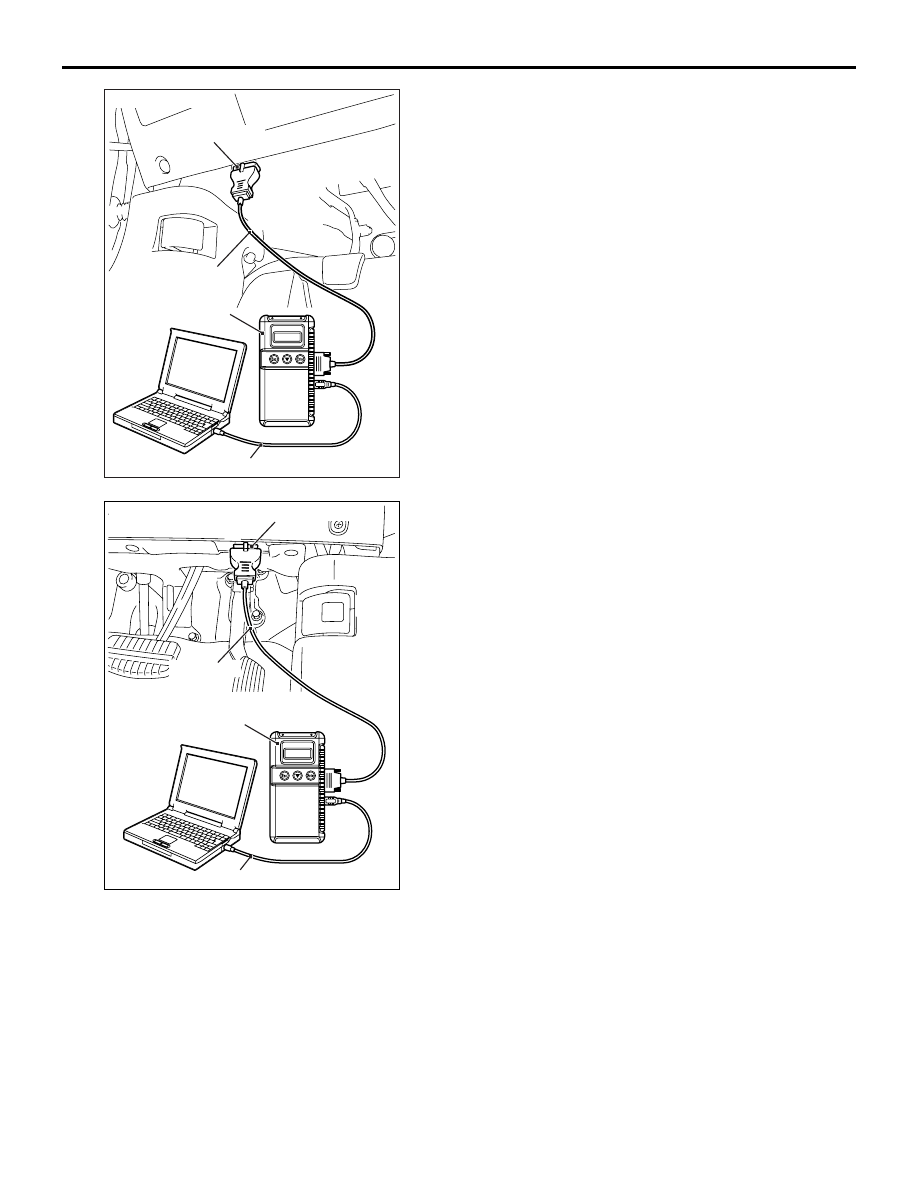

AC608435

MB991827

MB991824

MB991910

AB

Diagnosis connector

<LH drive vehicles>

AC700191

MB991827

MB991824

AB

Diagnosis connector

<RH drive vehicles>

MB991910

PRECAUTIONS BEFORE SERVICE

GENERAL

00-50

NOTE: For details on how to use the M.U.T.-III, refer
to the "M.U.T.-III operation manual."
1. Ensure that the ignition switch is at the "LOCK"

(OFF) position.

2. Start up the personal computer.

3. Connect special tool M.U.T.-III USB cable

(MB991827) to V.C.I. (MB991824) and the
personal computer.

4. Connect special tool M.U.T.-III main harness A

(MB991910) to the V.C.I.

5. Connect the M.U.T.-III main harness A to the

diagnosis connector of the vehicle.

6. Turn the V.C.I. power switch to the "ON" position.

NOTE: When the V.C.I. is energized, the V.C.I.
indicator lamp will be illuminated in a green col-
our.

7. Start the M.U.T.-III system on the personal

computer and turn the ignition switch to the "ON"
position.

8. On the system selection screen, select "MPI/GDI/

DIESEL" to check the engine-ECU data, and
"ETACS" to check the ETACS-ECU data.

9. Select "Coding."
10.Select "Coding Information & Copy."
11.If the displayed coding information is different

from the corresponding initial setting in the list,
replace the ECU with a correctly coded one. To
replace the engine-ECU, refer to GROUP 13A

−

Engine-ECU  <4A9> or GROUP 13B

− Engine-

ECU  <4B10, 4B11-Non-turbo> or GROUP 13C

−

Engine-ECU  <4N1> or GROUP 13F

− Engine-

ECU  <4J1>. To replace the ETACS-ECU, refer to
GROUP 54A

− ETACS .

ENGINE-ECU CODING DATA LIST
NOTE: The items to be displayed may differ depend-
ing on the version of the M.U.T.-III.

PRECAUTIONS BEFORE SERVICE

GENERAL

00-51

<4A9, 4B1, 4J1>

Item name

Initial value

Final gear ratio

5MT/6MT <M/T>
6.120 <CVT>
4.625 <A/T>

Tyre circumference

2015mm

IMMOBILIZER

Present

ABS

Not present <Vehicles with ASC>
Present <Vehicles without ASC>

A.S.C.

Not present <Vehicles without ASC>
Present <Vehicles with ASC>

S/W variation

No.1 or No.2

<4N1>

Item name

Initial value

Vehicle Model <LANCER>

LANCER

Vehicle Model <LANCER SPORTBACK>

LANCER SPORTBACK

OSS

Not present

Voltage of GLOW PLUG

11.0V

Material of GLOW PLUG

Ceramic

Low Temp Fuel/F stucked Spec.

Present

DRL

Present

ABS

Not present

A.S.C.

Present

Discharge Lamp

Not present or present

T/M

M/T

Final drive

2WD

FOR COLD ZONE

Not present

IMMOBILIZER

Present

Power window(DR)

Present

Power window(AS)

Not present

Power window(RR)

Not present

Power window(RL)

Not present

Power window(BK)

Not present

Sunroof

Not present or present

ASG

Present

EPS

Present

Cruise Control

Not present or present

ETACS-ECU CODING DATA LIST
NOTE: The items to be displayed may differ depend-
ing on the version of the M.U.T.-III.

PRECAUTIONS BEFORE SERVICE

GENERAL

00-52

Item name

Initial value

Vehicle line <LANCER>

LANCER

Vehicle line <LANCER SPORTBACK>

LANCER SPORTBACK

Model year

(Displays the model year)

SST oil cooling fan

Not present

Destination

EUR

Transmission <LANCER>

5MT <5M/T>
6MT <6M/T>
CVT <CVT>
4AT <A/T>

Transmission <LANCER SPORTBACK>

5MT <5M/T>
6MT <6M/T>
CVT <CVT>

Engine type <LANCER>

1.6L D4 MPI VVT <4A92>
1.8L MPI D4/S4 <4B10, 4J1>
2.0L D4 MPI VVT <4B11>
1.8L DI-DC MIVEC <4N1>

Engine type <LANCER SPORTBACK>

1.6L D4 MPI VVT <4A92>
1.8L MPI D4/S4 <4J1>
1.8L DI-DC MIVEC <4N1>

Engine power

Normal

Handle side

LHD or RHD

Chassis type for A.S.C. <LANCER>

Type 7 <Sporty suspension>
Type 9 <Except sporty suspension>
Type 10 <Vehicles for Russia>

Chassis type for A.S.C. <LANCER SPORTBACK>

Type 7 <Sporty suspension>
Type 9 <Except sporty suspension>

OSS

Not present

Final drive

Front Drive

Transfer

2WD

IG off delay control

Disabled

Dead lock operation customize

Disabled or Enable(d.twice)

After wipe customize <LANCER>

Enabled(def.D) or Enabled(def.E)

After wipe customize <LANCER SPORTBACK>

Enabled(def.E)

Tyre circumference

2015mm

Fuel tank

Not used

DRL type

Normal DRL

Smart entry system

Not present or Type B

TPMS

Not present

Keyless entry

*

Not present or Present

Airbag auto hazard

Not present
