Mitsubishi Lancer (4A9 engine). Manual - part 4

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

GENERAL

00-13

CONNECTOR INSPECTION SERVICE
POINTS

M1001013700446

VISUAL INSPECTION

•

AC300896AB

Connector disconnected or
improperly connected

Stretched or broken wires

Low contact
pressure

Harness wire breakage
at terminal section

Good

Bad

Connector is disconnected or improperly connected

• Connector pins are pulled out

• Due to harness tension at terminal section

• Low contact pressure between male and female

terminals

• Low connection pressure due to rusted terminals

or foreign matter lodged in terminals

CONNECTOR PIN INSPECTION

AC300898

If the connector pin stopper is damaged, the terminal
connections (male and female pins) will not be per-
fect even if the connector body is connected, and the
pins may pull out of the reverse side of the connec-
tor. Therefore, gently pull the harnesses one by one
to make sure that no pins pull out of the connector.

CONNECTOR ENGAGEMENT INSPECTION

AC300899AB

MB991219

Use special tool inspection harness (MB991219)
(connector pin connection pressure inspection har-
ness of the inspection harness set) to inspect the
engagement of the male pins and female pins. (Pin
drawing force: 1 N or more)

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

GENERAL

00-14

INSPECTION SERVICE POINTS FOR A
BLOWN FUSE

M1001013800432

CAUTION

A diagnosis code may be stored due to a blown
fuse.

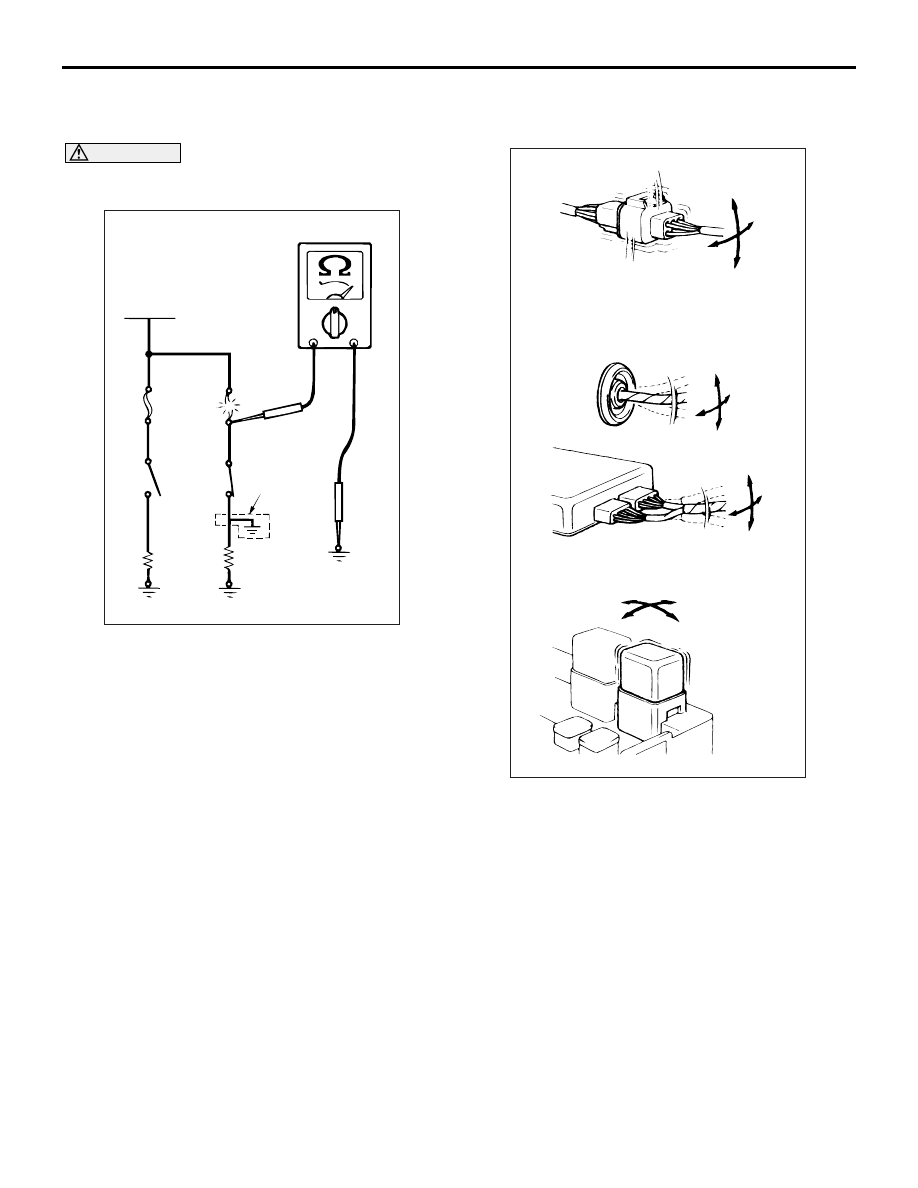

AC300900AB

Battery

Fuse

Load
switch

Load

Short-circuit
occurrence
section

Remove the blown fuse and measure the resistance
between the load side of the blown fuse and the
earth. Close the switches of all circuits which are
connected to this fuse. If the resistance is almost 0

Ω

at this time, there is a short somewhere between
these switches and the load. If the resistance is not 0
Ω, there is no short at the present time, but a
momentary short has probably caused the fuse to
blow.
The main causes of a short circuit are the following.

• Harness being clamped by the vehicle body

• Damage to the outer casing of the harness due to

wear or heat

• Water getting into the connector or circuitry

• Human error (mistakenly shorting a circuit, etc.)

HOW TO COPE WITH INTERMITTENT
MALFUNCTIONS

M1001013900406

AC300901

Intermittent malfunctions often occur under certain
conditions, and if these conditions can be ascer-
tained, determining the cause becomes simple. In
order to ascertain the conditions under which an
intermittent malfunction occurs, first ask the cus-
tomer for details about the driving conditions,
weather conditions, frequency of occurrence and
trouble symptoms, and then try to recreate the trou-
ble symptoms. Next, ascertain whether the reason
why the trouble symptom occurred under these con-
ditions is due to vibration, temperature or some other
factor. If vibration is thought to be the cause, carry
out the following checks with the connectors and
components to confirm whether the trouble symptom
occurs. The objects to be checked are connectors
and components which are indicated by inspection
procedures or given as probable causes (which gen-
erates diagnosis codes or trouble symptoms).

VEHICLE IDENTIFICATION

GENERAL

00-15

• Gently shake the connector up, down and to the

left and right.

• Gently shake the wiring harness up, down and to

the left and right.

• Gently rock each sensor and relay, etc. by hand.

• Gently shake the wiring harness at suspensions

and other moving parts.

NOTE: If determining the cause is difficult, the drive
recorder function of the M.U.T.-III can also be used.
(For details on how to use the M.U.T.-III, refer to the
"M.U.T.-III operation manual).

HOW TO TREAT PAST TROUBLE

M1001014100403

Since the trouble may still be present even the status
is "Stored", set the vehicle to the diagnosis code
detection condition and check that the status
changes to "Active". If the status does not change
from "Stored", carry out the following procedure.
1. Establish from the customer whether a fuse or

connector has been replaced or disconnected.

2. If yes, erase the diagnosis code, and then check

that no diagnostic code is reset. If no diagnosis
code is reset, the diagnosis is complete.

3. If no, follow the applicable Diagnostic Trouble

Code Chart. Then check the wiring harness and
connector, and refer to "How to Cope with
Intermittent Malfunction

P.00-14

 ."

VEHICLE IDENTIFICATION

MODELS <LANCER>

M1001000306587

VEHICLES FOR EUROPE

<1600>

Model code

Engine model

Transmission model

Fuel supply system

CY1A

SRSPL6

4A92 (1,590 mL)
DOHC MIVEC petrol engine
<Low CO

2

 specification>

F4A4A
(Front wheel drive 2WD,
4A/T)

MPI

SNSPL6

F5M43
(Front wheel drive 2WD,
5M/T)

SNSPR6
SNSXL6

4A92 (1,590 mL)
DOHC MIVEC petrol engine
<Low CO

2

 specification> with

Auto Stop & Go (AS&G)
<Clear Tec AS&G>

VEHICLE IDENTIFICATION

GENERAL

00-16

<1800>

Model code

Engine model

Transmission model

Fuel supply system

CY6A

SNSPL6

4J10 (1,798 mL)
SOHC MIVEC petrol engine
<Low CO

2

 specification>

F5MBB
(Front wheel drive 2WD,
5M/T)

MPI

STSPL6

F1CJA
(Front wheel drive 2WD,
INVECS-III CVT with
sport mode)

SNXPL6

F5MBB
(Front wheel drive 2WD,
5M/T)

STXPL6

F1CJA
(Front wheel drive 2WD,
INVECS-III CVT with
sport mode)

STXPR6

SNXXL6

4J10 (1,798 mL)
SOHC MIVEC petrol engine
<Low CO

2

 specification> with

Auto Stop & Go (AS&G)
<Clear Tec AS&G>

F5MBB
(Front wheel drive 2WD,
5M/T)

CY9A

SJLSL6

4N13 (1,798 mL)
DOHC MIVEC Low-power
diesel engine with intercooled
turbocharger <Low CO

2



specification>, Auto Stop &
Go (AS&G) <Clear Tec
AS&G>

F6MBA
(Front wheel drive 2WD,
6M/T)

Common rail fuel
injection (Electrical
fuel injection)

SJSSL6
SJSSR6
SJXSL6
SJXSR6

SJLXL6

4N13 (1,798 mL)
DOHC MIVEC diesel engine
with intercooled turbocharger
<Low CO

2

 specification>,

Auto Stop & Go (AS&G)
<Clear Tec AS&G>

SJSXL6
SJXXL6

VEHICLES FOR RUSSIA (EASTERM EUROPE COUNTRIES)

<1600>

Model code

Engine model

Transmission model

Fuel supply system

CY1A

SNSHL6Z

4A92 (1,590 mL)
DOHC MIVEC petrol engine

F5M43
(Front wheel drive 2WD,
5M/T)

MPI

SRSHL6Z

F4A4A
(Front wheel drive 2WD,
4A/T)
