Mitsubishi Evolution X. Manual - part 911

54A-5

MMCS. . . . . . . . . . . . . . . . . . . .

MITSUBISHI MULTI

COMMUNICATION SYSYEM . . . .

SPECIAL TOOLS. . . . . . . . . . . . . .

DIAGNOSIS . . . . . . . . . . . . . . . . . .

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING. . . . . . . . . . . . . .

PRECAUTIONS ON SERVICING

MMCS . . . . . . . . . . . . . . . . . . . . . . . . . .

SERVICE MODE . . . . . . . . . . . . . . . . . .

DIAGNOSIS FUNCTION . . . . . . . . . . . .

DIAGNOSTIC TROUBLE CODE

CHART. . . . . . . . . . . . . . . . . . . . . . . . . .

DIAGNOSTIC TROUBLE CODE

PROCEDURES . . . . . . . . . . . . . . . . . . .

TROUBLE SYMPTOM CHART . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . .

ETACS FUNCTION CUSTOMIZATION

FUNCTION . . . . . . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION .

INSPECTION . . . . . . . . . . . . . . . . .

AUDIO AND VIDEO ADAPTER

INSPECTION . . . . . . . . . . . . . . . . .

HANDS-FREE CELLULAR PHONE
SYSTEM. . . . . . . . . . . . . . . . . .

GENERAL INFORMATION . . . . . .

SPECIAL TOOLS. . . . . . . . . . . . . .

DIAGNOSIS . . . . . . . . . . . . . . . . . .

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING. . . . . . . . . . . . . .

DIAGNOSIS FUNCTION . . . . . . . . . . . .

DIAGNOSTIC TROUBLE CODE

CHART. . . . . . . . . . . . . . . . . . . . . . . . . .

DIAGNOSTIC TROUBLE CODE

PROCEDURES . . . . . . . . . . . . . . . . . . .

TROUBLE SYMPTOM CHART . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . .

ON-VEHICLE SERVICE. . . . . . . . .

PAIRING A CELLULAR PHONE OR

DELETING A PHONE . . . . . . . . . . . . . .

ERASE THE PASSCODE . . . . . . . . . . .

SERVICE DATA. . . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION .

STEERING WHEEL VOICE

CONTROL SWITCH CONTINUITY

CHECK . . . . . . . . . . . . . . . . . . . . . .

STEERING WHEEL AUDIO REMOTE
CONTROL SWITCH

* . . . . . . . . . .

GENERAL INFORMATION . . . . . .

SPECIAL TOOLS . . . . . . . . . . . . . .

DIAGNOSIS . . . . . . . . . . . . . . . . . .

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING . . . . . . . . . . . . . .

TROUBLE SYMPTOM CHART . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . . .

REMOVAL AND INSTALLATION .

STREERING WHEEL AUDIO

REMOTE CONTROL SWITCH

INSPECTION . . . . . . . . . . . . . . . . .

SATELLITE RADIO TUNER . .

GENERAL INFORMATION . . . . . .

SPECIAL TOOLS . . . . . . . . . . . . . .

DIAGNOSIS . . . . . . . . . . . . . . . . . .

INTRODUCTION TO SATELLITE

RADIO DIAGNOSIS . . . . . . . . . . . . . . . .

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING . . . . . . . . . . . . . .

DIAGNOSIS FUNCTION . . . . . . . . . . . .

DIAGNOSTIC TROUBLE CODE

CHART . . . . . . . . . . . . . . . . . . . . . . . . . .

DIAGNOSTIC TROUBLE CODE

PROCEDURES . . . . . . . . . . . . . . . . . . .

TROUBLE SYMPTOM CHART . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . . .

ON-VEHICLE SERVICE . . . . . . . . .

HOW TO READ SIRIUS ID . . . . . . . . . .

REMOVAL AND INSTALLATION .

Continued on next page

54A-6

ANTENNA . . . . . . . . . . . . . . . .

GENERAL INFORMATION . . . . . .

REMOVAL AND INSTALLATION .

AMPLIFIER*. . . . . . . . . . . . . . .

GENERAL INFORMATION . . . . . .

REMOVAL AND INSTALLATION .

SPEAKER . . . . . . . . . . . . . . . .

GENERAL INFORMATION . . . . . .

ON-VEHICLE SERVICE. . . . . . . . .

SPEAKER TEST <VEHICLES WITH

RADIO AND CD PLAYER> . . . . . . . . . .

SPEAKER TEST

<VEHICLES WITH MMCS>. . . . . . . . . .

REMOVAL AND INSTALLATION .

ETACS* . . . . . . . . . . . . . . . . . .

SPECIAL TOOL . . . . . . . . . . . . . . .

TROUBLESHOOTING. . . . . . . . . . . . . .

STANDARD FLOW OF DIAGNOSTIC

TROUBLESHOOTING. . . . . . . . . . . . . .

DIAGNOSTIC FUNCTION . . . . . . . . . . .

DIAGNOSTIC TROUBLE CODE

CHART. . . . . . . . . . . . . . . . . . . . . . . . . .

DIAGNOSIS TROUBLE CODE

PROCEDURES . . . . . . . . . . . . . . . . . . .

SERVICE DATA. . . . . . . . . . . . . . . . . . .

TROUBLE SYMPTOM CHART . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . .

TROUBLE SYMPTOM CHART FOR

INPUT SIGNAL . . . . . . . . . . . . . . . . . . .

INPUT SIGNAL PROCEDURES . . . . . .

ON-VEHICLE SERVICE. . . . . . . . .

CUSTOMIZATION FUNCTION . . . . . . .

ETACS-ECU. . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION . . . . .

CHECK WITH TERMINAL VOLTAGE . .

THEFT ALARM . . . . . . . . . . . .

GENERAL INFORMATION . . . . . .

SPECIAL TOOLS . . . . . . . . . . . . . .

DIAGNOSIS . . . . . . . . . . . . . . . . . .

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING . . . . . . . . . . . . . .

DIAGNOSTIC FUNCTION . . . . . . . . . . .

TROUBLE SYMPTOM CHART . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . . .

REMOVAL AND INSTALLATION .

INSPECTION . . . . . . . . . . . . . . . . .

THEFT-ALARM INDICATOR

CHECK . . . . . . . . . . . . . . . . . . . . . .

PANIC ALARM. . . . . . . . . . . . .

GENERAL INFORMATION . . . . . .

SPECIAL TOOLS . . . . . . . . . . . . . .

DIAGNOSIS . . . . . . . . . . . . . . . . . .

STANDARD FLOW OF DIAGNOSTIC

TROUBLESHOOTING . . . . . . . . . . . . . .

DIAGNOSTIC FUNCTION . . . . . . . . . . .

TROUBLE SYMPTOM CHART . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . . .

REMOVAL AND INSTALLATION .

ON-VEHICLE SERVICE . . . . . . . . .

CUSTOMIZATION FUNCTION . . . . . . .

DEFOGGER . . . . . . . . . . . . . . .

GENERAL INFORMATION . . . . . .

SPECIAL TOOLS . . . . . . . . . . . . . .

TROUBLESHOOTING . . . . . . . . . .

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING . . . . . . . . . . . . . .

SYMPTOM CHART . . . . . . . . . . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . . .

REMOVAL AND INSTALLATION .

ON-VEHICLE SERVICE . . . . . . . . .

PRINTED HEATER CHECK. . . . . . . . . .

REAR WINDOW DEFOGGER RELAY

CHECK . . . . . . . . . . . . . . . . . . . . . . . . . .

BATTERY

TSB Revision

CHASSIS ELECTRICAL

54A-7

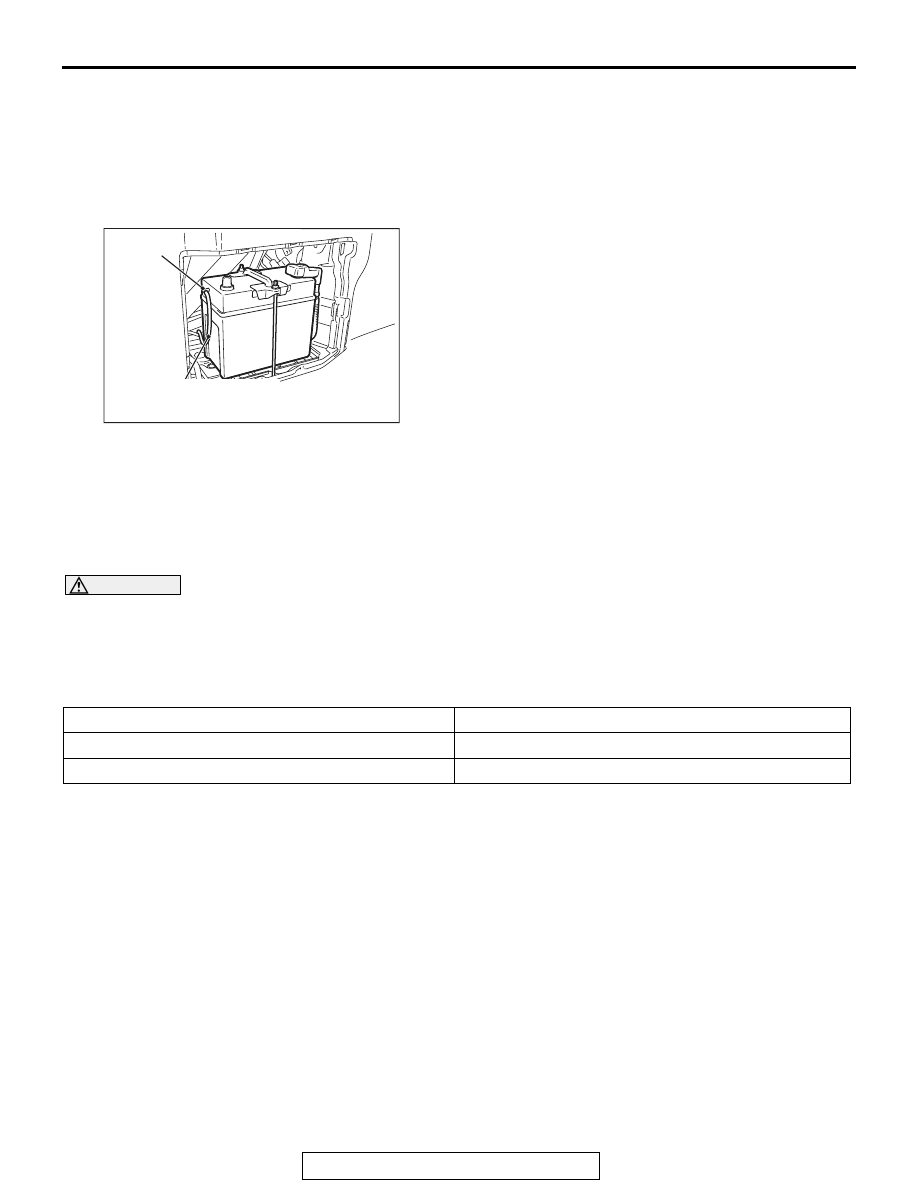

BATTERY

GENERAL INFORMATION

M1541000100302

The sealed battery is installed in the trunk room. The
sealed battery has a structure that uses the sealed
reaction (cathodic absorption), eliminating the needs
for refilling and liquid level check.

• The sealed reaction (cathodic absorption) brings

the oxygen gas

*

, which is generated at positive

pole, to the negative pole, and binds the oxygen
gas with hydrogen gas generated at negative
pole. As a result, the gas is transformed back to
water, preventing the decrease of electrolytic
solution.

NOTE:

*

: The generation of oxygen gas at posi-

tive pole occurs in an earlier stage than that of
hydrogen gas at negative pole.

• Calcium alloy with superior characteristics of

electrolyte decrease is used for the polar plate
grille between the positive and negative poles in
the battery container.

Although the sealed reaction (cathodic absorption)
occurs with 100% efficiency with a normal use, the
generated gas may not be absorbed completely
under the statuses of overcharging, high tempera-
ture, or high voltage. Therefore, to prevent the charg-
ing of non-absorbed inflammable gas inside the trunk
room, the battery exhaust tube (battery cover hose)
and pipe for gas bleeding are equipped.

CAUTION

• When charging, always set the charging current to 5 amps or less.
• Always charge the battery by referencing the charging time in Graph 1.
• Do not remove the battery cover or label.
• Always securely mount the battery exhaust tube (battery cover hose) and pipe.

AC705447AC

pipe

Battery exhaust tube
(Battery cover hose)

Item

S65D26L

Voltage V

12

Capacity (5-hour rate) Ah

44

BATTERY

TSB Revision

CHASSIS ELECTRICAL

54A-8

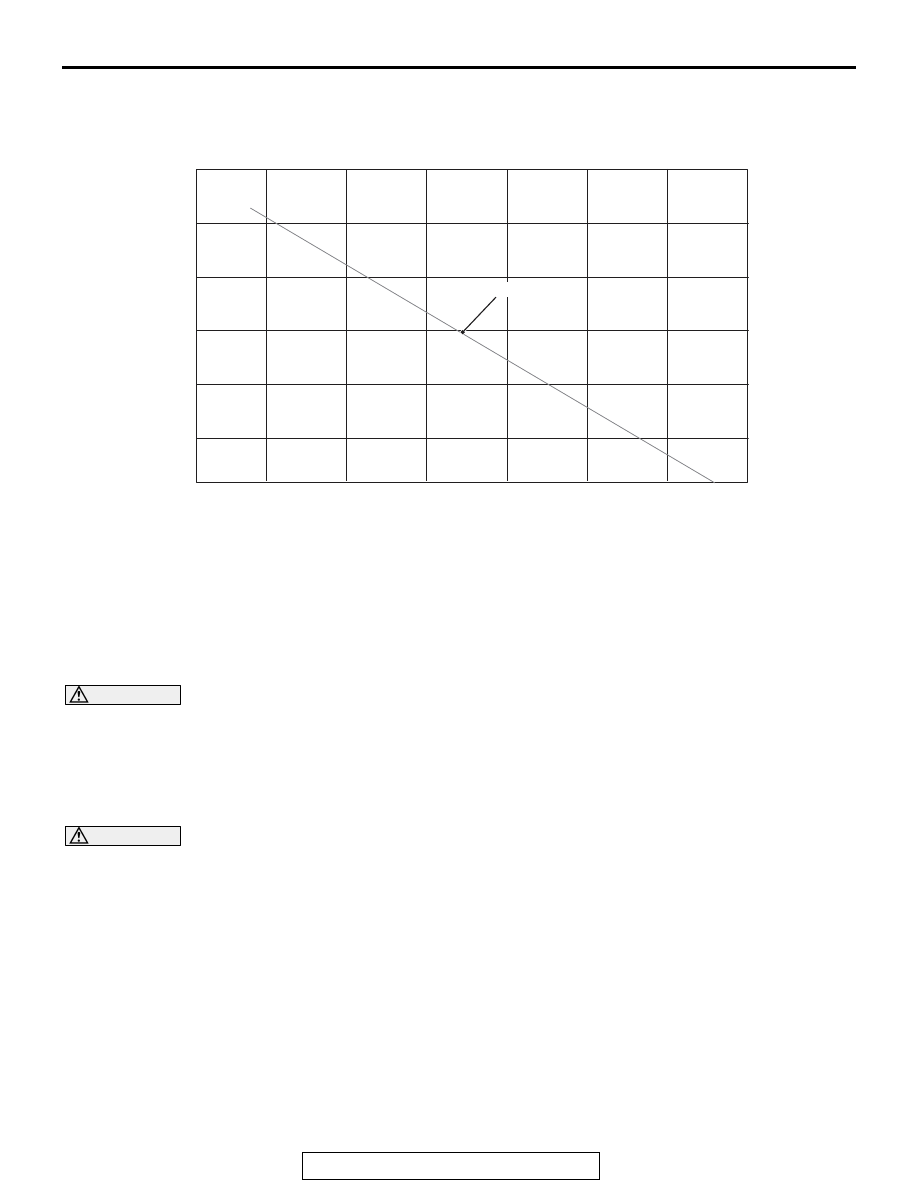

Graph 1

ON-VEHICLE SERVICE

Electrolyte level and specific gravity checks

M1541000900449

CAUTION

Because it is the maintenance free battery, the electrolyte level and specific gravity checks are not
performed.
NOTE: To maintain the battery performance, never remove the label or top lid.

Charging

M1541001101450

CAUTION

• Do not perform boost charging.
• The charging current shall be 5.0 A or less.
• The battery shall be charged by referring to

the graph 1 of the battery test (

• Open flame around the battery while charging

may cause explosion.

• While charging, pay attention not to cause

sparks or other risks.

• Perform the operation in a well-ventilated

place.

1. Remove the battery from the vehicle.

2. Set the charging current to 5 amps or less and

charge the battery by referencing the charging
time in Graph 1 described in the section "battery
test". (Refer to

.

How to judge the completion of charging

Perform the battery test to check if it is normal.

AC707780

12.8

12.6

12.4

12.2

12.0

11.8

11.6

13.0

0

2

4

6

8

10

12

(V)

Battery voltage (V)

Batter

y charging time at 5 amps (h)

(h)

S65D26L
