31-1

GROUP 31

WHEEL AND TIRE

CONTENTS

GENERAL SPECIFICATIONS . . . . . .

31-2

SERVICE SPECIFICATIONS. . . . . . .

31-2

WHEEL AND TIRE DIAGNOSIS . . . .

31-3

DIAGNOSIS  . . . . . . . . . . . . . . . . . . . . . . . .

31-3

WHEEL BALANCE ACCURACY  . . . . . . . .

31-4

ON-VEHICLE SERVICE. . . . . . . . . . .

31-8

TIRE INFLATION PRESSURE CHECK  . . .

31-8

TIRE WEAR CHECK . . . . . . . . . . . . . . . . . .

31-8

WHEEL RUNOUT CHECK  . . . . . . . . . . . . .

31-8

WHEEL AND TIRE . . . . . . . . . . . . . . .

31-8

INSTALLATION SERVICE POINT  . . . . . . .

31-8

TIRE PRESSURE MONITORING



SYSTEM (TPMS)  . . . . . . . . . . . . . . . .

31-8

REMOVAL AND INSTALLATION  . . . . . . . .

31-8

GENERAL SPECIFICATIONS

TSB Revision

WHEEL AND TIRE

31-2

GENERAL SPECIFICATIONS

M1311000200562

.

ROAD WHEEL AND TIRE

Item

Specification

Wheel

Type

Aluminum type

Size

18

×  8.5JJ

Amount of wheel offset mm (in)

38 (1.5)

PCD mm (in)

114.3 (4.50)

Tire

Size

245/40R18 93Y

NOTE: PCD indicates the pitch circle diameter of the wheel installation holes.

.

SPARE WHEEL AND TIRE

Item

Specification

Wheel

Type

Steel type

Size

18

×  4T

Amount of wheel offset mm (in)

30 (1.2)

PCD mm (in)

114.3 (4.50)

Tire

Size

T145/70R18 107M

NOTE: PCD indicates the pitch circle diameter of the wheel installation holes.

SERVICE SPECIFICATIONS

M1311000300893

Item

Limit

Tread depth of tire mm (in)

Minimum 1.6 (0.06)

Wheel runout

Radial runout mm (in)

1.0 (0.04) or less

Lateral runout mm (in)

1.0 (0.04) or less

WHEEL AND TIRE DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-3

WHEEL AND TIRE DIAGNOSIS

DIAGNOSIS

M1311000700932

Symptom

Probable cause

Remedy

Reference page

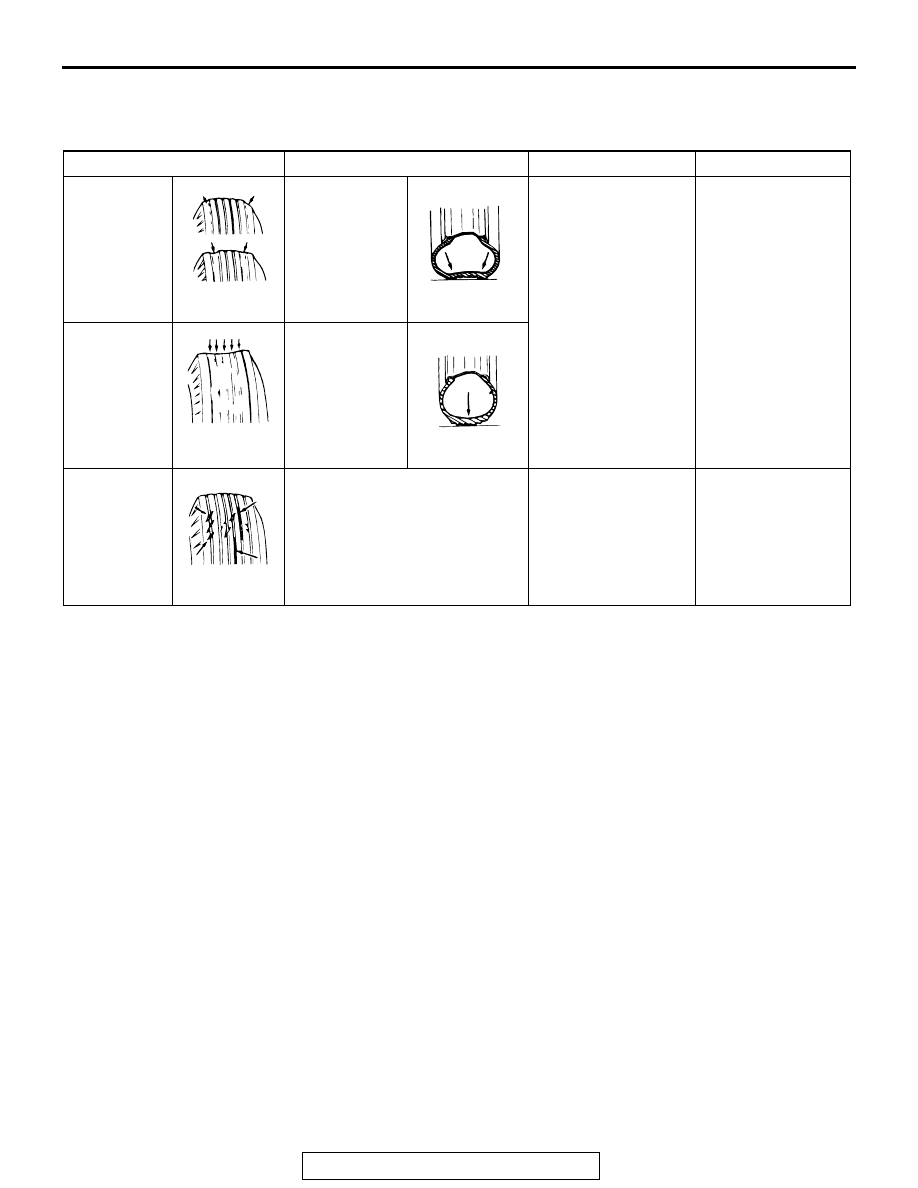

Rapid wear
at shoulders

ACX00923AB

Under-inflation
or lack of
rotation

ACX00924 AB

Adjust the tire
pressure.

For tire inflation
pressure, refer to
the label on the
driver's side center
pillar.

Rapid wear
at center

ACX00925AB

Over-inflation
or lack of
rotation

ACX00926AB

Cracked
treads

ACX00927AB

Under-inflation

Adjust the tire
pressure.

For tire inflation
pressure, refer to
the label on the
driver's side center
pillar.

WHEEL AND TIRE DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-4

WHEEL BALANCE ACCURACY

M1311001700656

PURPOSE

This section contains tips and procedures for achiev-
ing accurate wheel balance. Steering wheel vibration
and/or body shake can result if any of these proce-
dures are not carefully observed.
1. Wheels and tires must be properly mounted on a

balancer in order to achieve correct balance.
Centering the wheel on the shaft of the balancer is
essential for proper mounting.

2. Off-the-car wheel balancers must be calibrated

periodically to ensure good balancing results. An
inaccurately calibrated balancer could cause
unnecessary replacement of tires, shocks,
suspension components, or steering components.

Check your balancer's calibration approximately
every 100 balances. Your wheel balancer's instruc-
tion manual should include calibration procedures. If
the calibration procedures specifically for your bal-
ancer are missing, use the generic steps in this sec-
tion for zero calibration, static balance, and dynamic
balance checks. The wheel balancer calibration
checks are also described in the flowchart. (Refer to

P.31-7

.)

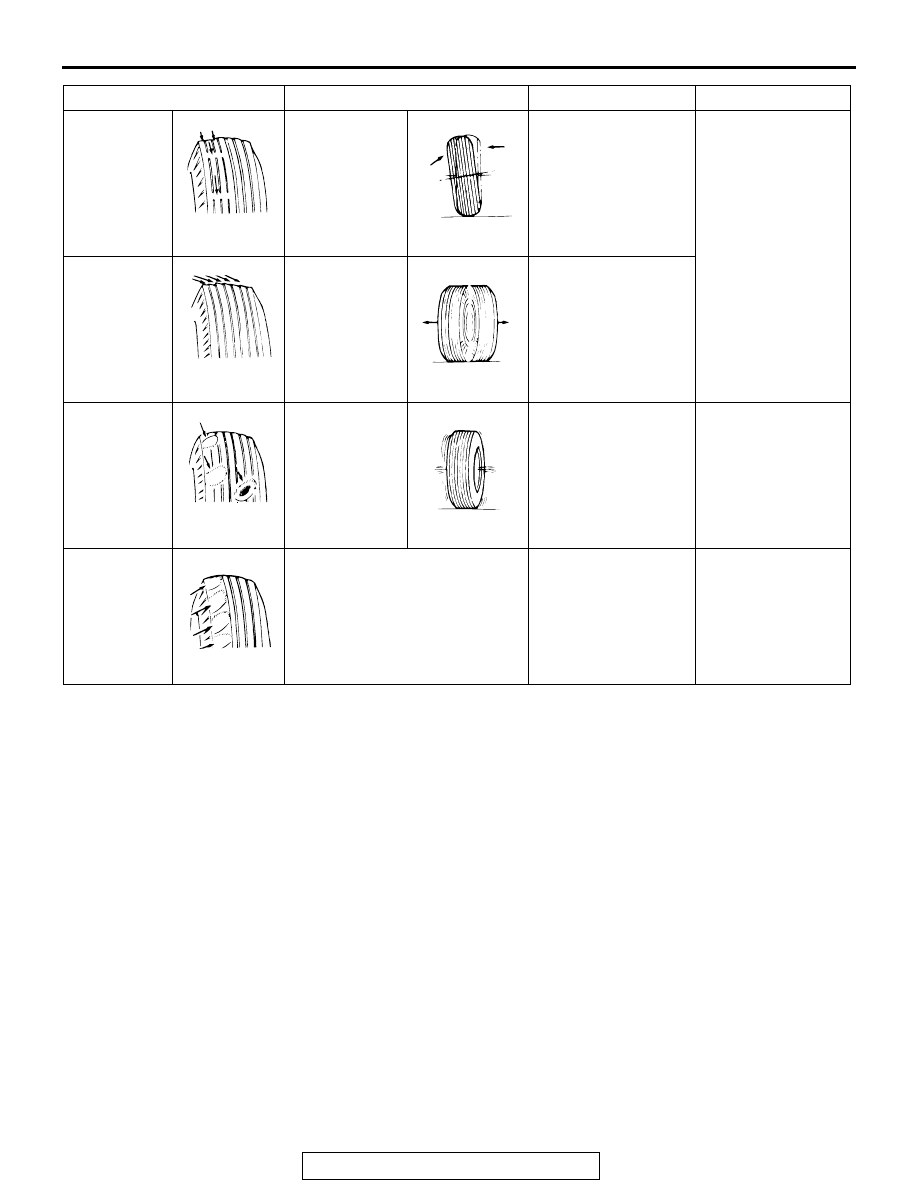

Wear on one
side

ACX00928 AB

Excessive
camber

ACX00929 AB

Check the camber.

Refer to GROUP
33, On-vehicle
service

− Front

wheel alignment
check and
adjustment

P.33-7

.

Feathered
edge

ACX00930AB

Incorrect toe-in

ACX00931AB

Adjust the toe-in.

Bald spots

ACX00932AB

Unbalanced
wheel

ACX00933 AB

Balance the wheels.

−

Scalloped
wear

ACX00934

Lack of rotation of tires or worn
or out-of-alignment suspension

Rotate the tires, and
check the front
suspension
alignment.

Refer to GROUP
33, On-vehicle
service

− Front

wheel alignment
check and
adjustment

P.33-7

.

Symptom

Probable cause

Remedy

Reference page
