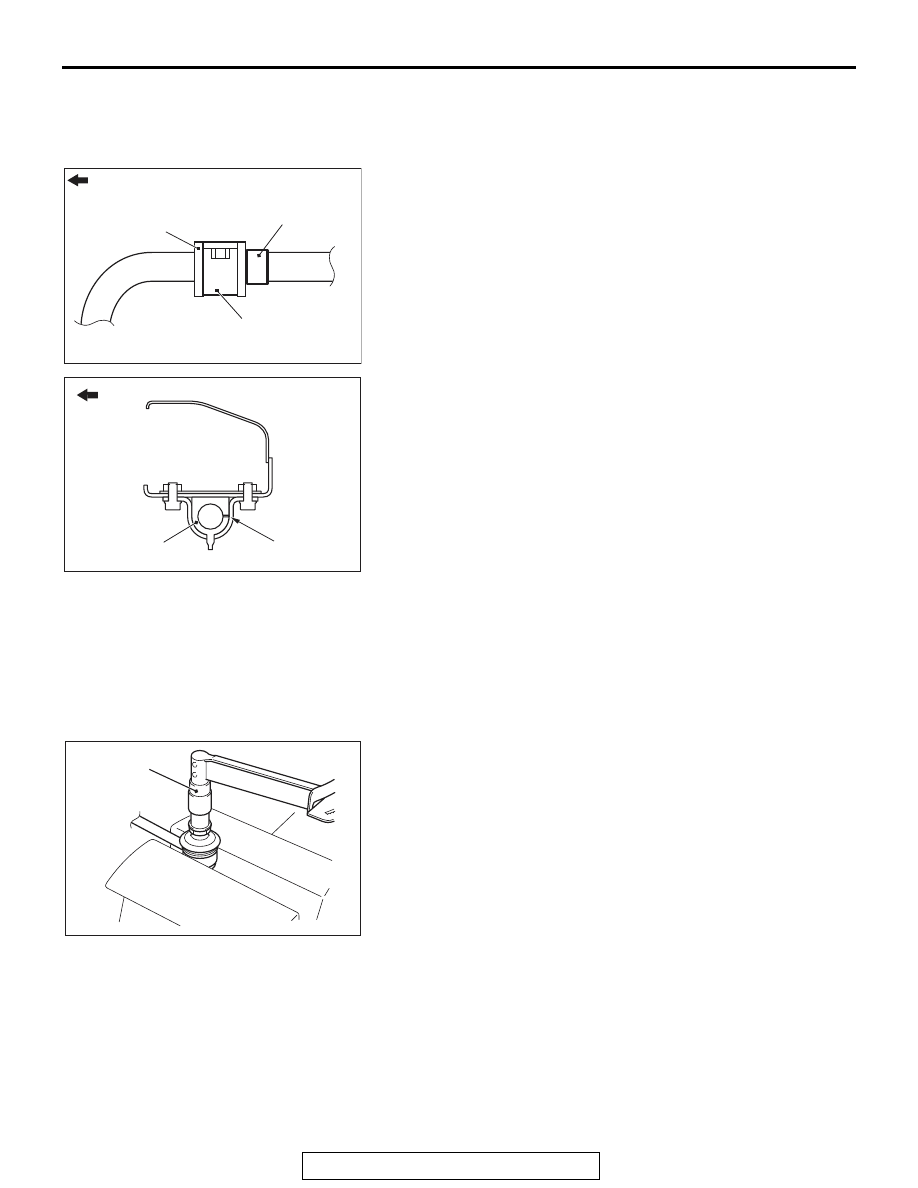

STABILIZER BAR

TSB Revision

REAR SUSPENSION

34-29

INSTALLATION SERVICE POINT

.

>>A<< STABILIZER BAR/BUSHING/STABILIZER
CLAMP INSTALLATION

AC608491AD

Outside of the vehicle

Bushing

Stabilizer clamp

Stopper ring

1. Install the stabilizer clamp at the position shown in the

figure, and tighten the stabilizer clamp mounting bolt.

AC708463 AC

Slit

Bushing

Vehicle
forward

2. Install the bushing with the bushing slit directed toward the

rear of the vehicle.

STABILIZER LINK CHECK

M1341019800026

STABILIZER LINK BALL JOINT ROTATION
TORQUE CHECK

Required Special Tool:

AC404845

MB990326

AC

MB990326: Preload socket

1. Move the stabilizer link ball joint stud back and forth for

several times, install the stud with nut, and measure the
stabilizer link ball joint rotation torque using special tool
MB990326.

Standard value:

10

 30° C (50  86° F): 0.2  2.0 N⋅ m (1.8  17.7 in-lb)

Other than 10

 30° C (50  86° F): 0.2  5.0 N⋅ m (1.8

44.2 in-lb)

2. When the measured value exceeds the standard range,

replace the stabilizer link assembly. (Refer to

P.34-28

.)

3. Even if the measured value is within the standard value,

check that the stabilizer link ball joint has no looseness or
gritty feeling. If there is no looseness or gritty feeling, it is
judged as usable.

STABILIZER LINK BALL JOINT DUST COVER
INSPECTION

Refer to

P.34-10

.

REAR SUSPENSION CROSSMEMBER

TSB Revision

REAR SUSPENSION

34-30

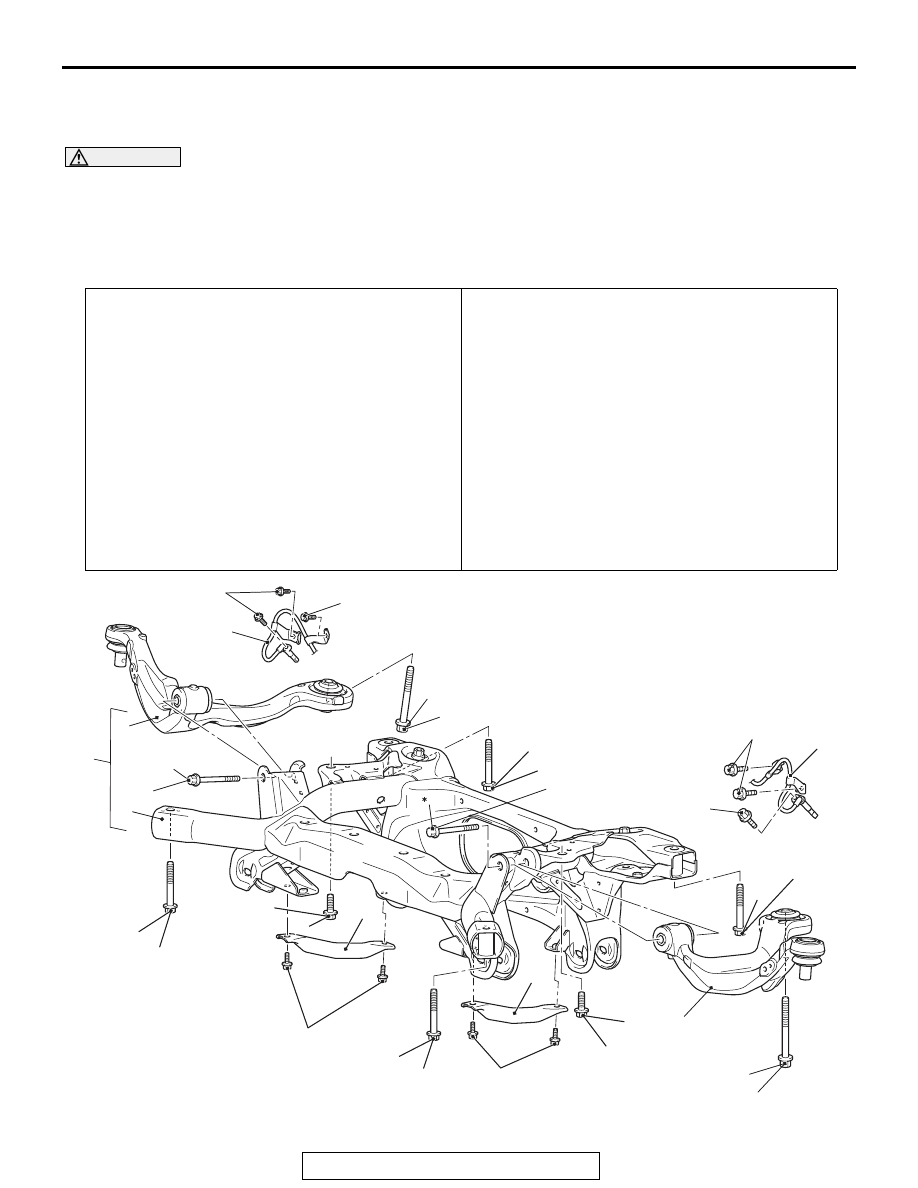

REAR SUSPENSION CROSSMEMBER

REMOVAL AND INSTALLATION

M1341006800628

CAUTION

• The parts indicated by

*1

 should be temporarily tightened, and then fully tightened with the vehicle

standing on the ground and the curb weight condition.

Pre-removal operation
• Exhaust pipe and main muffler removal (Refer to GROUP

15

− Exhaust Pipe and Muffler

P.15-24

.)

• Control link removal (Refer to

P.34-12

.)

• Lower arm removal (Refer to

P.34-12

.)

• Rear suspension stabilizer bar removal (Refer to

P.34-28

.)

• Knuckle removal (Refer to GROUP 27, Knuckl

P.27-40

.)

• Driveshaft removal (Refer to GROUP 27, Driveshaft

Assembly

P.27-43

.)

• Rear differential assembly removal (Refer to GROUP27,

Differential Carrier Assembly

P.27-52

.)

• Fuel filler neck removal (Refer to GROUP 13B, Fuel Tank

P.13B-10

.) (LH only)

Post-installation operation
• Rear differential assembly installation (Refer to GROUP

27, Differential Carrier Assembly

P.27-52

.)

• Driveshaft installation (Refer to GROUP 27, Driveshaft

Assembly

P.27-43

.)

• Knuckle installation (Refer to GROUP 27, Knuckle

P.27-40

.)

• Rear suspension stabilizer bar installation (Refer to

P.34-28

.)

• Lower arm installation (Refer to

P.34-12

.)

• Control link installation (Refer to

P.34-12

.)

• Exhaust pipe and main muffler installation (Refer to

GROUP 15

− Exhaust Pipe and Muffler

P.15-24

.)

• Wheel Alignment Check and Adjustment (Refer to

P.34-9



.)

• Fuel filler neck installation (Refer to GROUP 13B, Fuel

Tank

P.13B-10

.) (LH only)

AC705355AB

3

2

4

5

1

2

4

1

1

71 ± 10 N·m
52 ± 7 ft-lb

8.5 ± 1.5 N·m
76 ±13 in-lb

11 ± 2 N·m
98 ± 17 in-lb

110 ± 11 N·m
81 ± 8 ft-lb

71 ± 10 N·m
52 ± 7 ft-lb

8.5 ± 1.5 N·m
76 ±13 in-lb

11 ± 2 N·m
98 ± 17 in-lb

110 ± 11 N·m
81 ± 8 ft-lb

71 ± 10 N·m
52 ± 7 ft-lb

11 ± 3 N·m
97 ± 27 in-lb

110 ± 11 N·m
81 ± 8 ft-lb

71 ± 10 N·m
52 ± 7 ft-lb

11 ± 3 N·m
97 ± 27 in-lb

71 ± 10 N·m
52 ± 7 ft-lb

71 ± 10 N·m
52 ± 7 ft-lb

110 ± 11 N·m
81 ± 8 ft-lb

*2

*2

*2

*2

*2

*2

*2

*2

*2

*1

*2

*2

*2

The parts indicated by

*2

 are the bolts with friction coefficient stabilizer. In removal, ensure there is

no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the
specified torque.

Removal steps

>>

A

<<

1.

Rear suspension crossmember
stay

2.

Rear wheel speed sensor

<<

A

>>

3.

Upper arm and rear suspension
crossmember assembly

4.

Upper arm

5.

Rear suspension crossmember

REAR SUSPENSION CROSSMEMBER

TSB Revision

REAR SUSPENSION

34-31

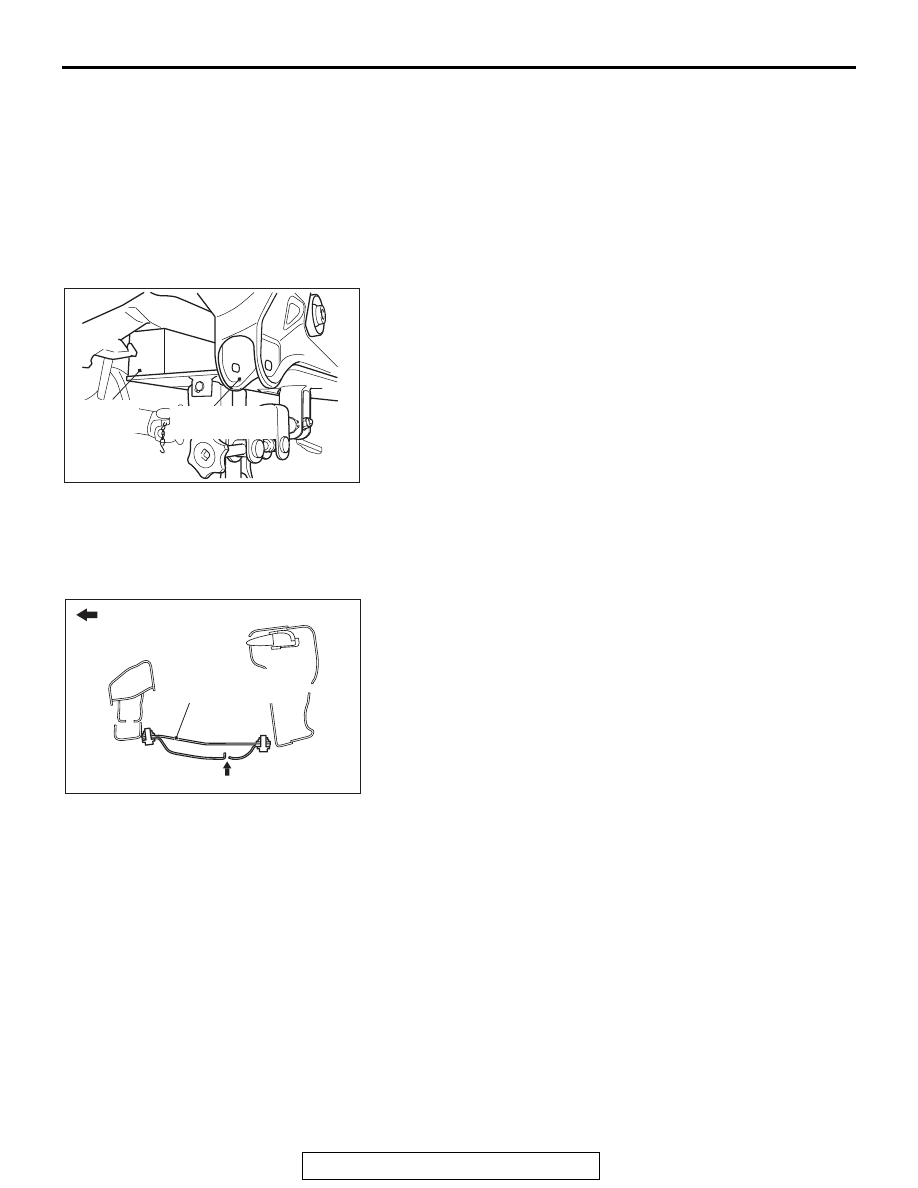

REMOVAL SERVICE POINT

.

<<A>> REAR SUSPENSION CROSSMEMBER
REMOVAL

AC705269AB

Wooden
block

Rear suspension
crossmember

Place a wooden block against the bottom of rear suspension
crossmember front, and remove the crossmember. Do not tilt
the crossmember during removal.

INSTALLATION SERVICE POINT

.

>>A<< REAR SUSPENSION CROSSMEMBER
INSTALLATION

AC705358AB

Rear suspension
crossmember stay

Vehicle forward

Drain hole

Install the rear suspension crossmember stay so that the water
drain hole is positioned rearward.

Removal steps (Continued)

NOTES
