Mitsubishi Evolution X. Manual - part 901





SERVICE SPECIFICATIONS

TSB Revision

REAR SUSPENSION

34-5

SERVICE SPECIFICATIONS

M1341000300993

Item

Standard value

Toe in  mm (in)

± 2 (0.12 ± 0.08)

Camber

−1° 00' ± 0° 30' (Difference between right and

left within 0

° 30')

Control link ball joint rotation starting torque N

⋅ m (in-lb)

0.5

− 2.5 (4.5 − 22.1)

Control link slide bushing rotation starting torque N

⋅ m (in-lb) 2.0 (17.7) or less

Lower arm pillow ball bushing rotation starting torque N

⋅ m

(in-lb)

Rear suspension crossmember side: 3.0
(26.5) or less, Knuckle side: 9.8 (86.7) or less

Trailing arm ball joint rotation starting torque N

⋅ m (in-lb)

0.5

− 2.5 (4.5 − 22.1)

Trailing arm pillow ball bushing rotation torque N

⋅ m (in-lb)

1.5 (13.2) or less

Upper arm ball joint rotation starting torque N

⋅ m (in-lb)

3.4 (30.0) or less

Upper arm pillow ball bushing rotation torque N

⋅ m (in-lb)

1.5 (13.2) or less

Stabilizer link ball joint rotation torque N

⋅ m (in-lb)

10

− 30° C (50 − 86° F): 0.2 − 2.0 (1.8 − 17.7)

Other than 10

− 30° C (50 − 86° F): 0.2 − 5.0

(1.8

− 44.2)

LUBRICANTS

M1341000400321

Item

Specified lubricant

Quantity

Inside of control link ball joint dust
cover and lip part

Multipurpose grease SAE J310,
NLGI No.2 or equivalent

Inside of dust cover: Approx.7g

(0.247 oz)

Lip part: As required

Inside of trailing arm ball joint dust
cover and lip part

Inside of dust cover: Approx.7g

(0.247 oz)

Lip part: As required

Inside of upper arm ball joint dust
cover and lip part

Inside of dust cover: 9.0

− 10.0 g

(0.32

− 0.35 oz)

Lip part: As required

REAR SUSPENSION DIAGNOSIS

TSB Revision

REAR SUSPENSION

34-6

REAR SUSPENSION DIAGNOSIS

INTRODUCTION TO REAR SUSPENSION DIAGNOSIS

M1341013100160

If the rear suspension is faulty, the vehicle will not run
straightforward or noise will occur. Incorrect wheel
alignment, malfunction of shock absorber, stabilizer
bar, coil spring, control arms or worn or out-of-bal-
ance will cause these problems.

REAR SUSPENSION DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1341013200275

Use these steps to plan your diagnostic strategy. If
you follow them thoroughly, you will be sure that you
have exhausted most of the possible ways to find a
rear suspension fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1341013500306

Symptom

Inspection procedure

Reference page

Squeaks or other abnormal noise

1



P.34-6

Poor ride

2



P.34-7

Body tilting

3



P.34-7

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Squeaks or other Abnormal Noise

DIAGNOSIS

STEP 1. Check for loose rear suspension
installation bolts and nuts.

Q: Are the rear suspension installation bolts and nuts

loose?
YES :

Retighten them, and then go to Step 5.

NO :

Go to Step 2.

STEP 2. Check the condition of the shock
absorbers (worn bushings).

Q: Are the shock absorbers (bushings) in good

condition?
YES :

Go to Step 3.

NO :

Replace the faulty part, and then go to Step
5.

STEP 3. Check the upper arms and/or lower arms
and/or control links for deformity or damage.

Q: Are the upper arms and/or lower arms and/or

control links in good condition?
YES :

Go to Step 4.

NO :

Replace the faulty part, and then go to Step
5.

STEP 4. Check the trailing arms for deformity or
damage.

Q: Are the trailing arms in good condition?

YES :

Go to Step 5.

NO :

Replace the faulty part, and then go to Step
5.

STEP 5. Retest the system.

Q: Is the malfunction eliminated?

YES :

The procedure is complete.

NO :

Return to Step 1.

REAR SUSPENSION DIAGNOSIS

TSB Revision

REAR SUSPENSION

34-7

INSPECTION PROCEDURE 2: Poor Ride

DIAGNOSIS

STEP 1. Check for excessive tire inflation
pressure.
Refer to GROUP 31, On-vehicle Service

− Tire Infla-

tion Pressure Check

P.31-8

.

Q: Is the tire inflation pressure correct?

YES :

Go to Step 2.

NO :

Adjust the pressure, and then go to Step 4.

STEP 2. Check the condition of the shock
absorbers (weak or broken springs).

Q: Are the shock absorbers in good condition?

YES :

Go to Step 3.

NO :

Replace the faulty part, and then go to Step
4.

STEP 3. Check the stabilizer bar and/or stabilizer
bar links for deformity or damage.

Q: Are the stabilizer bar and/or stabilizer bar links

deformed or damaged?
YES :

Replace the faulty part, and then go to Step

4.

NO :

Go to Step 4.

STEP 4. Retest the system.

Q: Is the malfunction eliminated?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 3: Body Tilting

DIAGNOSIS

STEP 1. Check for weak or deteriorated
bushings.

Q: Are the bushings in good condition?

YES :

Go to Step 2.

NO :

Replace the faulty part, and then go to Step
5.

STEP 2. Check for weak or broken coil springs.

Q: Are the coil springs in good condition?

YES :

Go to Step 3.

NO :

Replace the faulty part, and then go to Step
5.

STEP 3. Check the upper arms and/or lower arms
and/or control links for deformity or damage.

Q: Are the upper arms and/or lower arms and/or

control links deformed or damaged?
YES :

Replace the faulty part, and then go to Step

5.

NO :

Go to Step 4.

STEP 4. Check the trailing arms for deformity or
damage.

Q: Are the trailing arms deformed or damaged?

YES :

Replace the faulty part, and then go to Step

5.

NO :

Go to Step 5.

STEP 5. Retest the system.

Q: Is the malfunction eliminated?

YES :

The procedure is complete.

NO :

Return to Step 1.

SPECIAL TOOLS

TSB Revision

REAR SUSPENSION

34-8

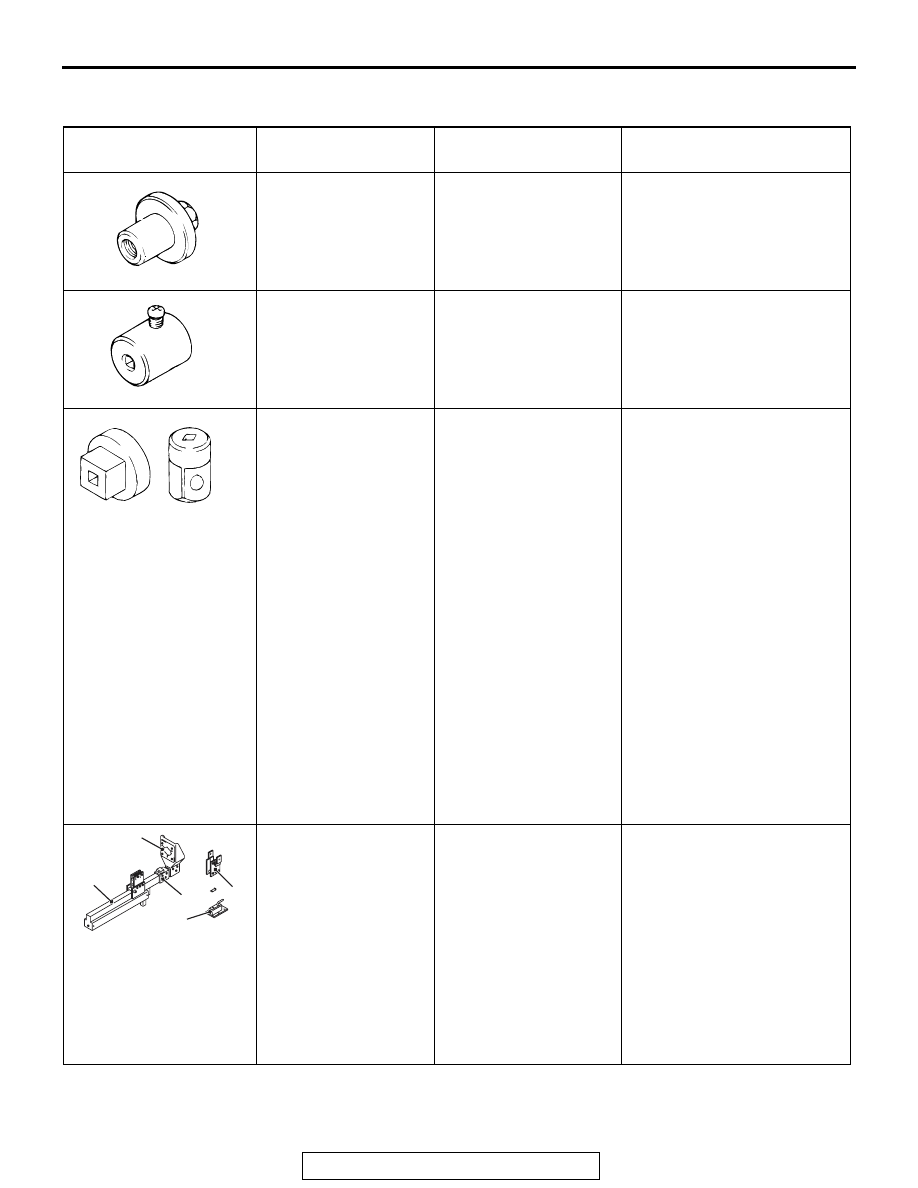

SPECIAL TOOLS

M1341000600820

Tool

Tool number and
name

Supersession

Application

MB991004

MB991004
Wheel alignment
gauge attachment

MB991004-01 or
General service tool

Wheel alignment
measurement

MB991006

MB991006
Preload socket

MB990228-01

Upper arm ball joint rotation
starting torque measurement

MB990326

MB990326
Preload socket

General service tool

• Control link ball joint

rotation starting torque
measurement

• Control link slide bushing

rotation starting torque
measurement

• Lower arm pillow ball

bushing rotation starting
torque measurement

• Trailing arm ball joint

rotation starting torque
measurement

• Trailing arm pillow ball

bushing rotation torque
measurement

• Upper arm pillow ball

bushing rotation torque
measurement

• Stabilizer link ball joint

rotation torque
measurement

MB991832

a

b

c

d

e

MB991832

a: MB991793
b: MB991796
c: MB991794
d: MB991829
e: MB991830

Spring compressor set

a: Spring compressor
b: Attachment
c: Upper plate
d: Arm bracket
e: Fixture

General service tool

Rear coil spring compression
NOTE: The coil spring can not
be compressed by following
conventional special tools.

.

MB991237
Spring compressor body

MB991239
Arm set
