PARKING BRAKE LINING AND DRUM

TSB Revision

PARKING BRAKES

36-17

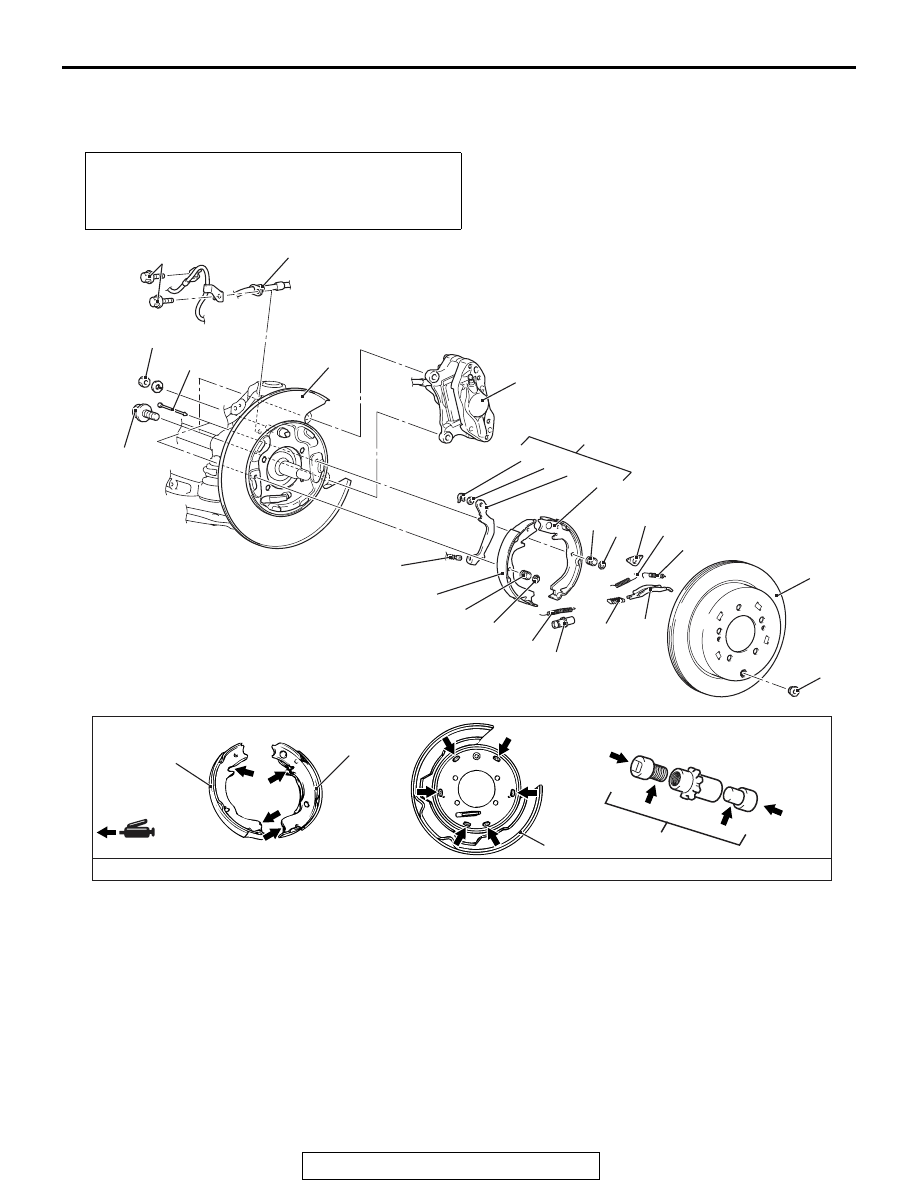

PARKING BRAKE LINING AND DRUM

REMOVAL AND INSTALLATION

M1361002500746

Post-installation Operation
• Parking Brake Lever Stroke Adjustment (Refer to

P.36-11

).

• Lining Running-in (Refer to

P.36-12

.)

AC709255

15

17

9

21

18

19

20

2

22

4

5

9

22

8

13

14

15

10

11

12

6

7

13

14

1

AB

3

17

16

Specified grease: Chuo Yuka AKB 100 or equivalent

11 ± 2 N·m
98 ± 17 in-lb

80 ± 10 N·m
59 ± 7 ft-lb

145 ± 15 N·m
107 ± 11 ft-lb

Removal steps

•

Release the parking brake lever.

1.

Adjusting hole plug

2.

Brake hose bracket connection

<<

A

>>

3.

Rear brake caliper assembly

<<

B

>>

4.

Rear brake disc

>>

D

<<

5.

Shoe-to-anchor spring

>>

D

<<

6.

Shoe-to-anchor spring

7.

Shoe guide plate

8.

Adjusting wheel spring

>>

C

<<

9.

Adjuster assembly

10. Strut
11. Strut shoe-to-spring
12. Shoe hold down pin

13. Shoe hold down cup
14. Shoe hold down spring
15. Shoe and lining assembly
16. Parking brake rear cable

connection

17. Shoe and lever assembly

>>

B

<<

18. Chamber retainer

>>

A

<<

19. Washer
20. Parking brake operating lever
21. Shoe and lining assembly

Removal steps (Continued)

PARKING BRAKE LINING AND DRUM

TSB Revision

PARKING BRAKES

36-18

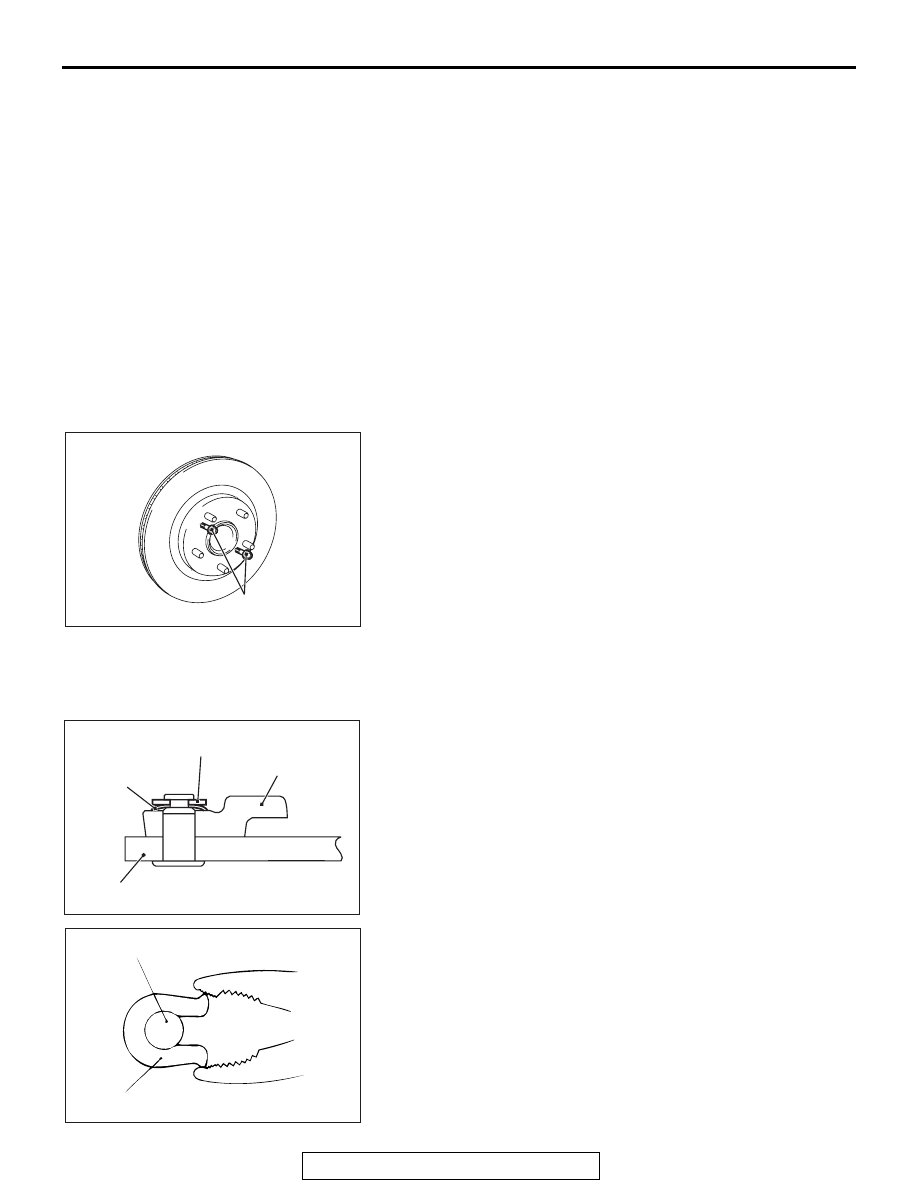

REMOVAL SERVICE POINTS

.

<<A>> REAR BRAKE CALIPER ASSEMBLY
REMOVAL

1.  Remove the rear brake caliper assembly with the brake

hose kept attached.

2. Secure the removed rear brake caliper assembly with a wire

or other similar material at a position where it will not
interfere with the removal and installation works.

.

<<B>>REAR BRAKE DISC REMOVAL

AC707776AB

Bolts (M8 x 1.25 mm)

If the rear brake disc removal is difficult, install bolts (M8 x 1.25
mm) shown in the figure, and tighten them evenly and gradually
to remove the rear brake disc.

INSTALLATION SERVICE POINTS

.

>>A<< WASHER INSTALLATION

AC304675AD

Shoe and lining assembly

Chamber
retainer

Washer

Parking brake
operating lever

Install the washer in the direction shown in the illustration.

.

>>B<< CHAMBER RETAINER INSTALLATION

AC000926AJ

Pin of shoe and lining assembly

Chamber retainer

Use pliers or a similar tool to close the chamber retainer end
onto the pin.

.

•

Rear wheel hub assembly (Refer to
GROUP 27 - Rear Axle Hub
Assembly

P.27-36

.)

22. Backing plate

Removal steps (Continued)

PARKING BRAKE LINING AND DRUM

TSB Revision

PARKING BRAKES

36-19

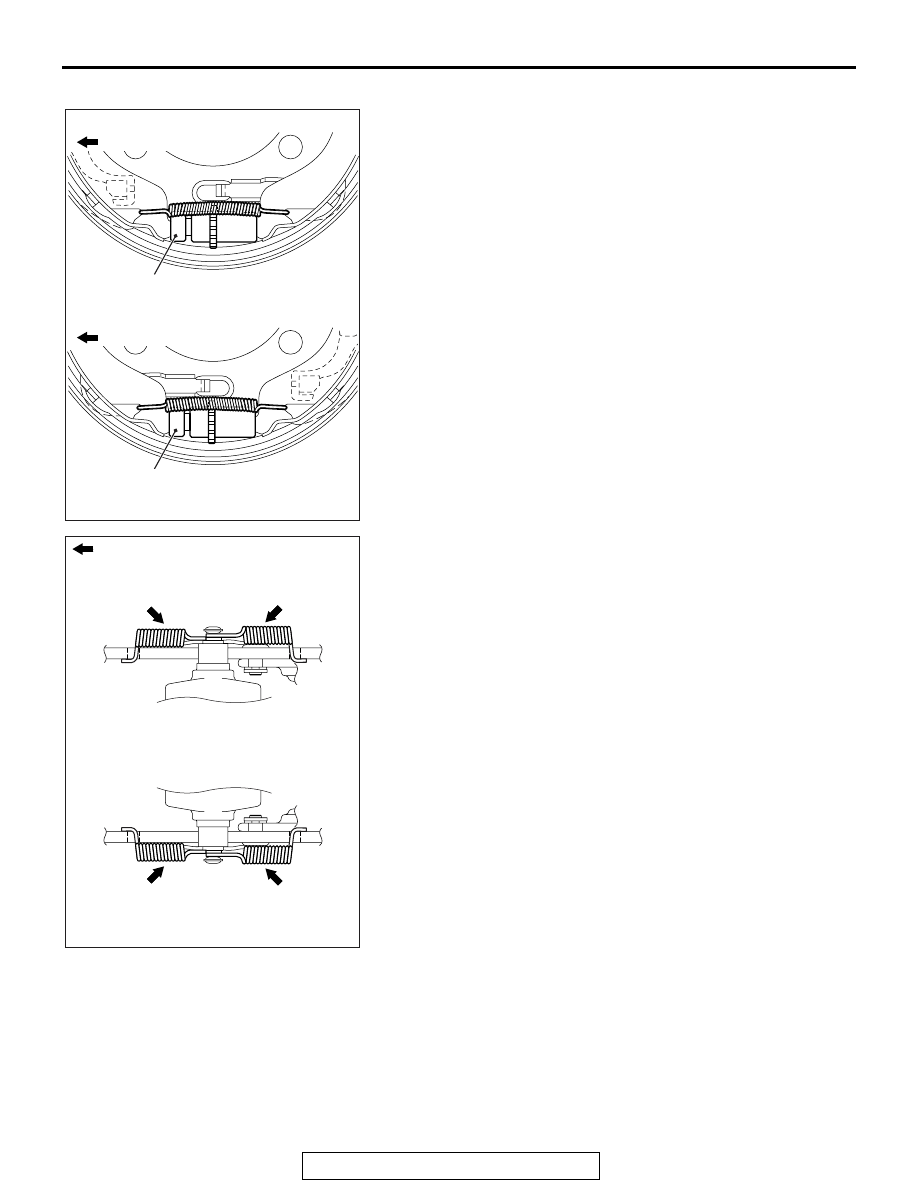

>>C<< ADJUSTER ASSEMBLY INSTALLATION

AC706498AB

Shoe adjusting bolt

Shoe adjusting bolt

<Right side wheel>

<Left side wheel>

Front of the vehicle

Rear of the vehicle

Install the adjuster assembly so that the shoe adjusting bolt is
positioned at the rear of the vehicle for the left side, and at the
front of the vehicle for the right side.

.

>>D<< SHOE-TO-ANCHOR SPRING
INSTALLATION

AC706198 AB

Front of the vehicle

Blue paint

Yellow paint

Blue paint

Yellow paint

<Right side wheel>

<Left side wheel>

The shoe-to-anchor springs are not interchangeable because
their spring loads are different. The one with blue paint must be
installed to the vehicle front, and the other with yellow paint to
the vehicle rear.

PARKING BRAKE LINING AND DRUM

TSB Revision

PARKING BRAKES

36-20

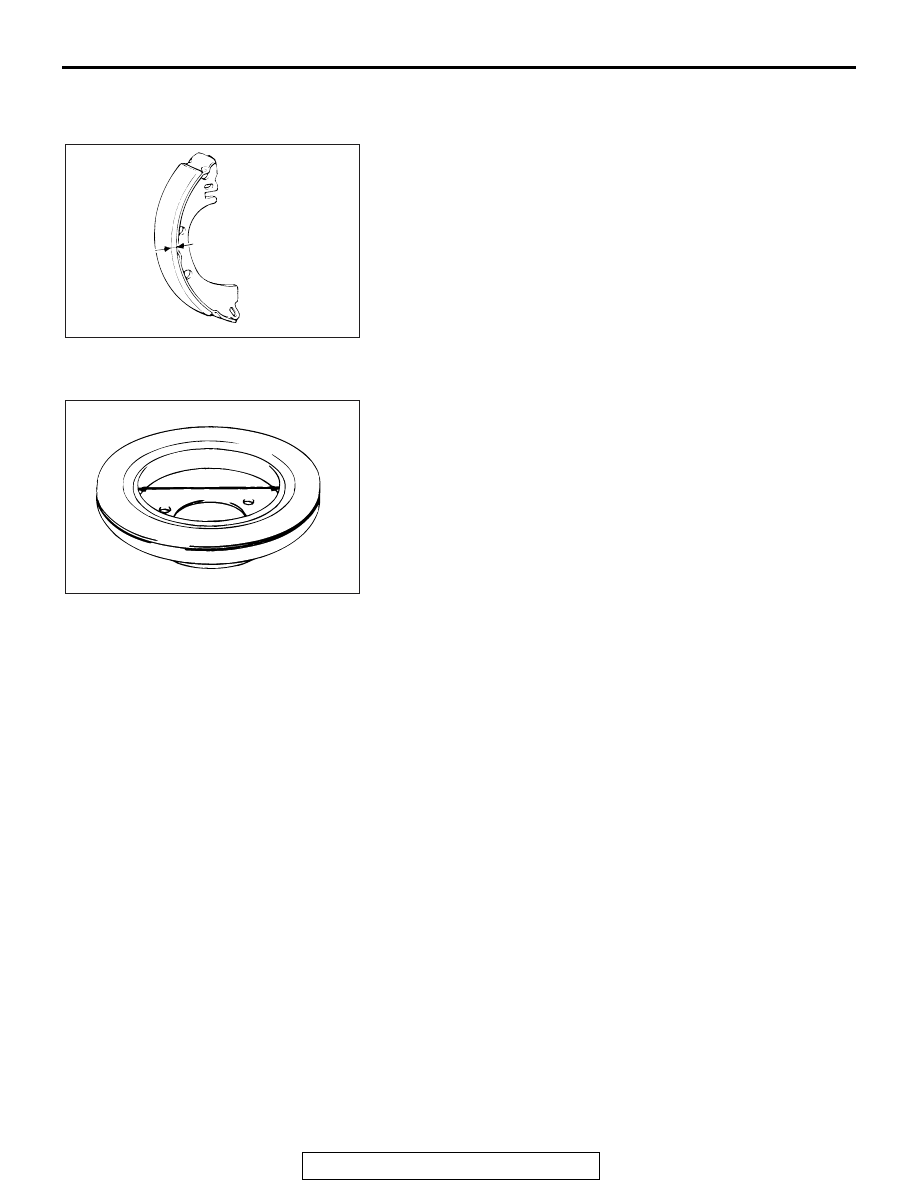

INSPECTION

M1361002600538

BRAKE LINING THICKNESS CHECK

ACX00708

1. Measure the lining thickness at the most worn area.

Standard value: 2.8 mm (0.11 inch)
Limit: 1.0 mm (0.04 inch)

2. If the thickness is less than the limit value, replace the right

and left shoe and lining assemblies as a set.

BRAKE DRUM INSIDE DIAMETER CHECK

ACX00709

1. Measure the inside diameter of the brake drum at two

positions or more.

Standard value: 190.0 mm (7.48 inch)
Limit: 191.0 mm (7.52 inch)

2. If the inside diameter is more than limit value or if there is

excessive wear, replace the brake disc.
