PARKING BRAKE LEVER

TSB Revision

PARKING BRAKES

36-13

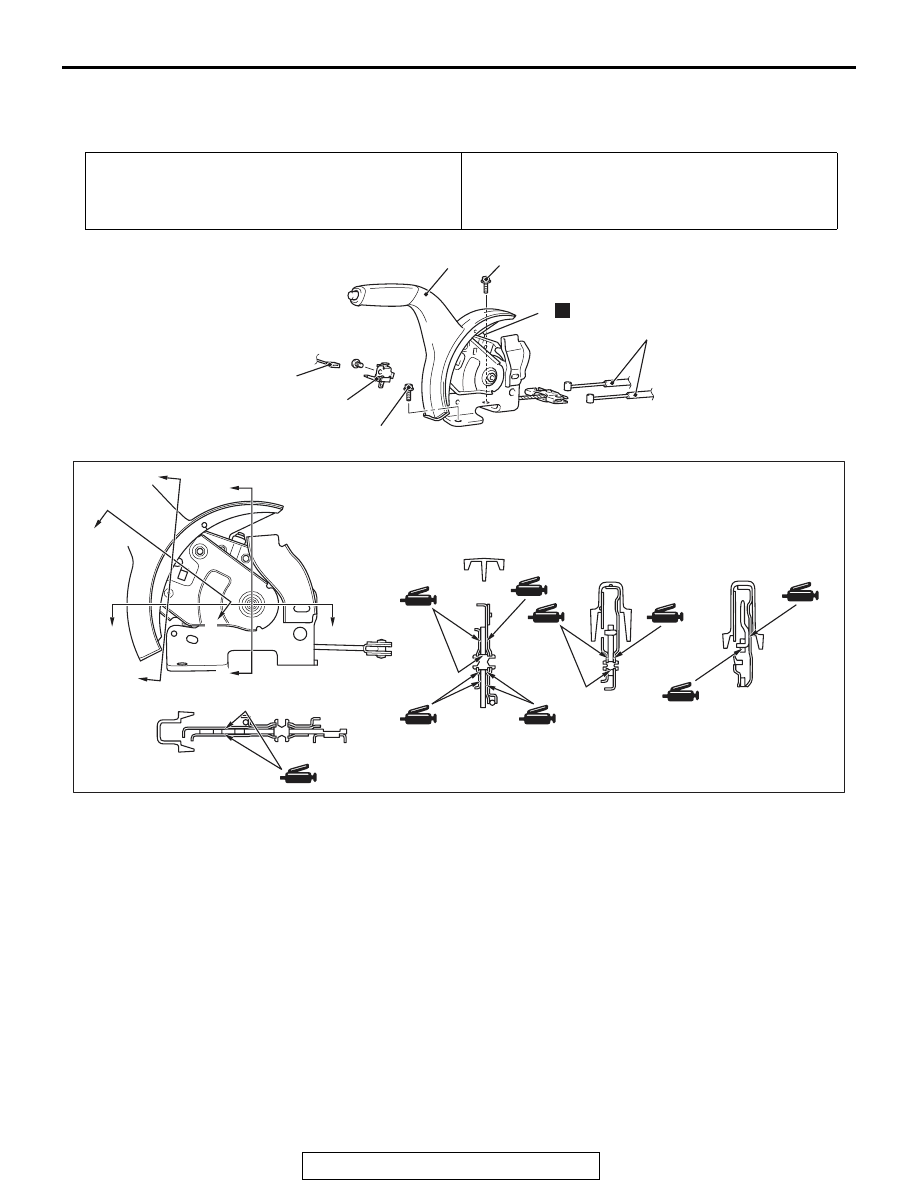

PARKING BRAKE LEVER

REMOVAL AND INSTALLATION

M1361001300846

Pre-removal operation
Floor Console Assembly Removal (Refer to GROUP 52A

−

Floor Console Assembly

P.52A-9

).

Post-installation operation
• Parking Brake Lever Stroke Check (Refer to

P.36-11

).

• Floor Console Assembly Installation (Refer to GROUP

52A

− Floor Console Assembly

P.52A-9

).

AC706395AB

A

B

B

C

D

D

1

3

5

4

2

C

A

N

Section  A – A

Section  B – B

Section  C – C

Section  D – D

20 ± 5 N·m
15 ± 3 ft-lb

20 ± 5 N·m
15 ± 3 ft-lb

Removal steps

1.

Parking brake switch connector

<<

A

>>

>>

A

<<

2.

Parking brake rear cable
connection

3.

Parking brake lever assembly

4.

Parking brake switch

5.

Adjusting nut

REMOVAL SERVICE POINT

.

<<A>> PARKING BRAKE REAR CABLE CONNEC-
TION REMOVAL

Disconnect the parking brake rear cable according to the pro-
cedure below.
1. Release the parking brake, and loosen the adjusting nut.

Removal steps (Continued)

AC609694AB

Floor console
bracket rear

PARKING BRAKE LEVER

TSB Revision

PARKING BRAKES

36-14

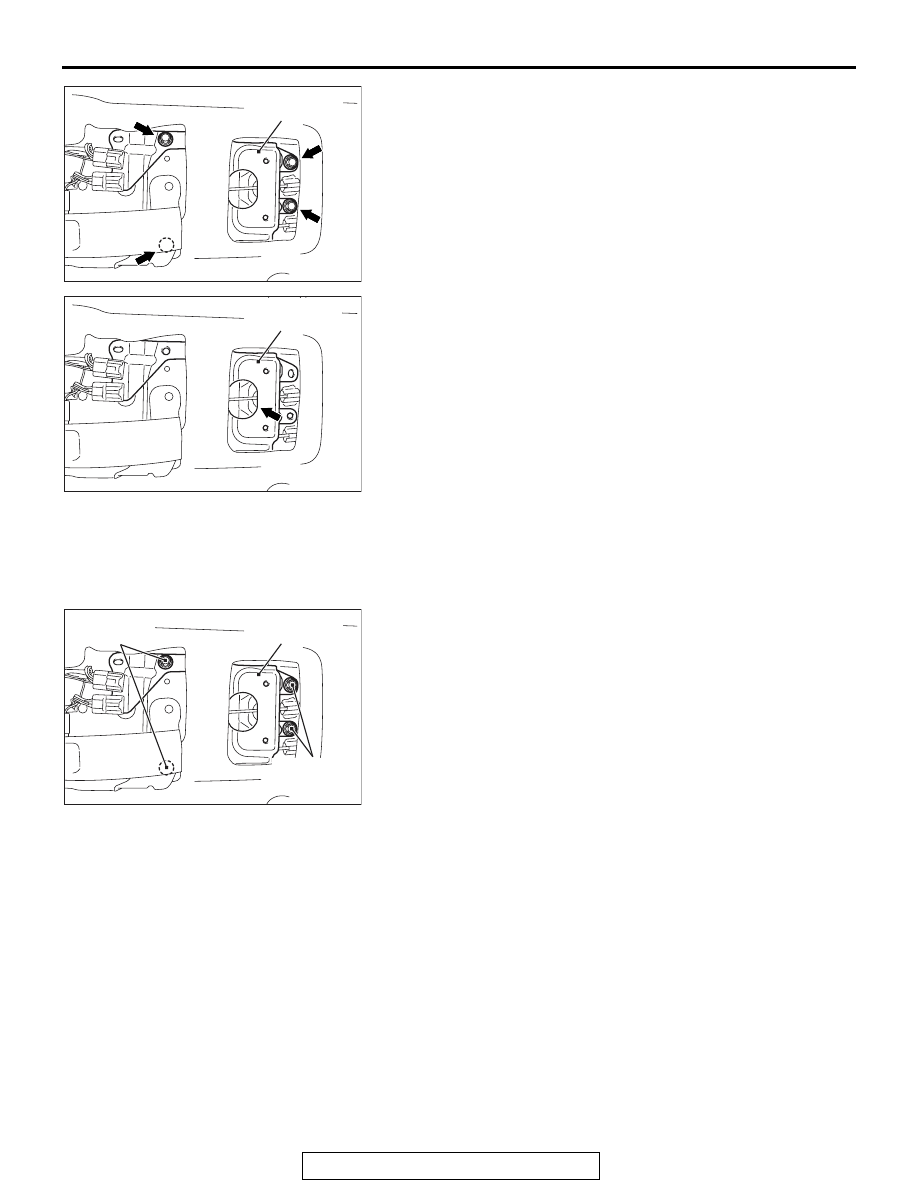

2. Remove the floor console bracket rear mounting bolt.

AC609689AD

Floor console
bracket rear

3. Slide the floor console bracket rear, and disconnect the

parking brake rear cable through the hole indicated with an
arrow in the figure.

INSTALLATION SERVICE POINT

.

>>A<< PARKING BRAKE REAR CABLE CONNEC-
TION INSTALLATION

AC609694AC

Floor console
bracket rear

9.5 ± 3.5 N·m
84 ± 31 in-lb

9.5 ± 3.5 N·m
84 ± 31 in-lb

Connect the parking brake rear cable, and tighten the floor con-
sole bracket rear mounting bolt to the specified torque.

Tightening torque: 9.5

± 3.5 N⋅ m (84 ± 31 in-lb)

PARKING BRAKE CABLE

TSB Revision

PARKING BRAKES

36-15

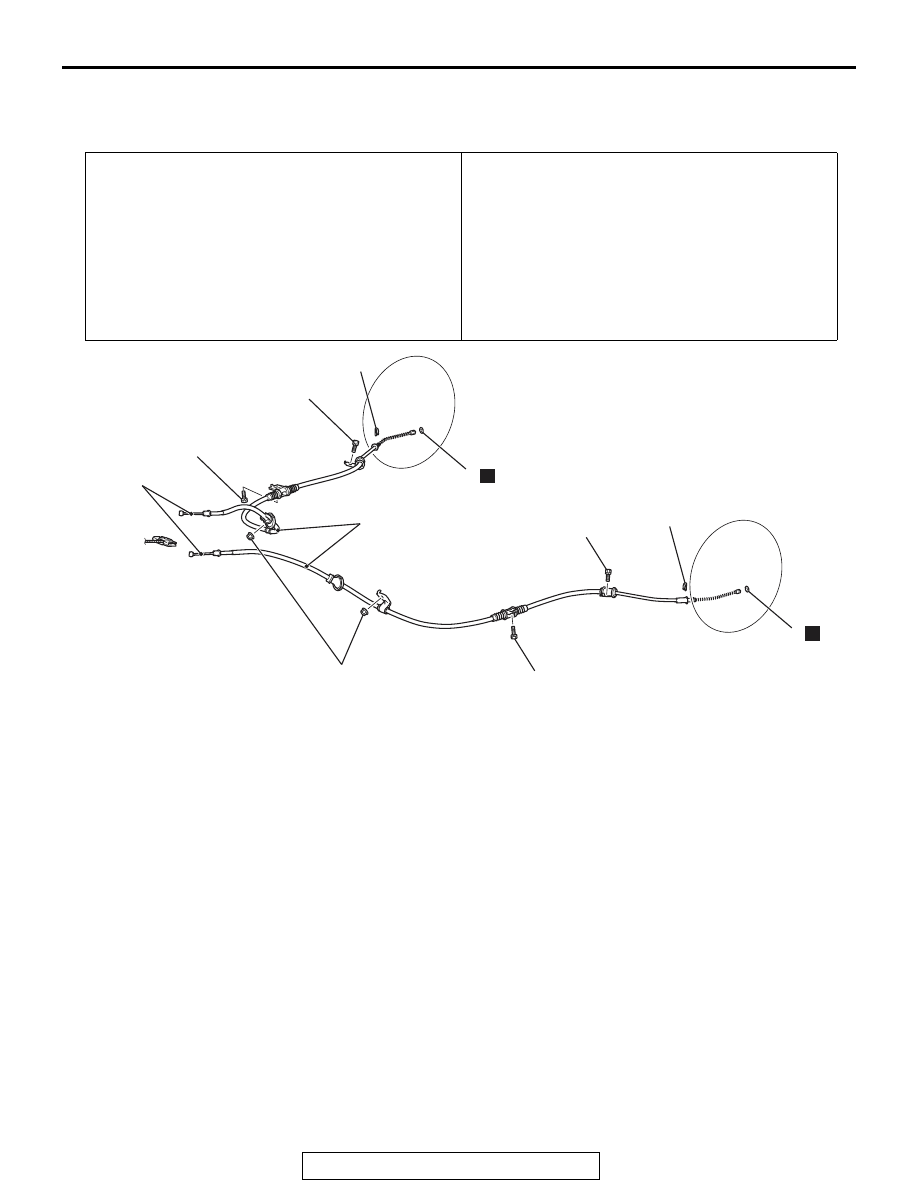

PARKING BRAKE CABLE

REMOVAL AND INSTALLATION

M1361001901379

Pre-removal operation
• Floor Console Assembly Removal (Refer to GROUP 52A

− Floor Console Assembly

P.52A-9

).

• Rear Seat Cushion Assembly Removal (Refer to GROUP

52A

− Rear Seat Assembly

P.52A-25

).

• Shoe and Lining Assembly Removal (Refer to

P.36-17

).

• Front Floor Under Cover Removal (Refer to GROUP 51 −

Under Cover

P.51-16

).

Post-installation operation
• Front Floor Under Cover Installation (Refer to GROUP 51

− Under Cover

P.51-16

).

• Shoe and Lining Assembly Installation (Refer to

P.36-17

).

• Rear Seat Cushion Assembly Installation (Refer to

GROUP 52A

− Rear Seat Assembly

P.52A-25

).

• Floor Console Assembly Installation (Refer to GROUP

52A

− Floor Console Assembly

P.52A-9

).

• Parking Brake Lever Stroke  Adjustment (Refer to

P.36-11

).

• Lining Running-in (Refer to

P.36-12

.)

AC707373AB

1

3

N

2

3

N

4

2

13 ± 2 N·m
111 ± 22 in-lb

11 ± 2 N·m
98 ± 17 in-lb

11 ± 2 N·m
98 ± 17 in-lb

11 ± 2 N·m
98 ± 17 in-lb

11 ± 2 N·m
98 ± 17 in-lb

Removal steps

<<

A

>>

>>

A

<<

1.

Parking brake rear cable
connection

2.

Clip

3.

O-ring

4.

Parking brake rear cable

REMOVAL SERVICE POINT

.

<<A>> PARKING BRAKE REAR CABLE CONNEC-
TION REMOVAL

Disconnect the parking brake rear cable according to the pro-
cedure below.
1. Release the parking brake, and loosen the adjusting nut.

Removal steps (Continued)

AC609694AB

Floor console
bracket rear

PARKING BRAKE CABLE

TSB Revision

PARKING BRAKES

36-16

2. Remove the floor console bracket rear mounting bolt.

AC609689AD

Floor console
bracket rear

3. Slide the floor console bracket rear, and disconnect the

parking brake rear cable through the hole indicated with an
arrow in the figure.

INSTALLATION SERVICE POINT

.

>>A<< PARKING BRAKE REAR CABLE CONNEC-
TION INSTALLATION

AC609694AC

Floor console
bracket rear

9.5 ± 3.5 N·m
84 ± 31 in-lb

9.5 ± 3.5 N·m
84 ± 31 in-lb

Connect the parking brake rear cable, and tighten the floor con-
sole bracket rear mounting bolt to the specified torque.

Tightening torque: 9.5

± 3.5 N⋅ m (84 ± 31 in-lb)
