CURTAIN AIR BAG MODULE(S)

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-411

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

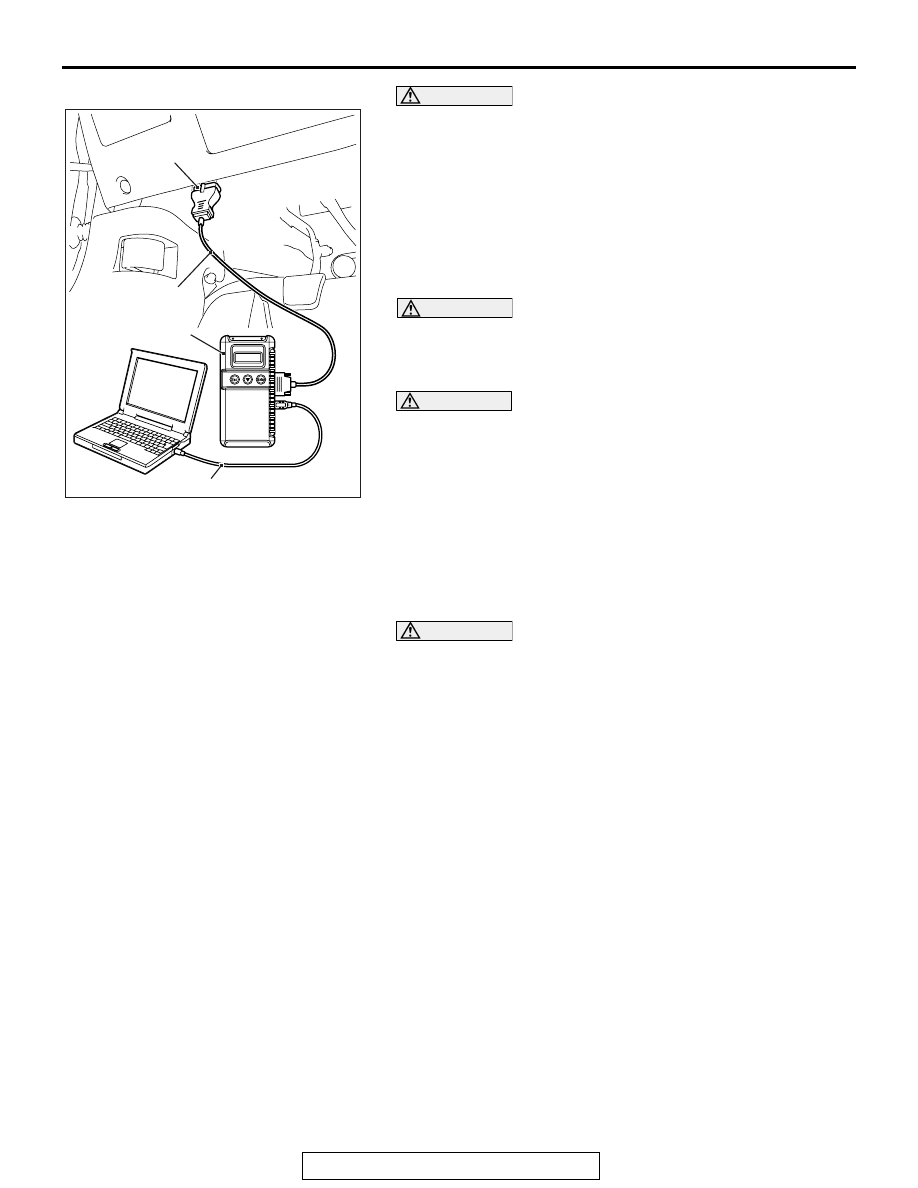

3. Connect scan tool MB991958 to the data link connector.
4. Turn the ignition switch to the “ON” position.
5. Check DTCs using scan tool MB991958 to ensure entire

SRS operates properly.
At this time, check that no DTC except B1B1A and B1B2C
are set.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work (Refer to

P.52B-25

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

6. Turn the ignition switch to the "LOCK" (OFF) position.

Disconnect the negative (

−) battery cable and tape the

terminal to prevent accidental connection and air bag
deployment operation.

.

>>B<< CURTAIN AIR BAG MODULE
INSTALLATION

CAUTION

• Take care not to bend or distort the curtain air bag

when installing it.

• Take care that the surrounding components do not trap

the air bag.

• Take care that the front pillar trim clips or other parts do

not interfere with the strap.

.

>>C<< CURTAIN AIR BAG MODULE CONNECTOR
CONNECTION

Connect the curtain air bag module connector, then securely
lock the locking button of the harness-side connector.

.

>>D<< POST-INSTALLATION INSPECTION

1. Connect the negative (

−) battery cable.

2. Turn the ignition switch to the “ON” position.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

CURTAIN AIR BAG MODULE(S)

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-412

3. Does the "SRS" warning light illuminate for approximately

seven seconds, and go out?

4. If yes, the SRS system is functioning properly. If not, refer to

P.52B-31

.

INSPECTION

M1524013600229

CURTAIN AIR BAG MODULE CHECK

DANGER

Never attempt to measure the circuit resistance of the
air bag modules (squib), even if you are using the
specified tester. If the circuit resistance is measured
with a tester, accidental air bag deployment will
result, and possible serious personal injury.

WARNING

If any component damage is found during the fol-
lowing inspection, replace the air bag module with
a new one. Dispose of the old one according to the
specified procedure (Refer to

P.52B-417

).

There must be no abnormality to the air bag
deployment section of headlining.

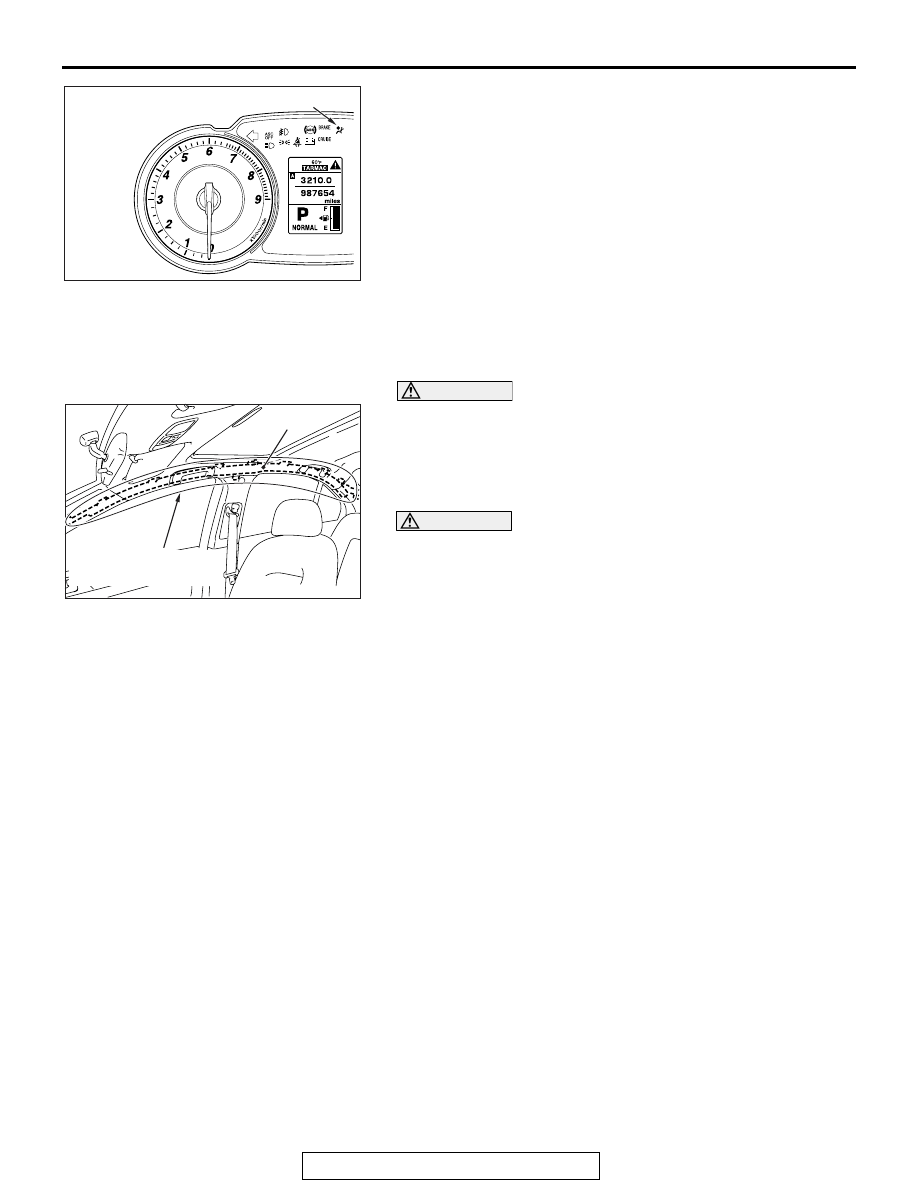

1. Check the inflator surface for cracks, dents or deformations.
2. Check the air bag for breakage.
3. Check the connector for damage, the terminal for

deformation and the harness for binding.

AC709154

SRS warning light

AB

AC609229

Inflator

Curtain air bag module
deployment section

AE

SEAT BELTS WITH PRE-TENSIONER

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-413

SEAT BELTS WITH PRE-TENSIONER

REMOVAL AND INSTALLATION

M1524004101122

WARNING

Never attempt to disassemble or repair the seat belt pre-tensioner. If faulty, replace it.

Be extremely careful when handling the seat with pre-tensioner. Do not subject it to
shocks, drop it, bring it close to strong magnets or allow contact with water, grease or oil.
Always replace it with a new part if any dents, cracks or deformation is found.

Do not place anything on the seat belt pre-tensioner.

Do not expose the seat belt pre-tensioner to temperatures over 90

°

C (194

°

F).

After operating the seat belt pre-tensioner, replace the seat belt pre-tensioner with a new
part.

Gloves and protective goggles must be worn when handling a seat belt pre-tensioner
once it has been used.

If disposing of a seat belt with pre-tensioner which has not yet been operated, its seat belt
pre-tensioner must be operated first before disposal (Refer to

P.52B-417

).

When removing and installing the front passenger seat belt, be sure to carry out accuracy
check of the occupant classification sensor after the seat has been installed in the vehicle
(On-Vehicle Service

P.52B-378

).

Pre-removal Operation
• Turn the ignition key to the "LOCK" (OFF) position.

AC709265

1

AB

5 ± 1 N·m
44 ± 9 in-lb

43 ± 8 N·m
32 ± 6 ft-lb

43 ± 8 N·m
32 ± 6 ft-lb

3

5

4

2

SEAT BELTS WITH PRE-TENSIONER

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-414

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824:Vehicle Communication Inter-

face(V.C.I.)

• MB991827:M.U.T.-III USB Cable

• MB991910:M.U.T.-III Main Harness A

REMOVAL SERVICE POINTS

.

<<A>> NEGATIVE (

) BATTERY CABLE DISCON-

NECTION

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work (Refer to

P.52B-25

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (

−) battery cable from the battery and

tape the terminal to prevent accidental connection and seat belt
pre-tensioner operation.

.

<<B>> SEAT BELT PRE-TENSIONER
CONNECTOR DISCONNECTION

Use a flat-tipped screwdriver to unlock the locking button of the
floor wiring harness side connector. After releasing the lock,
disconnect the connector.

.

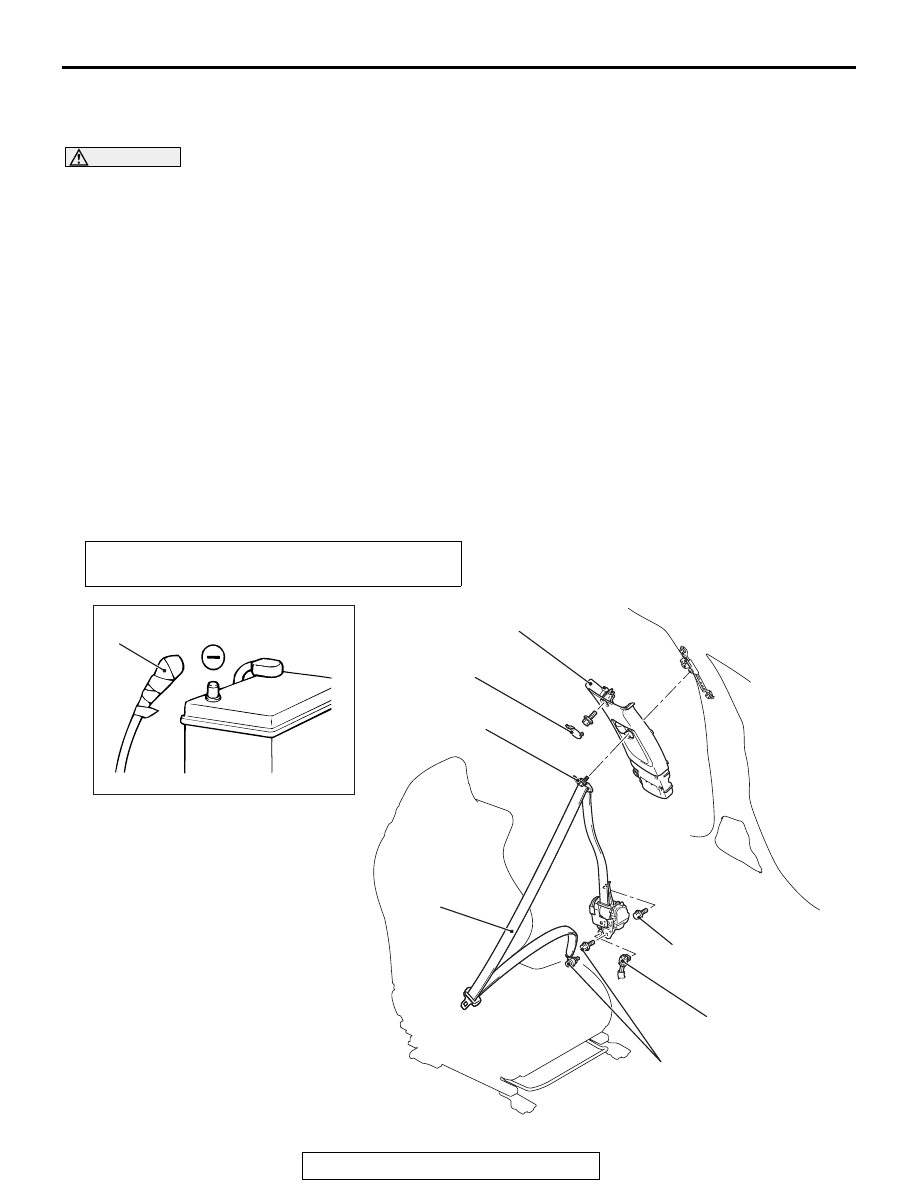

Removal steps

<<A>>

1. Negative (

−) battery cable

2. Center pillar trim upper cap (Refer to

GROUP 52A, Trims

P.52A-11

).

• Center pillar trim lower (Refer to

GROUP 52A, Trims

P.52A-11

).

3. Center pillar trim upper (Refer to

GROUP 52A, Trims

P.52A-11

).

<<B>>

4. Seat belt with pre-tensioner connector

<<C>>

5. Seat belt with pre-tensioner

Installation steps

>>A<<

• Pre-installation inspection

5. Seat belt with pre-tensioner

>>B<<

4. Seat belt pre-tensioner connector
3. Center pillar trim upper (Refer to

GROUP 52A, Trim

P.52A-11

).

• Center pillar trim lower (Refer to

GROUP 52A, Trim

P.52A-11

).

2. Center pillar trim upper cap (Refer to

GROUP 52A, Trim

P.52A-11

).

1. Negative (

−) battery cable

>>C<<

• Post-installation inspection

ACX00583

Insulating tape

Battery cable

Battery

AF

AC608959

Floor wring
harness side
connector

Flat-tipped
screwdriver

Locking
button

Pre-tensioner

 AB
