SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-359

Inspection procedure 2: Power supply circuit system

.

ETACS-ECU

FUSIBLE
LINK

34

IGNITION
SWITCH (IG1)

IG1
RELAY

SRS-ECU

POWER
SUPPLY

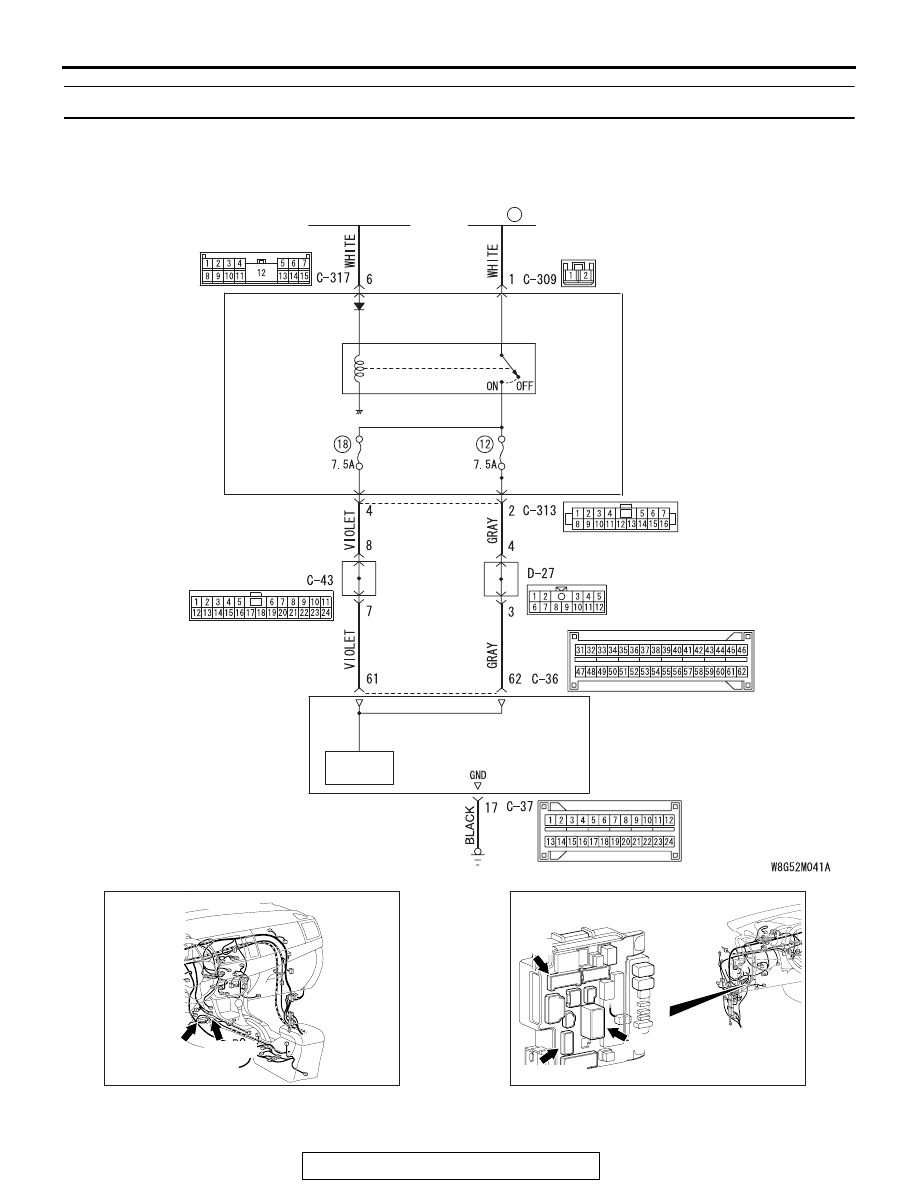

IG1 Power Supply Circuit

JOINT CONNECTOR (4)

JOINT CONNECTOR (5)

AC708951BY

C-37 (Y) C-36 (Y)

Connector:s C-36, C-37

AC708972AN

Connectors: C-309, C-313, C-317

Junction block

C-317

C-309 (B)

C-313 (BR)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-360

CIRCUIT OPERATION

• The SRS-ECU is energized by the ignition switch

(IG1) through multi-purpose fuse 18 and the
SRS-ECU terminal 61 and multi-purpose fuse 12
and the SRS-ECU terminal 62.

• If the power supply to the SRS-ECU has failed,

scan tool (M.U.T.-III Sub Assembly) will not be
able to communicate with it.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CASE:)

• Damaged wiring harness or connector

• Defective battery

• Charging system failed

• Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Resistance measurement at the C-37 SRS-ECU
connectors

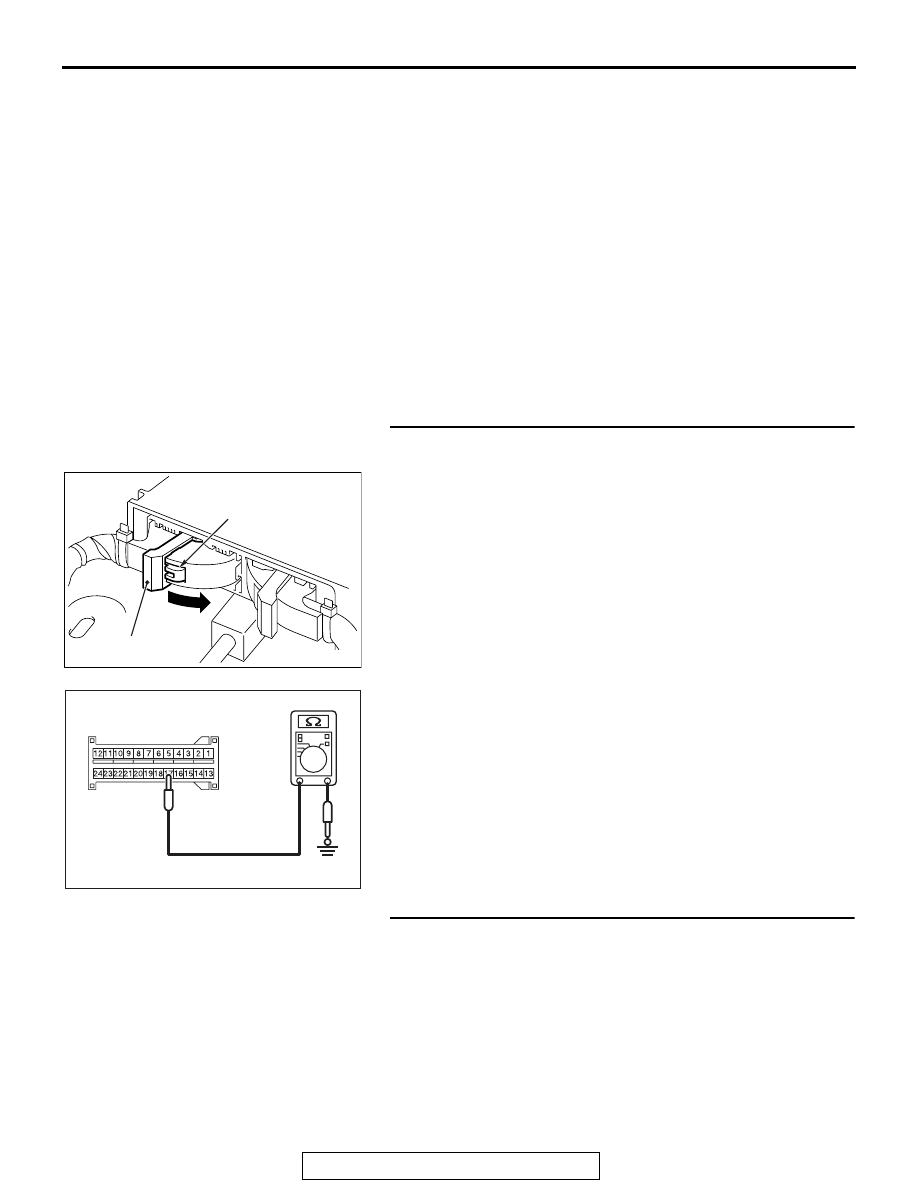

(1) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-37 SRS-ECU connectors.

(2) Take the measurements below at the C-37 wiring harness

side connectors.

• Continuity between C-37 wiring harness side connector

terminal No. 17 and body ground

OK: Continuity (Less than 2 ohms)

Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the wiring harness between the C-37

SRS-ECU connector terminal No. 17 and body
ground.

STEP 2. Wiring harness check between the C-36 SRS-ECU
connector terminal Nos. 61 and 62 and the ignition switch
IG1
NOTE: Prior to the wiring harness inspection, check the
ETACS-ECU connectors C-309, C-313 and C-317, and repair if
necessary.

• Check the power supply line for open and short circuit.

Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the wiring harness.

AC506734

A

AD

Lock lever

AC608812

C-37 Harness side
connector (front view)

HC

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-361

STEP 3. Retest the system
Q: Is the communication between scan tool and SRS-ECU

possible?
YES : Intermittent malfunction (Refer to GROUP 00, How to

Use Troubleshooting/Inspection Service Points

−How

to Cope with Intermittent Malfunction

P.00-15

.)

NO :  Replace SRS-ECU (Refer to

P.52B-383

).

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-362

Inspection procedure 3:The SRS Warning Light does not Illuminate.

ETACS-ECU

COMBINATION METER

CPU

FUSIBLE
LINK

34

CAN DRIVE
CIRCUIT

IGNITION
SWITCH (IG1)

IG1
RELAY

INTERFACE
CIRCUIT

CAN TRANSCEIVER
CIRCUIT

LED DRIVE
CIRCUIT

JOINT CONNECTOR
(CAN1)

SRS-ECU

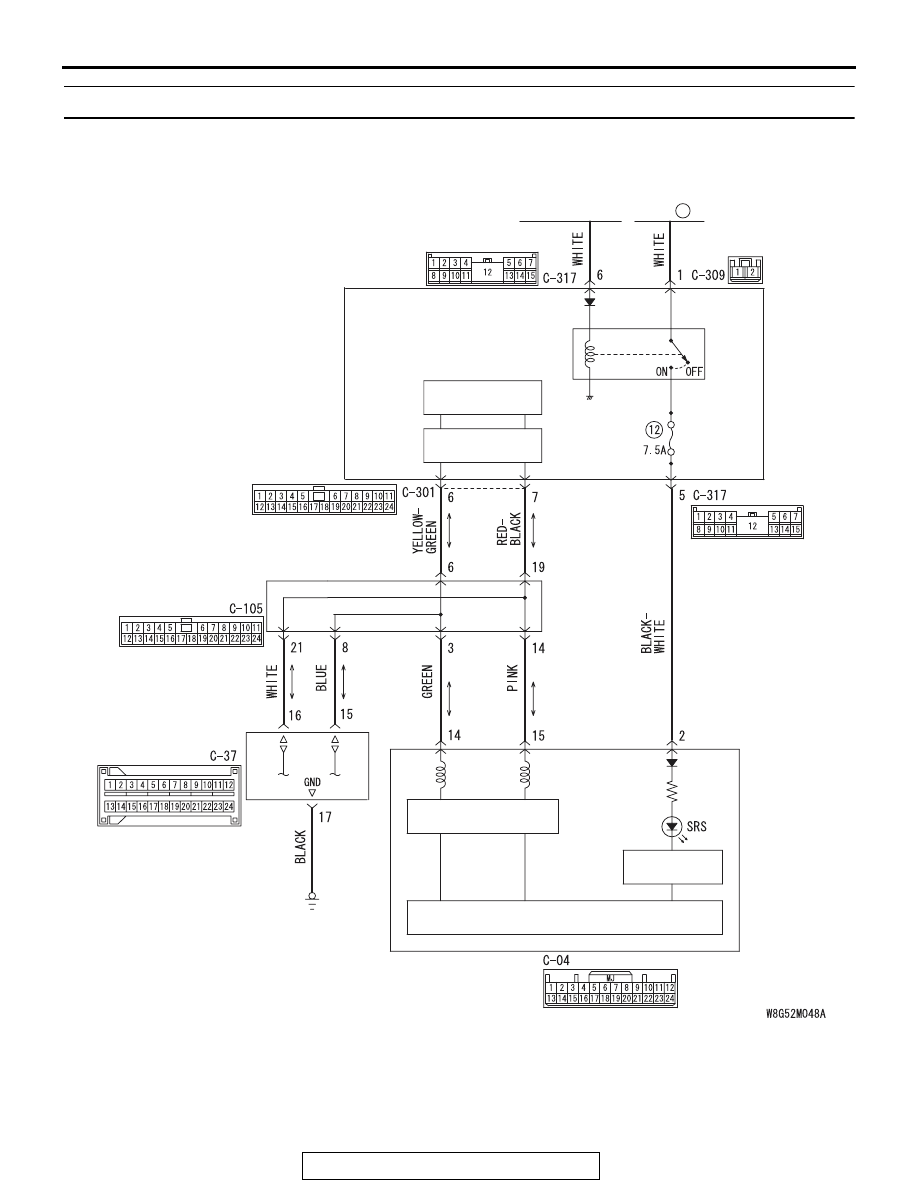

SRS Warning Light Circuit
