SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-51

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-52

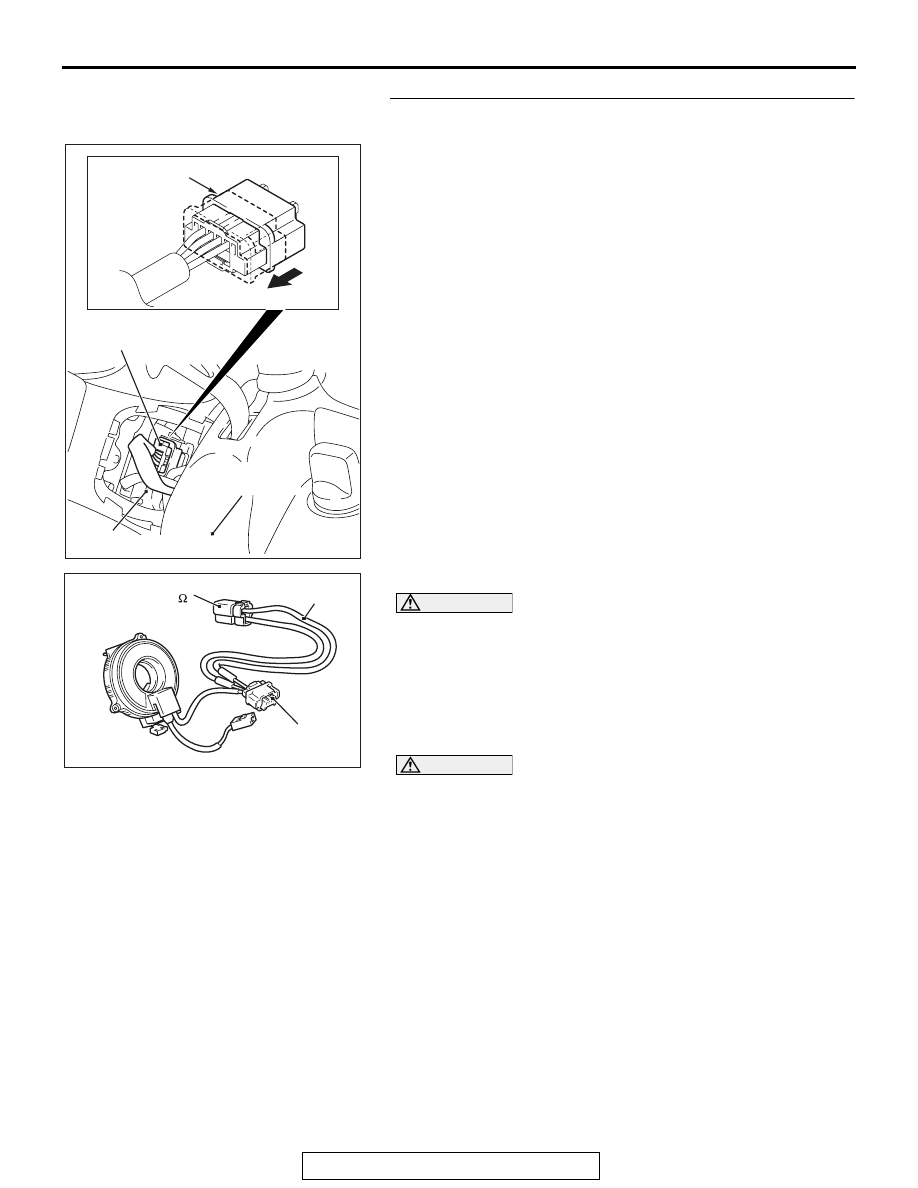

STEP 3. Check the driver's air bag module.
(1) Disconnect the negative battery terminal.
(2) Slide the outer housing of the driver’ s air bag module

connector C-204 in the arrow direction shown, and
disconnect the connector.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a probe into the terminal from its front side
directly, as the connector contact pressure may be weak-
ened.
(4) Insert special tool MB991866 into clock spring side air bag

module connector C-204 (terminal No.1 and 2 <1st squib>
or terminal No.3 and 4 <2nd squib>) by backprobing.

(5) Connect the negative battery terminal.

CAUTION

Always DTC B1B06 is set when checking DTC B1B01. This
is because the second side terminal is isolated when
checking it. DTC B1B06 is set but this is not a fault. In
addition, always DTC B1B02 is set when checking DTC
B1B05 because the first side terminal is isolated.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is the checked DTC set?

YES : Go to Step 4.
NO :  Replace the driver’s air bag module (Refer to

P.52B-386

). Then go to Step 7.

AC605948

AC600868

AF

Outer housing of the driver's air bag
module connector

Driver's air bag module
Connector (4 pin yellow)

Horn connector

Lower column
cover

AC306758AY

MB991865
(Dummy resistor: 3   )

MB991866
(Resistor harness)

C-204 Air bag
module connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-53

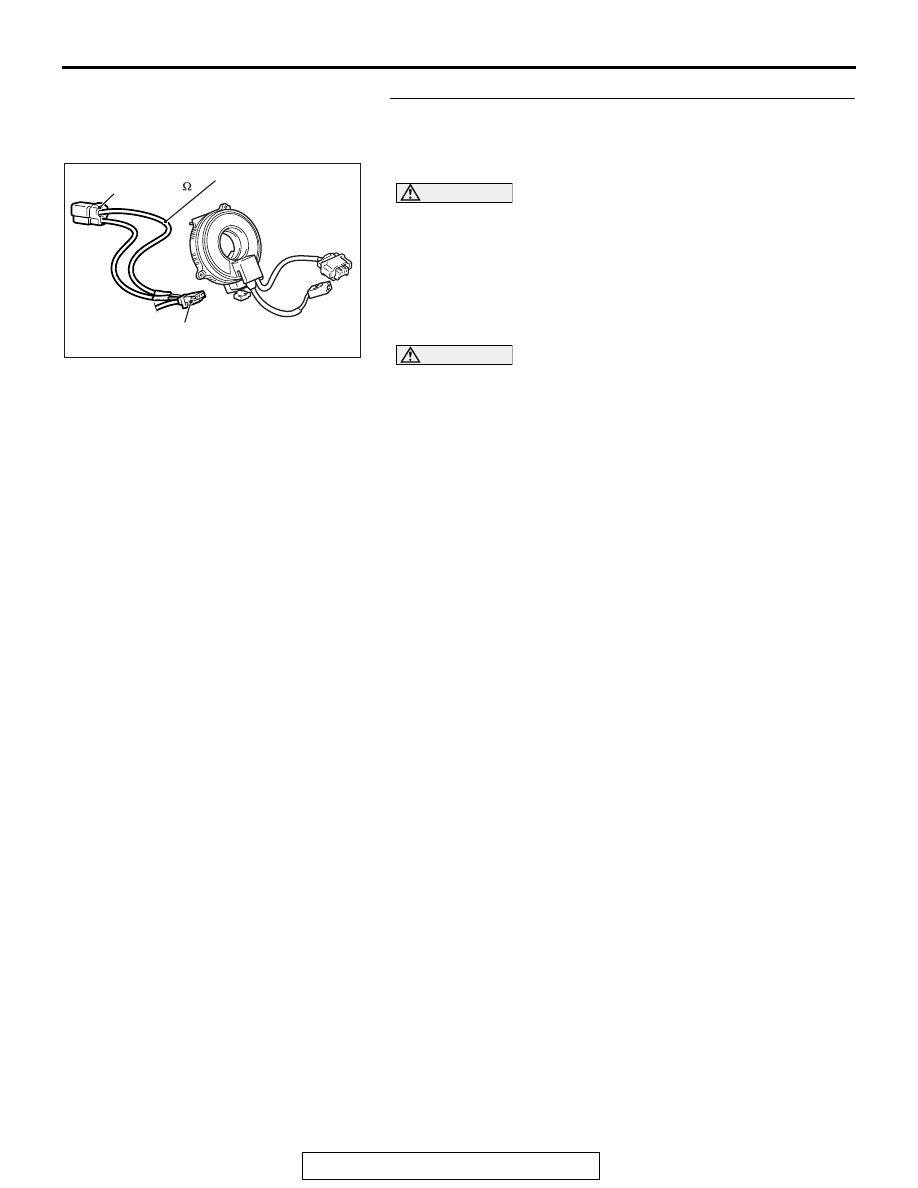

STEP 4. Check the clock spring.
(1) Disconnect the negative battery terminal.
(2) Disconnect the clock spring connector C-208.
(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into clock spring harness side

connector C-208 (terminal No.3 and 4 <1st squib> or
terminal No. 2 and 1 <2nd squib>) by backprobing.

(5) Connect the negative battery terminal.

CAUTION

Always DTC B1B06 is set when checking DTC B1B01. This
is because the second side terminal is isolated when
checking it. DTC B1B06 is set but this is not a fault. In
addition, always DTC B1B02 is set when checking DTC
B1B05 because the first side terminal is isolated.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is the checked DTC set?

YES : Go to Step 5.
NO :  Replace the clock spring (Refer to

P.52B-386

). Then

go to Step 7.

AC306767

C-208 Clock spring
connector

AR

MB991865
(Dummy resistor: 3   )

MB991866
(Resistor harness)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-54

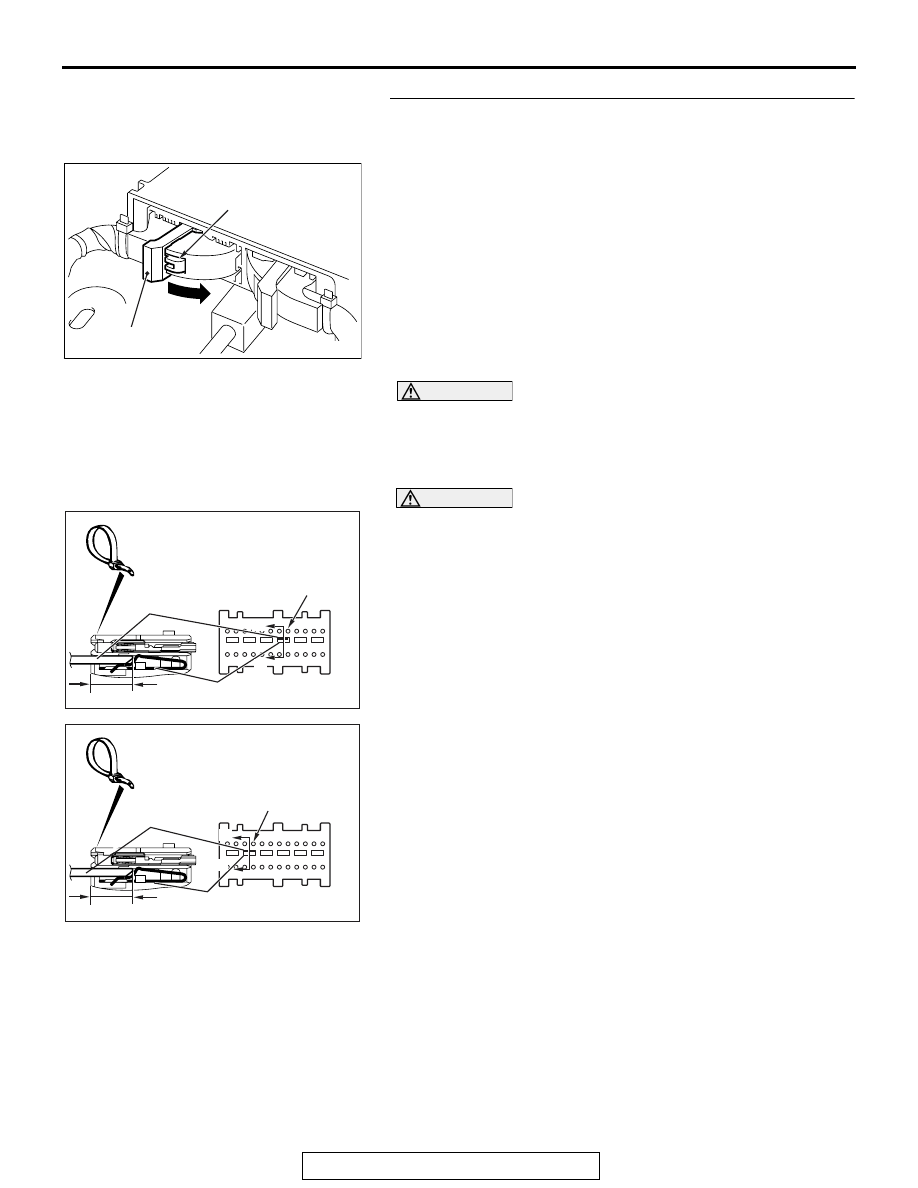

STEP 5. Check the driver’s air bag module circuit. Measure
the voltage at the SRS-ECU connector C-37.
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-37 SRS-ECU connector.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the clock spring connector C-208 to short
the squib circuit.

(3) Disconnect the clock spring connector C-208.

CAUTION

Insert an insulator such as a cable tie to a depth of 4mm
(0.16 inch) or more, otherwise the short spring will not be
released.
(4) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 5, 6 <1st squib> or 9, 10 <2nd
squib> and the short spring to release the short spring.

(5) Connect the negative battery terminal.
(6) Ignition switch: ON.

AC506734

A

AD

Lock lever

AC507302 BF

A

A

C-37 Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

Terminal

<1st Squib>

4 mm (0.16 inch) or more

AC507302BG

A

A

<2nd Squib>

C-37 Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm (0.16 inch) or more

Terminal
