ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-125

9. The customer-programming mode is terminated by any of

the following conditions.

• When the registration of 8 transmitters are completed

• When 1 minute has elapsed without registration after the

shift to the customer-programming mode

• when 1 minute has elapsed after previous transmitter regis-

tration

• When the engine speed is more than 200 rpm

• The EEPROM abnormality occurs [When the EEPROM

abnormality occurs during the transmitter registration,
delete all the transmitters stored (including the transmitters
used for the shift to the customer-programming mode), and
finish the customer-programming mode.]

TPMS TRANSMITTER CHECK

M1427509000027

Refer to ID codes registration procedure

P.42B-265

.

TPMS TRANSMITTER ID CHECK

M1427509100024

Refer to ID codes registration procedure

P.42B-265

.

KEYLESS ENTRY SYSTEM CHECK

M1427505600050

Check the keyless entry system as described below. If it does
not work, perform troubleshooting. Refer to

P.42C-84

.

• Operate the transmitter to check that the doors can be

locked and unlocked.

• Operate the transmitter to check that the answerback func-

tion works in response to doors locking/unlocking.
NOTE: The hazard answerback setting can be changed
using the customization function. Confirm which setting is
activated before performing these checks. Refer to

P.42C-126

.

INSPECTION OF KEYLESS ENTRY TIMER LOCK
FUNCTION

M1427505800032

Attempt to unlock the doors by using the transmitter. If the
doors are not locked within 30 seconds, carry out diagnosis.
Note that the doors will not be locked if the ignition key is
inserted within the 30-second period, or the doors are opened.
Refer to

P.42C-84

.

NOTE: The operation time of the keyless entry timer lock func-
tion can be set using the customization function. Confirm the
operation time before performing the diagnosis. Refer to

P.42C-126

.

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-126

CUSTOMIZATION FUNCTION

M1427504500191

By operating the ETACS system or MMCS of scan
tool MB991958, the following functions can be pro-
grammed. The programmed information is held even
when the battery is disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

Hazard answer
back

Adjustment of the
number of keyless
hazard warning light
answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (default)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

No function

Dome light
delay timer with
door

Adjustment of
interior light delay
shutdown time

0 sec

0 second (no delay shutdown time)

7.5 sec

7.5 seconds

15 sec

15 seconds

30 sec

30 seconds (default)

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Door unlock
mode

Door lock system

All doors unlock

All the doors are unlocked when the
driver's side door is unlocked.

Dr door unlock

Only the driver's side door is unlocked
when the driver's side door is unlocked.
(default)

Auto door
unlock by P
position

Auto door unlock by
P position function
<Vehicles with
TC-SST>

Disable

No function (default)

Always enabled

Always with function

Duration of horn
chirp

Horn sounding time
during horn answer
back

Short

0.01 second (default)

Long

0.02 second

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-127

Horn chirp by
keyless

Horn chirp by
keyless entry
system <vehicles
without auto light>

Not sound horn

No horn answerback function

Lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed once.

W lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed twice.
(default)

Horn chirp by
keyless entry
system <vehicles
with auto light>

Not sound horn

No horn answerback function

Lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed once.

Lock/auto ON

During daytime, while the lighting switch is
in the AUTO position, the horn sounds
once when the lock is pressed once.

W lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed twice.
(default)

Timer lock timer Timer lock period

adjustment

30 sec

30 seconds (default)

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Panic alarm
switch

With/without panic
alarm function

Disable

No function

Enable

With function (default)

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

WCM

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-128

WCM

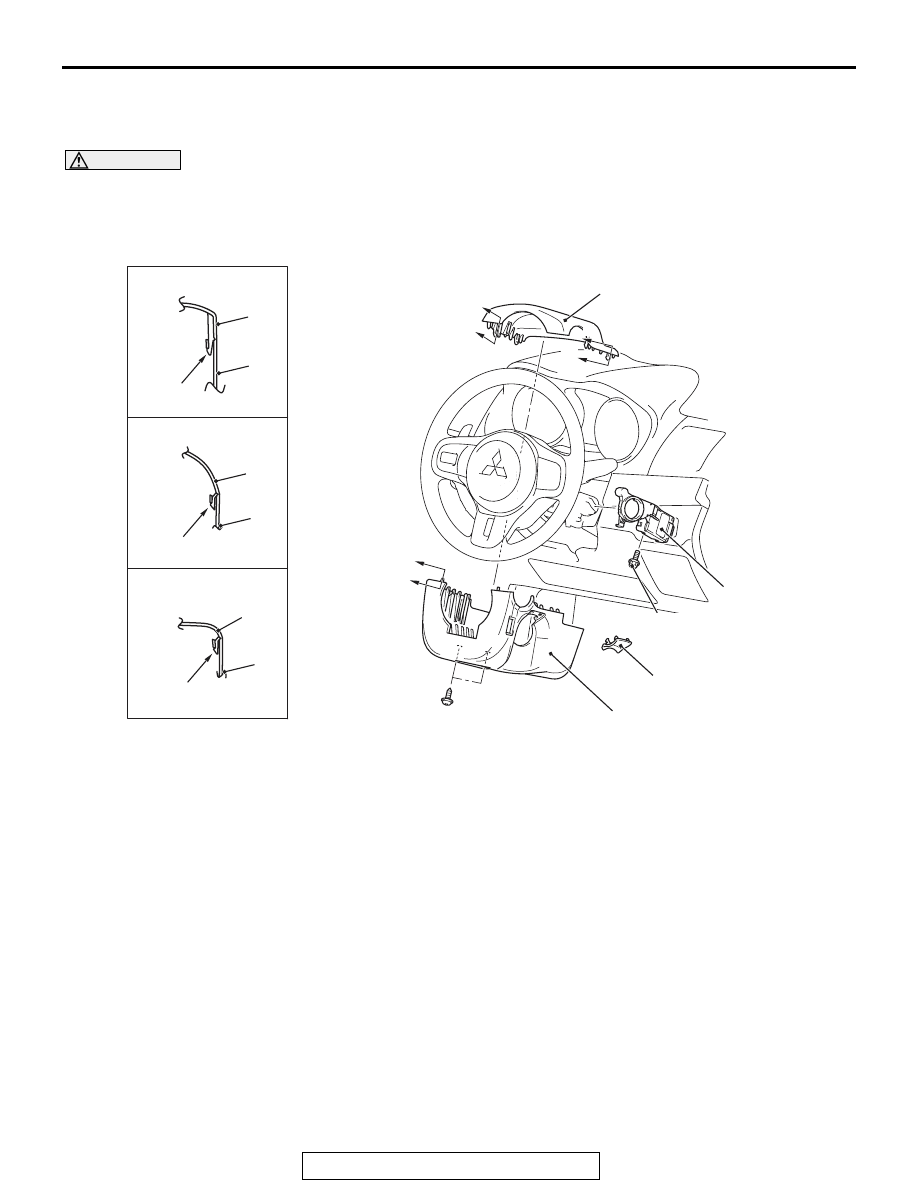

REMOVAL AND INSTALLATION

M1427500800219

CAUTION

When WCM has been replaced, all key ID codes should be registered, referring to the ID code regis-
tration necessity judgment table

P.42C-9

.

INSTALLATION SERVICE POINT

.

>>A<< WCM INSTALLATION

Check that the top claw of WCM is fixed securely to the boss of
steering lock and the antenna is not floated on the key cylinder.

AC708360

AC706388

2

3

2

3

2

3

B

B

C

4

3

1

2

AC

A

A

C

Section A-A

Section C-C

Section B-B

NOTE: Claw position is symmetrical

Claw

Claw

Claw

2.0 ± 0.5 N·m
18 ± 4 in-lb

Removal steps

1.

Ignition key cover

2.

Steering column upper cover

3.

Steering column lower cover



>>

A

<< 4.

WCM

Removal steps (Continued)
