DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-101

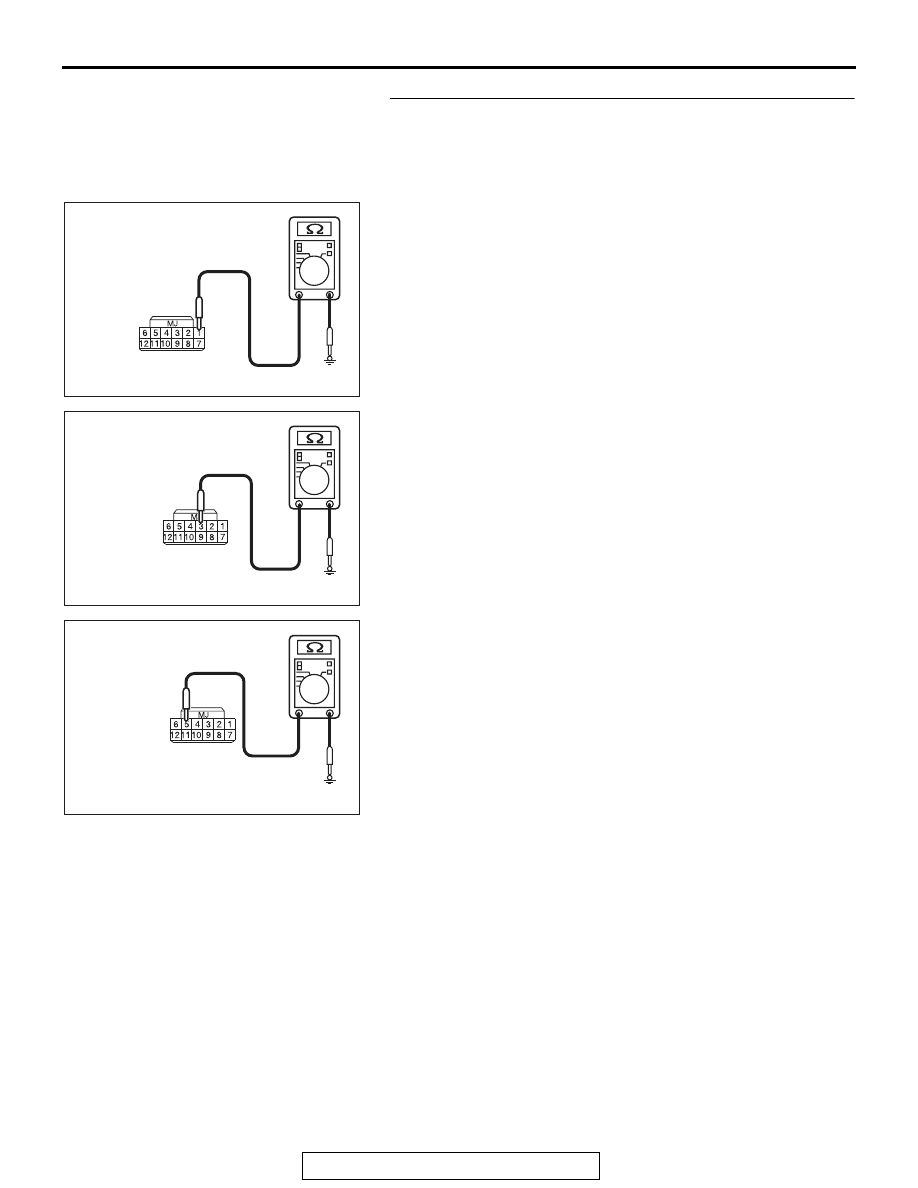

STEP 9. Check the wiring harness between the receiver
antenna assembly connector D-14 (terminal Nos. 1, 3 and
5) and the ground for short circuit.
(1) Disconnect receiver antenna assembly connector D-14,

and check the wiring harness.

(2) Check the wiring harness between receiver antenna

assembly connector D-14 (terminal No.1) and ground

OK: No continuity

(3) Check the wiring harness between receiver antenna

assembly connector D-14 (terminal No.3) and ground

OK: No continuity

(4) Check the wiring harness between receiver antenna

assembly connector D-14 (terminal No.5) and ground

OK: No continuity

Q: Is the wiring harness between receiver antenna

assembly connector D-14 (terminal Nos. 1, 3 and 5) and
the ground in good condition?
YES  : Go to Step 10.
NO (receiver antenna assembly connector D-14 terminal
No.1

− ground.) : Repair the wiring harness between

receiver antenna assembly connector D-14 (terminal
No.1) and the ground.

NO (receiver antenna assembly connector D-14 terminal
No.3

− ground.) : Repair the wiring harness between

receiver antenna assembly connector D-14 (terminal
No.3) and the ground.

NO (receiver antenna assembly connector D-14 terminal
No.5

− ground.) : Repair the wiring harness between

receiver antenna assembly connector D-14 (terminal
No.5) and the ground.

AC709707FZ

Harness side: D-14

AC709707FW

Harness side: D-14

AC709707FV

Harness side: D-14

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-102

STEP 10. Retest the system.
Replace the receiver antenna assembly. Check if the keyless
entry system works normally.
Q: Is the check result normal?

YES : Intermittent malfunction (Refer to GROUP 00, How to

Use Troubleshooting/Inspection Service Points - How
to Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace WCM and register the ID codes (Refer to

P.42C-9

).

Inspection Procedure 6: Keyless entry hazard light answerback function, the dome light answerback
function or the horn answerback function does not work normally.

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the ground circuit and the com-
munication circuit are normal.

.

TECHNICAL DESCRIPTION (COMMENT)

If the hazard warning light and the dome light works
normally, ETACS-ECU may be faulty. Also, the
answerback function may have been disabled using
the customization function.

.

TROUBLESHOOTING HINTS

• The turn signal lights may be defective

• The dome light may be defective

• The horn may be defective

• The  ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

STEP 1. Verify the operation hazard warning light.
Check that the hazard warning light illuminate normally.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Refer to GROUP 54A

− inspection procedure 1:

"Hazard warning light does not illuminate

P.54A-266

."

STEP 2. Verify the operation of the dome light.
Check that the dome lights illuminate normally.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Refer to GROUP 54A

− inspection procedure 1 "The

front dome light does not illuminate normally

P.54A-243

." or inspection procedure 2 "The rear

dome light does not illuminate normally

P.54A-248

."

STEP 3. Verify the horn.
Check that the horn normally.
Q: Is the check result normal?

YES : Go to Step 4.
NO :  Replace the horn (Refer to GROUP 54A, Horn

P.54A-268

).

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-103

STEP 4. Check the operation of the keyless entry system.
Operate the transmitter and check that all doors lock and
unlock.
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Refer to inspection procedure 5: "Keyless entry

system does not work

P.42C-93

."

STEP 5. Check the customize function (Hazard light
answerback).
Check that any one of the followings other than "Lock: 0,
Unlock: 0" is set for "Hazard answerback" with a customization
function.

• Lock:1, Unlock:2

• Lock:1, Unlock:0

• Lock:0, Unlock:2

• Lock:2, Unlock:1

• Lock:2, Unlock:0

• Lock:0, Unlock:1

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Set "Hazard answerback" to any one other than

"Lock: 0, Unlock: 0" with a customization function
(Refer to

P.42C-126

).

STEP 6. Check the customize function (Horn answerback).
Check that any one of the followings other than "Not sound
horn" is set for "Horn chirp by keyless" with a customization
function.

• Lock any time

• W lock any time

Q: Is the check result normal?

YES : Go to Step 7.
NO :  Set "Horn chirp by keyless" to any one other than "Not

sound horn" with a customization function (Refer to

P.42C-126

).

STEP 7. Check of the troubles
Check if the keyless entry answerback function works normally.
Q: Is the check result normal?

YES : Intermittent malfunction (Refer to GROUP 00, How to

Use Troubleshooting/Inspection Service Points - How
to Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace ETACS-ECU.

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-104

Inspection Procedure 7: The timer lock function does not work after the doors have been unlocked by
the keyless entry system.

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the ground circuit and the com-
munication circuit are normal.

.

TECHNICAL DESCRIPTION (COMMENT)

If the timer lock function does not work normally, the
keyless entry transmitter input signal circuit or
ETACS-ECU may be faulty.

.

TROUBLESHOOTING HINTS

• The keyless entry transmitter may be defective

• The  ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

STEP 1. Check the operation of the keyless entry system.
Operate the transmitter and check that all doors lock and
unlock.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Refer to inspection procedure 5: "Keyless entry

system does not work

P.42C-93

."

STEP 2. Check the customize function.
The "Timer lock timer" has been set to one of the followings
with the customization function. Check if the doors are locked
at the set period.

• 30sec

• 60sec

• 120sec

• 180sec

Q: Is the check result normal?

YES : Intermittent malfunction (Refer to GROUP 00

− How to

Use Troubleshooting/Inspection Service Points - How
to Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace ETACS-ECU.
