DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-71

STEP 5. Replace the key reminder switch, and check
whether the diagnostic trouble code is reset.
(1) Erase the DTC.
(2) Turn the ignition switch from the "LOCK" (OFF) position to

the "ON" position.

(3) Check if the DTC is set.
Q: Is the DTC set?

YES : Replace KOS-ECU and register the ID codes (Refer

to

P.42B-12

).

NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-17

).

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-72

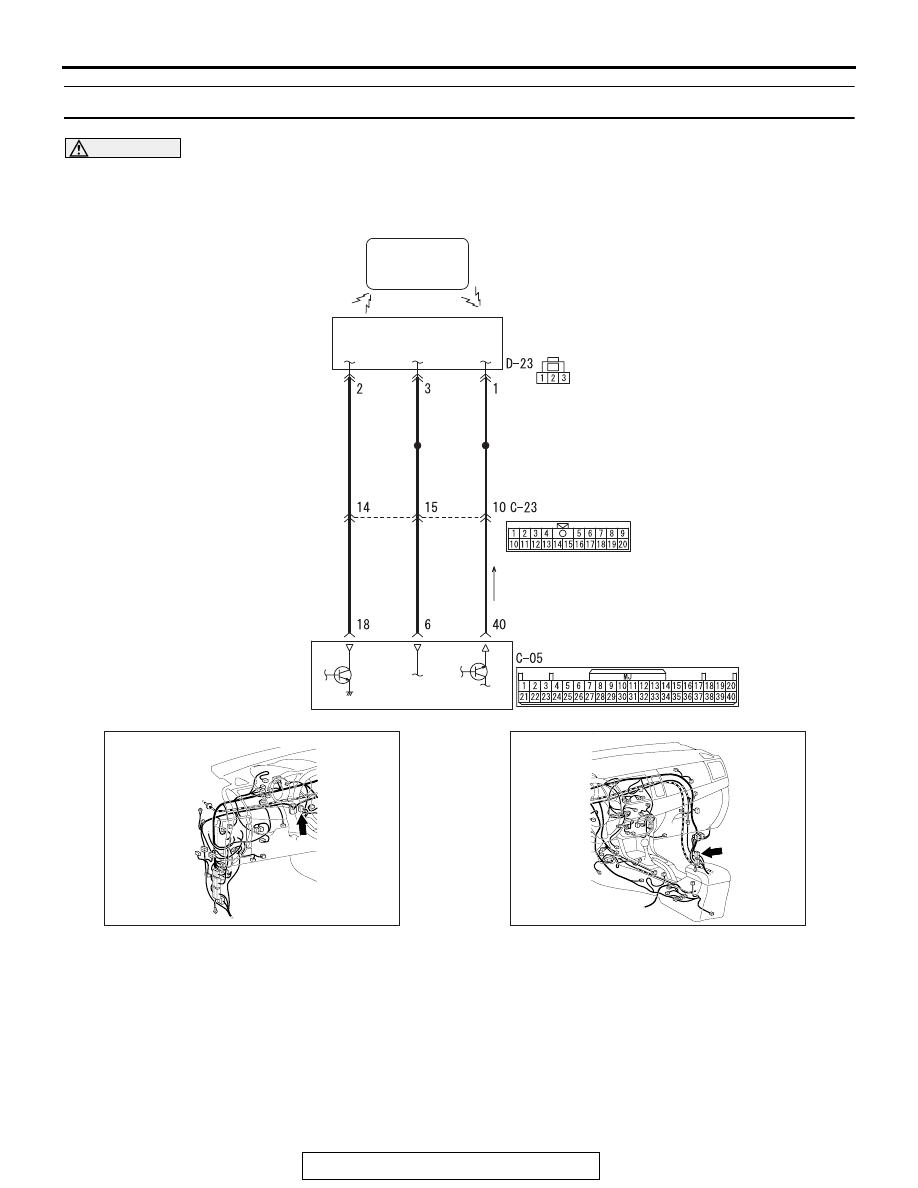

DTC B240A: FR antenna(outdoor) open

CAUTION

When replacing the ECU, always check that the
communication circuit is normal.

AC609050

KOS-ECU

KEYLESS
OPERATION
KEY

OUTSIDE TRANSMISSION
ANTENNA ASSEMBLY
(DRIVER'S SIDE)

SKY  BLUE

SKY  BLUE

SKY  BLUE

RED- BLA

CK

RED- BLA

CK

RED- BLA

CK

 Outside Transmission Antenna assembly (Driver's Side) Circuit

AC

RED- YELLO

W

RED-YELLO

W

AC708950AZ

Connector: C-05

AC708951AZ

Connector: C-23

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-73

.

DTC SET CONDITION

If an open circuit is detected in the outside transmit-
ter antenna (driver's side), the DTC is set.

.

TECHNICAL DESCRIPTION (COMMENT)

When the ignition push switch is pressed, or when
the antenna open circuit detection request is
received from the diagnosis function, the failure is
detected.

.

TROUBLESHOOTING HINTS

• Malfunction of the outside transmitter antenna

assembly (driver's side)

• Malfunction of the KOS-ECU

• Damaged wiring harness and connectors

DIAGNOSIS

STEP 1. Check KOS-ECU connector C-05 and outside
transmitter antenna assembly (driver's side) connector
D-23 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Are KOS-ECU connector C-05 and outside transmitter

antenna assembly (driver's side) connector D-23 in
good condition?
YES : Go to Step 2.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the outside transmitter antenna

assembly (driver's side) works normally.

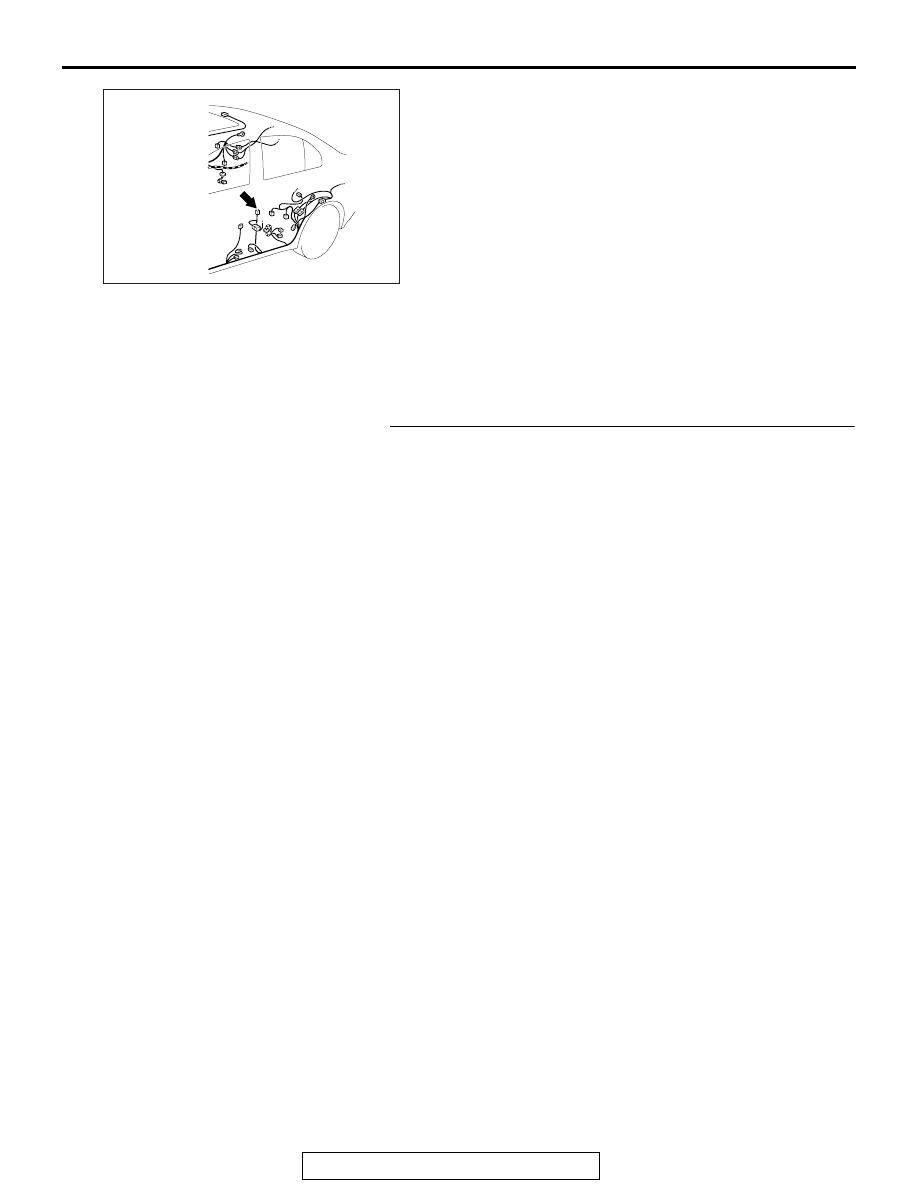

AC708955AP

Connector: D-23

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-74

STEP 2. Check the wiring harness between the KOS-ECU
connector C-05 (terminal Nos. 6, 17, 40) and outside
transmitter antenna assembly (driver's side) connector
D-23 (terminal Nos. 3, 2, 1) for open circuit.
(1) Disconnect KOS-ECU connector C-05 and outside

transmitter antenna assembly (driver's side) connector
D-23, and check the wiring harness.

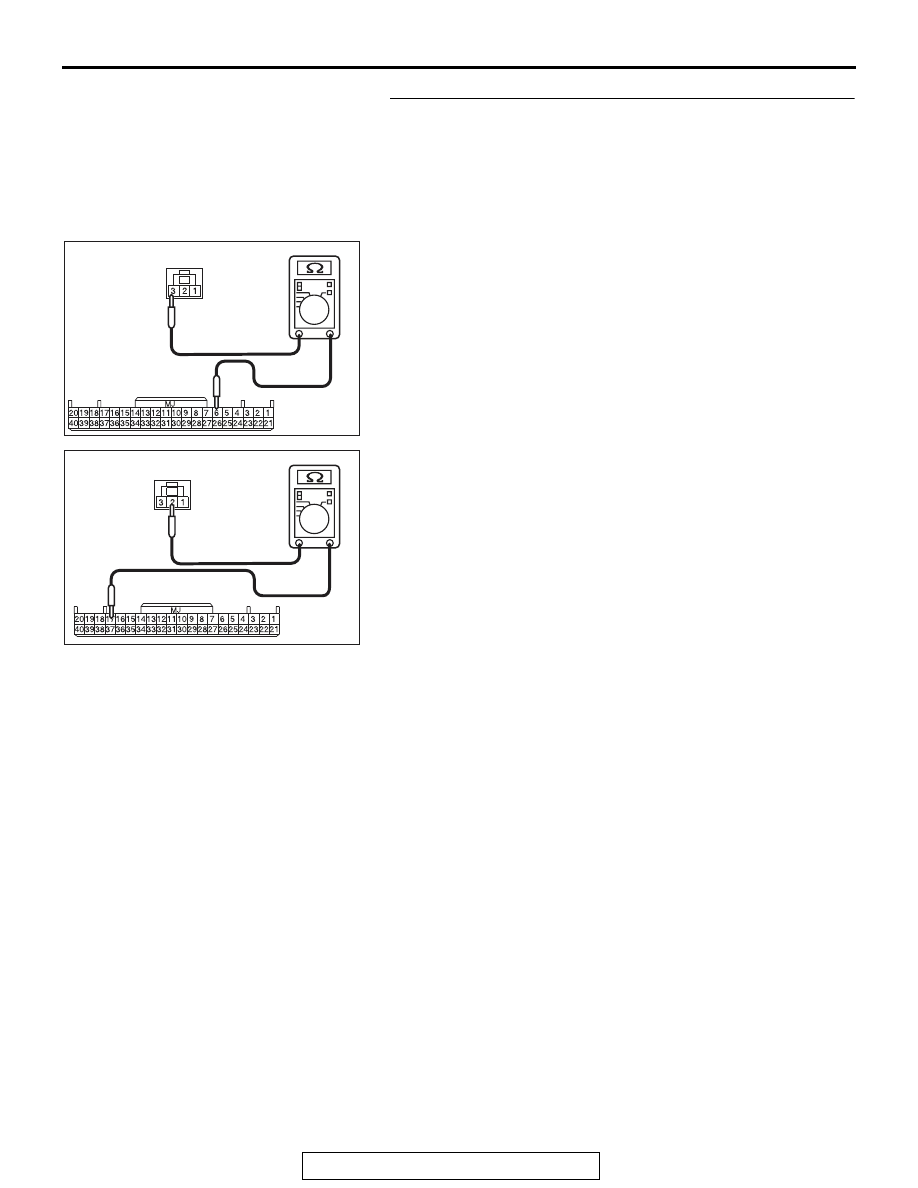

(2) Check the wiring harness between KOS-ECU connector

C-05 (terminal No.6) and outside transmitter antenna
assembly (driver's side) connector D-23 (terminal No.3).

OK: Continuity exists (2

Ω or less)

(3) Check the wiring harness between KOS-ECU connector

C-05 (terminal No.17) and outside transmitter antenna
assembly (driver's side) connector D-23 (terminal No.2).

OK: Continuity exists (2

Ω or less)

AC709707ET

Harness side: C-05

Harness side: D-23

AC709707EU

Harness side: C-05

Harness side: D-23
