DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-55

(6) Check the wiring harness between reciever anntena

assembly connector D-14 (terminal No.5) and ground

OK: No continuity

Q: Is the wiring harness between receiver antenna

assembly connector D-14 (terminal Nos.1, 8, 12, 3, 5)
and the ground in good condition?
YES  :
Go to Step 7.
NO (receiver antenna assembly connector D-14 terminal
No.1

 ground.) : Repair the wiring harness between

receiver antenna assembly connector D-14  (terminal
No.1) and the ground.

NO (receiver antenna assembly connector D-14 terminal
No.8

 ground.) : Repair the wiring harness between

receiver antenna assembly connector D-14  (terminal
No.8) and the ground.

NO (receiver antenna assembly connector D-14 terminal
No.12

 ground.) : Repair the wiring harness between

receiver antenna assembly connector D-14  (terminal
No.12) and the ground.

NO (receiver antenna assembly connector D-14 terminal
No.3

 ground.) : Repair the wiring harness between

receiver antenna assembly connector D-14  (terminal
No.3) and the ground.

NO (receiver antenna assembly connector D-14 terminal
No.5

 ground.) : Repair the wiring harness between

receiver antenna assembly connector D-14  (terminal
No.5) and the ground.

STEP 7. Replace the receiver antenna assembly, and check
whether the diagnostic trouble code is reset.
(1) Turn the ignition switch from the "LOCK" (OFF) position to

the "ON" position.

(2) Check if the DTC is set.
Q: Is the DTC set?

YES : Go to Step 8.
NO :  The procedure is complete.

AC709707FV

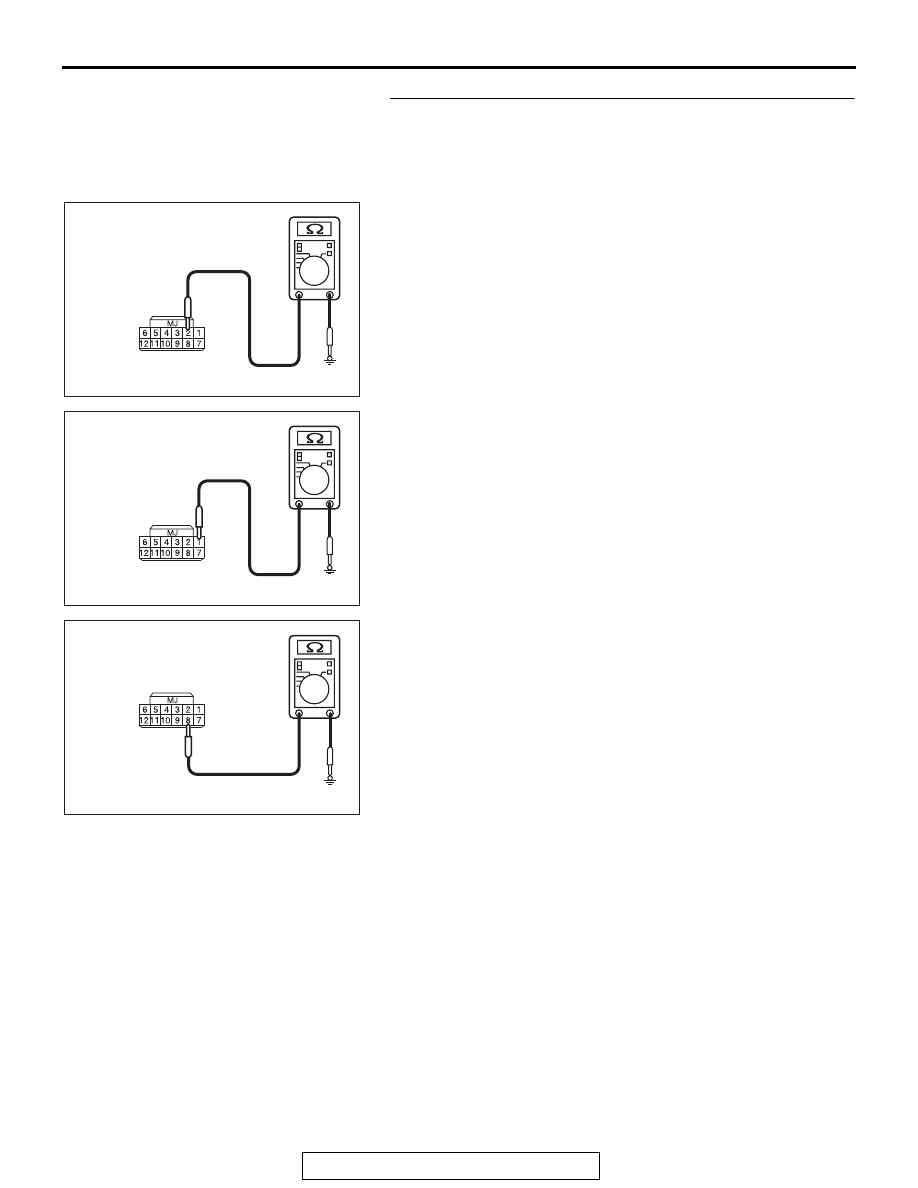

Harness side: D-14

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-56

STEP 8. Check the wiring harness between the receiver
antenna module connector C-08 (terminal Nos. 2, 1, 8, 12)
and the KOS-ECU connector C-05 (terminal Nos. 11, 12, 32,
7, 9, 13) for open circuit.
(1) Disconnect reciever anntena module connector C-08 and

KOS-ECU connector C-05, and check the wiring harness.

(2) Check the wiring harness between reciever anntena

module connector C-08 (terminal No.2) and KOS-ECU
connector C-05 (terminal No.11)

OK: Continuity exists (2

 or less)

(3) Check the wiring harness between reciever anntena

module connector C-08 (terminal No.1) and KOS-ECU
connector C-05 (terminal No.12)

OK: Continuity exists (2

 or less)

(4) Check the wiring harness between reciever anntena

module connector C-08 (terminal No.8) and KOS-ECU
connector C-05 (terminal No.32)

OK: Continuity exists (2

 or less)

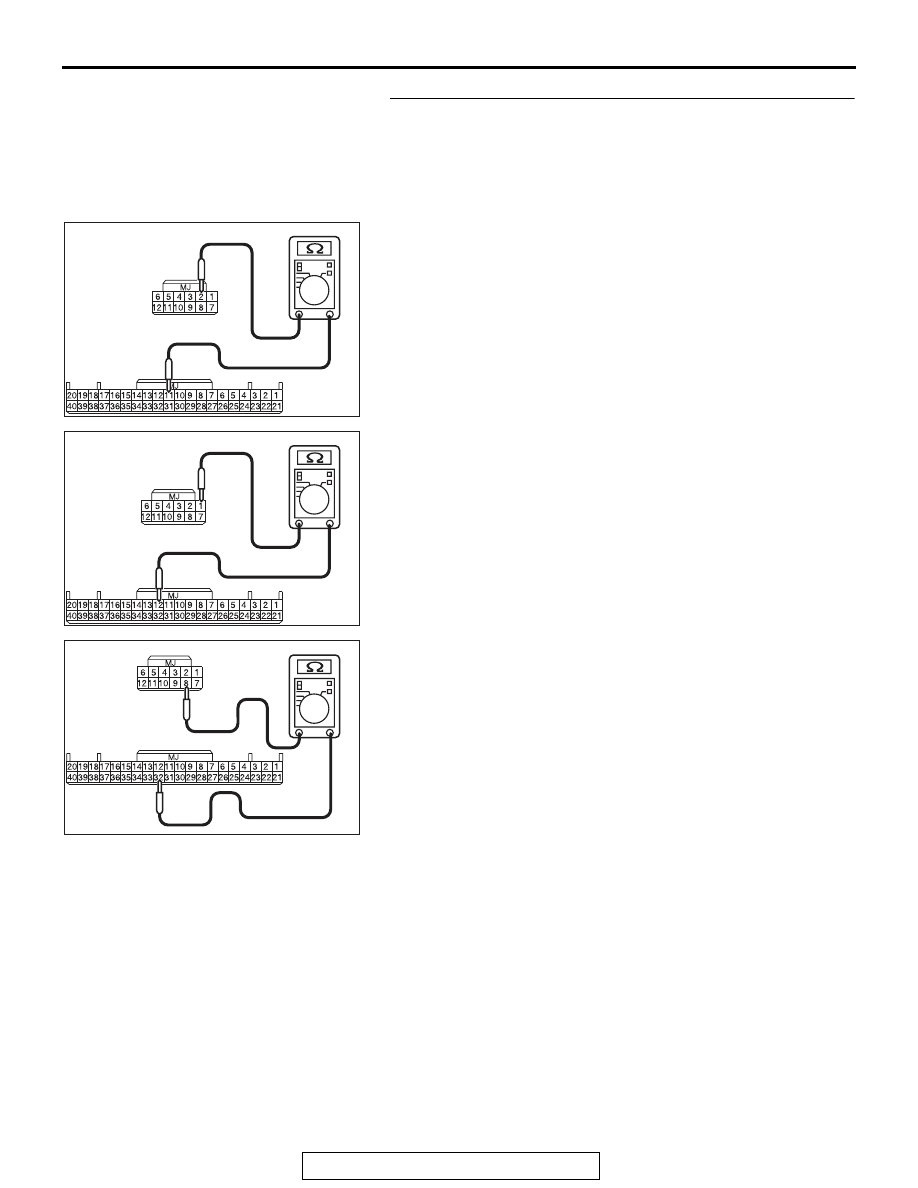

AC709707

Harness side: C-05

DZ

Harness side: C-08

AC709707

Harness side: C-05

DZ

Harness side: C-08

AC709707

Harness side: C-05

EB

Harness side: C-08

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-57

(5) Check the wiring harness between reciever anntena

module connector C-08 (terminal No.12) and KOS-ECU
connector C-05 (terminal No.7)

OK: Continuity exists (2

 or less)

Q: Is the wiring harness between receiver antenna module

connector C-08 (terminal Nos. 2, 1, 8, 12) and the
KOS-ECU connector C-05 (terminal Nos. 11, 12, 32, 7) in
good condition?
YES  :
Go to Step 9.
NO (receiver antenna module connector C-08 terminal
No.2

 KOS-ECU connector C-05 terminal No.11.) :

Repair the wiring harness between receiver antenna
module connector C-08  (terminal No. 2) and the
KOS-ECU connector C-05 (terminal No. 11).

NO (receiver antenna module connector C-08 terminal
No.1

 KOS-ECU connector C-05 terminal No.12.) :

Repair the wiring harness between receiver antenna
module connector C-08  (terminal No. 1) and the
KOS-ECU connector C-05 (terminal No. 12).

NO (receiver antenna module connector C-08 terminal
No.8

 KOS-ECU connector C-05 terminal No.32.) :

Repair the wiring harness between receiver antenna
module connector C-08  (terminal No. 8) and the
KOS-ECU connector C-05 (terminal No. 32).

NO (receiver antenna module connector C-08 terminal
No.12

 KOS-ECU connector C-05 terminal No.7.) :

Repair the wiring harness between receiver antenna
module connector C-08  (terminal No. 12) and the
KOS-ECU connector C-05 (terminal No. 7).

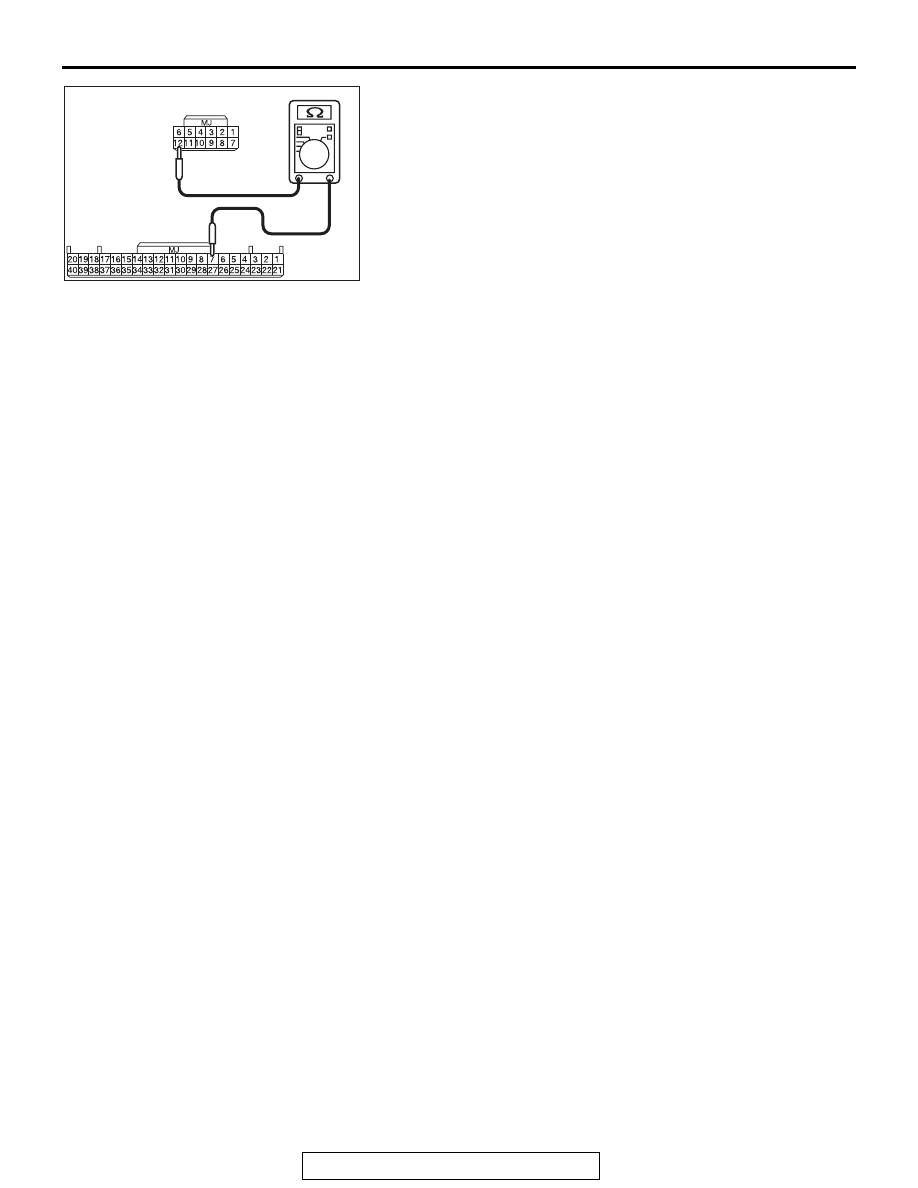

AC709707EC

Harness side: C-08

Harness side: C-05

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-58

STEP 9. Check the wiring harness between the receiver
antenna module connector C-08 (terminal Nos.2, 1, 8, 12)
and the ground for short circuit.
(1) Disconnect reciever anntena module connector C-08, and

check the wiring harness.

(2) Check the wiring harness between reciever anntena

module connector C-08 (terminal No.2) and ground

OK: No continuity

(3) Check the wiring harness betweenreciever anntena module

connector C-08 (terminal No.1) and ground

OK: No continuity

(4) Check the wiring harness between reciever anntena

module connector C-08 (terminal No.8) and ground

OK: No continuity

AC709707HK

Harness side: C-08

AC709707GA

Harness side: C-08

AC709707HL

Harness side: C-08
