DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-51

STEP 2. Replace the battery in the keyless operation key
and recheck the diagnostic trouble code.
Replace the battery of the keyless operation key for which the
DTC is set, and check whether the DTC is reset.
(1) Turn the ignition switch from the "LOCK" (OFF) position to

the "ON" position.

(2) Check if the DTC is set.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  The procedure is complete (Discharged battery).

STEP 3. Replace the keyless operation key and recheck
the diagnostic trouble code.
Replace the keyless operation key for which the DTC is set
with a new one, register the key ID and keyless operation key
ID (refer to

P.42B-12

), and check whether the DTC is reset.

(1) Turn the ignition switch from the "LOCK" (OFF) position to

the "ON" position.

(2) Check if the DTC is set.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  The procedure is complete.

STEP 4. Check receiver antenna module connector C-08,
receiver antenna assembly connector D-14, KOS-ECU
connector C-05, joint connector (6) C-16 and intermittent
connector C-41 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.
Q: Is the receiver antenna module connector C-08, receiver

antenna assembly connector D-14, KOS-ECU connector
C-05, joint connector (6) C-16 and intermittent
connector C-41 in good condition?
YES : Go to Step 5.
NO :  Repair the defective connector.

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-52

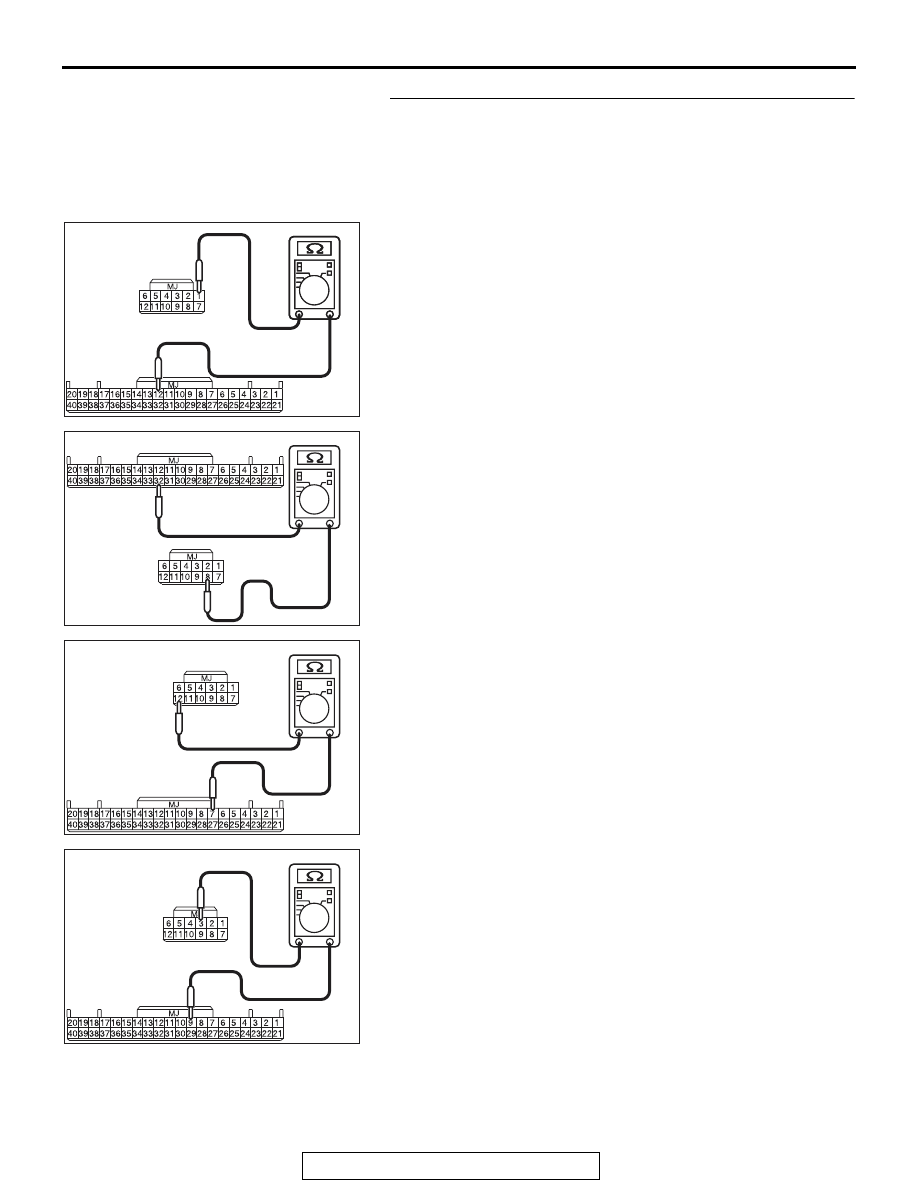

STEP 5. Check the wiring harness between the receiver
antenna assembly connector D-14 (terminal Nos.1, 8, 12, 3,
5) and the KOS-ECU connector C-05 (terminal Nos.12, 32,
7, 9, 13) for open circuit.
(1) Disconnect reciever anntena assembly connector D-14 and

KOS-ECU connector C-05, and check the wiring harness.

(2) Check the wiring harness between reciever anntena

assembly connector D-14 (terminal No.1) and KOS-ECU
connector C-05 (terminal No.12)

OK: Continuity exists (2

Ω or less)

(3) Check the wiring harness between reciever anntena

assembly connector D-14 (terminal No.8) and KOS-ECU
connector C-05 (terminal No.32)

OK: Continuity exists (2

Ω or less)

(4) Check the wiring harness between reciever anntena

assembly connector D-14 (terminal No.12) and KOS-ECU
connector C-05 (terminal No.7)

OK: Continuity exists (2

Ω or less)

(5) Check the wiring harness between reciever anntena

assembly connector D-14 (terminal No.3) and KOS-ECU
connector C-05 (terminal No.9)

OK: Continuity exists (2

Ω or less)

AC709707

AC709707

Harness side: C-05

DK

Harness side: D-14

AC709707

Harness side: C-05

DL

Harness side: D-14

AC709707DM

Harness side: D-14

Harness side: C-05

AC709707DN

Harness side: C-05

Harness side: D-14

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-53

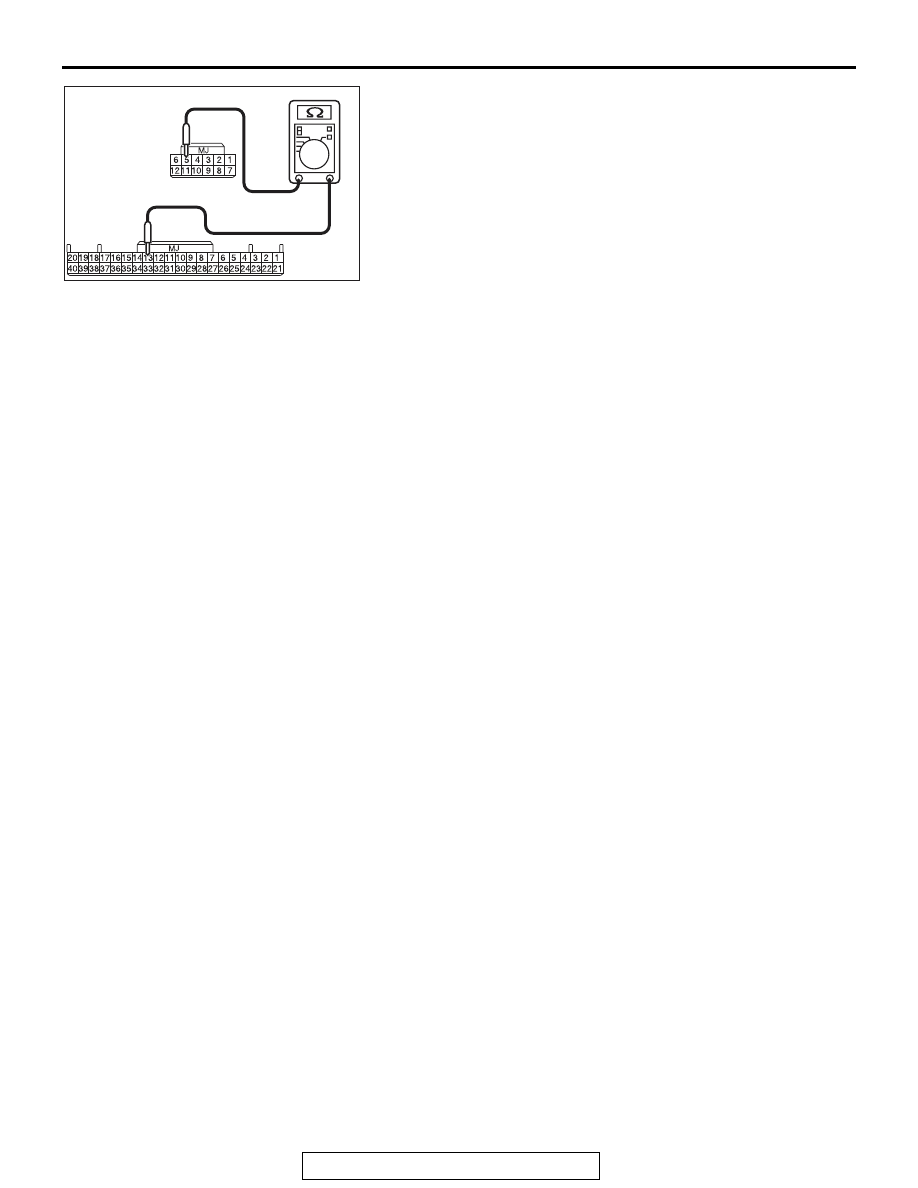

(6) Check the wiring harness between reciever anntena

assembly connector D-14 (terminal No.5) and KOS-ECU
connector C-05 (terminal No.13)

OK: Continuity exists (2

Ω or less)

Q: Is the wiring harness between receiver antenna

assembly connector D-14 (terminal Nos.1, 8, 12, 3, 5)
and the KOS-ECU connector C-05 (terminal Nos.12, 32,
7, 9, 13) in good condition?
YES  : Go to Step 6.
NO (receiver antenna assembly connector D-14 terminal
No.1

− KOS-ECU connector C-05 terminal No.12.) :

Repair the wiring harness between receiver antenna
assembly connector D-14  (terminal No.1) and the
KOS-ECU connector C-05 (terminal No.12).

NO (receiver antenna assembly connector D-14 terminal
No.8

− KOS-ECU connector C-05 terminal No.32.) :

Repair the wiring harness between receiver antenna
assembly connector D-14  (terminal No.8) and the
KOS-ECU connector C-05 (terminal No.32).

NO (receiver antenna assembly connector D-14 terminal
No.12

− KOS-ECU connector C-05 terminal No.7.) :

Repair the wiring harness between receiver antenna
assembly connector D-14  (terminal No.12) and the
KOS-ECU connector C-05 (terminal No.7).

NO (receiver antenna assembly connector D-14 terminal
No.3

− KOS-ECU connector C-05 terminal No.9.) : Repair

the wiring harness between receiver antenna
assembly connector D-14  (terminal No.3) and the
KOS-ECU connector C-05 (terminal No.9).

NO (receiver antenna assembly connector D-14 terminal
No.5

− KOS-ECU connector C-05 terminal No.13.) :

Repair the wiring harness between receiver antenna
assembly connector D-14  (terminal No.5) and the
KOS-ECU connector C-05 (terminal No.13).

AC709707DO

Harness side: C-05

Harness side: D-14

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-54

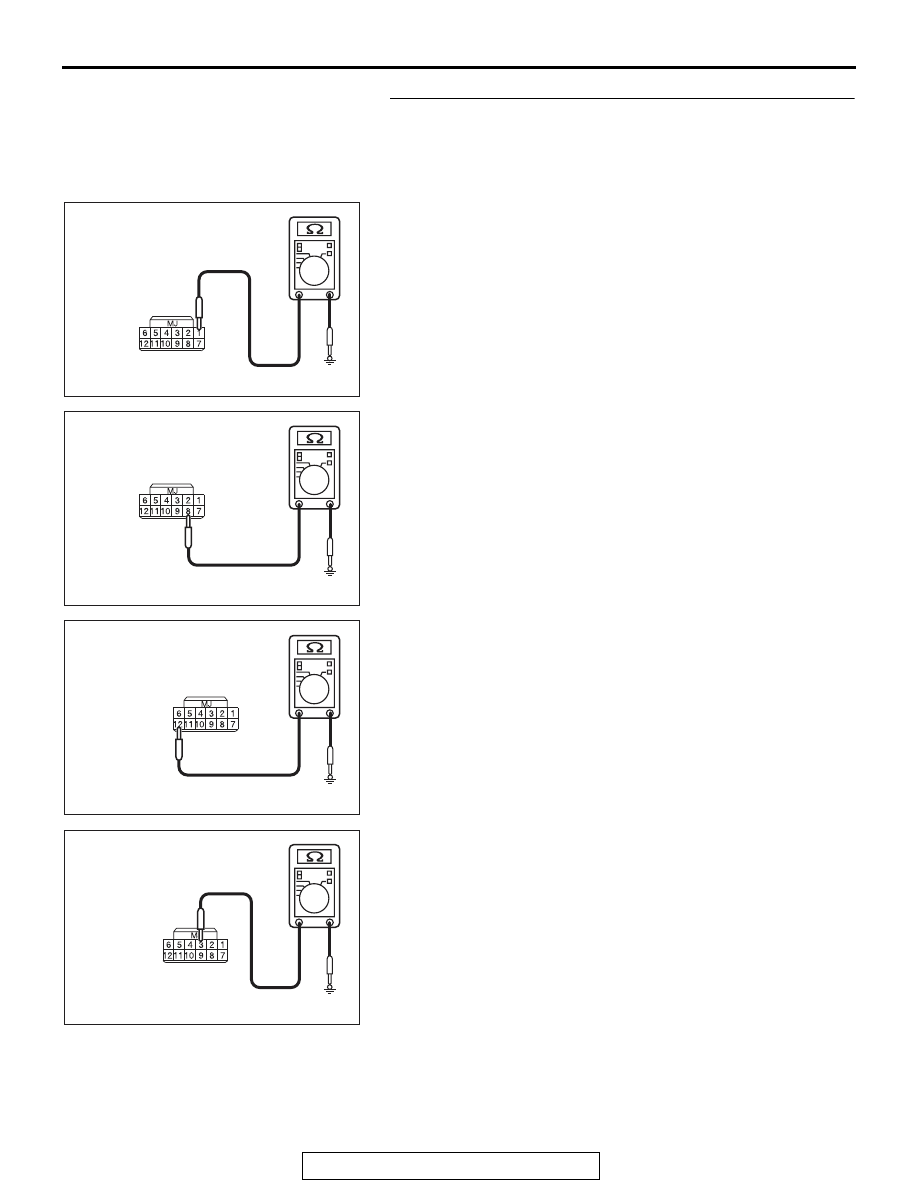

STEP 6. Check the wiring harness between the receiver
antenna assembly connector D-14 (terminal Nos.1, 8, 12, 3,
5) and the ground for short circuit.
(1) Disconnect reciever anntena assembly connector D-14,

and check the wiring harness.

(2) Check the wiring harness between reciever anntena

assembly connector D-14 (terminal No.1) and ground

OK: No continuity

(3) Check the wiring harness between reciever anntena

assembly connector D-14 (terminal No.8) and ground

OK: No continuity

(4) Check the wiring harness between reciever anntena

assembly connector D-14 (terminal No.12) and ground

OK: No continuity

(5) Check the wiring harness between reciever anntena

assembly connector D-14 (terminal No.3) and ground

OK: No continuity

AC709707FZ

Harness side: D-14

AC709707FY

Harness side: D-14

AC709707FX

Harness side: D-14

AC709707FW

Harness side: D-14
