DOOR

TSB Revision

BODY

42A-59

DIAGNOSTIC TROUBLE CODE PROCEDURES <POWER WINDOW>

CODE NO. L0730 P/W (DR) SW pulse 1 disconnection

CAUTION

Before replacing the ECU, ensure that the input
and output signal circuits are normal.

.

COMMENTS ON TROUBLE SYMPTOM

If the pulse 1 signal from the front power window
motor (LH) cannot be received, the power window
main switch sets the diagnosis trouble code No.
L0730.

.

PROBABLE CAUSES

• Malfunction of the front power window motor (LH)

• Malfunction of the power window main switch

• Damaged wiring harness and connectors

AC609756

FRONT

POWER

WINDOW

MOTOR (LH)

FRONT

(LH)

CPU

IC

IC

LIN DRIVE

CIRCUIT

POWER WINDOW MAIN SWITCH

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLUE

BLUE

ORANGE

LIGHT  GREEN

GREEN

VIOLET

AC

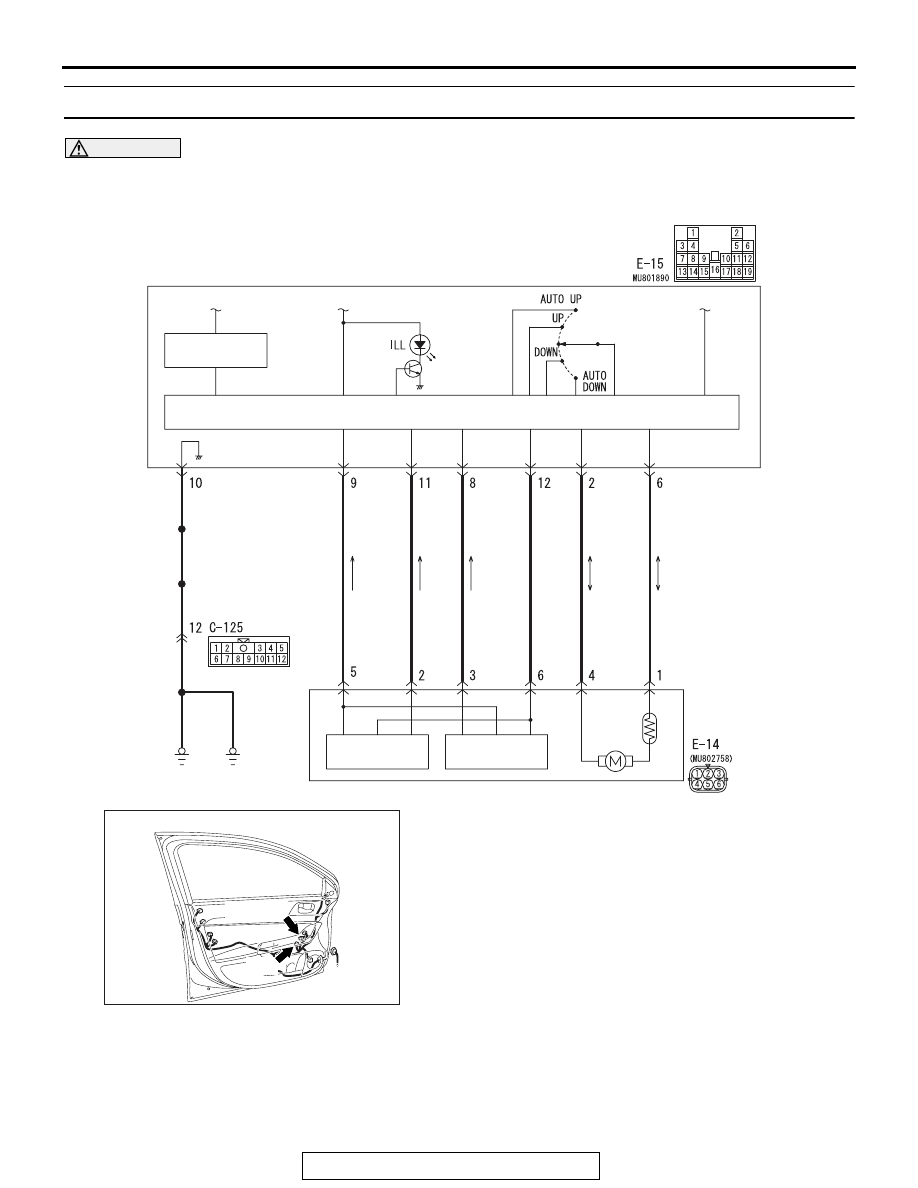

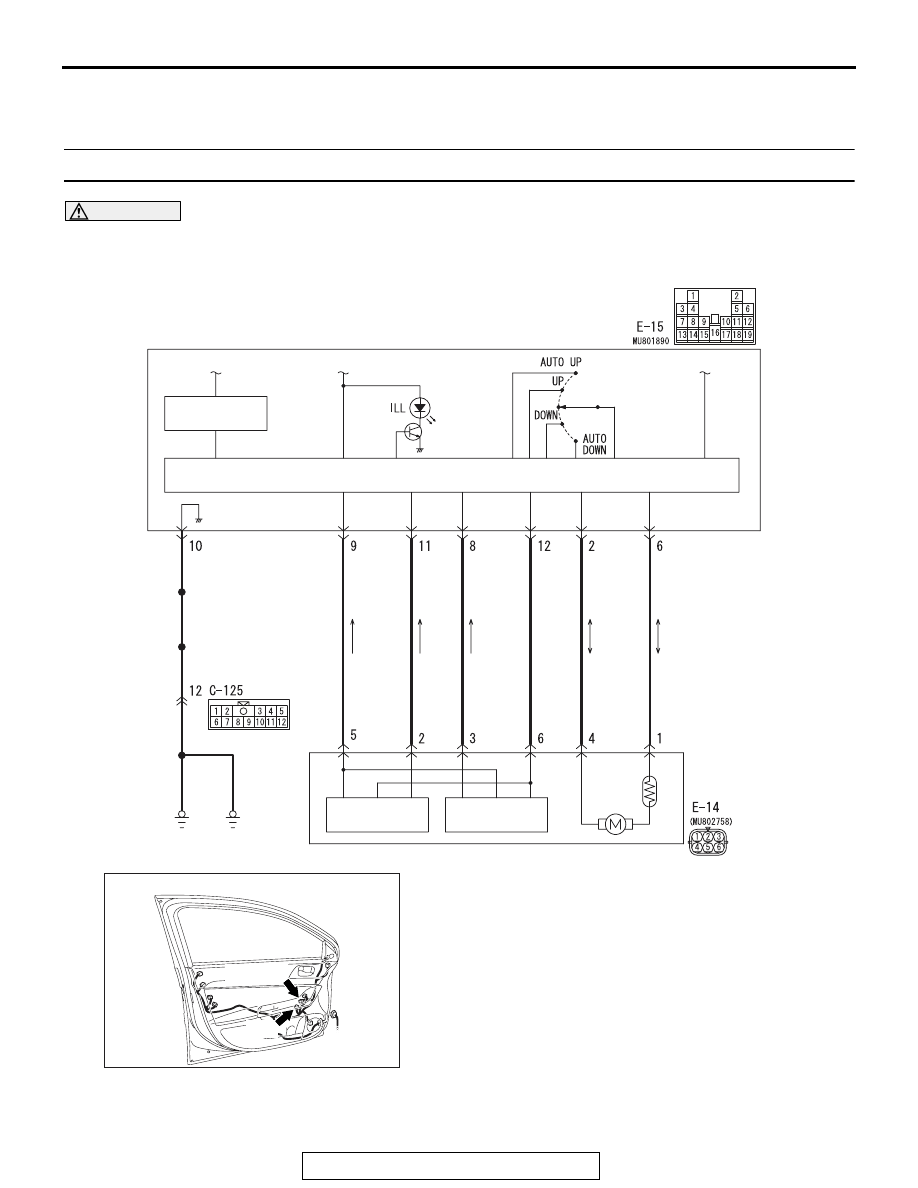

Driver's Side Power Window Circuit

AC608167AO

Connectors: E-14, E-15

E-15

E-14 (GR)

DOOR

TSB Revision

BODY

42A-60

DIAGNOSTIC PROCEDURE

STEP 1. Check power window main switch connector E-15,
front power window motor (LH) connector E-14 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are power window main switch connector E-15, front

power window motor (LH) connector E-14 in good
condition?
YES : Go to Step 2.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the power window works

normally.

STEP 2. Check the wiring harness between power window
main switch connector E-15 (terminals Nos. 8, 9 and 12)
and front power window motor (LH) connector E-14
(terminals Nos. 3, 5 and 6).
Q: Is the wiring harness between power window main

switch connector E-15 (terminals Nos. 8, 9 and 12) and
front power window motor (LH) connector E-14
(terminals Nos. 3, 5 and 6) in good condition?
YES : Go to Step 3.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the power window works normally.

STEP 3. Diagnostic trouble code recheck
Replace the front power window motor (LH). Recheck if the
diagnostic trouble code is set.
(1) Erase the diagnostic trouble code.
(2) Operate the driver’s door window switch on the power

window main switch.

(3) Check if the diagnostic trouble code is set.
Q: Is the diagnostic trouble code set?

YES : Replace the power window main switch.
NO :  The procedure is complete. Verify that the power

window works normally.

DOOR

TSB Revision

BODY

42A-61

CODE NO. L0732 P/W (DR) SW pulse 2 disconnection

CAUTION

Before replacing the ECU, ensure that the input
and output signal circuits are normal.

.

COMMENTS ON TROUBLE SYMPTOM

If the pulse 2 signal from the front power window
motor (LH) cannot be received, the power window
main switch sets the diagnosis trouble code No.
L0732.

.

PROBABLE CAUSES

• Malfunction of the front power window motor (LH)

• Malfunction of the power window main switch

• Damaged wiring harness and connectors

AC609756

FRONT

POWER

WINDOW

MOTOR (LH)

FRONT

(LH)

CPU

IC

IC

LIN DRIVE

CIRCUIT

POWER WINDOW MAIN SWITCH

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLUE

BLUE

ORANGE

LIGHT  GREEN

GREEN

VIOLET

AC

Driver's Side Power Window Circuit

AC608167AO

Connectors: E-14, E-15

E-15

E-14 (GR)

DOOR

TSB Revision

BODY

42A-62

DIAGNOSTIC PROCEDURE

STEP 1. Check power window main switch connector E-15,
front power window motor (LH) connector E-14 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are power window main switch connector E-15, front

power window motor (LH) connector E-14 in good
condition?
YES : Go to Step 2.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the power window works

normally.

STEP 2. Check the wiring harness between power window
main switch connector E-15 (terminals Nos. 9, 11 and 12)
and front power window motor (LH) connector E-14
(terminals Nos. 5, 2 and 6).
Q: Is the wiring harness between power window main

switch connector E-15 (terminals Nos. 9, 11 and 12) and
front power window motor (LH) connector E-14
(terminals Nos. 5, 2 and 6) in good condition?
YES : Go to Step 3.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the power window works normally.

STEP 3. Diagnostic trouble code recheck
Replace the front power window motor (LH). Recheck if the
diagnostic trouble code is set.
(1) Erase the diagnostic trouble code.
(2) Operate the driver’s door window switch on the power

window main switch.

(3) Check if the diagnostic trouble code is set.
Q: Is the diagnostic trouble code set?

YES : Replace the power window main switch.
NO :  The procedure is complete. Verify that the power

window works normally.
