TRANSAXLE ASSEMBLY

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-345

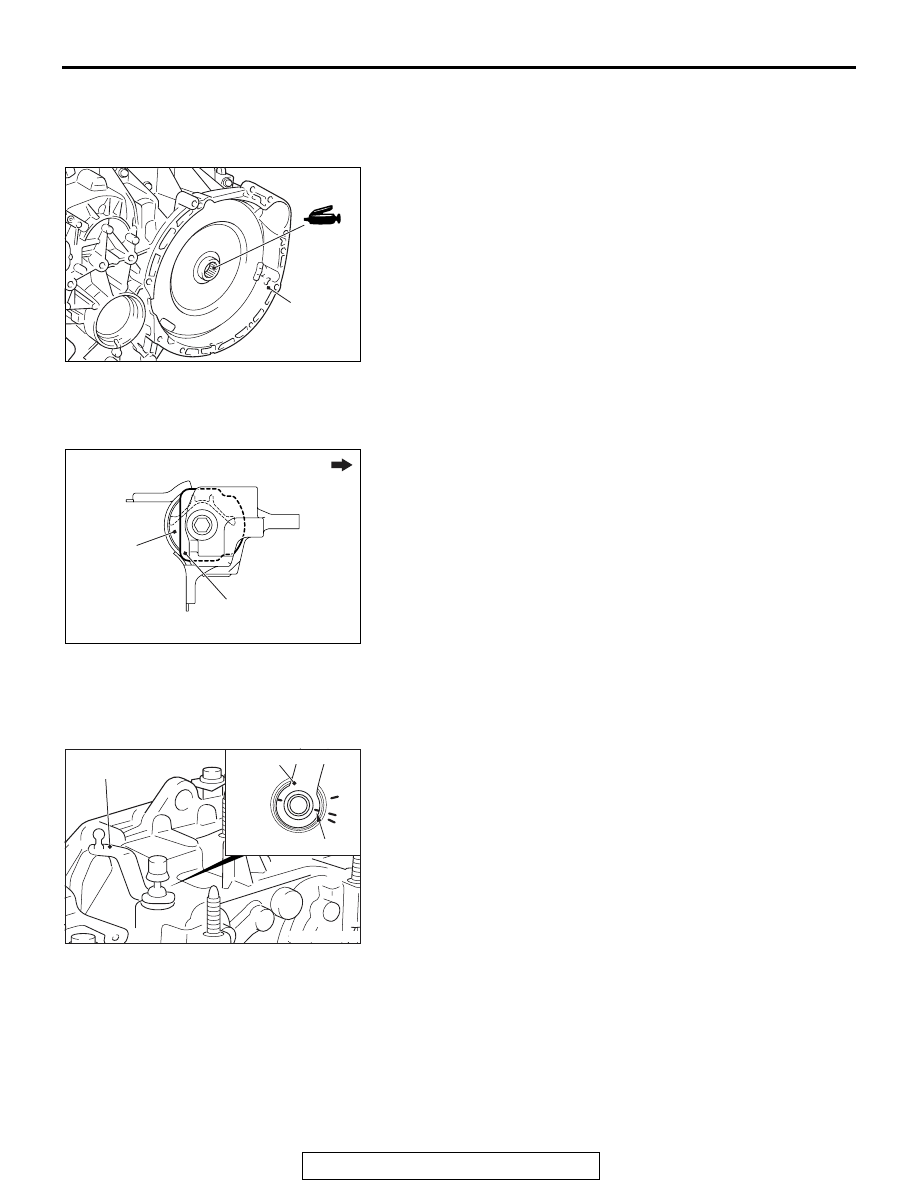

INSTALLATION SERVICE POINTS

.

>>A<< O-RING/TRANSAXLE ASSEMBLY INSTAL-
LATION

Apply the specified grease to the flywheel spline section,
O-ring, and spline section of transaxle assembly input shaft.

Grease
Brand name: Molykote BR2-Plus

.

>>B<< TRANSAXLE MOUNTING INSULATOR
STOPPER INSTALLATION

Install the transaxle mounting insulator stopper as shown in the
figure.

.

>>C<< TRANSAXLE CONTROL CABLE
INSTALLATION

1. Set the shift lever to the N position.
2. Operate the lever so that the shift control lever positioning

mark is set to the N position.

AC708152

Transaxle
assembly

AC

AC707819

Transaxle side

Transaxle
mounting
insulator

Transaxle mounting
insulator stopper

AC

AC707764

P

N

D

AC

Shift control lever

Mark

Shift control lever

TRANSAXLE ASSEMBLY

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-346

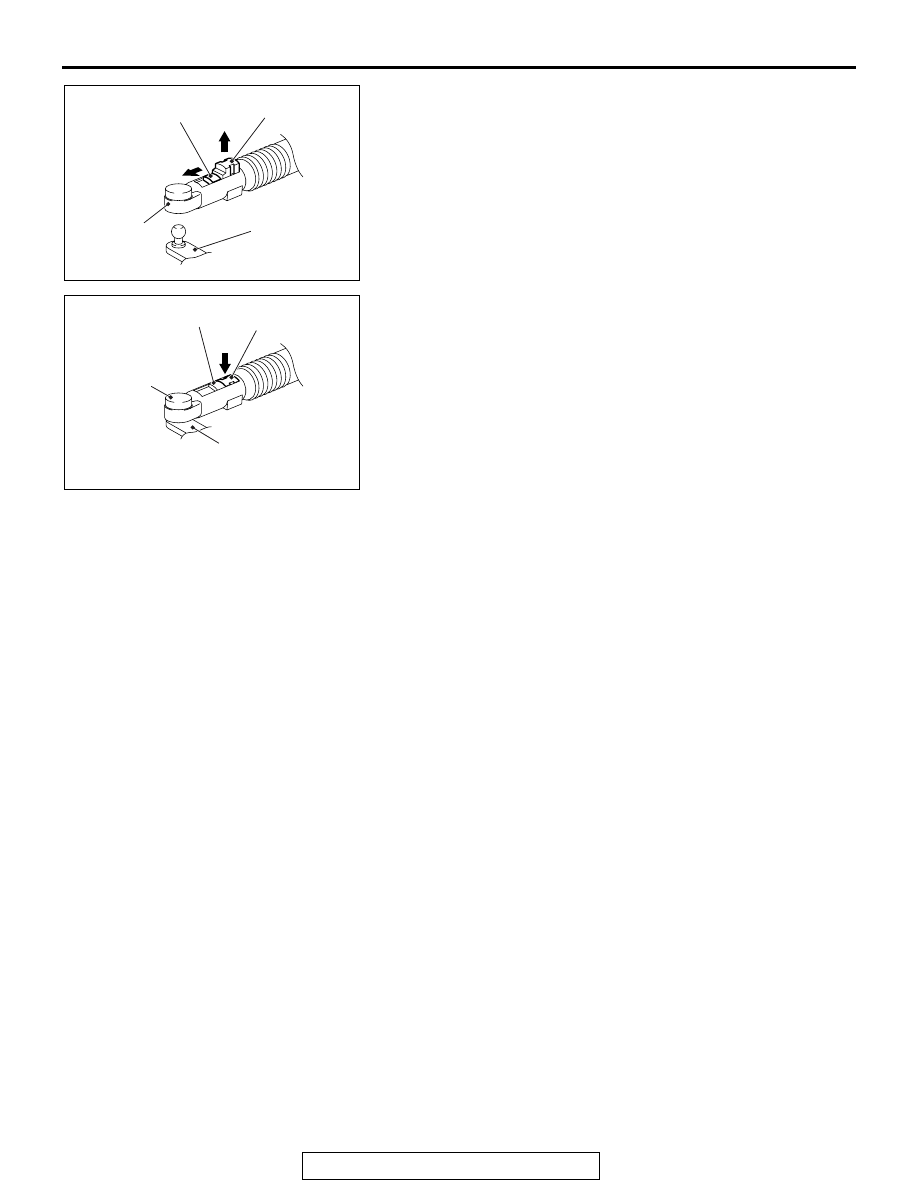

3. Move the slider of the transaxle control cable (transaxle

side) tip to the direction A to pull up the lock piece to the
direction B.

4. Align the transaxle control cable and the shift control lever

joint (positioning only, do not connect), and firmly push down
the lock piece to lock it. Then, connect the transaxle control
cable and the shift control lever.
NOTE:

.

•

The slider automatically returns to the fixed position by
the spring.

•

The lock position of transaxle control cable is automati-
cally adjusted by a spring.

AC707742

AC

Shift control
lever

Lock piece

Slider

Transmission
control cable

A

B

AC707743

AC

Shift control
lever

Lock piece

Slider

Transmission
control cable

OIL COOLER

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-347

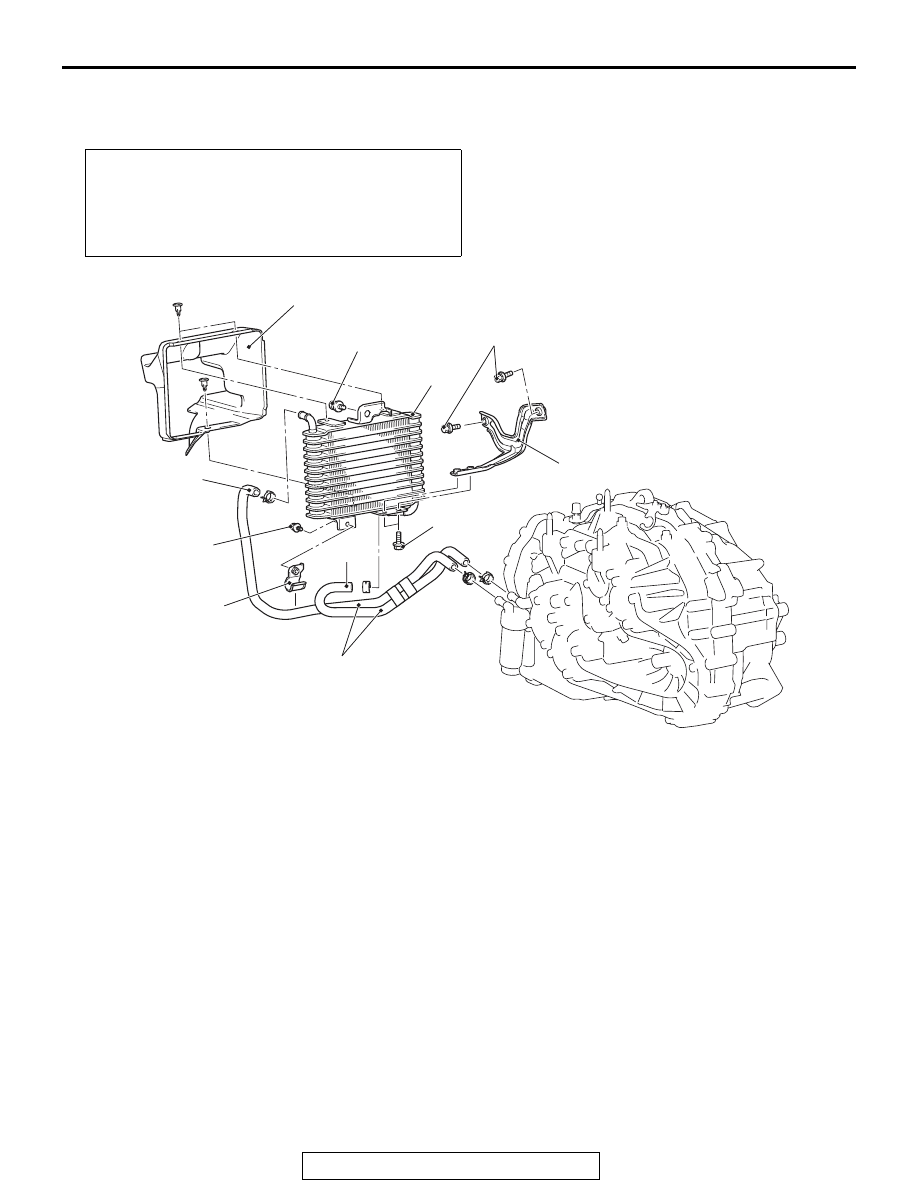

OIL COOLER

REMOVAL AND INSTALLATION

M1225010400013

Pre-removal and Post-installation Operation
• Transmission oil draining and refilling (Refer to

P.22C-328

.)

• Front bumper and radiator grille assembly removal and

installation (Refer to GROUP 51

− Front Bumper and

Radiator Grille Assembly

P.51-3

.)

AC705841AC

1

6

4

3

5

2

2

9.5 ± 3.5 N·m
85 ± 30 in-lb

9.5 ± 3.5 N·m
85 ± 30 in-lb

9.5 ± 3.5 N·m
85 ± 30 in-lb

9.5 ± 3.5 N·m
85 ± 30 in-lb

Removal steps

1. Oil cooler duct
2. Oil cooler hose assembly

connection

3. Oil cooler assembly

4. Hose clamp
5. Oil cooler bracket
6. Oil cooler hose assembly

Removal steps (Continued)

PADDLE SHIFT ASSEMBLY

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-348

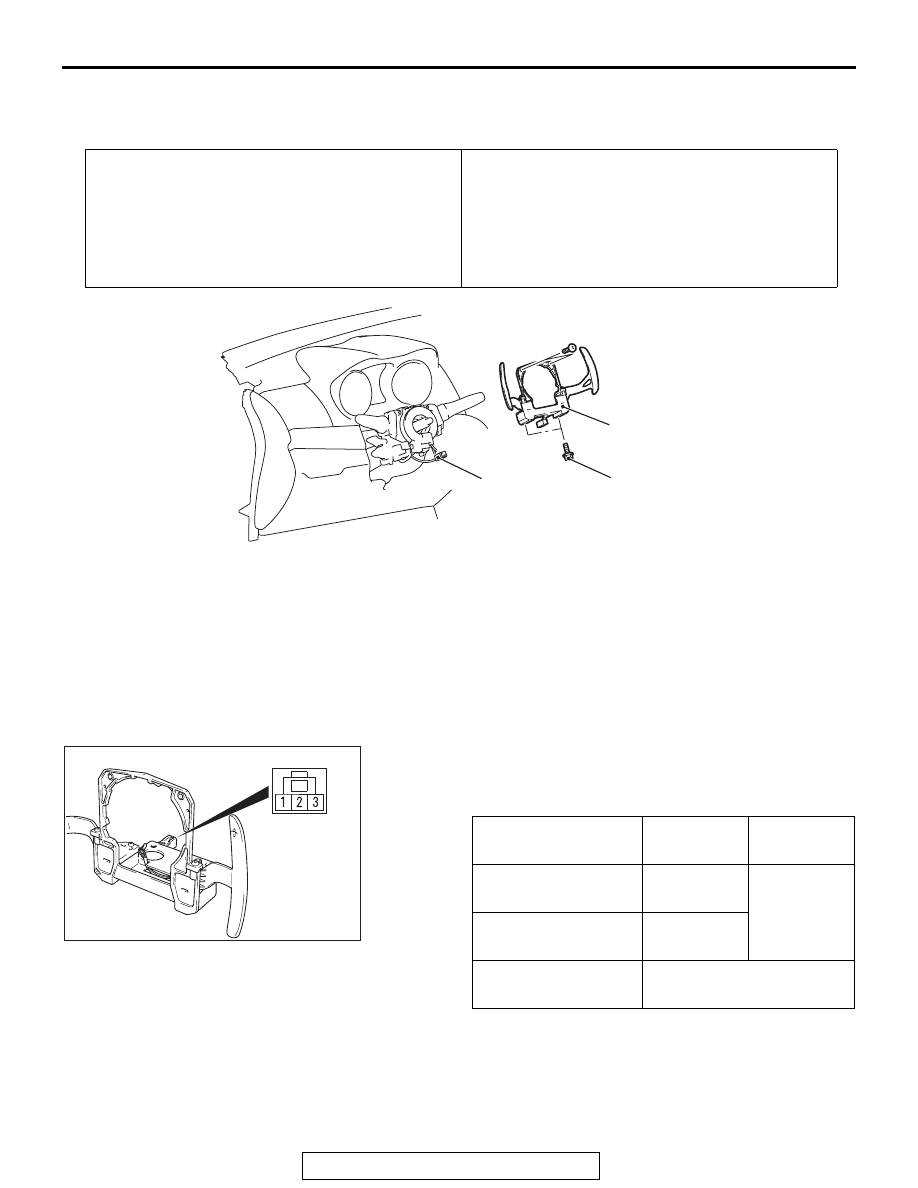

PADDLE SHIFT ASSEMBLY

REMOVAL AND INSTALLATION

M1225010600017

INSPECTION

PADDLE SHIFT SWITCH CHECK

M1225011300019

1. Check the continuity between the paddle shift switch

connector terminals.

Standard value:

2. In the cases other than the above, replace the paddle shift

assembly.

Pre-removal Operation
• Steering wheel assembly and driver's air bag module

removal (Refer to GROUP 37

− Steering Wheel

P.37-22

.)

• Steering column lower cover and steering column upper

cover removal (Refer to GROUP 37

− Steering Shaft

P.37-26

.)

Post-installation Operation
• Steering column lower cover and steering column upper

cover installation (Refer to GROUP 37

− Steering Shaft

P.37-26

.)

• Steering wheel assembly and driver's air bag module

installation (Refer to GROUP 37

− Steering Wheel

P.37-22

.)

• Steering wheel at straight-ahead position check

AC710518 AB

7.0 ± 3.0 N·m
62 ± 26 in-lb

1

2

Removal steps

1. Paddle shift switch connector

connection

2. Paddle shift assembly

Paddle shift lever

Terminal
number

Resistance
value

Upshift and hold the
lever.

1

− 2

Continuity
exists. (2

Ω

or less)

Downshift and hold
the lever.

2

− 3

No operation

No continuity between the
terminals

AC507715AC
