DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-21

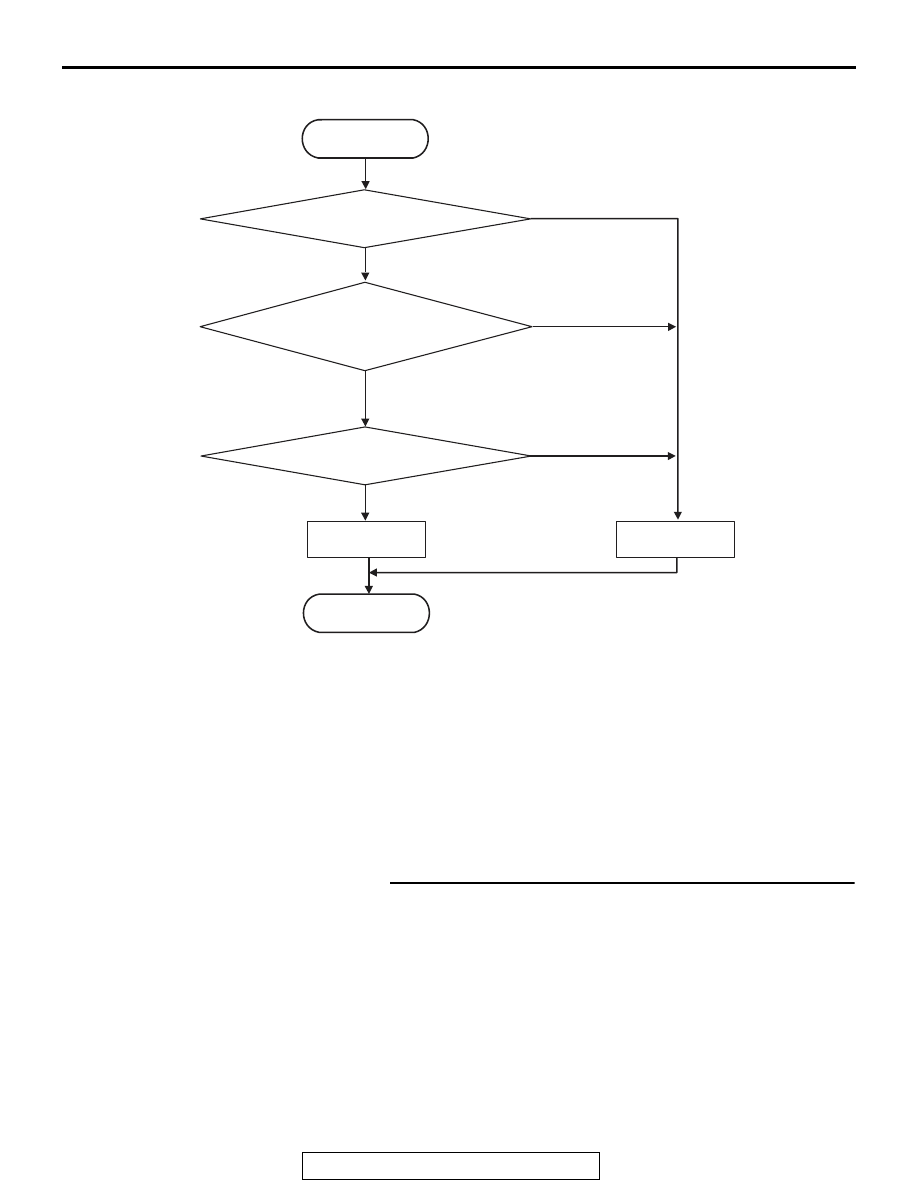

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Voltage of battery: 8 V or more.

• Voltage of battery: 16.5 V or less.

JUDGMENT CRITERIA

• Fluid temperature: −50° C (−58° F) or less. (400

millisecond)

.

OBD-II DRIVE CYCLE PATTERN

The TC-SST-ECU temperature remains

−50° C

(

−58° F) or more for 400 milliseconds.

.

PROBABLE CAUSES

• Malfunction of TC-SST-ECU

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

AC710593

START

No

Yes

Yes

Good

Malfunction

END

Monitoring condition met

No

Continuous failure
for 400 msec

No

Fluid temperature < -50 ˚C (-58 ˚F)

Yes

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-22

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. P0712 set?

YES : Replace the TC-SST assembly. (Refer to

P.22C-341

.)

NO :  Intermittent malfunction. (Refer to GROUP 00

− How

to Cope with Intermittent Malfunction

P.00-15

.)

DTC P0713: TC-SST-ECU temperature sensor system (Output high range out)

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

DIAGNOSTIC FUNCTION

TC-SST-ECU checks that the output of the ECU tem-
perature sensor is normal.

.

DESCRIPTIONS OF MONITOR METHODS

The output of the ECU temperature is determined to
be too high.

.

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0711: TC-SST-ECU temperature sensor system

(Gradient error)

• P0712: TC-SST-ECU temperature sensor system

(Output low range out)

• P1808: TC-SST-ECU temperature, fluid tempera-

ture sensor system (Correlation error)

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-23

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Voltage of battery: 8 V or more.

• Voltage of battery: 16.5 V or less.

JUDGMENT CRITERIA

• Fluid temperature: 150° C (302° F) or more. (400

millisecond)

.

OBD-II DRIVE CYCLE PATTERN

The TC-SST-ECU temperature remains 150

° C

(302

° F) or less for 400 milliseconds.

.

PROBABLE CAUSES

• Malfunction of TC-SST-ECU

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

AC710594

START

No

Yes

Yes

Good

Malfunction

END

Vehicle condition met

No

Continuous failure
for 400 msec

No

Fluid temperature > 150 ˚C (302 ˚F)

Yes

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-24

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. P0713 set?

YES : Replace the TC-SST assembly. (Refer to

P.22C-341

.)

NO :  Intermittent malfunction. (Refer to GROUP 00

− How

to Cope with Intermittent Malfunction

P.00-15

.)

DTC P0715: Input shaft 1 (odd number gear axle) speed sensor system (Output high range out)

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

DIAGNOSTIC FUNCTION

TC-SST-ECU checks that the input shaft 1 (odd num-
ber gear axle) speed sensor is normal.

.

DESCRIPTIONS OF MONITOR METHODS

The output of the input shaft 1 (odd number gear
axle) is determined to be too high.

.

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0716: Input shaft 1 (odd number gear axle)

speed sensor system (Poor performance)

• P0717: Input shaft 1 (odd number gear axle)

speed sensor system (Output low range out)

• P2766: Input shaft 2 (even number gear axle)

speed sensor system (Poor performance)

Sensor (The sensor below is determined to be

normal)

• Input shaft 2 (even number gear axle) speed sen-

sor

.
