DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-17

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

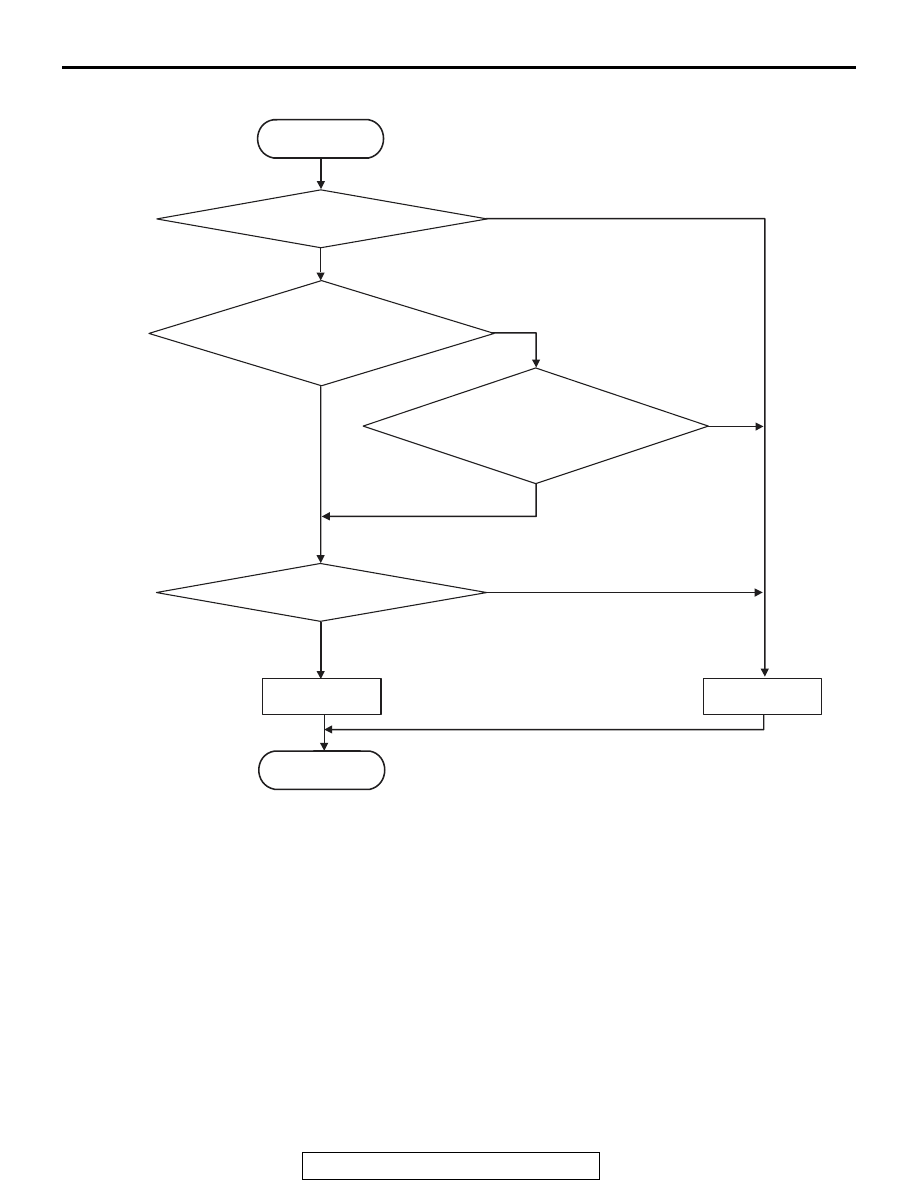

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Voltage of battery: 8 V or more.

• Voltage of battery: 16.5 V or less.

JUDGMENT CRITERIA

• Internal module, Monitoring processor: fault.

.

OBD-II DRIVE CYCLE PATTERN

The internal module and monitoring processor are
normal.

.

PROBABLE CAUSES

• Malfunction of TC-SST-ECU

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

AC710451

START

No

Internal module, monitoring
processor is failed

Yes

Yes

No

Good

Malfunction

END

Monitoring condition met

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-18

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. P0702 set?

YES : Replace the TC-SST assembly. (Refer to

P.22C-341

.)

NO :  Intermittent malfunction. (Refer to GROUP 00

− How

to Cope with Intermittent Malfunction

P.00-15

.)

DTC P0711: TC-SST-ECU temperature sensor system (Gradient error)

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

DIAGNOSTIC FUNCTION

TC-SST-ECU checks that the output gradient of the
ECU temperature sensor is normal.

.

DESCRIPTIONS OF MONITOR METHODS

The ECU temperature change is determined to be
abnormal.

.

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0712: TC-SST-ECU temperature sensor system

(Output low range out)

• P0713: TC-SST-ECU temperature sensor system

(Output high range out)

• P1808: TC-SST-ECU temperature, fluid tempera-

ture sensor system (Correlation error)

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-19

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Voltage of battery: 8 V or more.

• Voltage of battery: 16.5 V or less.

JUDGMENT CRITERIA

• Fluid temperature change while 80 millisecond:

10

° C (18° F) or more, or fluid temperature

change while 80 millisecond:

−10° C (−18° F) or

more. (400 millisecond)

.

OBD-II DRIVE CYCLE PATTERN

The absolute value of the temperature rise or drop at
every 80 milliseconds remains 10

° C (18° F) or less

for 400 milliseconds.

.

PROBABLE CAUSES

• Malfunction of TC-SST-ECU

AC710592

START

No

Fluid temperature change
while 80 msec > 10 ˚C (18 ˚F)

Yes

Yes

No

Good

Malfunction

END

Monitoring condition met

No

Continuous failure
for 400 msec

Yes

No

Fluid temperature change
while 80 msec > -10 ˚C (-18 ˚F)

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-20

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. P0711 set?

YES : Replace the TC-SST assembly. (Refer to

P.22C-341

.)

NO :  Intermittent malfunction. (Refer to GROUP 00

− How

to Cope with Intermittent Malfunction

P.00-15

.)

DTC P0712: TC-SST-ECU temperature sensor system (Output low range out)

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

DIAGNOSTIC FUNCTION

TC-SST-ECU checks that the output of the ECU tem-
perature sensor is normal.

.

DESCRIPTIONS OF MONITOR METHODS

The output of the ECU temperature is determined to
be too low.

.

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0711: TC-SST-ECU temperature sensor system

(Gradient error)

• P0713: TC-SST-ECU temperature sensor system

(Output high range out)

• P1808: TC-SST-ECU temperature, fluid tempera-

ture sensor system (Correlation error)

Sensor (The sensor below is determined to be

normal)

• Not applicable

.
