CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-45

DISASSEMBLY SERVICE POINTS

.

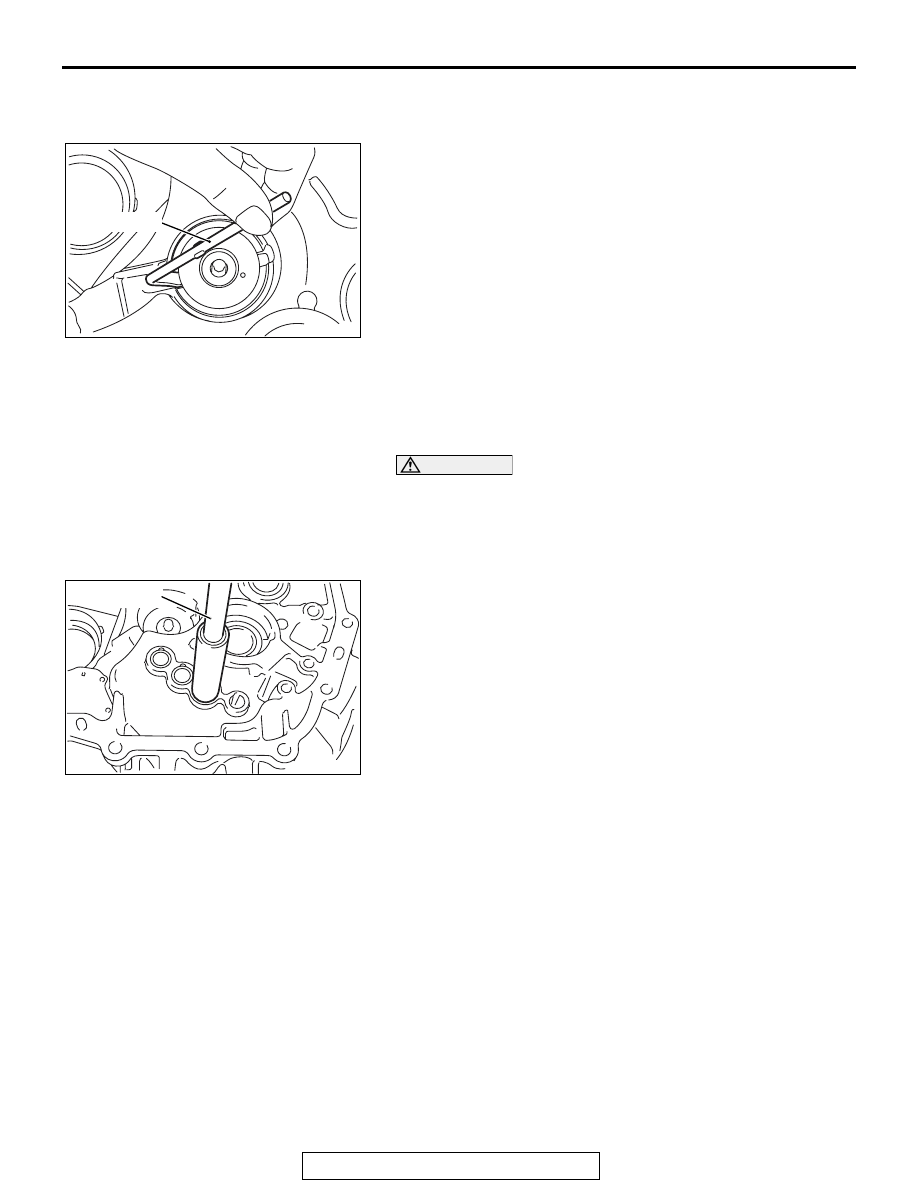

<<A>> OUTPUT FRONT OIL GUIDE REMOVAL

AK703336AC

MB991946

Using special tool, MB991946, remove the output front oil
guide.

ASSEMBLY SERVICE POINTS

.

>>A<< SLIDE BALL BEARING (FOR SHIFT RAIL)
INSTALLATION

CAUTION

• Normally, it is not necessary to disassemble the slide

ball bearings. Install them only when the clutch hous-
ing is replaced with a new one.

•

AK703333

AC

MB990883

Install the bearing with the stamped mark facing
upward.

Using special tool, MB990883, install the slide ball bearings on
the new clutch housing.

.

CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-46

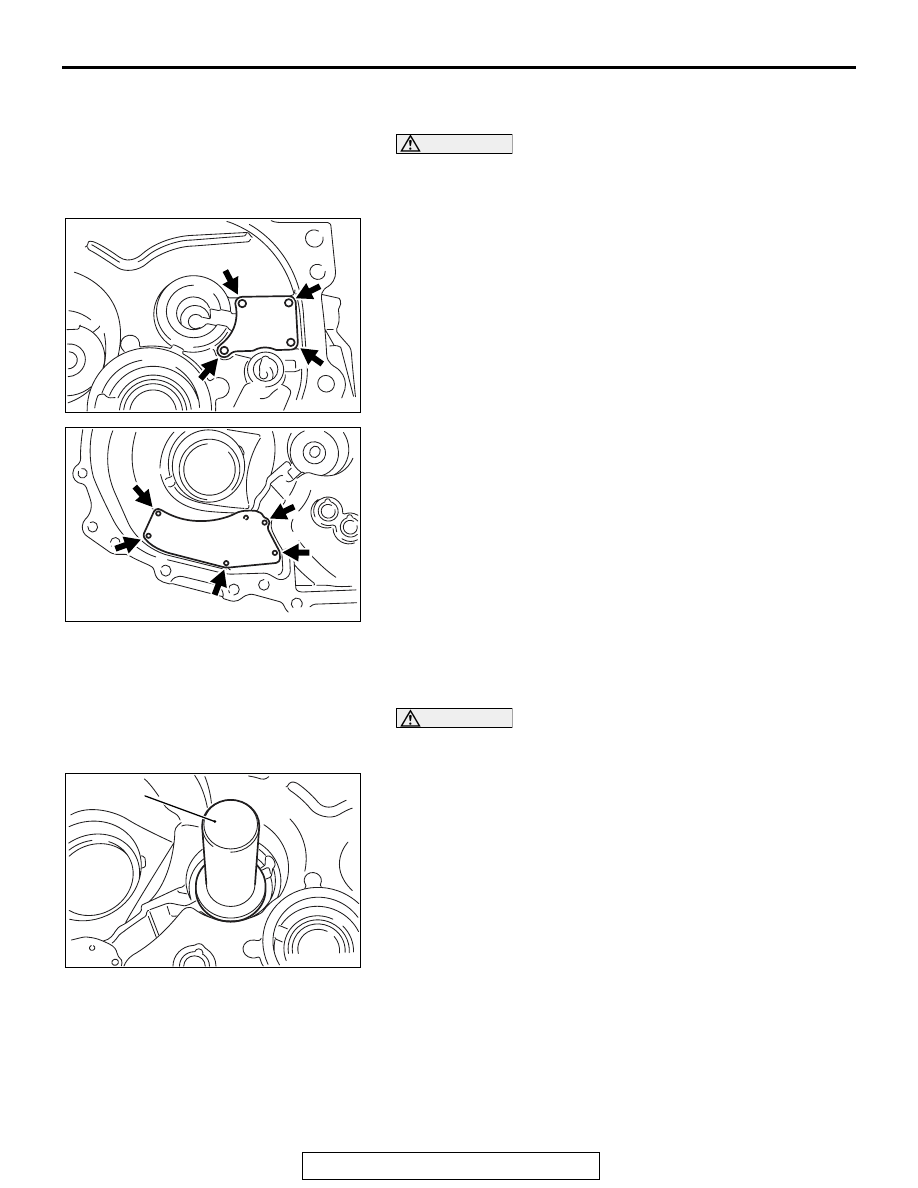

>>B<< OIL TANK COVER (REV) / OIL TANK
COVER (CHG) INSTALLATION

CAUTION

Normally, it is not necessary to disassemble the oil tank
covers. Install them only when the clutch housing is
replaced with a new one.

AK703334AC

AK703335AC

Install the oil tank covers to the new clutch housing. Stake the
projections at the illustrated positions of the clutch housing to
secure the covers in position.

.

>>C<< OUTPUT FRONT OIL GUIDE
INSTALLATION

CAUTION

Make sure that the output front oil guide is installed
squarely.

AK703337AC

MD999547

Using special tool, MD999547, drive the oil guide all the way
into place to the end face of the clutch housing.

.

CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-47

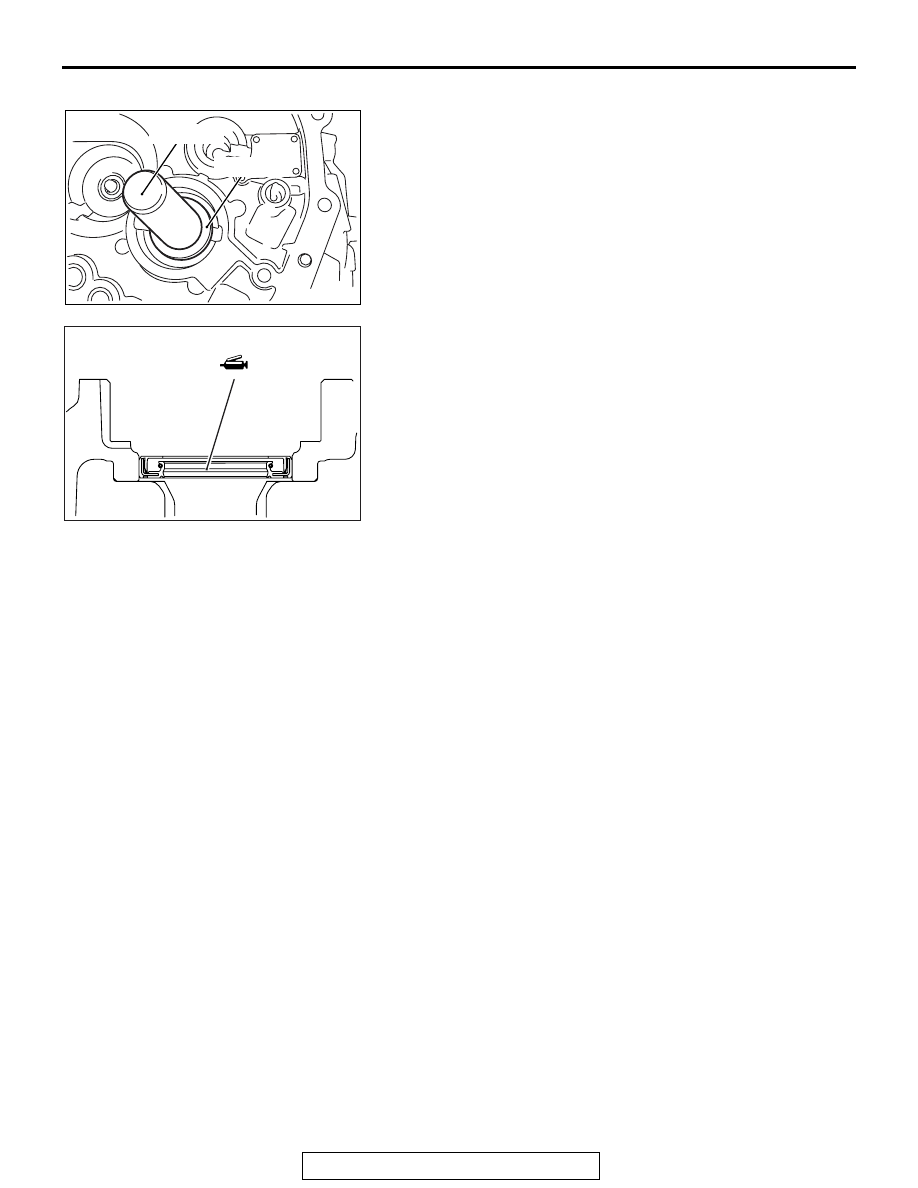

>>D<< OIL SEAL INSTALLATION

AK703403AC

MB992271

MB992075

1.  Using special tool, MB992271 and MB992075, drive the oil

seal squarely into the clutch housing.

AK703411

AC

2.  Apply specified grease to the oil seal lip area.

Specified grease:
Retinax A

TRANSAXLE CASE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-48

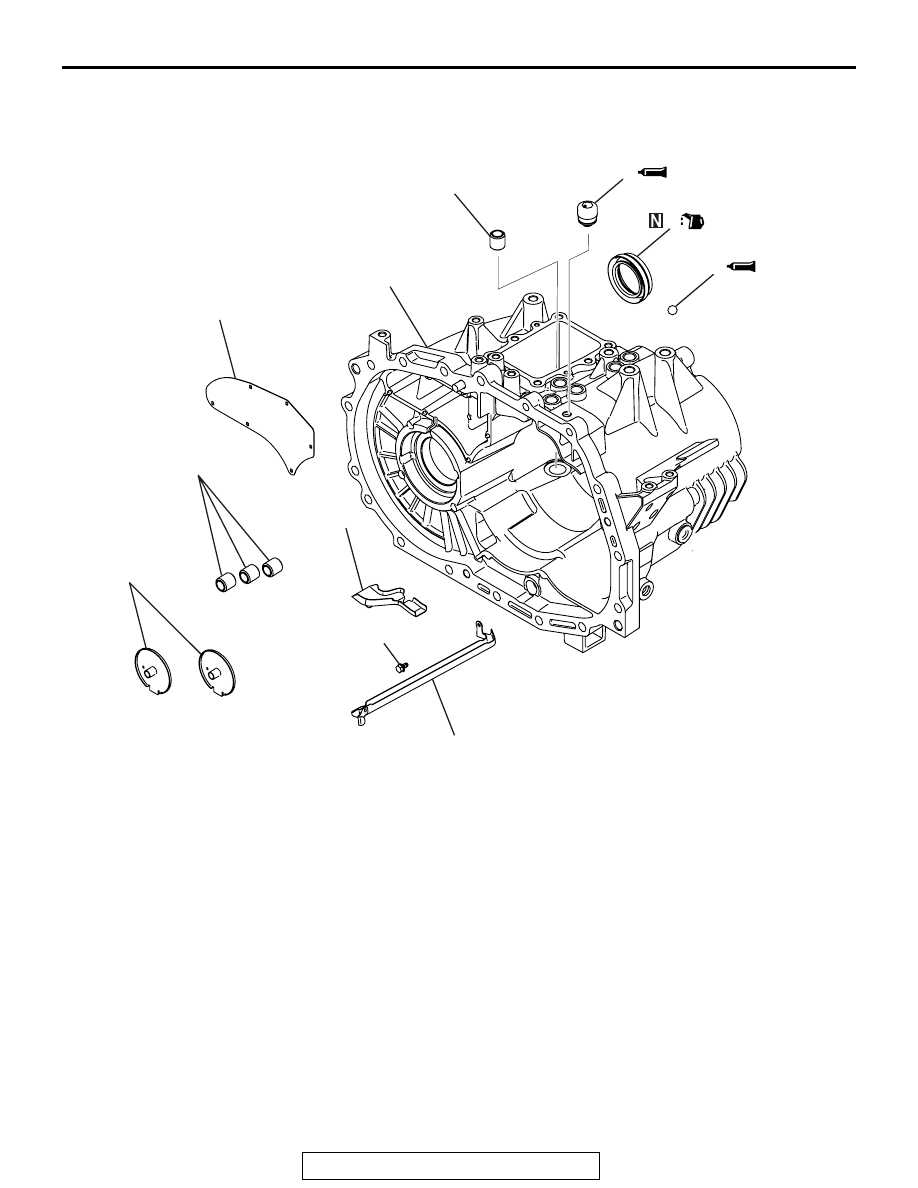

TRANSAXLE CASE

DISASSEMBLY AND ASSEMBLY

M1222016300048

A - A

AK702516

3*

2

1

4*

10

7

8

AC

9

5*

6*

10 ± 2 N·m
88 ± 17 in-lb

Removal steps

<<A>>

>>H<<

1. Oil guide

>>G<<

2. Oil tank cover *

>>F<<

3. Oil guide A*
4. Oil guide B

>>E<<

5. Slide ball bearing (for shift

rail)*

>>D<<

6. Slide ball bearing (for control

shaft)*

>>C<<

7. Oil seal

>>B<<

8. Steel ball

>>A<<

9. Air breather
10.Transaxle case

NOTE: *: Refer to the assembly service points only
when the transaxle case is replaced.

Required Special Tools:

• MB991946: Ply bar

• MB990883: Rear suspension bushing arbor

• MB991115: Oil seal installer

• MB990938: Installer bar

• MD999547: Oil seal installer

Removal steps (Continued)
