CONTROL HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-41

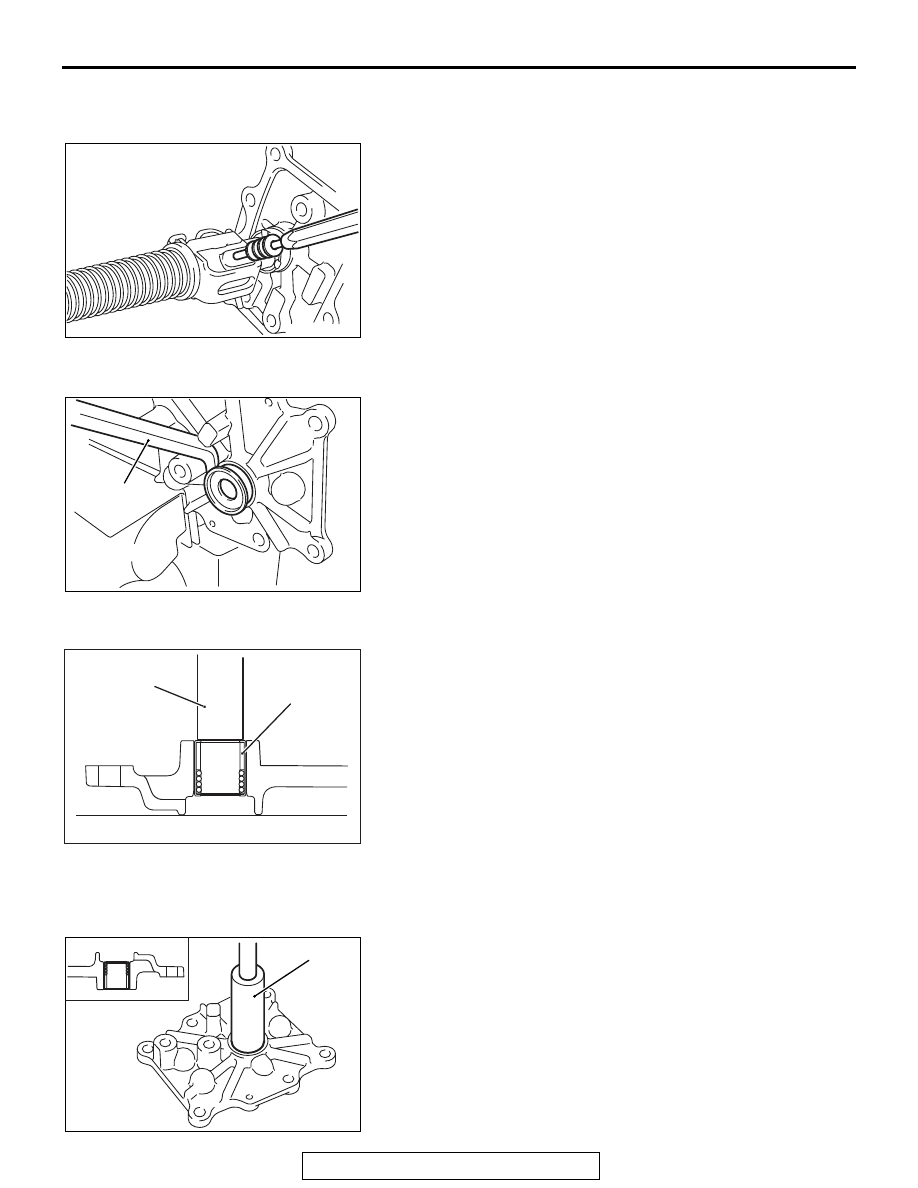

DISASSEMBLY SERVICE POINTS

.

<<A>> LOCK PIN REMOVAL

AK703310

Drive out the lock pin in the direction shown.

.

<<B>> OIL SEAL REMOVAL

AK703311AC

MD999566

Using special tool, MD999566, remove the oil seal.

.

<<C>> SLIDE BALL BEARING REMOVAL

AK703384AC

MB990947

Slide ball bearing

Using special tool, MB990947, remove the slide ball bearing.

ASSEMBLY SERVICE POINTS

.

>>A<< SLIDE BALL BEARING INSTALLATION

AK703367AC

MB990984

Using special tool, MB990984, install the slide ball bearing in
alignment with the control housing end face taking care not to
let the bearing protrude to the oil seal installing surface.

CONTROL HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-42

.

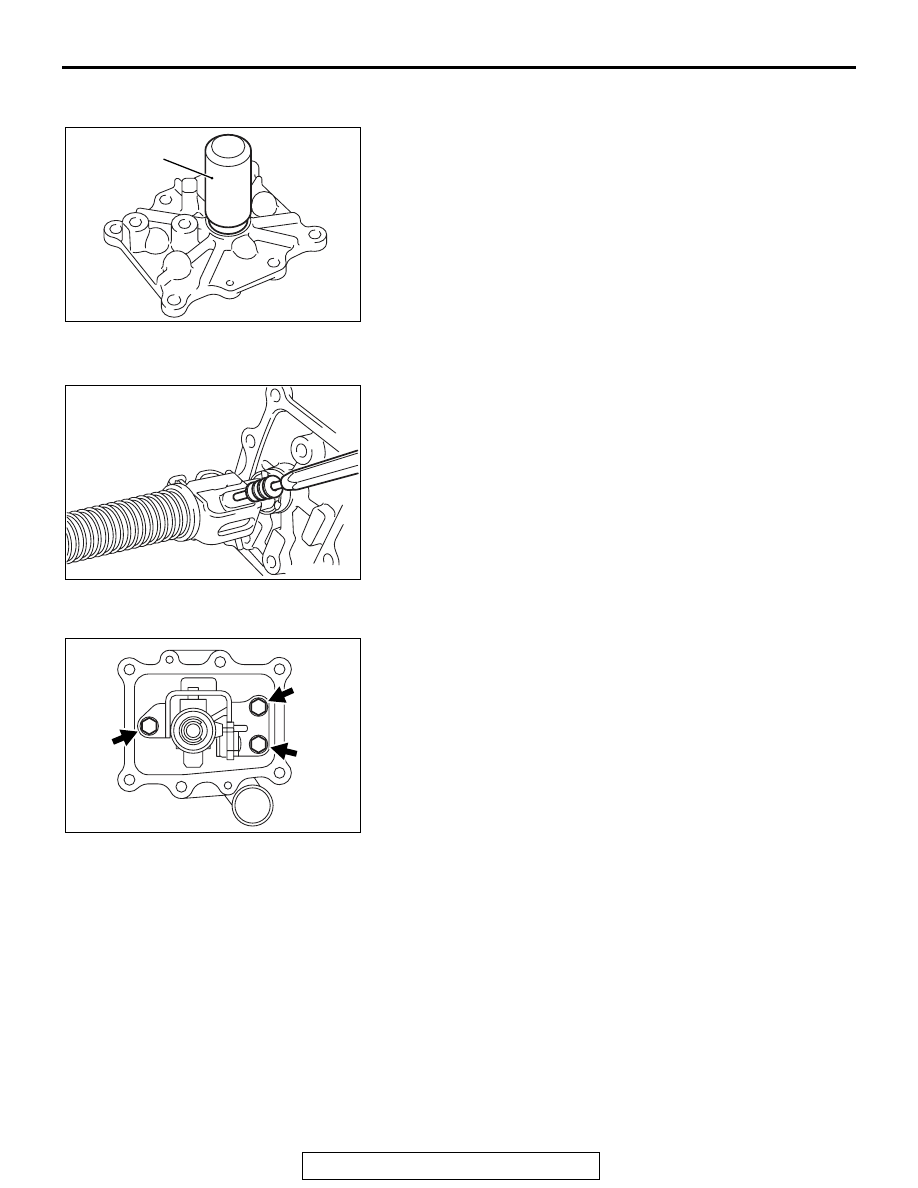

>>B<< OIL SEAL INSTALLATION

AK703312AC

MB991246

1. Using special tool, MB991246, install the oil seal.
2. Apply specified transmission oil to the oil seal lip area.

Specified transaxle oil:
Mitsubishi Genuine DiaQueen New Multi Gear oil SAE
75W-80 (GL-3)

.

>>C<< LOCK PIN INSTALLATION

AK703310

Drive the lock pin all the way into place to the end face from the
illustrated direction.

.

>>D<< STOPPER BRACKET INSTALLATION

AK703385AC

1

3

2

Tighten the stopper bracket mounting bolts to the specified
torque in the illustrated order.

SELECT LEVER

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-43

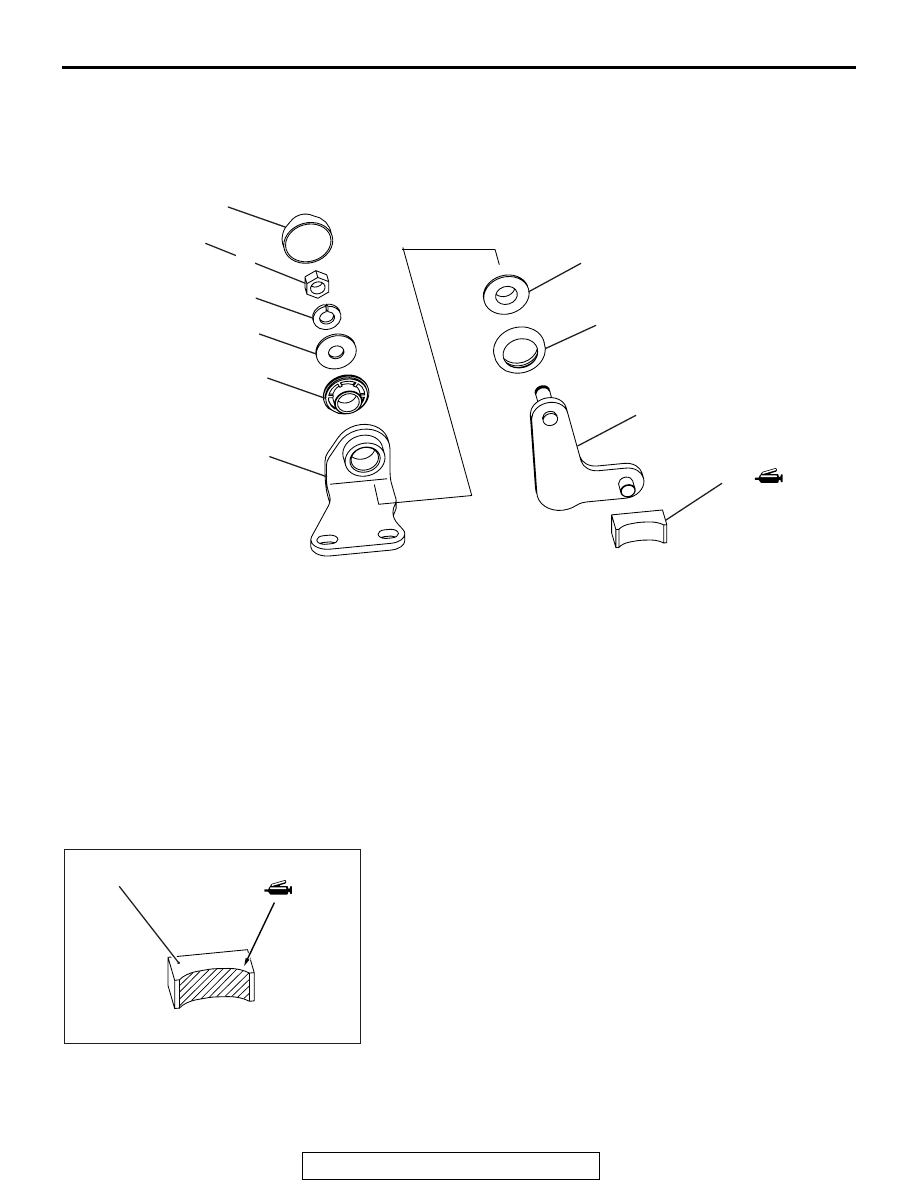

SELECT LEVER

DISASSEMBLY AND ASSEMBLY

M1222012800320

AK703152

1

4

5

6

7

8

9

10

3

2

AC

11 ± 2 N·m
97 ± 17 in-lb

Removal steps

1.

Dust cover

2.

Nut

3.

Spring washer

4.

Washer

5.

Select lever bushing

6.

Select lever bracket

7.

Select lever bushing

8.

Dust cover

9.

Select lever

>>A<<

10. Select lever shoe

ASSEMBLY SERVICE POINTS

.

>>A<< SELECT LEVER SHOE INSTALLATION

AK703386

AC

Select lever shoe

Apply specified grease to the sliding contact surface of the
select lever shoe.

Specified grease:

Mitsubishi Part No. 0101011 or equivalent

Removal steps (Continued)

CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-44

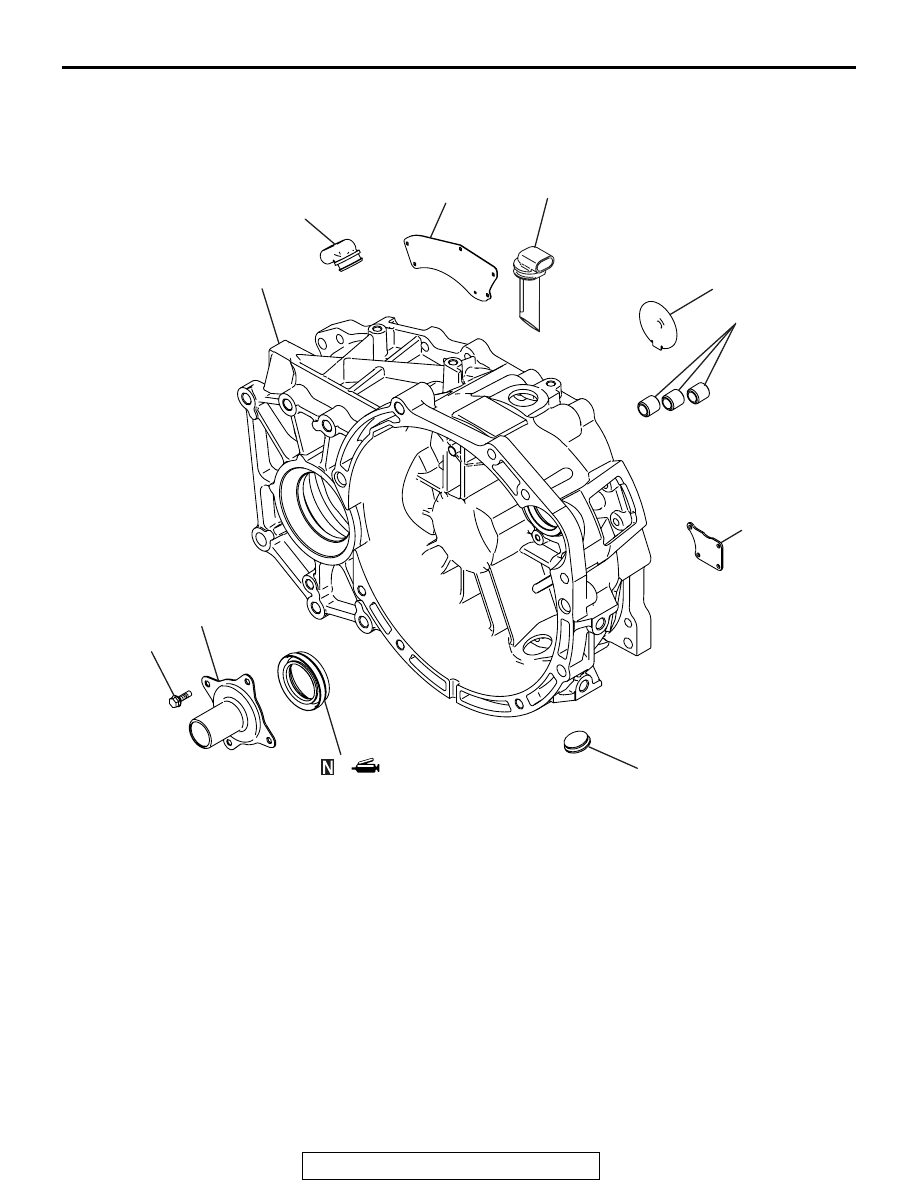

CLUTCH HOUSING

DISASSEMBLY AND ASSEMBLY

M1222003700596

AK702515

1

2

6

5

4

9*

AC

3

7*

8*

10

10 ± 2 N·m
88 ± 17 in-lb

Removal steps

1. Clutch release bearing retainer

>>D<<

2. Oil seal
3. Maintenance hole cover
4. Cover A
5. Cover B

<<A>>

>>C<<

6. Output front oil guide

>>B<<

7. Oil tank cover (CHG)*

>>B<<

8. Oil tank cover (REV)*

>>A<<

9. Slide ball bearing (for shift rail)*
10. Clutch housing

NOTE: *Refer to the assembly service points only
when the clutch housing is replaced.

Required Special Tools:

• MB991946: Ply bar

• MB990883: Rear suspension bushing arbor

• MD999547: Oil seal installer

• MB992271: Oil seal installer

• MB992075: Hamdle

Removal steps (Continued)
