TRANSAXLE ASSEMBLY

TSB Revision

MANUAL TRANSAXLE

22A-129

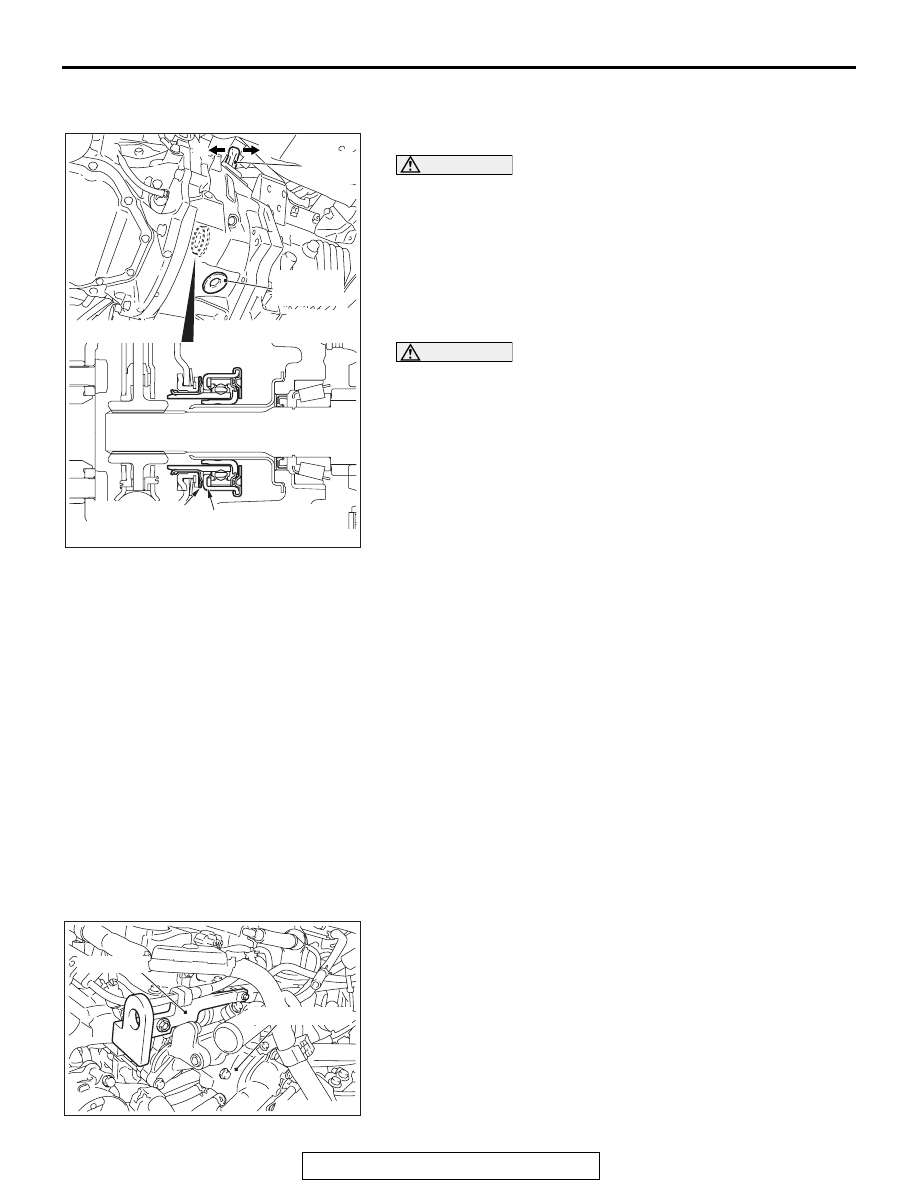

<<D>> CLUTCH RELEASE BEARING
DISCONNECTION

AC707417

AC707946AC

A

B

Wedge collar

Release bearing

Service
hole cover

Release
fork

1. Remove the service hole cover of the clutch housing part.

CAUTION

• Do not insert the flat-tipped screwdriver before moving

the release fork toward direction A.

• Do not mistakenly insert a flat-tipped screwdriver

between the wedge collar and the wave spring.

2. Move the release fork slightly toward direction A with hand,

and while holding the release fork, insert a flat-tipped
screwdriver between the release bearing and the wedge
collar.

CAUTION

If the flat-tipped screwdriver cannot be turned easily
(release bearing cannot be disengaged), remove the screw
driver, and move the release fork toward direction A for
two or three times. Then, repeat the procedure. If the
screwdriver is turned forcibly, the release bearing may be
damaged.
3. (Disconnect the release bearing from the wedge collar by

twisting the flat-tipped screw driver slightly (twist the handle
90

° ).

NOTE: When the release bearing is disconnected, the
release fork moves to the direction B by the return spring.

.

<<E>> TRANSAXLE ASSEMBLY UPPER PART
MOUNTING BOLT REMOVAL

Only loosen the bolts from the engine and transaxle assembly
(do not remove).

.

<<F>>TRANSAXLE MOUNTING BRACKET
INSTALLATION

1. Place a garage jack against the transaxle case with a piece

of wood in between to support the engine and transaxle
assembly.

2. Operate the garage jack so that the engine and transaxle

assembly weight is not applied to the transaxle mounting
insulator, and remove the transaxle mounting bracket.

.

<<G>> ENGINE ASSEMBLY SUPPORT

AC706007AC

MB992201

Thermostat case

1. Remove the vacuum pipe assembly (refer to GROUP 14

−

Water Hose and Water Pipe

P.14-26

), and install the engine

hanger plate (Special tool: MB992201), then tighten the
bolts to the specified torque.

Tightening torque: 11

± 1 N⋅ m (8 ± 1 ft-lb)

2. <When engine hanger (special tool MB991928) is used>

(1) Assemble the engine hanger (special tool MB991928).

(Set following parts to the base hanger.)

• Slide bracket (HI)

• Foot x 4 (standard) (MB991932)

• Joint x 2 (90) (MB991930)

AC704730AC

TRANSAXLE ASSEMBLY

TSB Revision

MANUAL TRANSAXLE

22A-130

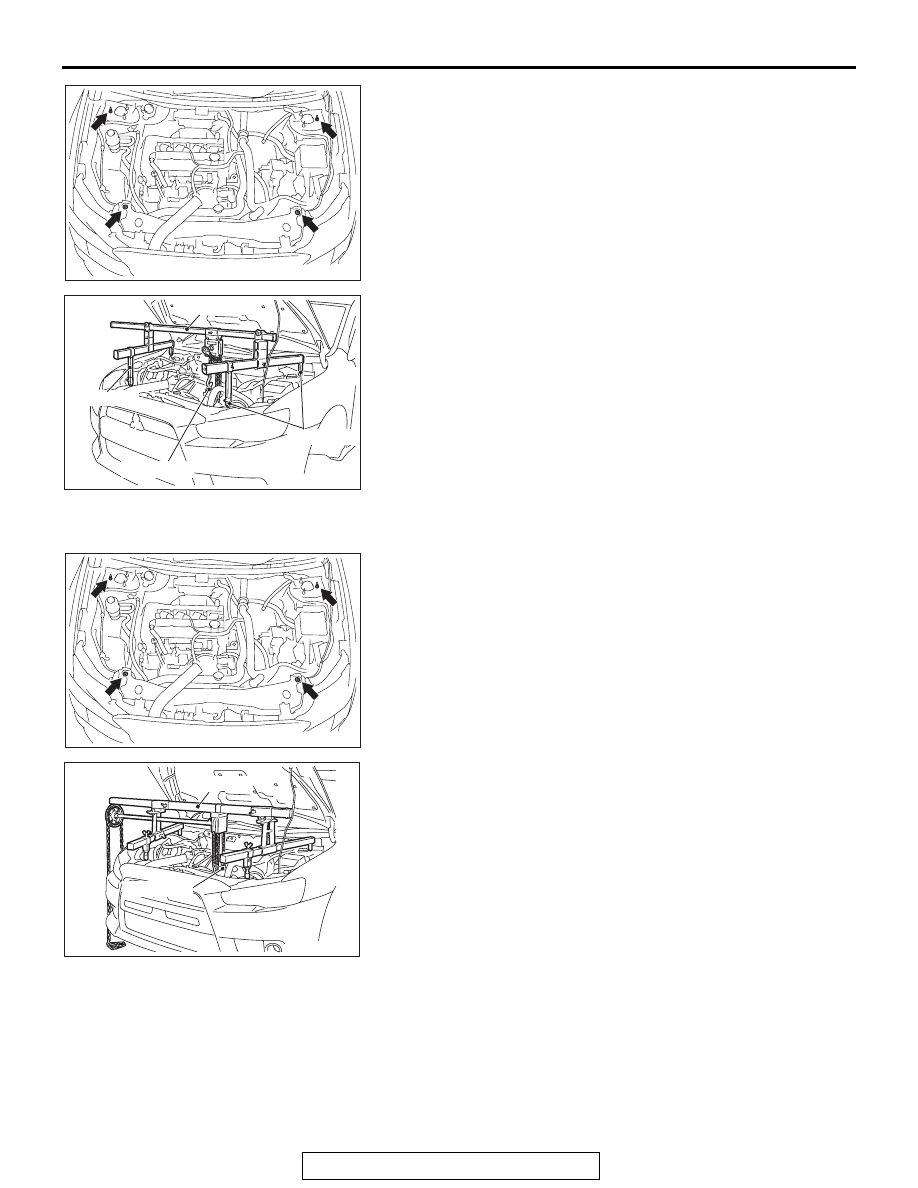

(2) Set the feet of the special tool as shown in the figure.

NOTE: Adjust the engine hanger balance by sliding the
slide bracket (HI).

AC706008AE

MB991928

MB992201

MB991930

MB991932

(3) Set the chain to the engine hanger plate (Special tool:

MB992201) to support the engine and transaxle
assembly. Remove the garage jack, and then remove the
transaxle assembly upper part coupling bolts that have
been loosened previously.

3. <Engine mechanical hanger (special tool MB991895) is

used>

AC704730AC

(1) Set the feet of the engine mechanical hanger (special tool

MB991895) as shown in the figure.
NOTE: Slide the front foot of the engine mechanical
hanger (Special tool: MB991895) to balance the engine
hanger.

AC706009 AD

MB991895

MB992201

(2) Set the chain to the engine hanger plate (Special tool:

MB992201) to support the engine and transaxle
assembly. Remove the garage jack, and then remove the
transaxle assembly upper part coupling bolts that have
been loosened previously.

TRANSAXLE ASSEMBLY

TSB Revision

MANUAL TRANSAXLE

22A-131

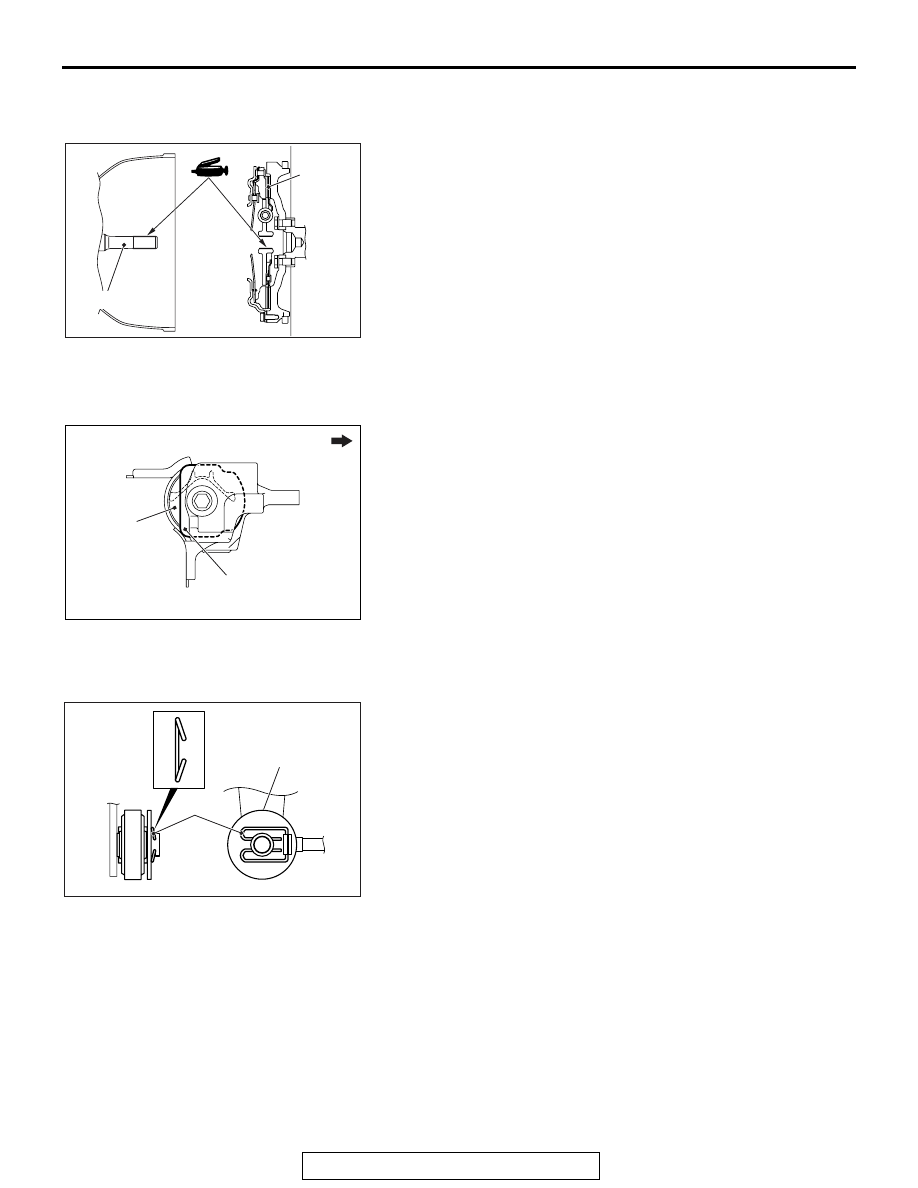

INSTALLATION SERVICE POINTS

.

>>A<< TRANSAXLE ASSEMBLY INSTALLATION

AC707775AC

Input shaft

Clutch
disc

When installing the transaxle assembly, apply the specified
grease to the spline sections of clutch disk and input shaft, and
then rub in the grease using a brush.

Grease
Brand name: 0101011 or equivalent

.

>>B<< TRANSAXLE MOUNTING INSULATOR
STOPPER INSTALLATION

AC707819

Transaxle side

Transaxle
mounting
insulator

Transaxle mounting
insulator stopper

AC

Install the transaxle mounting insulator stopper as shown in the
figure.

.

>>C<< SHIFT CABLE /SELECT CABLE
ASSEMBLY/CABLE BRACKET INSTALLATION

AC402309

Clip

AE

Select cable

After assembling the clip to the cable as shown in the figure,
connect the cables to the levers.

AWC-ECU

TSB Revision

MANUAL TRANSAXLE

22A-132

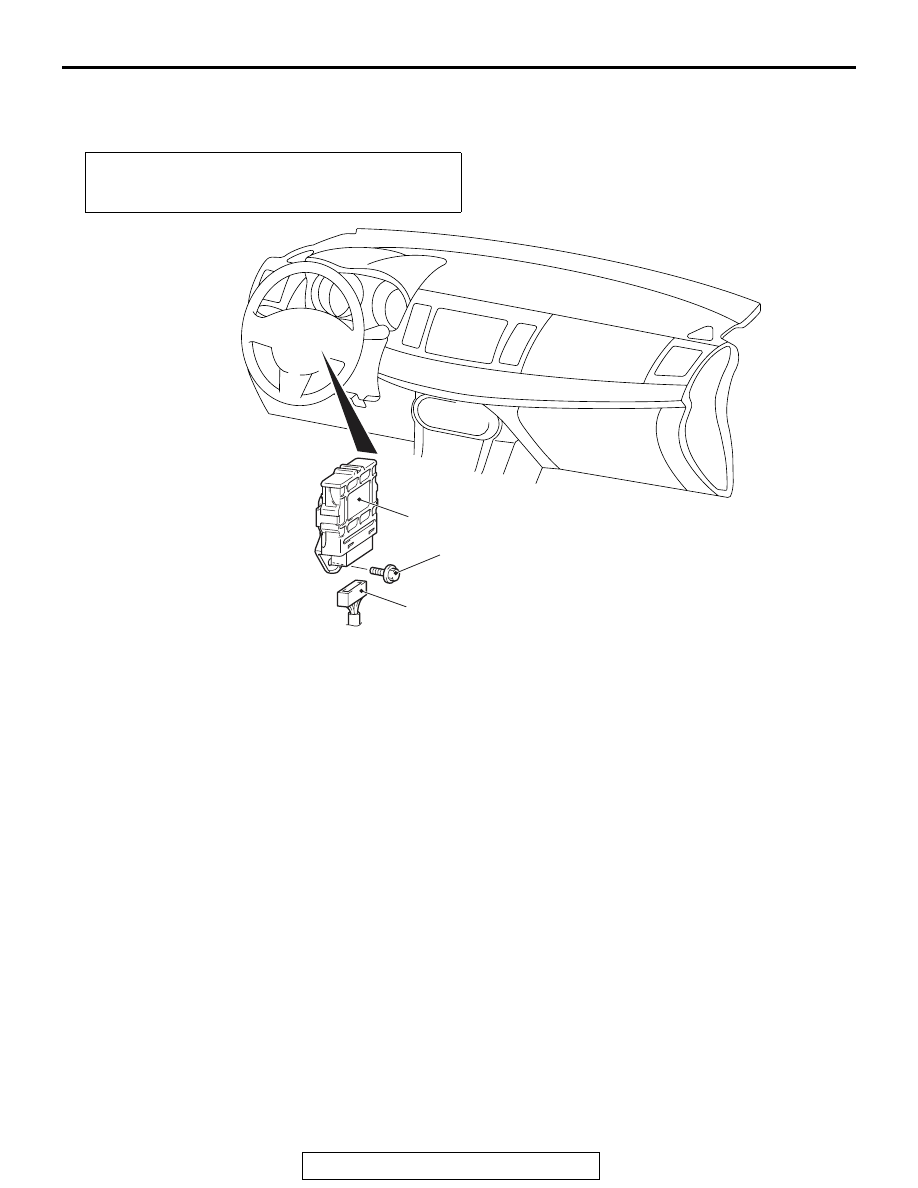

AWC-ECU

REMOVAL AND INSTALLATION

M1221021300030

Pre-removal and Post-installation Operation
• Bottom Cover Removal and Installation (Refer to GROUP

52A

− Glove Box

P.52A-6

.)

AC710454 AB

2

1

8.5 ± 1.5 N·m
76 ± 13 in-lb

Removal steps

1.

AWC-ECU

2.

AWC-ECU connector connection

SENSOR, SWITCH AND RELAY

REMOVAL AND INSTALLATION

M1221012300098

.

STEERING WHEEL SENSOR

Refer to GROUP 35C, Steering wheel sensor

P.35C-279

.

.

G AND YAW RATE SENSOR

Refer to GROUP 35C, G and yaw rate sensor

P.35C-278

.

.

WHEEL SPEED SENSOR

Refer to GROUP 35C, Wheel speed sensor

P.35C-274

.

.

AWC SWITCH

Refer to GROUP 37

− Steering <vehicles without

steering wheel audio remote control switch>

P.37-22



or GROUP 52A

− Floor Console <vehicles with steer-

ing wheel audio remote control switch>

P.52A-9

 .

.
