DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-65

STEP 3. Voltage measurement at F-13 AWC pressure
sensor connector
(1) Disconnect the connector, and measure the voltage

between the terminal No. 1 and the body ground.

(2) Turn the ignition switch to the "ON" position.

OK: Approx. 5 V

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Go to Step 4.

STEP 4. AWC-ECU connector, AWC pressure sensor
connector check: C-46, F-13
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Repair the defective connector. Then go to Step 8.

STEP 5. Check the wiring harness between C-46 AWC-ECU
connector terminal No. 6 and F-13 AWC pressure sensor
connector terminal No. 1.
Check the power supply line for short or open circuit.
Q: Is the check result normal?

YES : Go to Step 6.
NO :  Check D-11 intermediate connector. When no

problem is found, repair the wiring harness. Then go
to Step 8.

STEP 6. Scan tool service data
Item No. 86: Pressure sensor power supply voltage (Refer to
service data reference table

P.22A-107

.)

Q: Is the check result normal?

YES : Go to Step 7.
NO :  Replace the hydraulic unit. (Refer to GROUP 27

−

Hydraulic Unit

P.27-58

.) Then go to Step 7.

STEP 7. Check whether the DTC is reset.
Q: Is DTC No. C1625 set?

YES : Replace the AWC-ECU.(Refer to

P.22A-132

.) Then

go to Step 8.

NO :  Intermittent malfunction. (Refer to GROUP 00

− How

to Cope with Intermittent Malfunction

P.00-15

.)

STEP 8. Check whether the DTC is reset.
Q: Is DTC No. C1625 set?

YES : Return to Step 1.
NO :  This diagnosis is complete.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-66

DTC C2100: Battery Voltage Malfunction (Low Voltage)

ETACS-ECU

IGNITION
SWITCH (IG1)

FUSIBLE
LINK

34

IG1
RELAY

JOINT
CONNECTOR
(3)

JOINT
CONNECTOR
(5)

JOINT
CONNECTOR
(4)

POWER
SUPPLY

S-AWC-ECU

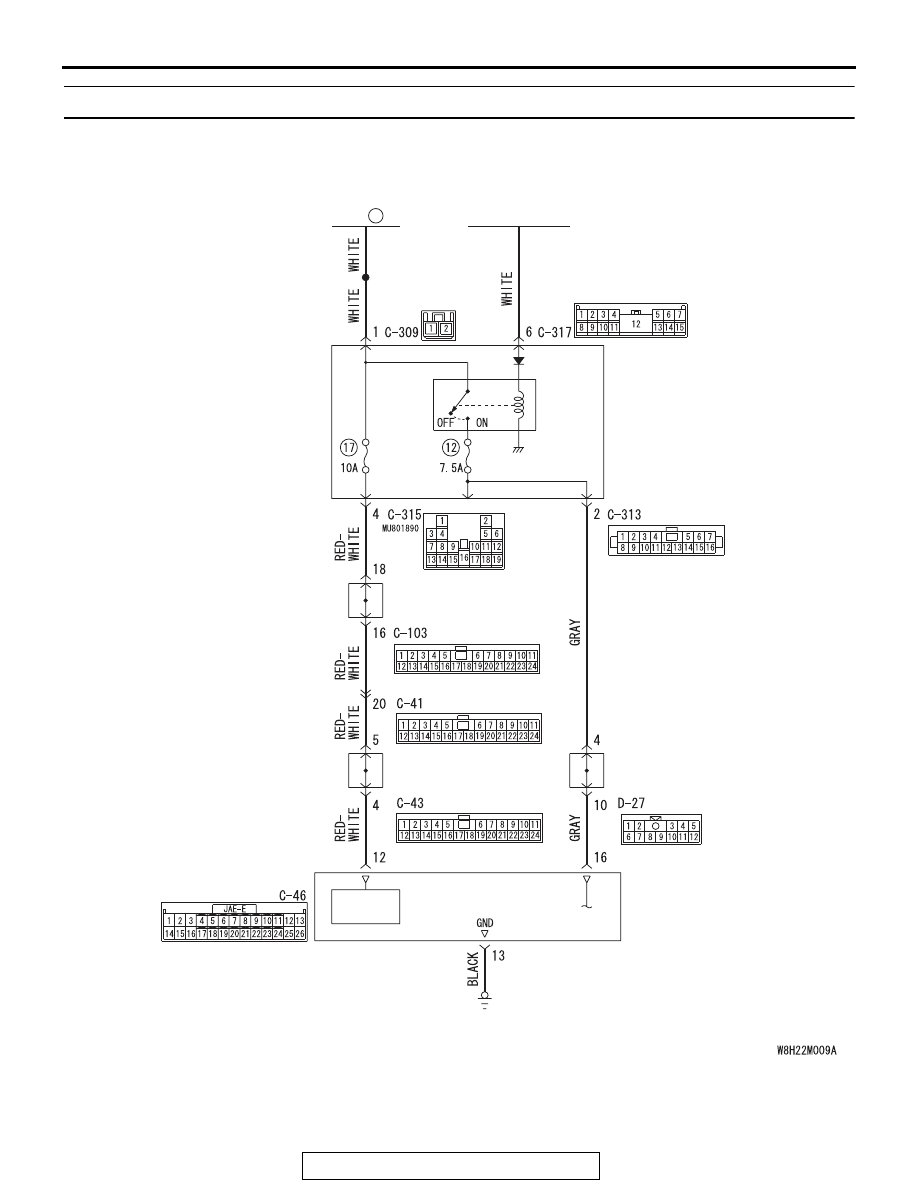

Power supply system circuit

AC708950CJ

C-41

C-46

C-43 (B)

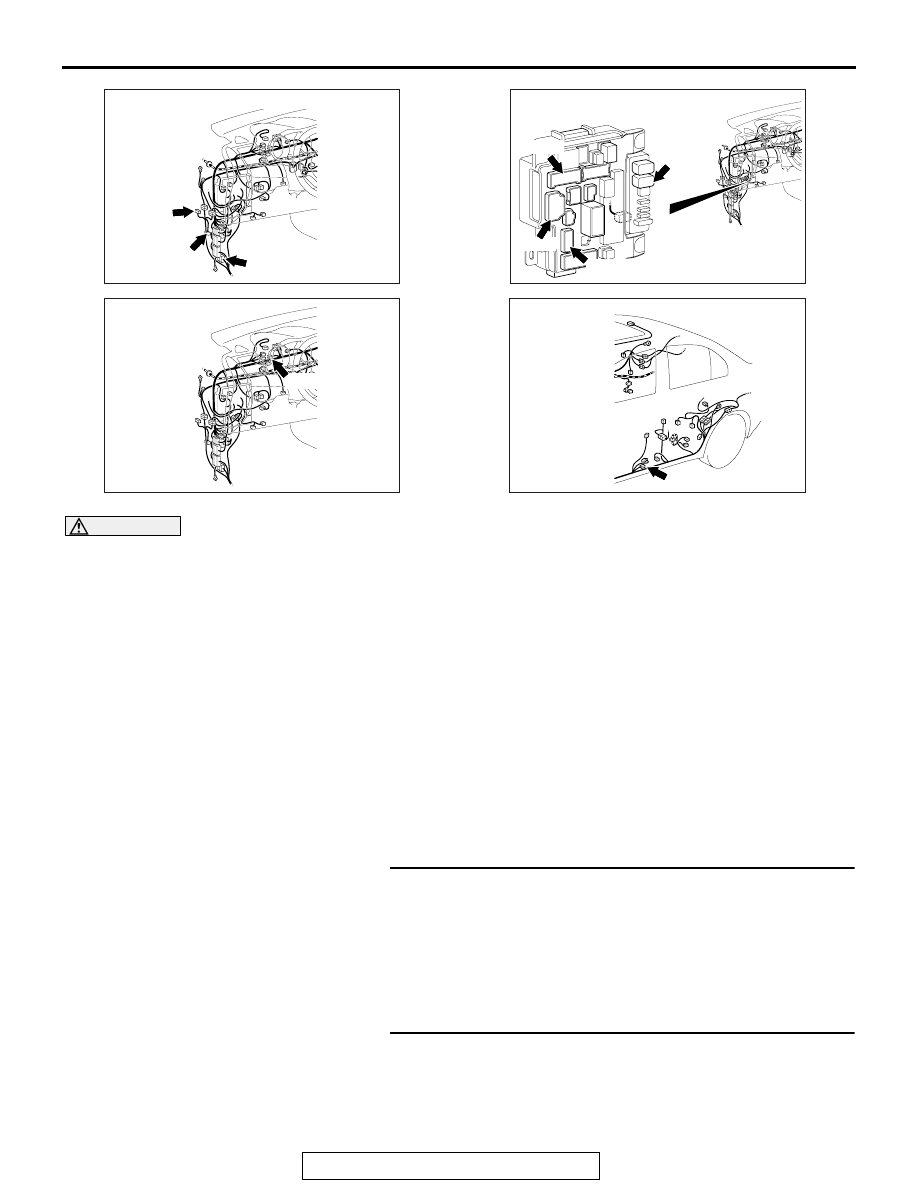

Connectors: C-41, C-43, C-46

AC708950

Connector: C-103

BO

C-103 (B)

AC708972BJ

Connectors: C-309, C-313, C-315, C-317

ETACS-ECU

C-315

C-317

C-309 (B)

C-313 (BR)

AC708955AZ

D-27 (B)

Connector: D-27

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-67

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

OPERATION

AWC-ECU power supply is provided from the battery
via ETACS-ECU.

.

DTC SET CONDITIONS

This diagnostic trouble code is set when the abnor-
mality below is detected:

• When the AWC-ECU power supply voltage and

solenoid valve power supply voltage are 9 V or
less.

• When ASC-ECU low voltage is detected.

.

PROBABLE CAUSES

• Malfunction of ASC-ECU

• Malfunction of the ETACS-ECU

• Defective battery

• Charging system failed

• Damaged harness wires and connectors

• Malfunction of AWC-ECU

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. C2100 set?

YES : Go to Step 3.
NO :  This diagnosis is complete.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-68

STEP 3. Scan tool diagnostic trouble code
Check the ASC diagnostic trouble code. (Refer to GROUP 35C
− Troubleshooting

P.35C-20

.)

Q: Is the DTC set?

YES : Perform the relevant troubleshooting.
NO :  Go to Step 4.

STEP 4. Scan tool diagnostic trouble code
Check the ETACS diagnostic trouble code. (Refer to GROUP
54A

− Troubleshooting

P.54A-582

.)

Q: Is the DTC set?

YES : Perform the relevant troubleshooting.
NO :  Go to Step 5.

STEP 5. Check the battery.
Refer to GROUP 54A

− Battery Test

P.54A-9

.

Q: Is the check result normal?

YES : Go to Step 7.
NO :  Charge or replace the battery. Then go to Step 6.

STEP 6. Check the charging system.
Refer to GROUP 16

− Charging System

P.16-7

.

Q: Is the check result normal?

YES : Go to Step 7.
NO :  Repair or replace the charging system component(s).

STEP 7. Voltage measurement at C-46 AWC-ECU
connector
Measure the voltage between C-46 AWC-ECU connector ter-
minal No.12

− and the body ground.

OK: Battery positive voltage

Q: Is the check result normal?

YES : Go to Step 11.
NO :  Go to Step 8.

STEP 8. AWC-ECU connector, ETACS-ECU connector
check: C-46, C-315
Q: Is the check result normal?

YES : Go to Step 9.
NO :  Repair the defective connector. Then go to Step 14.
