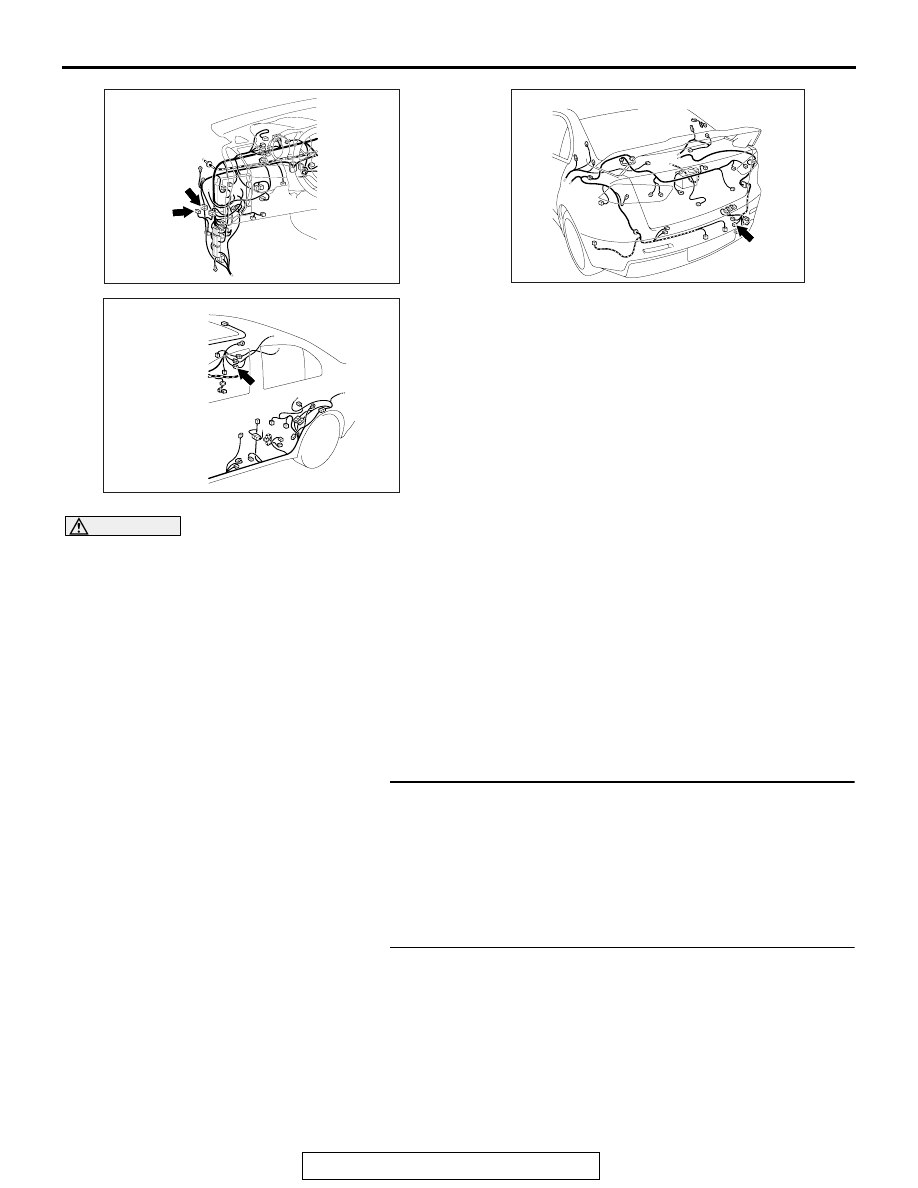

AC708950CL

C-46

C-47

Connectors: C-46, C-47

AC708955

Connector: D-12

AY

AC708970AU

Connector: F-14

F-14 (GR)

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-57

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

OPERATION

AWC-ECU operates the electric pump via the electric
pump relay.

.

DTC SET CONDITIONS

The code is set when the electric pump relay coil
side circuit is open or shorted.

.

PROBABLE CAUSES

• Electric pump relay malfunction

• Damaged harness wires and connectors

• Malfunction of AWC-ECU

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. C161D set?

YES : Go to Step 3.
NO :  This diagnosis is complete.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-58

STEP 3. Scan tool actuator test

OK: Operating sound of the electric pump can be
heard.

Q: Is the check result normal?

YES : Go to Step 8.
NO :  Go to Step 4.

STEP 4. Electric pump relay single unit check
Check the electric pump relay.(Refer to

P.22A-133

.)

Q: Is the check result normal?

YES : Go to Step 5.
NO :  Replace the electric pump relay. (Refer to

P.22A-132

.) Then go to Step 9.

STEP 5. Electric pump relay connector, AWC-ECU
connector check: A-26X, C-46
Q: Is the check result normal?

YES : Go to Step 6.
NO :  Repair the defective connector. Then go to Step 9.

STEP 6. Check the wiring harness between A-26X electric
pump relay connector terminal No. 3 and C-46 AWC-ECU
connector terminal No. 20.
Check the power supply line for short or open circuit.
Q: Is the check result normal?

YES : Go to Step 7.
NO :  Check C-47 intermediate connector. When no

problem is found, repair the wiring harness. Then go
to Step 9.

STEP 7. Check the wiring harness between A-26X electric
pump relay connector terminal No. 1 and body ground.
Check the ground line for open circuit.
Q: Is the check result normal?

YES : Go to Step 8.
NO :  Repair the wiring harness. Then go to Step 9.

STEP 8. Check whether the DTC is reset.
Q: Is DTC No. C161D set?

YES : Replace the AWC-ECU.(Refer to

P.22A-132

.) Then

go to Step 9.

NO :  Intermittent malfunction. (Refer to GROUP 00

− How

to Cope with Intermittent Malfunction

P.00-15

.)

STEP 9. Check whether the DTC is reset.
Q: Is DTC No. C161D set?

YES : Return to Step 1.
NO :  This diagnosis is complete.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-59

DTC C161E: Electric Pump Relay Circuit System (Stuck)

.

AWC PUMP RELAY SYSTEM CIRCUIT

Refer to

P.22A-56

.

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

OPERATION

AWC-ECU controls the electric pump by the informa-
tion from AWC pressure sensor and electric pump
relay.

.

DTC SET CONDITIONS

The code is set when the electric pump operation
signal is output from AWC-ECU, and when the AWC
pressure sensor signal is not reached the specified
pressure after the specified time has elapsed.

.

PROBABLE CAUSES

• Fluid malfunction (low fluid level)

• AWC pressure sensor malfunction

• Electric pump relay malfunction

• Hydraulic unit malfunction

• Electric pump malfunction

• Damaged harness wires and connectors

• Malfunction of AWC-ECU

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-14

.) After repairing the CAN

bus line, go to Step 2.

STEP 2. Check whether the DTC is reset.
Q: Is DTC No. C161E set?

YES : Go to Step 3.
NO :  This diagnosis is complete.

STEP 3. Fluid check
Check that the fluid level is adequate. (Refer to GROUP 27

−

On-vehicle Service

P.27-29

.)

Q: Is the check result normal?

YES : Go to Step 4.
NO :  Add the fluid. Then go to Step 14.

STEP 4. Scan tool diagnostic trouble code
Check if the AWC diagnostic trouble code No. C1611, C1612,
C1625, or C161D is set.(Refer to

P.22A-11

.)

Q: Is the DTC set?

YES : Perform the relevant troubleshooting.
NO :  Go to Step 5.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

MANUAL TRANSAXLE

22A-60

STEP 5. Scan tool actuator test

OK: Operating sound of the electric pump can be
heard.

Q: Is the check result normal?

YES : Go to Step 13.
NO :  Go to Step 6.

STEP 6. Electric pump relay single unit check
Check the electric pump relay.(Refer to

P.22A-133

.)

Q: Is the check result normal?

YES : Go to Step 7.
NO :  Replace the electric pump relay. (Refer to

P.22A-132

.) Then go to Step 14.

STEP 7. Electric pump relay connector check: A-26X
Q: Is the check result normal?

YES : Go to Step 8.
NO :  Repair the defective connector. Then go to Step 14.

STEP 8. Check the wiring harness between A-26X electric
pump relay connector terminal No. 2 and fusible link (35).
Check the power supply line for short or open circuit.
Q: Is the check result normal?

YES : Go to Step 9.
NO :  Repair the wiring harness. Then go to Step 14.

STEP 9. Electric pump connector check: F-14
Q: Is the check result normal?

YES : Go to Step 10.
NO :  Repair the defective connector. Then go to Step 14.

STEP 10. Check the wiring harness between A-26X electric
pump relay connector terminal No. 4 and F-14 electric
pump connector terminal No. 2.
Check the power supply line for short or open circuit.
Q: Is the check result normal?

YES : Go to Step 11.
NO :  Check C-21 and D-12 intermediate connectors. When

no problem is found, repair the wiring harness. Then
go to Step 14.

STEP 11. Check the wiring harness between F-14 electric
pump connector terminal No. 1 and body ground.
Check the ground line for open circuit.
Q: Is the check result normal?

YES : Go to Step 12.
NO :  Repair the wiring harness. Then go to Step 14.
