TOWING AND HOISTING

TSB Revision

GENERAL

00-51

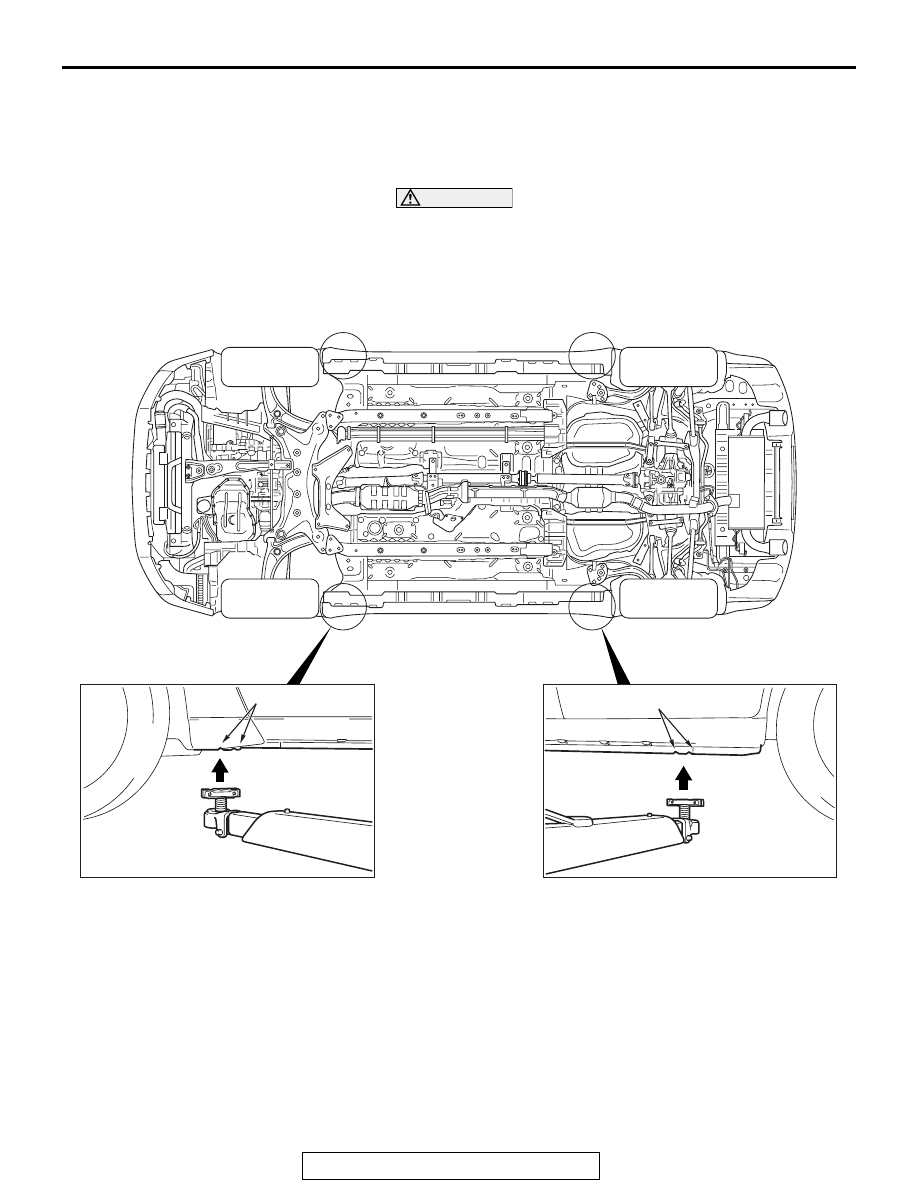

POST TYPE

Special care should be taken when raising the vehicle on a
frame contact type hoist. The hoist must be equipped with the
proper adapters in order to support the vehicle at the proper
locations.

CAUTION

When service procedures require removing rear suspen-
sion, fuel tank and spare tire, place additional weight on
the rear end of vehicle, or anchor vehicle to hoist to pre-
vent tipping when the location of the center of gravity
changes.

AC709514

Notch

Notch

AB

GENERAL DATA AND SPECIFICATIONS

TSB Revision

GENERAL

00-52

GENERAL DATA AND SPECIFICATIONS

M1001000902565

.

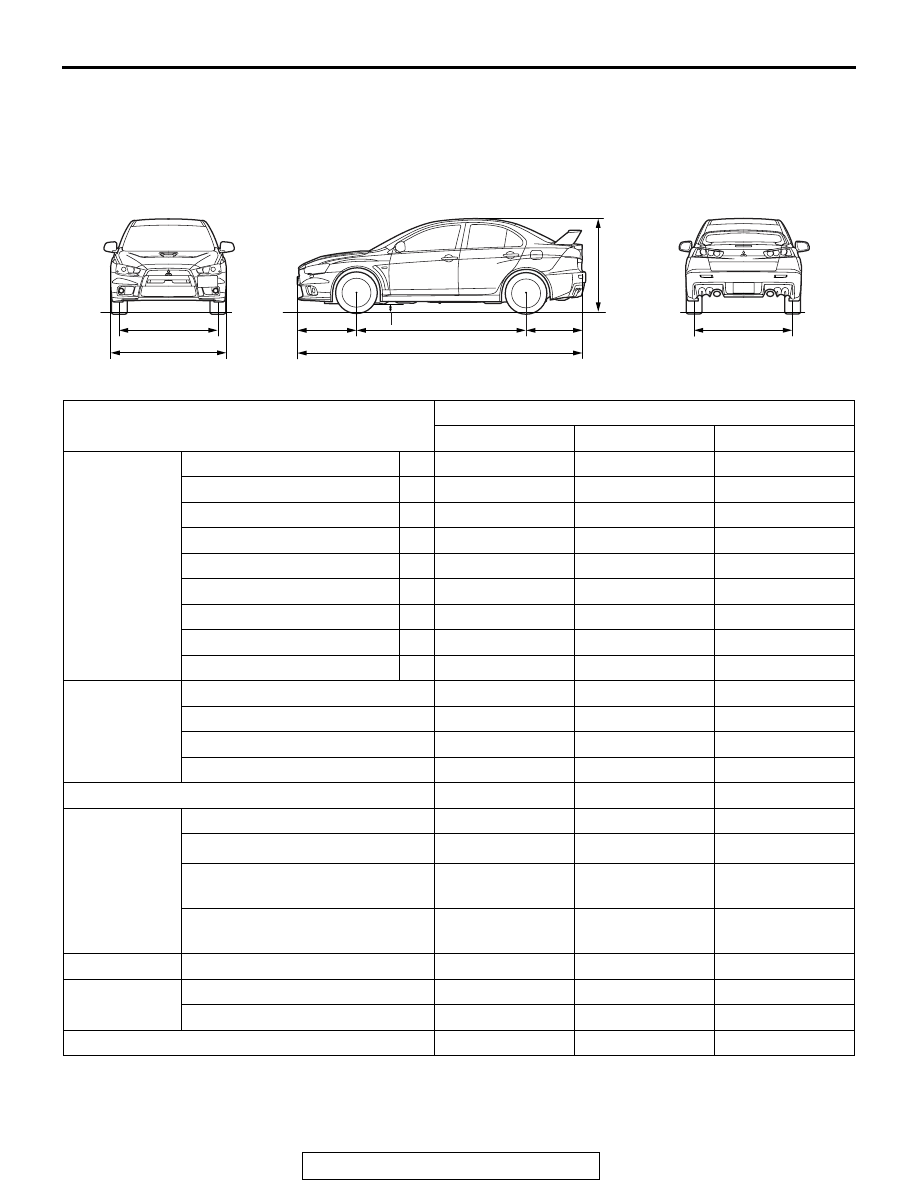

VEHICLES FOR USA

.

AC710509 AC

9

3

1

2

5

4

6

7

8

Item

CZ4AS
NGFZL2M

MGFZL2M

MPFZL2M

Vehicle
dimension mm
(in)

Overall width

1

1,810 (71.3)

1,810 (71.3)

1,810 (71.3)

Tread-front

2

1,545 (60.8)

1,545 (60.8)

1,545 (60.8)

Overall length

3

4,495 (177.0)

4,495 (177.0)

4,495 (177.0)

Overhang-front

4

910 (35.8)

910 (35.8)

910 (35.8)

Wheelbase

5

2,650 (104.3)

2,650 (104.3)

2,650 (104.3)

Overhang-rear

6

935 (36.8)

935 (36.8)

935 (36.8)

Ground clearance

7

135 (5.3)

135 (5.3)

135 (5.3)

Overall height (unladen)

8

1,480 (58.3)

1,480 (58.3)

1,480 (58.3)

Tread-rear

9

1,545 (60.8)

1,545 (60.8)

1,545 (60.8)

Vehicle weight
kg (lb)

Curb weight

1,595 (3,517)

1,620 (3,572)

1,630 (3,594)

Gross vehicle weight rating

2,060 (4,542)

2,060 (4,542)

2,060 (4,542)

Gross axle weight rating-front

1,080 (2,381)

1,080 (2,381)

1,080 (2,381)

Gross axle weight rating-rear

1,050 (2,315)

1,050 (2,315)

1,050 (2,315)

Seating capacity

5

5

5

Engine

Model No.

4B11

4B11

4B11

Piston displacement cm

3

 (cu in)

1,998 (121.9)

1,998 (121.9)

1,998 (121.9)

Maximum output kW/r/min
(HP/r/min)

217/6,500
(291/6,500)

217/6,500
(291/6,500)

217/6,500
(291/6,500)

Maximum torque N

⋅ m/r/min

(ft-lb/r/min)

407/4,000
(300/4,000)

407/4,000
(300/4,000)

407/4,000
(300/4,000)

Fuel system

Fuel supply system

MFI

MFI

MFI

Transaxle

Model No.

W5M6A

W6DGA

W6DGA

Type

5M/T

TC-SST

TC-SST

Turning radius m (ft)

5.0 (16.4)

5.0 (16.4)

5.0 (16.4)

GENERAL DATA AND SPECIFICATIONS

TSB Revision

GENERAL

00-53

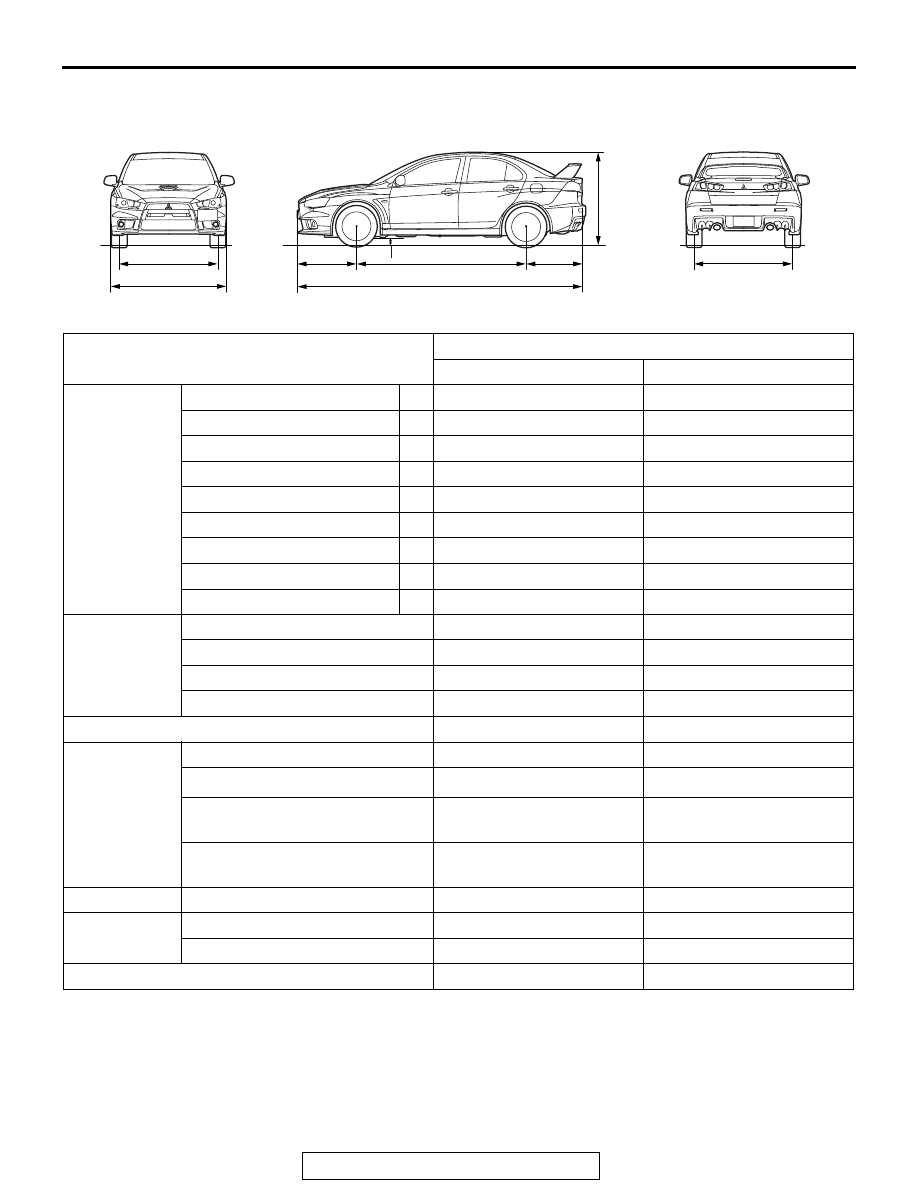

VEHICLES FOR CANADA

AC710509 AC

9

3

1

2

5

4

6

7

8

Item

CY4AS
NGFL3M

MPFL3M

Vehicle
dimension mm
(in)

Overall width

1

1,810 (71.3)

1,810 (71.3)

Tread-front

2

1,545 (60.8)

1,545 (60.8)

Overall length

3

4,495 (177.0)

4,495 (177.0)

Overhang-front

4

910 (35.8)

910 (35.8)

Wheelbase

5

2,650 (104.3)

2,650 (104.3)

Overhang-rear

6

935 (36.8)

935 (36.8)

Ground clearance

7

135 (5.3)

135 (5.3)

Overall height (unladen)

8

1,480 (58.3)

1,480 (58.3)

Tread-rear

9

1,545 (60.8)

1,545 (60.8)

Vehicle weight
kg (lb)

Curb weight

1,600 (3,528)

1,635 (3,606)

Gross vehicle weight rating

2,060 (4,542)

2,060 (4,542)

Gross axle weight rating-front

1,080 (2,381)

1,080 (2,381)

Gross axle weight rating-rear

1,050 (2,315)

1,050 (2,315)

Seating capacity

5

5

Engine

Model No.

4B11

4B11

Piston displacement cm

3

 (cu in)

1,998 (121.9)

1,998 (121.9)

Maximum output kW/r/min
(HP/r/min)

217/6,500 (291/6,500)

217/6,500 (291/6,500)

Maximum torque N

⋅ m/r/min

(ft-lb/r/min)

407/4,000 (300/4,000)

407/4,000 (300/4,000)

Fuel system

Fuel supply system

MFI

MFI

Transaxle

Model No.

W5M6A

W6DGA

Type

5M/T

TC-SST

Turning radius m (ft)

5.0 (16.4)

5.0 (16.4)

TIGHTENING TORQUE

TSB Revision

GENERAL

00-54

TIGHTENING TORQUE

M1001001100964

Each torque value in the table is a standard value for
tightening under the following conditions.

1. Bolts, nuts and washers are all made of steel and

plated with zinc.

2. The threads and bearing surface of bolts and

nuts are all in dry condition.

The values in the table are not applicable:

1. If toothed washers are inserted.
2. If plastic parts are fastened.
3. If bolts are tightened to plastic or die-cast

inserted nuts.

4. If self-tapping screws or self-locking nuts are

used.

STANDARD BOLT AND NUT TIGHTENING TORQUE

FLANGE BOLT AND NUT TIGHTENING TORQUE

Thread size

Standard tightening torque

Nominal bolt
diameter (mm)

Pitch
(mm)

Head mark "4"

Head mark "7"

Head mark "8"

M5

0.8

2.5

± 0.5 N⋅ m (23 ± 4

in-lb)

5.0

± 1.0 N⋅ m (44 ± 9

in-lb)

6.0

± 1.0 N⋅ m (53 ± 9

in-lb)

M6

1.0

5.0

± 1.0 N⋅ m (44 ± 9

in-lb)

8.5

± 1.5 N⋅ m (76 ± 13

in-lb)

10

± 2 N⋅ m (89 ± 17

in-lb)

M8

1.25

11

± 2 N⋅ m (98 ± 17

in-lb)

20

± 4 N⋅ m (15 ± 3 ft-lb) 24 ± 4 N⋅ m (18 ± 3 ft-lb)

M10

1.25

23

± 4 N⋅ m (17 ± 3 ft-lb) 42 ± 8  N⋅ m (31 ± 6 ft-lb) 53 ± 7 N⋅ m (39 ± 5 ft-lb)

M12

1.25

42

± 8 N⋅ m (31 ± 6 ft-lb) 80 ± 10 N⋅ m (59 ± 7

ft-lb)

93

± 12 N⋅ m (68 ± 9

ft-lb)

M14

1.5

70

± 10 N⋅ m (52 ± 7

ft-lb)

130

± 20 N⋅ m (96 ± 15

ft-lb)

150

± 20 N⋅ m (111 ± 14

ft-lb)

M16

1.5

105

± 15 N⋅ m (78 ± 11

ft-lb)

195

± 25 N⋅ m (144 ± 18

ft-lb)

230

± 30 N⋅ m (170 ± 22

ft-lb)

M18

1.5

150

± 20 N⋅ m (111 ± 14

ft-lb)

290

± 40 N⋅ m (214 ± 29

ft-lb)

335

± 45 N⋅ m (247 ± 33

ft-lb)

M20

1.5

210

± 30 N⋅ m (155 ± 22

ft-lb)

400

± 60 N⋅ m (295 ± 44

ft-lb)

465

± 65 N⋅ m (343 ± 48

ft-lb)

M22

1.5

290

± 40 N⋅ m (214 ± 29

ft-lb)

540

± 80 N⋅ m (398 ± 59

ft-lb)

630

± 90 N⋅ m (465 ± 66

ft-lb)

M24

1.5

375

± 55 N⋅ m (277 ± 40

ft-lb)

705

± 105 N⋅ m (520 ±

77 ft-lb)

820

± 120 N⋅ m (605 ±

88 ft-lb)

Thread size

Standard tightening torque

Nominal bolt
diameter (mm)

Pitch
(mm)

Head mark "4"

Head mark "7"

Head mark "8"

M6

1.0

5.0

± 1.0 N⋅ m (44 ± 9

in-lb)

10

± 2 N⋅ m (89 ± 17

in-lb)

12

± 2 N⋅ m (107 ± 17

in-lb)

M8

1.25

13

± 2 N⋅ m (111 ± 22

in-lb)

24

± 4 N⋅ m (18 ± 3 ft-lb) 28 ± 5 N⋅ m (20 ± 4 ft-lb)

M10

1.25

26

± 5 N⋅ m (19 ± 4 ft-lb) 50 ± 5 N⋅ m (37 ± 4 ft-lb) 58 ± 7 N⋅ m (43 ± 5 ft-lb)

M10

1.5

25

± 4 N⋅ m (18 ± 3 ft-lb) 46 ± 8 N⋅ m (34 ± 6 ft-lb) 55 ± 5 N⋅ m (41 ± 3 ft-lb)

M12

1.25

47

± 9 N⋅ m (35 ± 6 ft-lb) 93 ± 12 N⋅ m (68 ± 9

ft-lb)

105

± 15 N⋅ m (78 ± 11

ft-lb)
