COOLANT

TSB Revision

ENGINE COOLING

14-3

COOLANT

M1141000401115

SEALANT

M1141000501112

ENGINE COOLING DIAGNOSIS

INTRODUCTION

M1141005300422

The system cools the engine so that it does not over-
heat and maintains the engine at an optimum tem-
perature. The system components are the radiator,
water pump, thermostat, radiator fan and condenser
fan assembly. Possible faults include low coolant,
contamination, belt loosening and component dam-
age.

TROUBLESHOOTING STRATEGY

M1141005200414

Use these steps to plan your diagnostic strategy.
If you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find an
engine cooling faults.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify that the malfunction is eliminated.

SYMPTOM CHART

M1141005600650

Item

Quantity dm

3

 (qt)

Long life antifreeze coolant or an equivalent

7.5 (7.9)

Item

Specified sealant

Engine coolant temperature sensor

Three bond 1324N, LOCTITE 262 or equivalent

Symptom

Inspection procedure Reference page

Coolant leak

1

P.14-4

Engine overheating

2

P.14-5

Radiator fan and condenser fan do not operate

3

P.14-6

ENGINE COOLING DIAGNOSIS

TSB Revision

ENGINE COOLING

14-4

SYMPTOM PROCEDURES

Inspection Procedure 1: Coolant Leak

DIAGNOSIS

STEP 1. Check for coolant leaks.

WARNING

When pressure testing the cooling system, slowly
release cooling system pressure to avoid getting
burned by hot coolant.

CAUTION

• Be sure to completely clean away any moisture from

the places checked.

• When the tester is removed, be careful not to spill any

coolant.

• When installing and removing the tester and when test-

ing, be careful not to deform the filler neck of the radia-
tor.

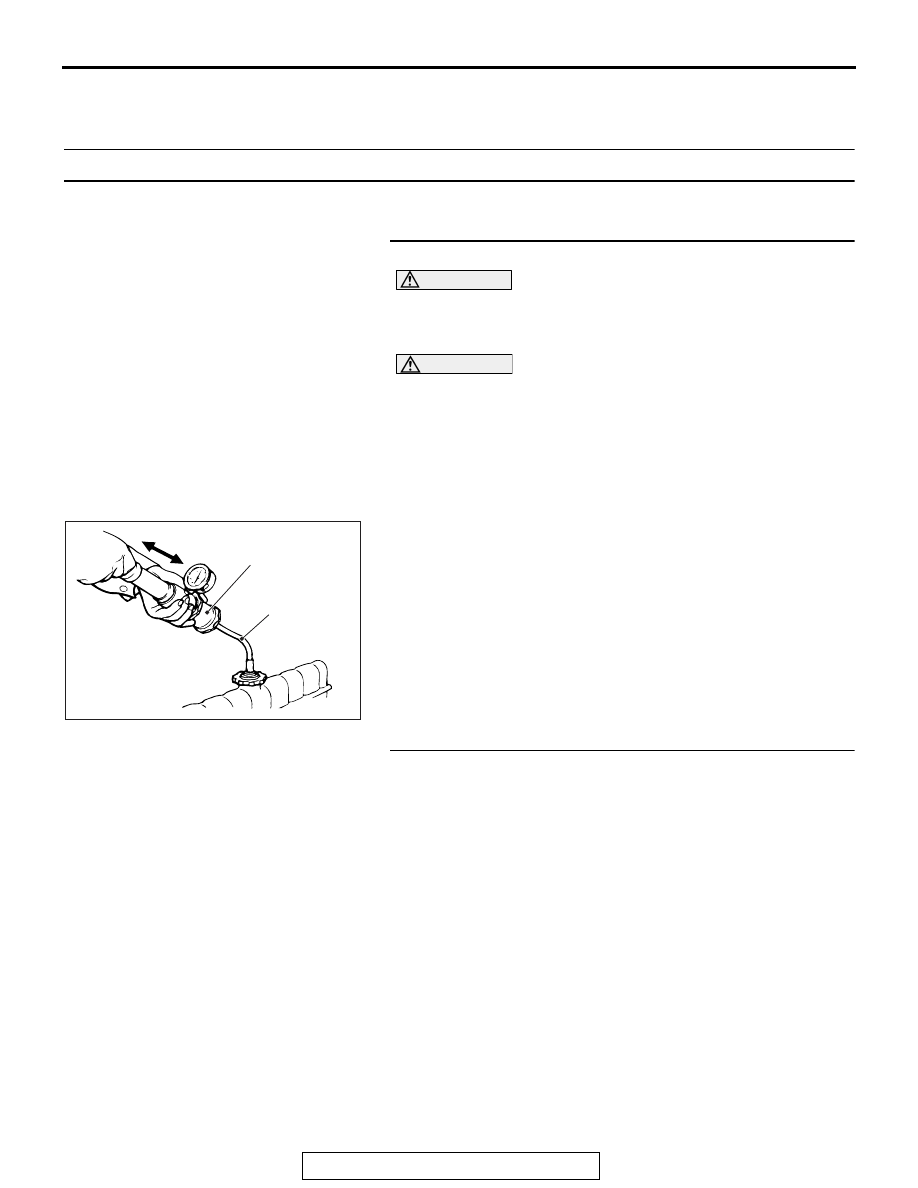

Check that the coolant level is up to the filler neck. Install a radi-
ator tester and apply 160 kPa (23 psi) pressure, and then check
for leakage from the radiator hose or connections.
Q: Is leakage present from the radiator hose or

connections?
YES : Repair or replace the appropriate part, then go to

Step 2.

NO :  There is no action to be taken.

STEP 2. Retest the system.
Q: It there still coolant leakage?

YES : Return to Step 1.
NO :  The procedure is complete.

ACX01844AE

Cap adapter

Adapter

ENGINE COOLING DIAGNOSIS

TSB Revision

ENGINE COOLING

14-5

Inspection Procedure 2: Engine Overheating

DIAGNOSIS

STEP 1. Remove the radiator cap and check for coolant
contamination.
Q: Is the coolant contaminated with rust and oil?

YES : Replace the coolant (Refer to

P.14-17

). Then go to

Step 5.

NO :  There is no action to be taken. Go to Step 2.

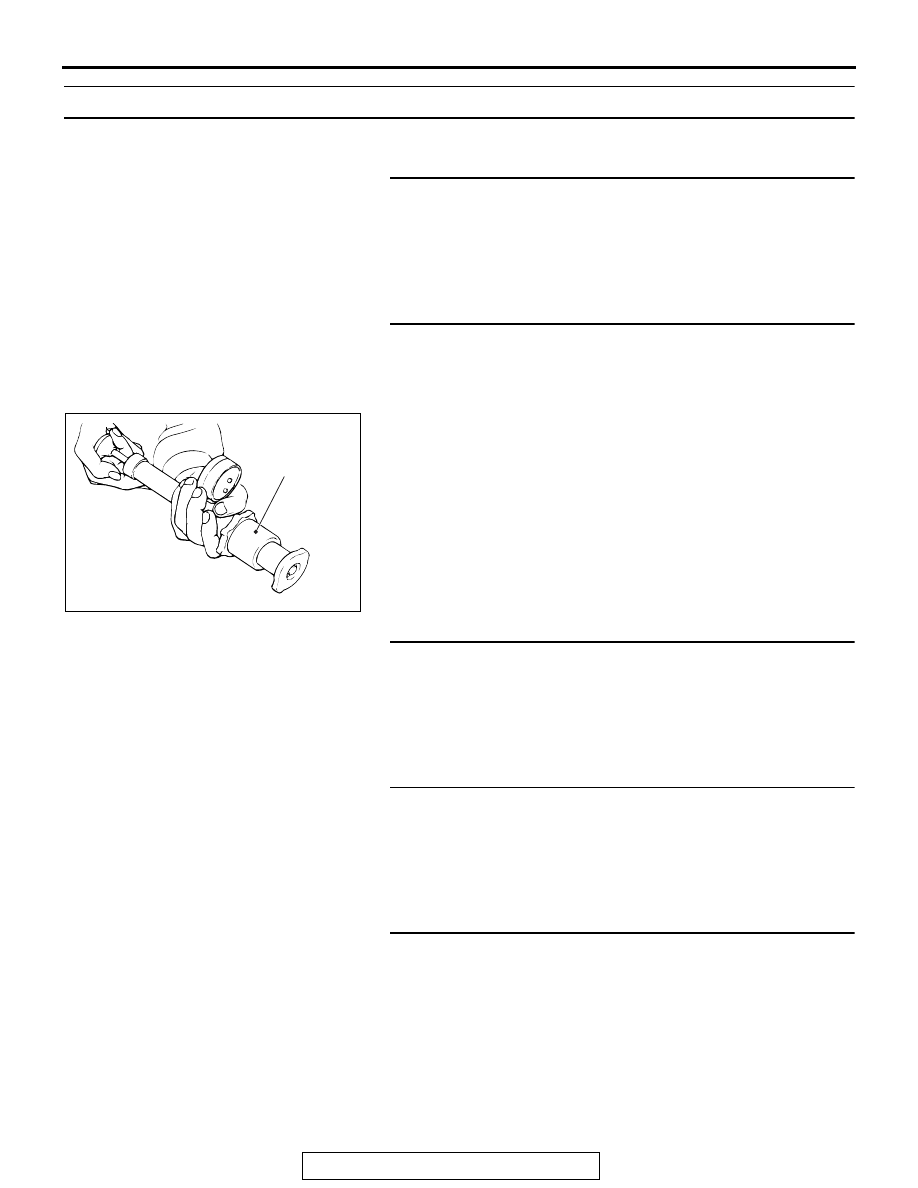

STEP 2. Check the radiator cap valve opening pressure.
NOTE:  Be sure that the cap is clean before testing. Rust or
other foreign material on the cap seal will cause an improper
reading.
(1) Use a cap adapter to attach the cap to the tester.
(2) Increase the pressure until the gauge indicator stops

moving.

Minimum limit: 83 kPa (12 psi)
Standard value: 93

− 123 kPa (14 − 18 psi)

Q: Does the reading remain at or above the minimum limit?

YES : Go to Step 3.
NO :  Replace the radiator cap. Then go to Step 5.

STEP 3. Check thermostat operation.
Refer to

P.14-24

.

Q: Does the thermostat operate correctly?

YES : Go to Step 4.
NO :  Replace the thermostat (Refer to

P.14-22

). Then go to

Step 5.

STEP 4. Check the drive belt for slippage or damage.
Refer to GROUP 00, Maintenance Service

− Drive Belts (Check

Condition)

P.00-66

.

Q: Is the drive belt loose or damaged?

YES : Adjust or replace the drive belt. Then go to Step 5.
NO :  There is no action to be taken.

STEP 5. Retest the system.
Check the engine coolant temperature.
Q: Is the engine coolant temperature abnormally high?

YES : Return to Step 2.
NO :  The procedure is complete.

ACX01845AE

Cap adapter

ENGINE COOLING DIAGNOSIS

TSB Revision

ENGINE COOLING

14-6

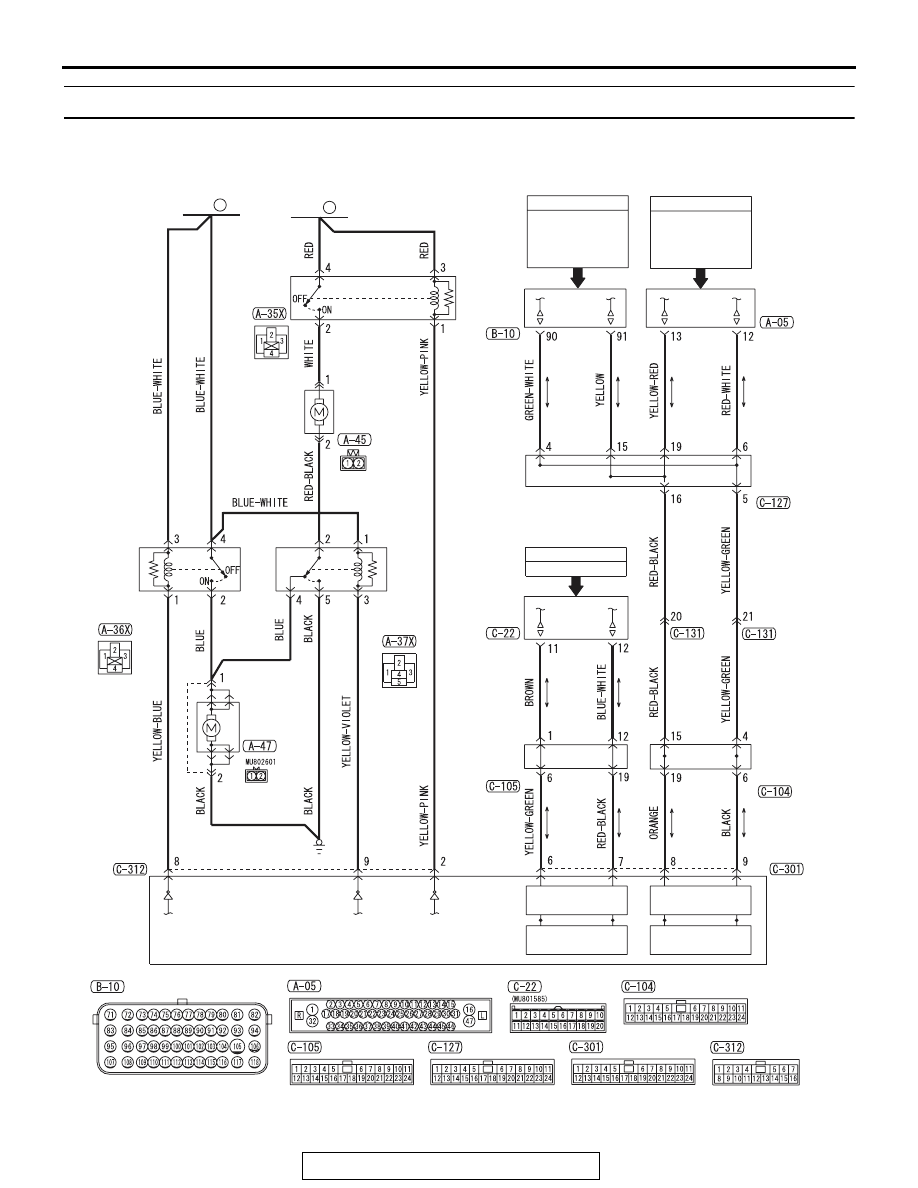

Inspection Procedure 3: Radiator Fan and Condenser Fan do not Operate

AC708832

FUSIBLE
LINK

29

FUSIBLE
LINK

28

RADIATOR
FAN RELAY

FAN
CONTROL
RELAY

CONDENSER
FAN RELAY

RADIATOR
FAN
MOTOR

CONDENSER
FAN MOTOR

INPUT SIGNAL

ENGINE
COOLANT
TEMPERATURE
SENSOR

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

ENGINE
CONTROL
MODULE

JOINT
CONNECTOR
(CAN3)

JOINT
CONNECTOR
(CAN2)

INPUT SIGNAL

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

ASC-ECU

INPUT SIGNAL

A/C SWITCH

A/C-ECU

JOINT
CONNECTOR
(CAN1)

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

ETACS-ECU

AB

Radiator Fan and Condenser Fan Drive Circuit <M/T>
