AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-65

ON-VEHICLE SERVICE

CRUISE CONTROL SWITCH CHECK

M1172001200537

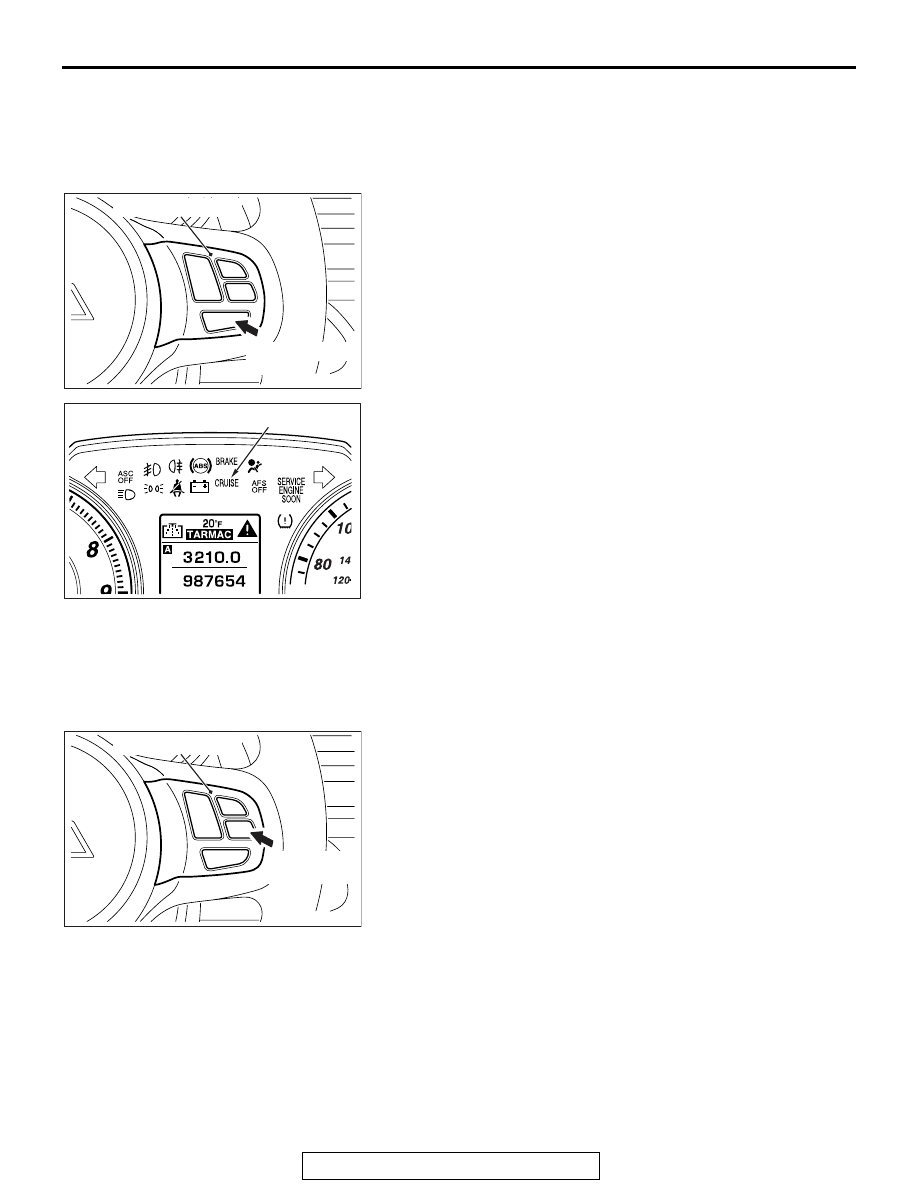

CRUISE CONTROL "ON/OFF" SWITCH CHECK

CANCEL

ACC

RES

ON

OFF

COAST

SET

AC708694 AC

Cruise control switch

"ON/OFF" switch:
"ON"

AC708693AB

"CRUISE" indicator light

1. Check that the "CRUISE" indicator light within the

combination meter illuminates when the "ON/OFF" switch is
switched "ON".

2. Press the "ON/OFF" switch again, and check that the

"CRUISE" indicator light within the combination meter goes
out.

 CRUISE CONTROL SETTING

1. Switch the "ON/OFF" switch to "ON".
2. Drive at the desired speed, above approximately 40 km/h

(25 mph).

CANCEL

ACC

RES

ON

OFF

COAST

SET

AC708694 AD

Cruise control switch

"COAST/SET"
switch

3. Push the "COAST/SET" switch.
4. Check to be sure that cruise control is activated when the

"COAST/SET" switch is released.
NOTE: If the vehicle speed decreases to approximately 15
km/h (9 mph) below the set speed because of climbing a hill
for example, it is normal for the cruise control to be can-
celled. When the vehicle speed becomes approximately 40
km/h (25 mph) or less, driving at constant speed will be can-
celled even if the vehicle speed does not decrease approxi-
mately 15 km/h (9 mph) or more.

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-66

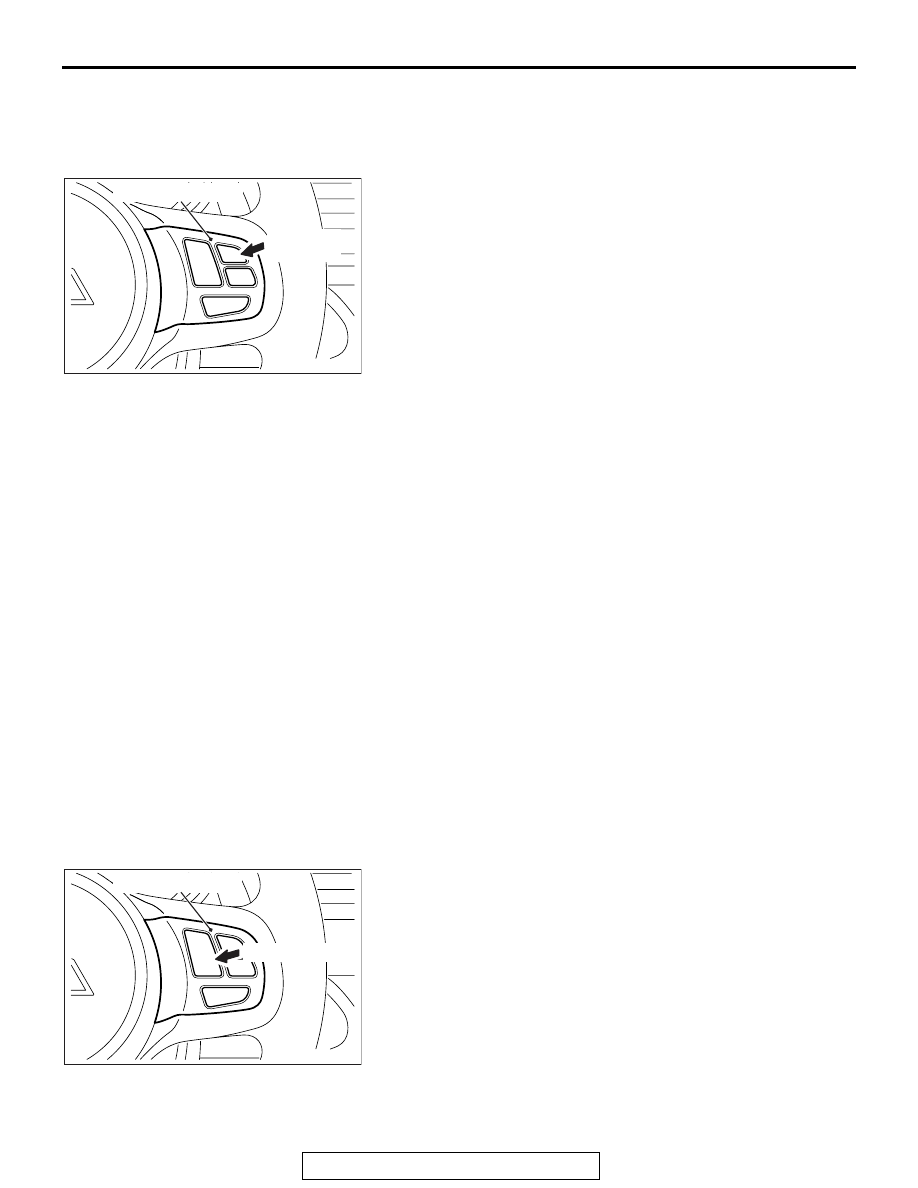

SPEED-INCREASE SETTING

1. Switch the "ON/OFF" switch to "ON".
2. Set to the desired speed, above approximately 40 km/h (25

mph).

CANCEL

ACC

RES

ON

OFF

COAST

SET

AC708694 AE

Cruise control switch

"ACC/RES"
switch

3. Push the "ACC/RES" switch.
4. Check to be sure that acceleration continues while the

"ACC/RES" switch is pushed, and that the speed at the time
it was released becomes the constant driving speed.
NOTE: Acceleration can be continued even if the vehicle
speed has passed the high-speed limit [approximately 200
km/h (125 mph)]. But the constant driving speed when the
"ACC/RES" switch is released will be recorded as the
high-speed limit.

SPEED-REDUCTION SETTING

1. Switch the "ON/OFF" switch to "ON".
2. Set to the desired speed, above approximately 40 km/h (25

mph).

3. Push the "COAST/SET" switch.
4. Check to be sure that deceleration continues while the

"COAST/SET" switch is pushed, and that the speed at the
time it was released becomes the constant driving speed.
NOTE: When the vehicle speed reaches the low limit
[approximately 40 km/h (25 mph)] during deceleration, the
auto-cruise control will be cancelled.

RETURN TO THE SET SPEED BEFORE
CANCELLATION AND CRUISE CONTROL
CANCELLATION

1. Switch the "ON/OFF" switch to "ON".
2. Set to the desired speed, above approximately 40 km/h (25

mph).

3. When any of the following operations are performed while at

constant speed during auto-cruise control, check if normal
driving is resumed and deceleration occurs.

CANCEL

ACC

RES

ON

OFF

COAST

SET

AC708694 AF

Cruise control switch

"CANCEL" switch

(1) The "CANCEL" switch is pushed.
(2) The brake pedal is depressed.

4. At a vehicle speed of approximately 40 km/h (25 mph) or

higher, check if when the "ACC/RES" switch is pushed, the
vehicle speed returns to the speed before auto-cruise
control driving was cancelled, and constant speed driving
occurs.

5. When the "ON/OFF" switch is switched to "OFF" while

driving at constant speed, check if normal driving is resumed
and deceleration occurs.

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-67

CRUISE CONTROL SYSTEM COMPONENT
CHECK

M1172001700941

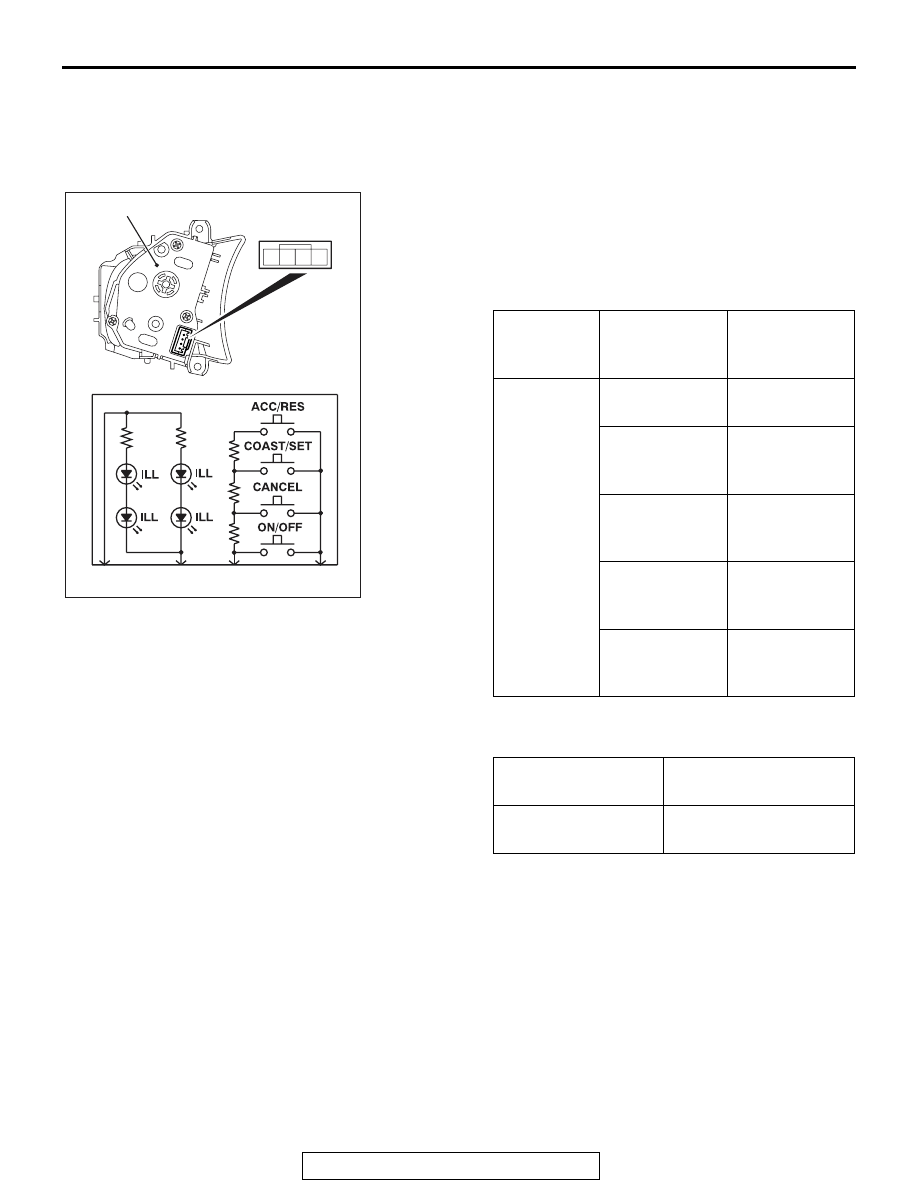

CRUISE CONTROL SWITCH CHECK

1. Remove the cruise control switch (Refer to

P.17-69

).

AC709075

2

1

3

4

1 2 3 4

AB

Cruise control switch

2. Measure the resistance between terminal number 2 and

terminal number 3 when each of the "ON/OFF", "CANCEL",
"COAST/SET" and "ACC/RES" switches is pressed. If the
values measured at the time each switch is pressed
correspond to those in the table below, the resistance values
are correct.

Terminal
connector
of tester

Switch
position

Specified
condition

2

− 3

All switches are
released.

Open circuit

"ON/OFF"
switch is
pressed

Continuity (less
than 2 ohms)

"CANCEL"
switch is
pressed

202.5 - 208

Ω

"COAST/SET"
switch is
pressed

610.5 - 624.5

Ω

"ACC/RES"
switch is
pressed

1838 - 1877

Ω

3. Check for continuity between the between terminal number

1 and terminal number 4 of the cruise control switch.

Terminal connector
of tester

Specified condition

1

− 4

Continuity (less than 2
ohms)

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-68

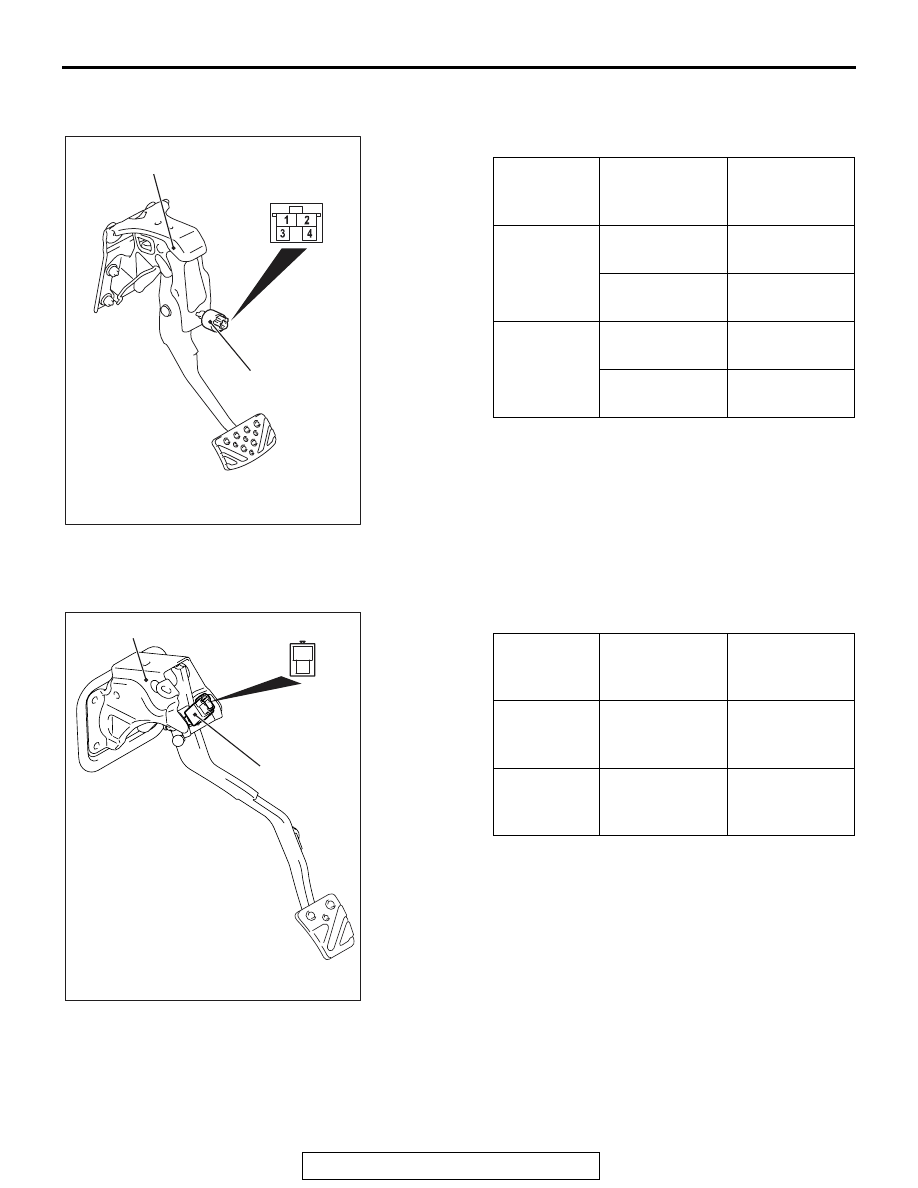

STOPLIGHT SWITCH CHECK

1. Disconnect the stoplight switch harness connector.

AC709112AB

Brake pedal assembly

Stoplight switch

2. Check for continuity between the terminals of the switch.

Measureme
nt condition

Terminal
connector of
tester

Specified
condition

When brake
pedal is
depressed.

1

− 2 (for

stoplight switch)

Continuity (less
than 2 ohms)

3

− 4 (for brake

switch)

Open circuit

When brake
pedal is not
depressed.

1

− 2 (for

stoplight switch)

Open circuit

3

− 4 (for brake

switch)

Continuity (less
than 2 ohms)

CLUTCH SWITCH CHECK <M/T>

1. Disconnect the clutch switch harness connector.

AC709123

1
2

Clutch pedal assembly

Clutch switch

AB

2. Check for continuity between the terminals of the switch.

Measureme
nt condition

Terminal
connector of
tester

Specified
condition

When clutch
pedal is
depressed.

1

− 2

Continuity (less
than 2 ohms)

When clutch
pedal is not
depressed.

1

− 2

Open circuit

THROTTLE ACTUATOR CONTROL MOTOR
CHECK

Refer to GROUP 13A, On-vehicle Service

− Throttle Actuator

Control Motor Check

P.13A-911

.
