AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-57

CAUTION

• If there is any problem in the CAN bus lines, an incor-

rect DTC may be set. Prior to this diagnosis, diagnose
the CAN bus lines.

• Whenever the ECM is replaced, ensure that the CAN

bus lines are normal.

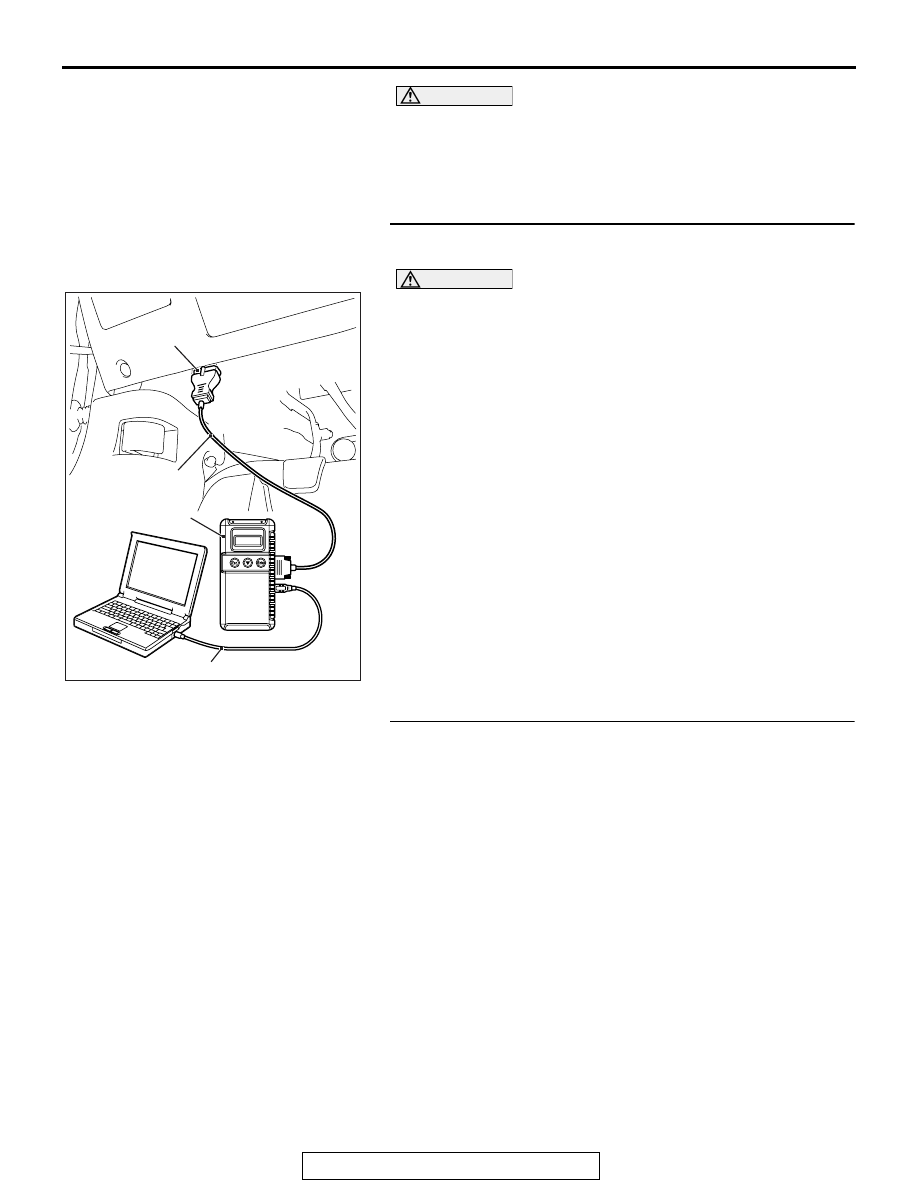

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-10

).

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line (Refer to

P.17-10

).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is the check result satisfactory?

YES : Go to Step 2
NO :  Repair the CAN bus lines (Refer to GROUP 54C,

Diagnosis

− Can Bus Diagnostic Chart

P.54C-14

).

Then go to Step 6.

STEP 2. Using scan tool MB991958, check for MFI system
DTC.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-10

).

(2) Turn the ignition switch to the "ON" position.
(3) Check for MFI system DTC (Refer to GROUP 13A,

Diagnosis

− Diagnostic Function

P.13A-9

).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is DTC U0141 set?

YES : Refer to GROUP 13A, Diagnosis, Diagnostic Trouble

Code Procedures

− DTC U0141: ETACS-ECU CAN

Communication Time Out

P.13A-727

. Then go to Step

6 .

NO :  Go to Step 3.

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-58

STEP 3. Using scan tool MB991958, check for ETACS
system DTC.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-10

).

(2) Turn the ignition switch to the "ON" position.
(3) Check for ETACS system DTC (Refer to GROUP 54A,

ETACS, Troubleshooting

− Diagnostic Function

P.54A-579

).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is DTC U0155 set?

YES : Refer to GROUP 54A, ETACS, Troubleshooting,

Diagnostic Trouble Code Procedures

− DTC U0155:

Combination Meter-ECU CAN Communication Time
Out

P.54A-601

. Then go to Step 6.

NO :  Go to Step 4.

STEP 4. Using scan tool MB991958, check the combination
meter system data list item F7: Cruise control indicator.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-10

).

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to data reading mode for

combination meter system item F7: Cruise control indicator
(Refer to GROUP 54A, Combination Meter

− Data List

Reference Table

P.54A-78

).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
(5) Disconnect scan tool MB991958.
Q: Is the check result satisfactory?

YES : Go to Step 5.
NO :  Repair the combination meter system (Refer to

GROUP 54A, Combination Meter, Troubleshooting,
Symptom Procedures

− Inspection Procedure 5: The

combination meter light does not illuminate normally
or the multi information display is not displayed
normally

P.54A-72

). Then go to Step 6 .

STEP 5. Retest the system.
Q: Does the "CRUISE" indicator light illuminate when the

"ON/OFF" switch is turned ON?
YES : It can be assumed that this malfunction is intermittent

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the ECM [Refer to GROUP 13A, Engine

Control Module (ECM)

P.13A-920

]. When the ECM is

replaced, register the encrypted code (Refer to
GROUP 42C, Diagnosis

− ID Code Registration

Judgment Table

P.42C-9

). Then go to Step 6.

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-59

STEP 6. Retest the system.
Q: Does the "CRUISE" indicator light illuminate when the

"ON/OFF" switch is turned ON?
YES : The procedure is complete.
NO :  Return to Step 1.

DATA LIST REFERENCE TABLE

M1172002401106

CAUTION

• Driving tests always need two people: one driver and one observer.
• When shifting the shift lever to "D" range the brakes should be applied so that the vehicle does

not move forward.

NOTE: *:After the inspection is completed, disconnect the TP sensor connector, and then delete the DTC
using scan tool MB991958 (Refer to GROUP 13A, Diagnostic Function

−

 How to Read and Erase Diagnostic

Trouble Code

P.13A-9

).

Scan tool
display

Item
num
ber

Inspection item

Inspection requirement

Normal condition

APP sensor
(main)

11

Accelerator pedal
position sensor (main)

Ignition
switch:
"ON"

Accelerator pedal: Released

900

− 1,100 mV

Accelerator pedal: Gradually
depressed

Increases in
response to the
pedal depression
stroke

Accelerator pedal: Fully
depressed

4,000 mV or more

Brake light
switch

74

Stoplight switch

Brake pedal: Depressed

ON

Brake pedal: Released

OFF

Cancel code

57

Cancel code

Ignition switch: "ON"

The cancel code,
which set when the
cruise control
system was
cancelled at the
last time.

Cancel switch 75

Cruise
control
switch

CANCEL "CANCEL" switch: Pressed

ON

"CANCEL" switch: Released

OFF

Clutch switch 78

Clutch switch <M/T>

Clutch pedal: Depressed

ON

Clutch pedal: Released

OFF

Cruise control 81

Cruise control system
operation

Cruise control system: active

ON

Cruise control system: Inactive

OFF

Main switch

86

Cruise
control
switch

ON/OFF

"ON/OFF" switch: Pressed

ON

"ON/OFF" switch: Pressed again

OFF

Neutral
switch

87

Shift lever position
<TC-SST>

Shift lever: "N", "P", "R" position

ON

Shift lever: Other than "N", "P", "R"
position

OFF

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-60

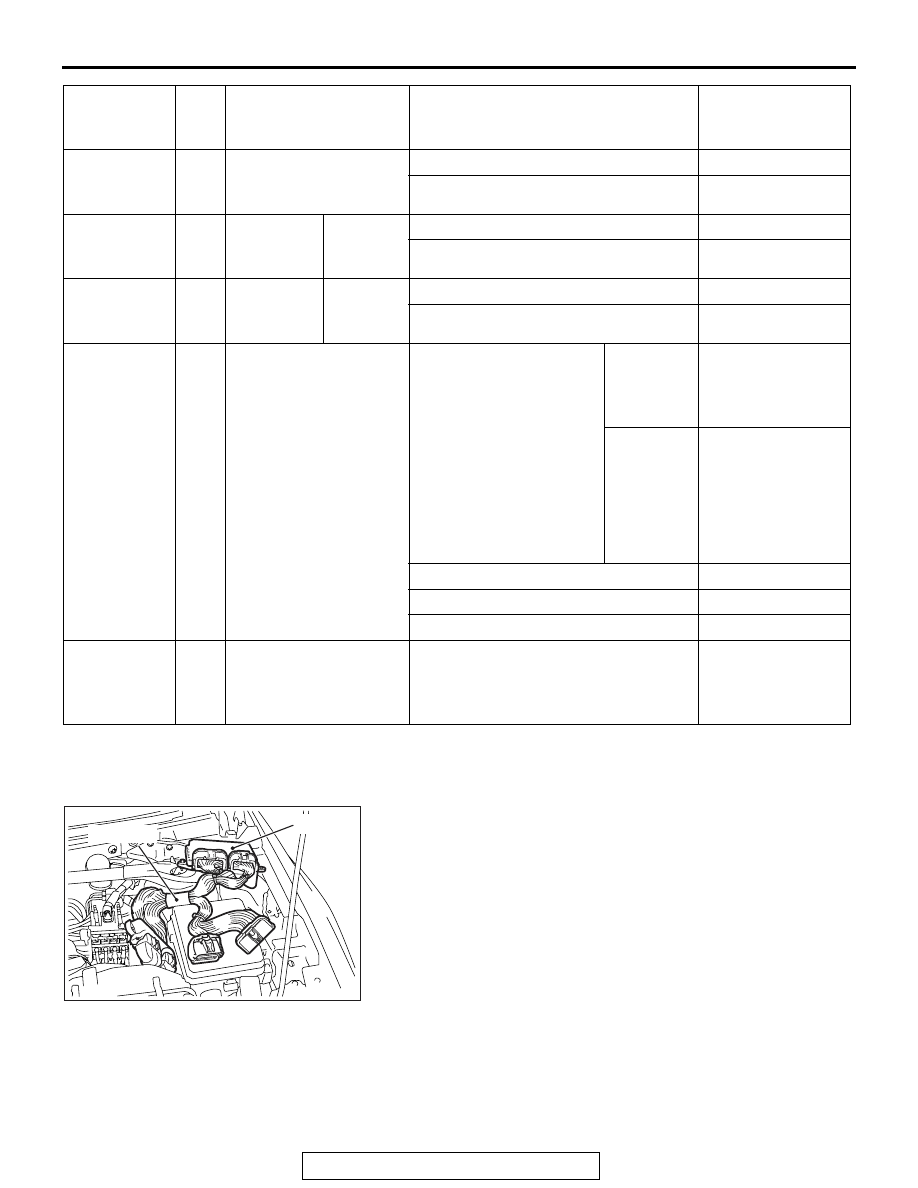

ECM TERMINAL VOLTAGE REFERENCE CHART
FOR CRUISE CONTROL SYSTEM OPERATION

M1172002700858

AC709324 AB

MB992110

ECM

1. Disconnect all ECM connectors, and connect special tool

MB992110 (Power plant ECU check harness) in between.

2. Measure the voltages between the check connector

terminals of special tool MB992110 and ground terminals 81
or 93.

Normally
closed brake
switch

89

Stoplight switch (brake
switch)

Brake pedal: Depressed

ON

Brake pedal: Released

OFF

Resume
switch

91

Cruise
control
switch

ACC/RES "ACC/RES" switch: Pressed

ON

"ACC/RES" switch: Released

OFF

Set switch

92

Cruise
control
switch

COAST/S
ET

"COAST/SET" switch: Pressed

ON

"COAST/SET" switch: Released

OFF

TP sensor
(main)

13

Throttle position sensor
(main)*

• Remove the intake air

hose at the throttle
body.

• Disconnect the TP

sensor connector, and
then connect terminals
3, 4, 5 and 6 with the
use of the special tool:
MB991658 (Test
harness).

• Ignition switch: "ON"

Fully close
the throttle
valve with
your finger

300

− 700 mV

Fully open
the throttle
valve with
your finger

4,000 mV or more

No load

500

− 660 mV

A/C switch: "OFF" to "ON"

Voltage rises

Shift lever: "N" to "D"

Voltage rises

Vehicle speed 4

Vehicle speed signal

Road test the vehicle

The speedometer
and scan tool
MB991958 display
the same value.

Scan tool
display

Item
num
ber

Inspection item

Inspection requirement

Normal condition
