SERVICE SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL

11A-3

SERVICE SPECIFICATIONS

M1112000301389

Connecting rod
noise/main bearing
noise

Insufficient oil supply

Check the engine oil level.

Thin or diluted engine oil

Change the engine oil.

Excessive bearing clearance

Replace the bearings.

SYMPTOMS

PROBABLE CAUSE

REMEDY

Item

Standard value

Limit

Drive belt tension

Vibration frequency Hz
(Reference)

98

− 124

−

Tension N (lb) (Reference) 248

− 400 (56 −

90)

−

Valve clearance (at cold) mm (in)

Intake valve

0.20

± 0.03

(0.008

± 0.0012)

−

Exhaust valve

0.03

± 0.03

(0.012

± 0.0012)

−

Basic ignition timing at idle

5

° BTDC ± 3°

−

Actual ignition timing at curb idle

Approximately
10

°  BTDC

−

CO contents %

0.5 or less

−

HC contents   ppm

100 or less

−

Curb idle speed   r/min

700

± 100

−

Compression pressure (200 r/min)   kPa (psi)

1,090 (158)

Minimum 650
(95)

Compression pressure difference of all cylinder   kPa (psi)

−

100 (14)

Intake manifold vacuum at curb idle   kPa (in Hg)

−

Minimum 60 (18)

SEALANTS

TSB Revision

ENGINE MECHANICAL

11A-4

SEALANTS

M1112000501242

Item

Specified sealant

Rocker cover (matching area of the cylinder head and the timing
chain case assembly)

Three bond 1217G (Mitsubishi Genuine
Part No.1000A923), Three bond 1227D

Engine oil pan

Three bond 1217G (Mitsubishi Genuine
Part No.1000A923), Three bond 1227D,
Three bond 1207F (Mitsubishi Genuine
Part No.MD970389), LOCTITE 5971,
LOCTITE 5970, LOCTITE 5900

Flywheel bolt

Three bond 1324 or equivalent

Crankshaft rear oil seal case

Three bond 1227D, LOCTITE 5971

Cylinder head gasket (matching area of the cylinder block and
the cylinder head)

Three bond 1217G (Mitsubishi Genuine
Part No.1000A923)

Timing chain case assembly

Three bond 1217G (Mitsubishi Genuine
Part No.1000A923)

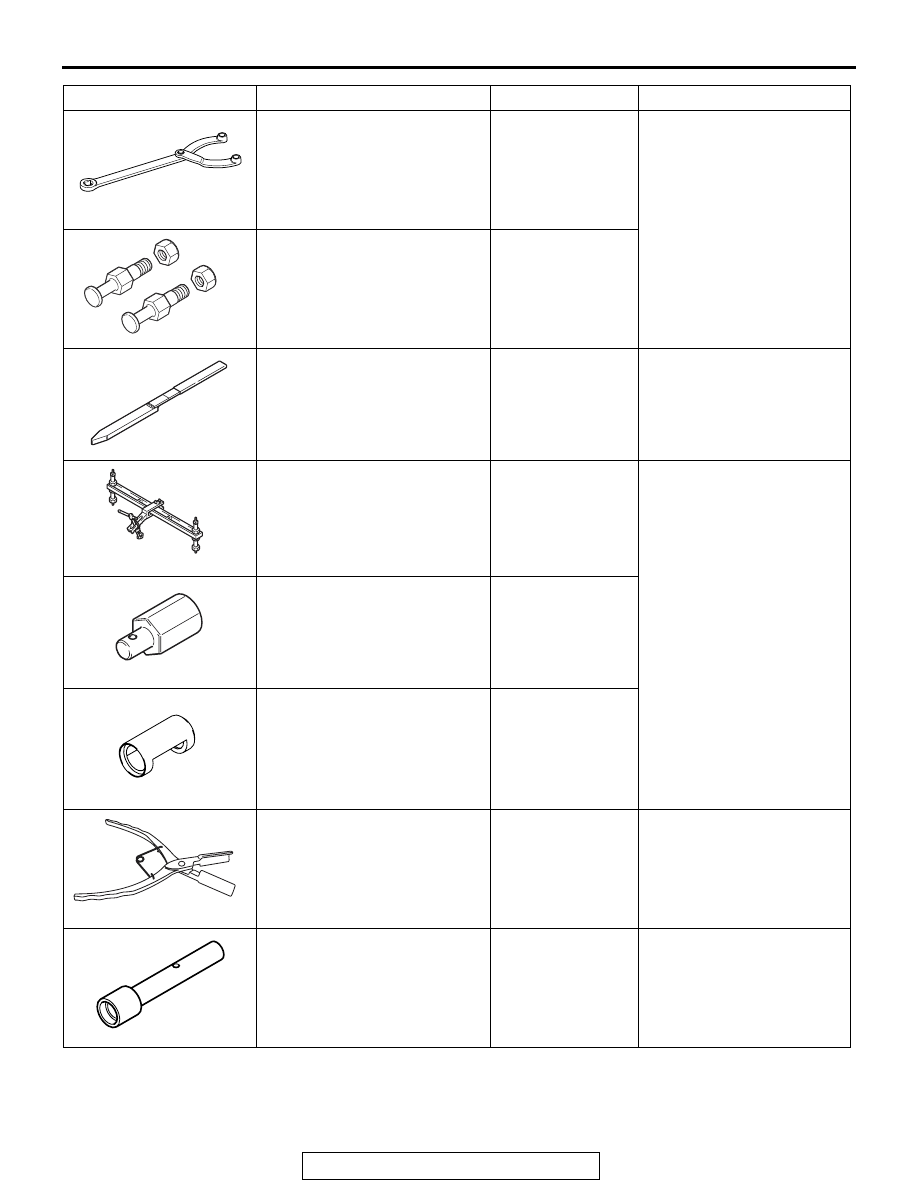

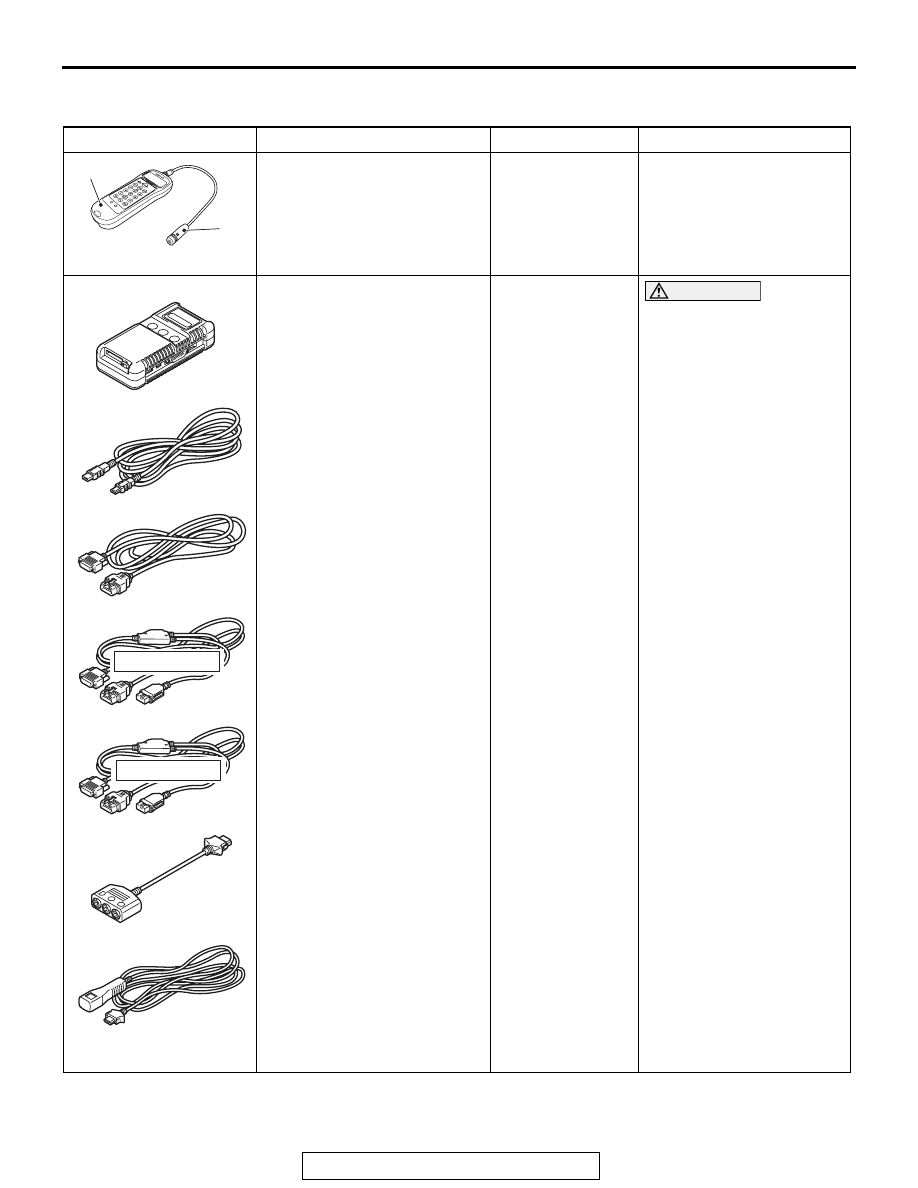

SPECIAL TOOLS

TSB Revision

ENGINE MECHANICAL

11A-5

SPECIAL TOOLS

M1112000601926

Tool

Tool number and name

Supersession

Application

MB992080
Belt tension meter set

a: MB9912081

Belt tension meter

b: MB992082

Mic assembly

Tool not available

Drive belt tension
(frequency) measurement

MB991958
Scan tool (M.U.T.-III sub
assembly)

a: MB991824

Vehicle communication
interface (V.C.I.)

b: MB991827

M.U.T.-III USB cable

c: MB991910

M.U.T.-III main harness A
(Vehicles with CAN
communication system)

d: MB991911

M.U.T.-III main harness B
(Vehicles without CAN
communication system)

e: MB991914

M.U.T.-III main harness C
(for Daimler Chrysler
models only)

f: MB991825

M.U.T.-III adapter harness

g: MB991826

M.U.T.-III trigger harness

MB991824-KIT
NOTE: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

CAUTION

For vehicles with CAN
communication, use
M.U.T.-III main harness A
to send simulated vehicle
speed. If you connect
M.U.T.-III main harness B
instead, the CAN
communication does not
function correctly.

• Standard ignition timing

check

• Idle speed check

B992080

a

b

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

SPECIAL TOOLS

TSB Revision

ENGINE MECHANICAL

11A-6

MB990767
Front hub and flange yoke
holder

MB990767-01

Holding the camshaft
sprocket

MD998719
Pin

MIT308239

MB992103
Chain tension release bar

−

Camshaft and camshaft
sprocket assembly
(exhaust side) removal

MD998772
Valve spring compressor

General service
tool

Valve spring compression

MB992090
Retainer holder attachment

−

MB992089
Retainer holder C

−

MB992085
Valve stem seal pliers

−

Valve stem seal removal

MD998737
Valve stem seal installer

MD998737-01

Valve stem seal
press-fitting

Tool

Tool number and name

Supersession

Application

B990767

D998719

B992103

MD998772

B992090
