AKX00764AG

Rivet sink

Torsion spring

CLUTCH RELEASE CYLINDER

TSB Revision

CLUTCH OVERHAUL

21B-7

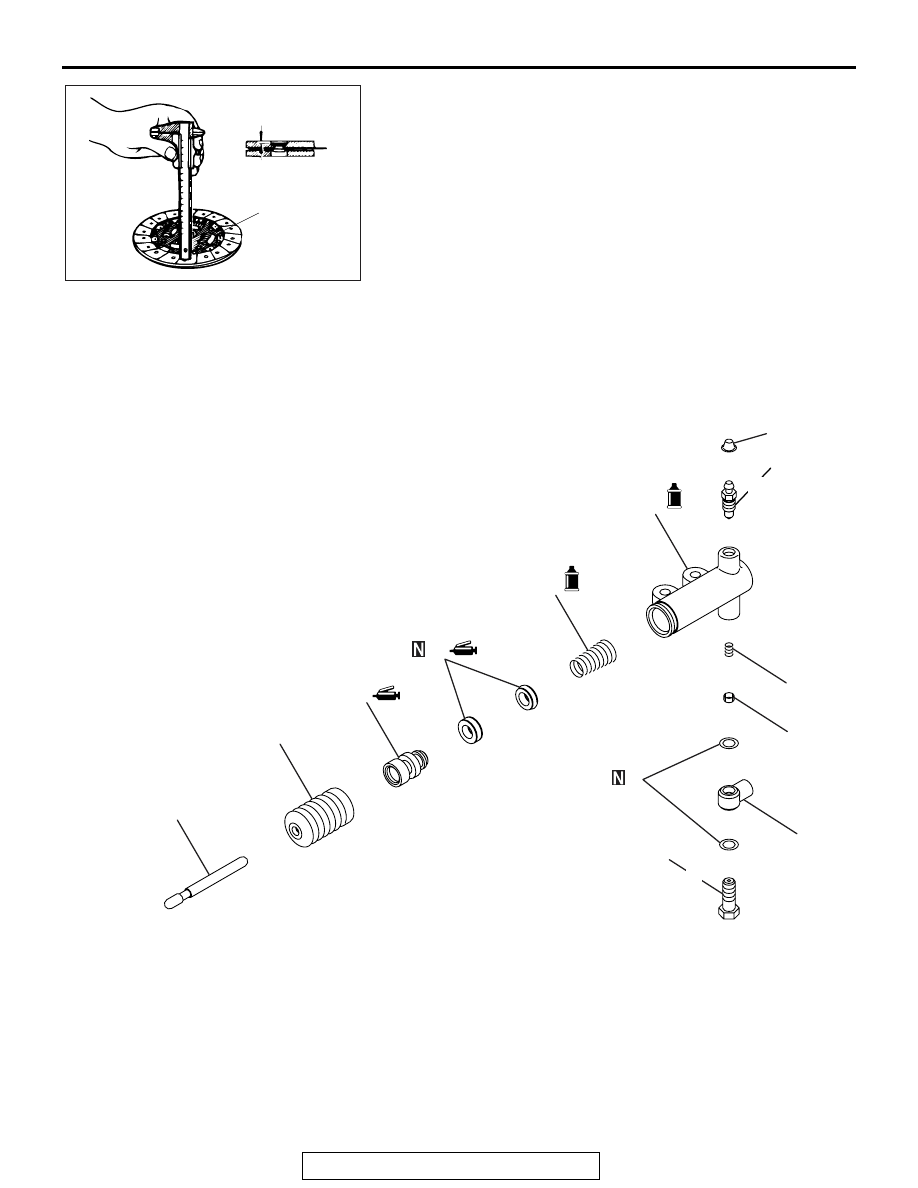

2. Measure the rivet sink. Replace the clutch disc if it is below

the limit.

Minimum limit: 0.3 mm (0.012 inch)

3. Check the torsion spring for play and damage. If defective,

replace the clutch disc.

4. Place the clutch disc on the input shaft and check for sliding

condition and play in the rotating direction. If poor sliding
condition is evident, clean, reassemble, and recheck.
If excessive play is evident, replace the clutch disc and/or
input shaft.

CLUTCH RELEASE CYLINDER

DISASSEMBLY AND ASSEMBLY

M1212001500539

AK702336

AC

1

4

5

6

7

9

8

10

11

12

13

2

3

22 ± 2 N·m
16 ± 1 ft-lb

11 ± 1 N·m
97 ± 8 in-lb

DISASSEMBLY STEPS

1. Cap
2. Air breather
3. Union bolt
4. Union
5. Gasket

>>B<<

6. Valve plate

>>B<<

7. Valve plate spring

8. Push rod
9. Boot

<<A>> >>A<<

10. Piston

<<A>> >>A<<

11. Piston cup
12. Conical spring
13. Release cylinder

DISASSEMBLY STEPS

CLUTCH RELEASE CYLINDER

TSB Revision

CLUTCH OVERHAUL

21B-8

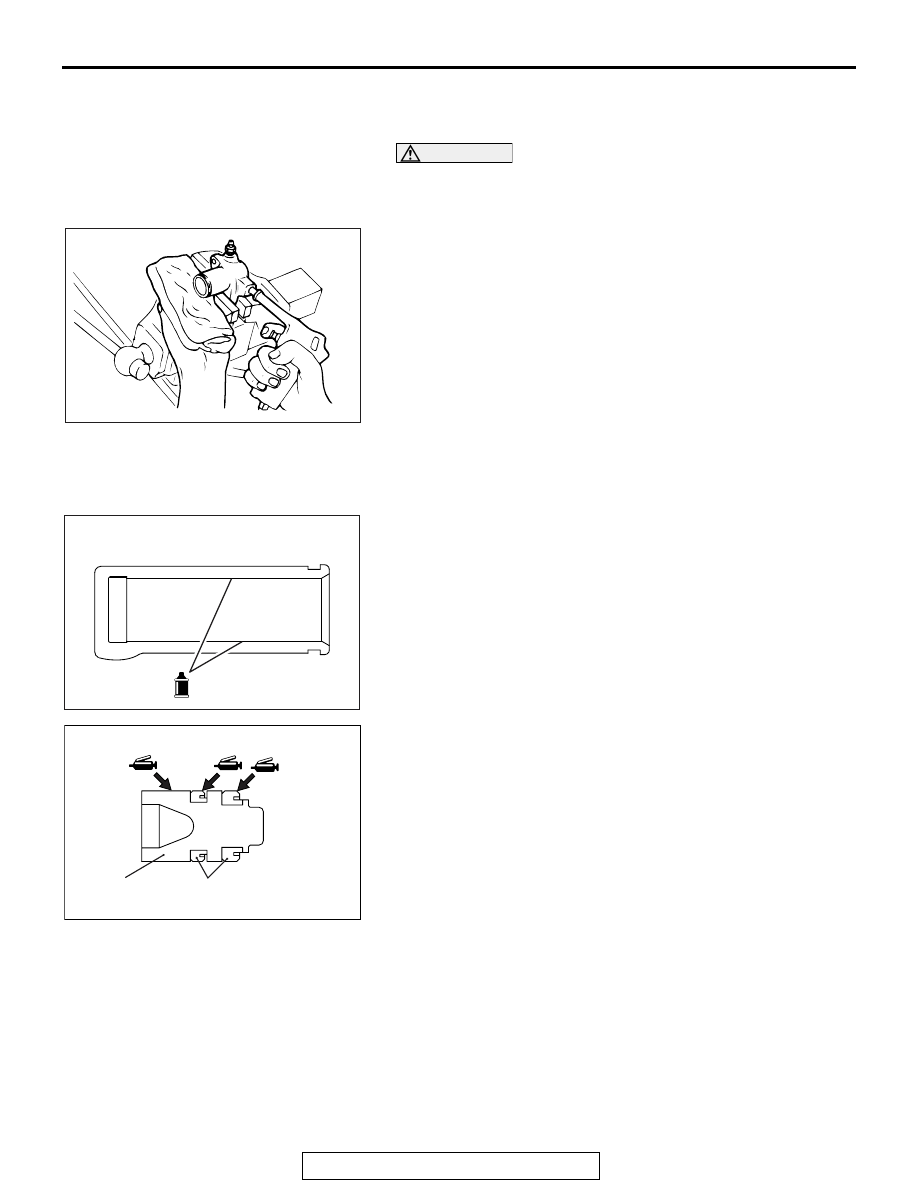

DISASSEMBLY SERVICE POINT

.

<<A>> PISTON / PISTON CUP REMOVAL

CAUTION

Covering with a shop towel or the like, apply compressed
air slowly to prevent the piston from popping up and brake
fluid from splashing.

AK102083

Using compressed air, remove the piston assembly from the
release cylinder.

ASSEMBLY SERVICE POINT

.

>>A<< PISTON CUP / PISTON INSTALLATION

AK704100AC

1. Apply brake fluid to the entire inner surface of the release

cylinder.

Specified brake fluid:

Brake fluid DOT 3 or DOT 4

AK203875 AE

Piston

Piston cup

2. Apply grease to the piston and piston cups and insert the

piston assembly into the release cylinder.

Specified grease:

Rubber grease

.

CLUTCH RELEASE CYLINDER

TSB Revision

CLUTCH OVERHAUL

21B-9

>>B<< VALVE PLATE SPRING / VALVE PLATE
INSTALLATION

AK201696AH

Valve plate spring

Release cylinder

Valve plate

Install the valve plate spring and valve plate into place with the
large end of the spring to the valve plate side.

INSPECTION

M1212001600387

.

RELEASE CYLINDER

1. Check the bore of the release cylinder for rust, scratches or

damage.

2. Using a cylinder gauge, measure the inside diameter of the

release cylinder at about three positions (the deepest,
middle and brim positions). If the clearance from the outside
diameter of the piston exceeds the limit, replace the release
cylinder as an assembly.

Limit: 0.15 mm (0.006 inch)
