Mitsubishi Evolution X. Manual - part 143

SYSTEM CONSTRUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-27

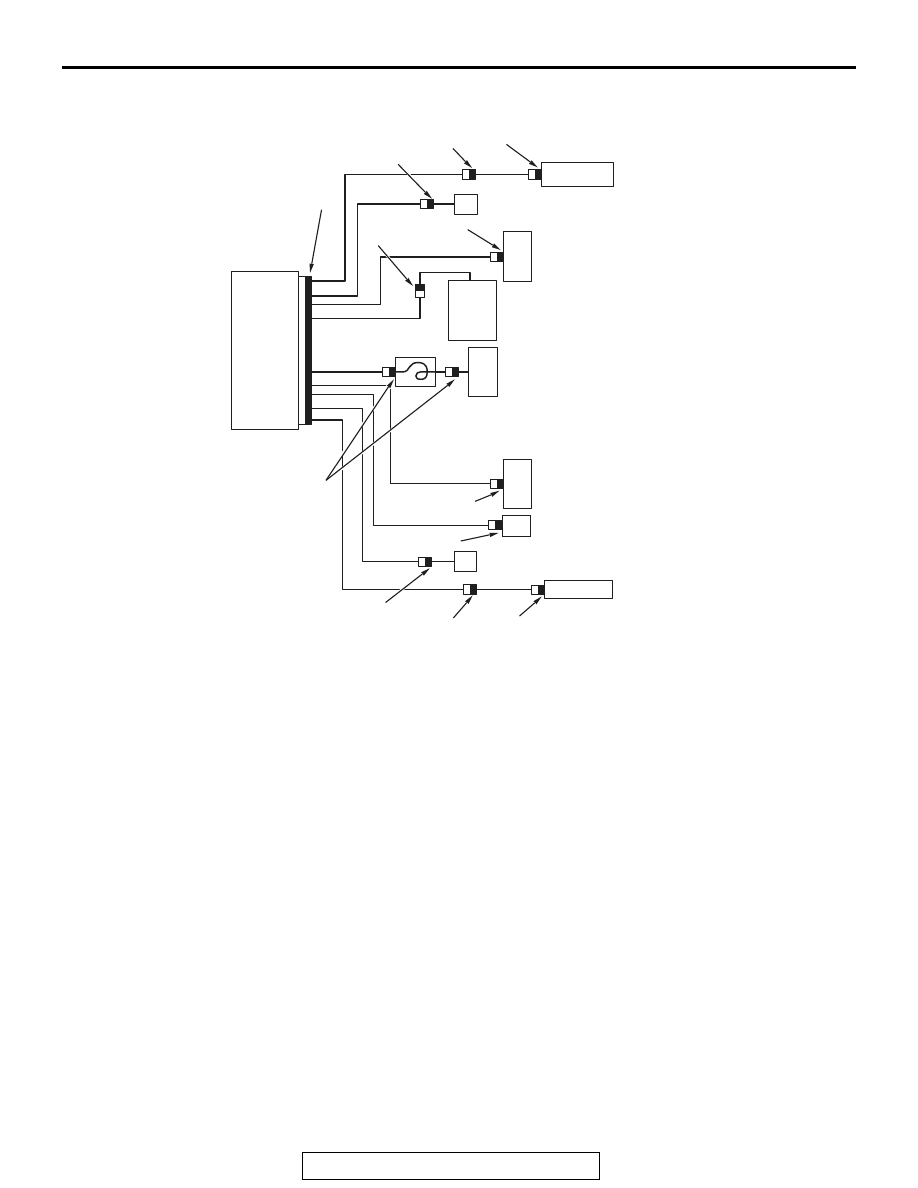

SRS AIR BAG SPECIAL CONNECTOR

M2521009000574

.

To enhance the system reliability, a connector short
circuiting mechanism is integrated in the SRS-ECU
connector, air bag module connectors, clock spring
connector, pre-tensioner connectors, and intermedi-
ate connector between curtain air bag module and
SRS-ECU (black connector "A" shown in the figure).

.

AC607646 AD

SRS-ECU

A

A

A

A

A

A

A

A

A

A

Clock spring

Side-airbag module (RH)

Seat belt with pre-tensioner (LH)

Side-airbag module (LH)

Seat belt with pre-tensioner (RH)

Passenger's (front) air bag module

Driver's air bag module

Curtain air bag module (RH)

Curtain air bag module (LH)

Driver's knee air bag module

A

A

SYSTEM CONSTRUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-28

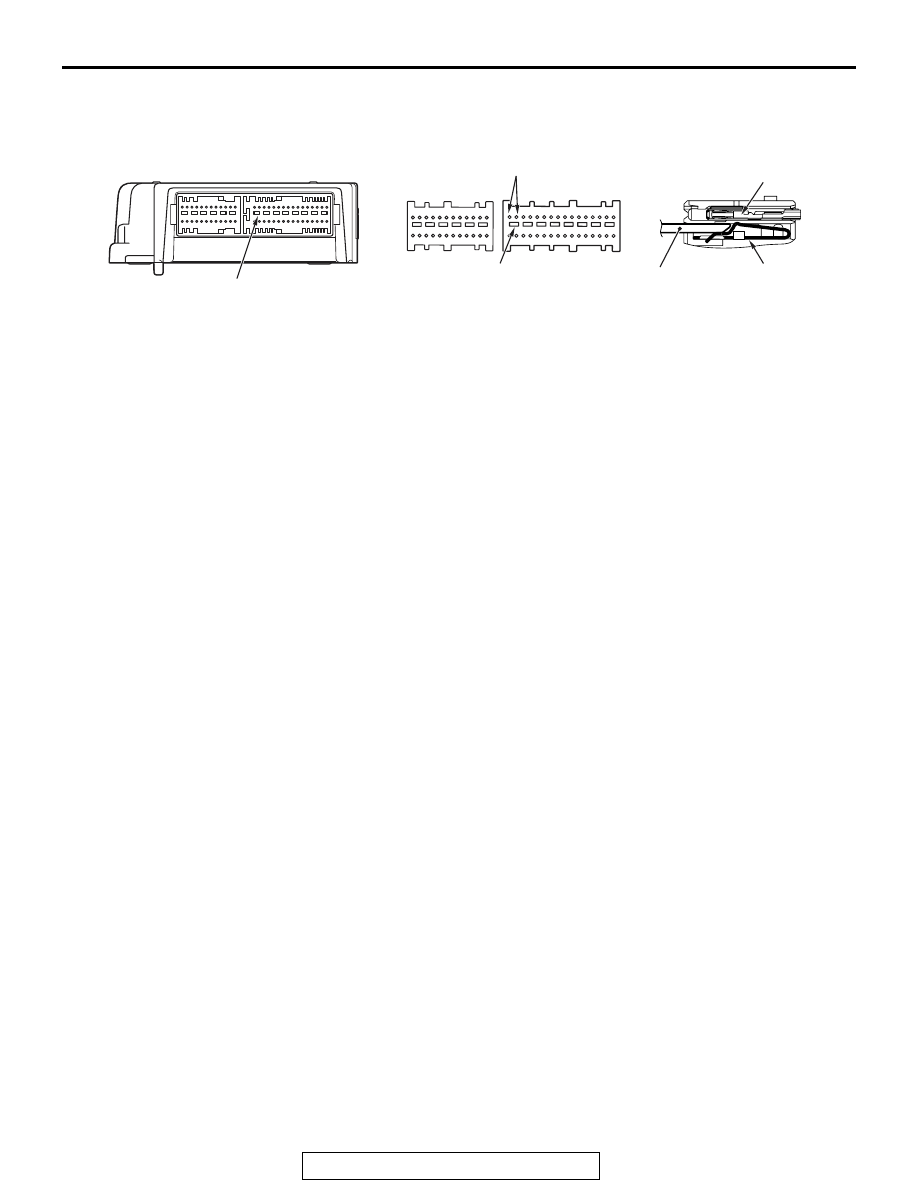

CONNECTOR SHORT-CIRCUIT MECHANISM

This mechanism prevents the improper deployment
of air bag module because of the current application
to the squib due to the static electricity when connec-
tors between SRS-ECU and air bag modules
(squibs) are disconnected. When the connector is
disconnected, the short spring short circuits the
power supply side terminal and ground side terminal
of squibs, and prevents the static electricity from
generating the potential difference. This connector
mechanism is adopted for the following connectors.

• SRS-ECU connector

• Connector between the clock spring and

body-side wiring harness

• Each air bag module connector

• Each pre-tensioner connector

• Intermediate connector between curtain air bag

module and SRS-ECU

AC507316

SRS-ECU connector

AC

Partition panel
(SRS-ECU-side
connector)

Partition panel

Wiring harness-side connector
(terminal to short-circuit)

Short spring

Short spring
(wiring harness-side
connector)

Connector connected

Wiring harness-side connector

Terminal to short-circuit

22A-1

GROUP 22A

MANUAL

TRANSAXLE

CONTENTS

MANUAL TRANSAXLE . . . . . . . . . . .

22A-2

GENERAL INFORMATION. . . . . . . . . . . . .

22A-2

INFORMATION OF CONSTRUCTION



AND OPERATION  . . . . . . . . . . . . . . . . . . .

22A-4

TRANSAXLE CONTROL . . . . . . . . . .

22A-5

GENERAL INFORMATION. . . . . . . . . . . . .

22A-5

SUPER ALL WHEEL CONTROL



(S-AWC)  . . . . . . . . . . . . . . . . . . . . . . .

22A-5

GENERAL INFORMATION . . . . . . . . . . . . .

22A-5

INFORMATION OF CONSTRUCTION



AND OPERATION. . . . . . . . . . . . . . . . . . . .

22A-6

CONTROL OVERVIEW. . . . . . . . . . . . . . . .

22A-8

DIAGNOSTIC FUNCTION. . . . . . . . . . . . . .

22A-11

MANUAL TRANSAXLE

TSB Revision

MANUAL TRANSAXLE

22A-2

MANUAL TRANSAXLE

GENERAL INFORMATION

M2222000200012

For the manual transaxle, newly developed W5M6A
has been adopted. The transaxle offers the following
features.

• The width of each gear tooth is increased to

achieve the high torque capacity suitable for
4B11 engine. At the same time, the increase of
transaxle length is kept minimum, securing the
same length as the conventional 6-speed tran-
saxle.

• The synchronization mechanism from 1st to 5th

gear has been multi-synchronized to improve the
durability.

.

SPECIFICATION

.

Item

Specification

Transaxle model

W5M6A

Transaxle type

5-speed forward, 1-speed reverse constant mesh

Gear ratio

1st

2.857

2nd

1.950

3rd

1.444

4th

1.096

5th

0.761

Reverse

2.892

Final gear ratio

4.687

Helical gear LSD (front differential)

Present

Transfer

Reduction
ratio

0.302

Differential
gear unit

Hydraulic pressure multiplate clutch (ACD)

Transmission oil

Brand

Mitsubishi genuine Dia-Queen new multi gear oil SAE 75W-80
(GL-3)

Capacity
dm

3

2.5

Transfer oil

Brand

Mitsubishi genuine Dia-Queen LSD Gear Oil

Capacity
dm

3

0.8

AWC control fluid

Brand

Mitsubishi genuine Dia-Queen ATF SPIII

Capacity
dm

3

1.0 (Hydraulic pipe section)
